1. Architectural Topology & Core Positioning of Vertiv NetSure 531 A41

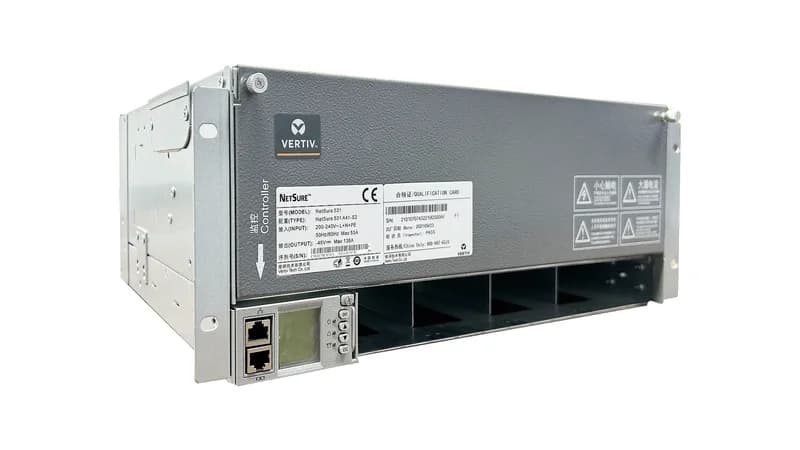

The Vertiv NetSure 531 A41 is a compact, high-reliability embedded DC power supply system engineered specifically for telecom access networks, FTTH optical distribution hubs, edge computing enclosures, and cellular base transceiver stations. Designed with a subrack form factor occupying 3U to 5U depending on distribution options, it fits standard 19-inch equipment racks and delivers a stable nominal -48V DC bus with a maximum continuous output capacity of 120A.
Modern telecom access sites face stringent constraints regarding cabinet thermal headroom, structural footprint, and battery backup autonomy. NetSure 531 A41 addresses these operational demands through high power density, full front-access cabling, modular hot-swappable rectifiers, and intelligent multi-stage battery management.
Nominal DC Output: -48V DC (floating regulation range -42V to -58V DC)
Maximum System Capacity: 120A (supports N+1 modular redundancy)
Chassis Form Factor: Standard 19-inch rack-mount with complete front-access cabling
Rectifier Compatibility: Optimized for Vertiv eSure R48-2000e3 and legacy R48-2000 modules
2. Electrical Parameters, Bus Architecture & Rectifier Coordination
The NetSure 531 A41 subrack integrates an AC distribution unit, DC distribution breakers, supervisory controller slot, and 3 to 4 modular rectifier bays. The primary power conversion is handled by Vertiv eSure R48-2000e3 high-efficiency switch-mode rectifiers boasting peak thermodynamic conversion efficiencies exceeding 96.2%, while maintaining full backward compatibility with older R48-2000A hardware.
Centralized supervision is managed via M221S or M530S controllers featuring CAN bus internal communications and RS485/SNMP northbound network telemetry. The system monitors individual rectifier load sharing, ambient temperature compensation, lithium/lead-acid charge profiles, and dual low-voltage disconnects (LLVD and BLVD) to safeguard critical traffic.
AC Input Voltage Window: 85V to 300V AC (linear derating below 176V AC down to 85V AC)
Peak Energy Efficiency: >96.2% when loaded with R48-2000e3 rectifiers
Battery Protection Scheme: Dual/triple battery circuit breakers with thermal compensation
Load Shedding Management: Independent LLVD and BLVD shedding circuits to extend critical runtime
3. Brownfield Migration & Legacy Power Subrack Replacement
Across global carrier infrastructures, legacy Emerson PS48120/1800, NetSure 211, and third-party 48V subracks have surpassed their 10-year design lifespan. Aging electrolytic capacitors, obsolete serial protocols, and elevated thermal dissipation jeopardize continuous service availability. Replacing aging units with NetSure 531 A41 delivers immediate efficiency and reliability dividends.
Mechanical chassis depth, mounting ear brackets, and busbar landing patterns of the NetSure 531 A41 are engineered to directly replace legacy subracks in standard 600mm telecom cabinets. Transitioning live loads can be accomplished without service disruption via planned stage-by-stage cutovers.
Direct drop-in replacement for Emerson PS48120, NetSure 211, and NetSure 501 series
Optimized Cabling: Top or lateral breakout channels prevent mechanical stress on cables
Smart Lithium Battery Synergy: Native communication integration with 48V LiFePO4 BMS racks
Thermal & OPEX Gains: Reduces site heat dissipation and cuts overall power losses by 8% to 12%
4. Procurement Pitfalls, Quality Assurance & Counterfeit Detection
Due to robust aftermarket demand for Vertiv components, procurement teams frequently encounter refurbished, re-labeled, or assembled knockoff chassis. Substandard subracks often utilize undersized copper busbars, counterfeit surge protection devices (SPDs), or salvaged backplanes, introducing catastrophic fire hazards.
Rigorous engineering incoming inspection must verify several physical indicators: first, inspect the laser-etched nameplate and OEM holographic barcode labeling; second, open the front shroud to ensure Class C 20kA/40kA surge arrestors carry authentic manufacturer stamps; third, verify genuine gold plating on the blind-mate backplane connectors.
Nameplate & Serial Traceability: Cabinet chassis serial, controller MAC, and packing slip triple match
Backplane Pin Integrity: Blind-mate connectors show no re-soldering, bent pins, or signs of overheating
Surge Protection Quality: Genuine SPD windows display clear green operational status
Burn-in Validation: Full-load thermal soak testing confirms busbar temperature rise delta <= 35K
5. Engineering Support & Global Inventory Availability
RICEWIND maintains extensive inventory reserves of authentic Vertiv subrack power systems, high-efficiency eSure rectifiers, and genuine spare components. Every unit undergoes rigorous insulation resistance verification, full-load burn-in testing, and multi-protocol telemetry calibration prior to dispatch.
For complete NetSure 531 A41 electrical schematics, CAD dimensional outlines, batch inspection records, or specialized telecom power configurations, contact our senior application engineering group: Email: lee@ricewind.com | Global Engineering Hotline: +86 17621197907.
Authentic Stock Availability: Ready inventory for NetSure 531 A41, A31, A61, and eSure modules
Comprehensive Testing Protocols: Hi-pot insulation, full thermal load test, and telemetry validation
Export Shockproof Packaging: Heavy-duty wooden crates compliant with international transport standards
Technical Consultation: Dedicated assistance with AC/DC PDU topology, breaker sizing, and cable drops
