1. Gold Finger Edge Connector Physical Layout and Electrical Definition

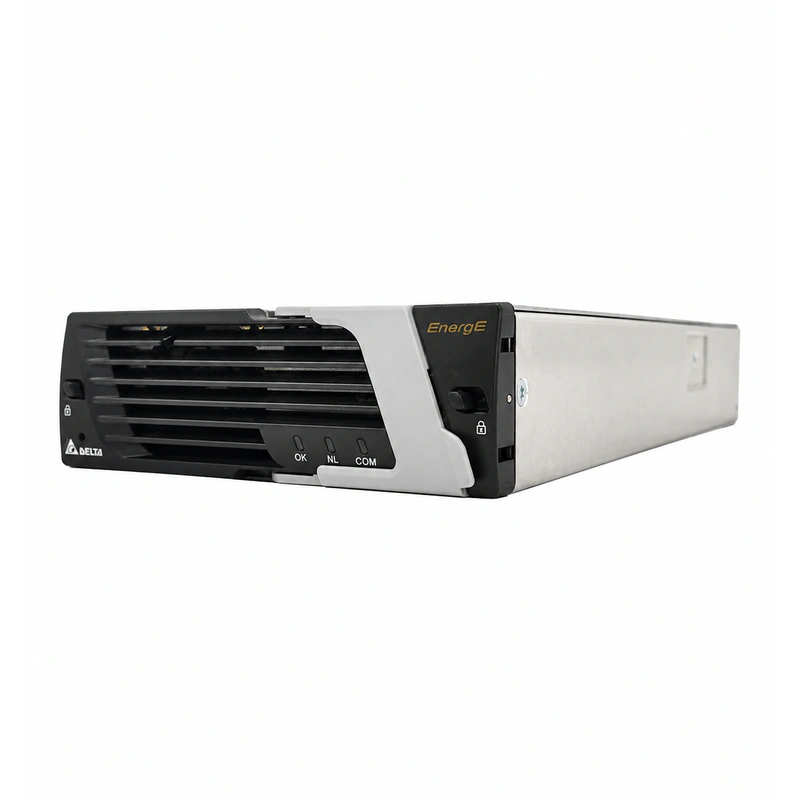

High-frequency telecom rectifier modules utilize heavy-duty blind-mate edge connectors combining AC mains input, -48V high-current DC output, and low-voltage signal circuits. The standard 1U blade interface is physically partitioned into three distinct operational functional zones:
AC High Voltage Input Area: Live (L) and Neutral (N) power pins rated for 300V AC with internal fast-blow protection. PE safety ground connects to structural chassis pins.
High-Current DC Output Area: OUT+ (-48V RTN) acts as common positive ground reference plane, while OUT- (-48V NEG) delivers up to 50A/75A continuous current via parallel contact blades.
Low-Voltage Signal & Bus Area: Critical logic pins include CAN_H (Pin 1) and CAN_L (Pin 2) differential communication bus lines (125 kbps), Address pins (Addr0~Addr2), and hardware Enable (ON_OFF) control lines.
2. Standalone Startup Jumpers and Bench Testing Procedures
When powering a rectifier outside a subrack chassis (such as ETP48400 frames), the module defaults to unmanaged standby lock. Bench test procedures require exact jumper configuration:
Insulation Resistance Pre-Check: Verify insulation resistance R_iso ≥ 20MΩ between AC input (L/N) and DC terminals (OUT+/OUT-) using a 500V digital megohmmeter.
Hardware Enable Jumper: Bridge the Enable (ON_OFF) pin to signal ground GND with a 1kΩ resistor or direct short, pulling internal optocoupler cathode low.
Power-On Self-Test (POST): Connect AC supply through an isolation transformer. Observe internal fan spinning up at maximum speed for 3 seconds before stabilizing at low-noise idle, with green power LED turning solid ON.
3. CAN 2.0B Protocol Commands and Precision Voltage Tuning
In customized applications such as LiFePO4 battery charging curves or variable bench power supplies, digital CAN 2.0B commands provide millivolt-level precision without analog potentiometer drift:
Bus Physical Termination: Terminate CAN differential lines with 120Ω resistors at each end to prevent high-frequency signal reflections. Set industrial USB-to-CAN transceiver to 125 kbps baud rate.
Heartbeat & Keep-Alive Frames: Broadcast cyclic keep-alive packets every 1000ms. If communication drops for over 30 seconds, modules automatically revert to default safe float voltage (53.5V).
Voltage Command Syntax (Extended 29-bit CAN ID): Send frame ID
0x1081407Fwith command payload:[Byte 0: 0x01] [Byte 1: 0x00] [Byte 2-3: Target mV in Hex] [Byte 4-7: Reserved]. Setting output to 48.00V corresponds to 48000 mV (0xBB80).Dynamic Current Limiting: Transmit parameter code
0x01to set maximum output current limit continuously between 5A and 50A for battery protection.
4. Multi-Module Parallel Current Sharing Troubleshooting Criteria
When multiple rectifiers are installed in parallel along a common DC copper busbar, load current imbalance must not exceed standardized tolerances:
Current Sharing Imbalance Formula: Current Imbalance % = |Individual Module Current - Average Module Current| / Rated Module Current * 100%. Under 50% to 100% nominal load, imbalance must stay ≤ 5%.
Contact Resistance and Drop Check: Inspect gold finger connector blades for oxidation or fretting wear. A micro-ohm difference of just 5mΩ across contacts creates several amperes of current asymmetry under heavy load.
CAN Address Conflict Resolution: Ensure hardware address jumpers or slot ID positions do not collide on the multidrop communication bus.
