Vertiv R48-2000A3 Telecom Rectifier Module Professional Selection and Engineering Replacement Guide (2026)

1. Product Architecture and Electrical Topology Specifications

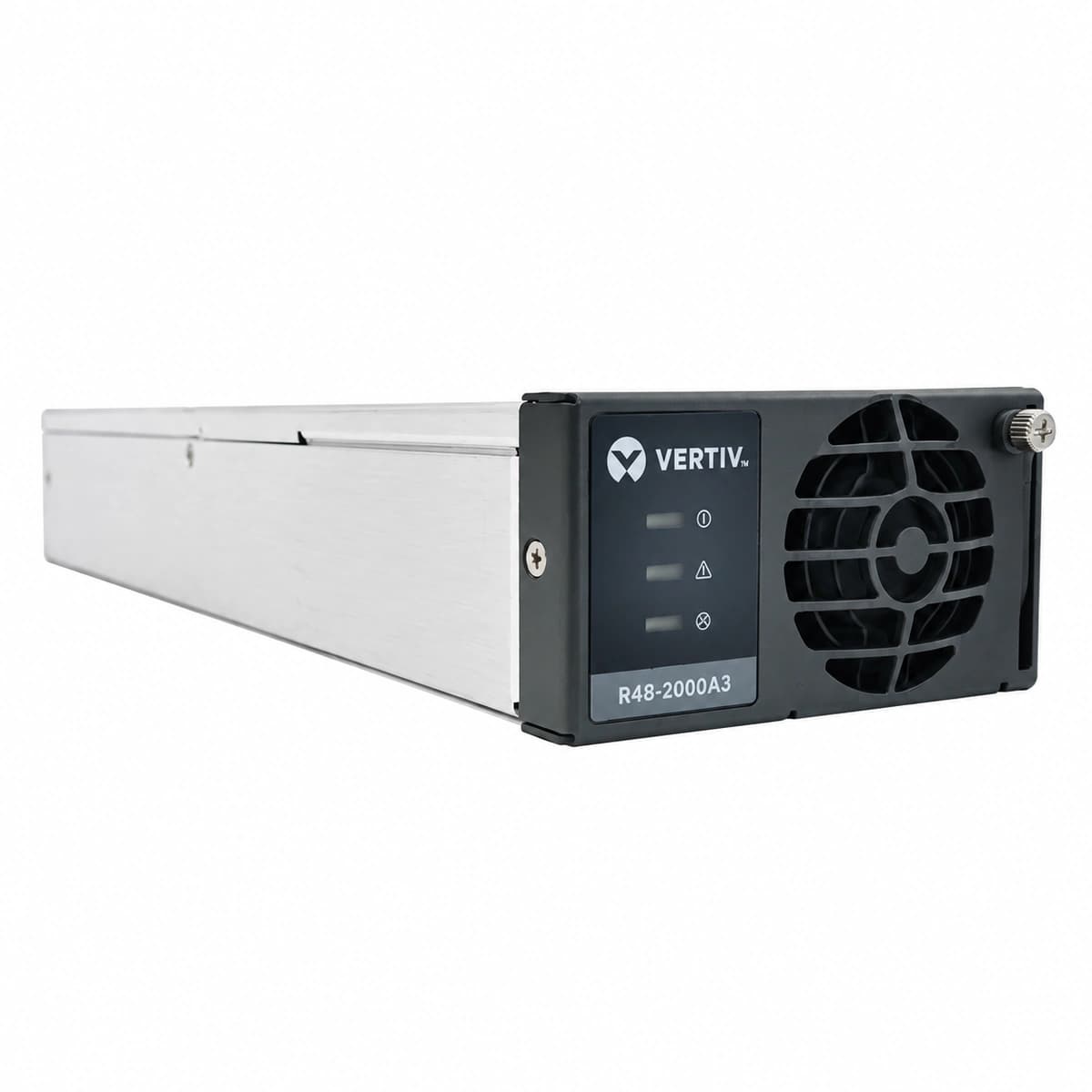

The Vertiv (formerly Emerson Network Power) R48-2000A3 stands as one of the most reliable and widely deployed 1U switched-mode rectifier modules across global telecommunication networks and enterprise IT infrastructure. Engineered for critical DC power distribution, it delivers a nominal output of -48V DC (adjustable from -42V to -58V DC), a rated output current of 40A (peak limit 41.7A), and a continuous output capacity of 2000W, achieving peak conversion efficiency between 92% and 93%.

At its electrical core, the R48-2000A3 integrates active power factor correction (APFC) and resonant soft-switching topology. Its ultra-wide single-phase AC input window spans from 85VAC to 290VAC. Between 176VAC and 290VAC, the module sustains 100% full-rated 2000W output. When input voltage drops into the 85VAC to 176VAC undervoltage bracket, the embedded DSP controller enforces linear power derating to prevent AC overcurrent stress, ensuring rock-solid survivability in harsh, fluctuating grid environments.

Equipped with advanced digital signal processing (DSP), the rectifier executes tight voltage regulation and active current sharing with an imbalance margin of less than 5%. Integrated hardware-level safeguards encompass overvoltage shutdown latching, undervoltage auto-recovery, thermal overload rollback, and output short-circuit hiccup protection.

• Rated Output Parameters: Nominal -48V DC, 40A rated load, 2000W continuous output capacity

• AC Input Window: 85VAC to 290VAC (full power at 176VAC-290VAC; linear derating at 85VAC-176VAC)

• Power Quality: Power Factor PF >= 0.99, Total Harmonic Distortion THD <= 5%

• Conversion Performance: Peak efficiency >= 92.5%, standby parasitic power <= 4W

2. Subrack Chassis Topology, Bus Communications, and Mechanical Form Factor

Built in a standard 1U compact chassis measuring 40.8mm (H) x 132mm (W) x 287mm (D), the R48-2000A3 is purpose-built for high-density power shelves. The rear interface utilizes a blind-mating gold-finger connector block that consolidates AC input, DC positive/negative busbars, CAN bus/RS485 communication pins, active current-share interlinks, and module presence sense lines, delivering true hot-swappable serviceability without electrical arcing.

In terms of chassis compatibility, the R48-2000A3 serves as the core power engine for Vertiv NetSure 211 embedded systems (such as NetSure 211 C12 and NetSure 211 C46) and NetSure 212 series (such as NetSure 212 C23). It maintains backward mechanical and pinout compatibility with legacy Emerson PS48120/1800 and PS48300 subracks.

For central telemetry and energy management, the unit natively communicates via proprietary CAN and RS485 protocols. It interfaces directly with M221S, M222S, M500D, NCU, and ACU supervisory controllers to report real-time AC voltage, DC load current, heatsink temperature, fan tachometer pulses, and fault logs, while responding dynamically to centralized float and equalize voltage commands.

• Target Subrack Compatibility: NetSure 211 C12-S1, NetSure 212 C23-S2, legacy PS48120-2/1800 shelves

• Supervisory Controller Support: Vertiv M221S, M222S, M500D, NCU series controllers

• Rear Connector Form: Industrial blind-mate card edge gold-finger with anti-arcing pre-charge pins

• Thermal Management: Front-to-back forced air cooling with temperature-controlled stepless fan

3. Legacy Retrofit Replacement and Capacity Expansion Pathways

Modernization projects frequently encounter end-of-life Emerson R48-1800 and R48-1800A rectifiers requiring urgent replacement. The R48-2000A3 provides a direct 1:1 form-fit-function replacement, preserving identical shelf slot pitch and electrical connector geometry while boosting modular capacity to 40A per slot to enhance power headroom without structural alterations.

For facilities targeting tighter PUE goals, the R48-2000A3 can be upgraded in-place to the ultra-efficient R48-2000e3 (>=96% efficiency) or higher-density units like the R48-3200e and R48-3500e3. When executing gradual migrations, avoid permanent passive parallel mixing of disparate efficiency generations; if temporary mixed operation is unavoidable, ensure controller firmware is updated to enable active load balancing.

In emergency scenarios where the host supervisory controller fails or is disconnected, the R48-2000A3 features autonomous stand-alone fallback. In the absence of CAN bus heartbeats, the module defaults automatically to an internally calibrated 53.5V DC output, ensuring uninterrupted operation for connected mission-critical telecommunications loads.

• Direct Retrofit Matching: Seamless physical and electrical drop-in for legacy Emerson R48-1800/1800A

• High-Efficiency Upgrade: Direct path to NetSure R48-2000e3 ultra-high efficiency modules

• Autonomous Standalone Mode: Failsafe default to 53.5V DC when supervisory bus communication drops

• Electrical Infrastructure Check: Verify AC breaker sizing and DC distribution busbar ampacity before scaling

4. Quality Verification, Anti-Counterfeiting, and Official Engineering Procurement

Given the substantial installed base of the R48-2000A3 worldwide, the secondary market contains numerous repainted units, salvaged boards, and counterfeit copies. Buyers must inspect the side chassis laser-etched or thermal transfer serial plate: serial numbers must match the internal DSP electronic label (E-Label) queried via the controller.

Examine the rear gold-finger contacts thoroughly. Salvaged and poorly refurbished units display copper wear, severe scratches, oxidation, or thermal discoloration from loose slot sockets, whereas genuine units feature pristine, uniform gold plating with clean chamfered mating edges. Inside the chassis, inspect high-voltage electrolytic capacitors and PFC inductors for unauthorized resoldering or flux residue.

Every Vertiv R48-2000A3 supplied by RICEWIND undergoes rigorous automated test validation, including 48-hour continuous burn-in at 50 degrees Celsius full load, surge withstand testing, contact resistance profiling, and digital telemetry verification. We maintain comprehensive ready-to-ship inventory with global logistics dispatch.

For enterprise project quotations, compatibility verification, and immediate stock allocation, contact our technical team: Email: lee@ricewind.com Tel/WhatsApp: +86 17621197907

• Serial Number Validation: Chassis label SN must match digital electronic label in controller memory

• Gold-Finger Integrity: Reject units with eroded, tarnished, or mechanically gouged contact fingers

• Capacitor Health & Solder: Verify original Japanese/top-tier industrial capacitors without leakage or swelling

• Direct Engineering Contact: Inquire via lee@ricewind.com or +86 17621197907 for verified stock
