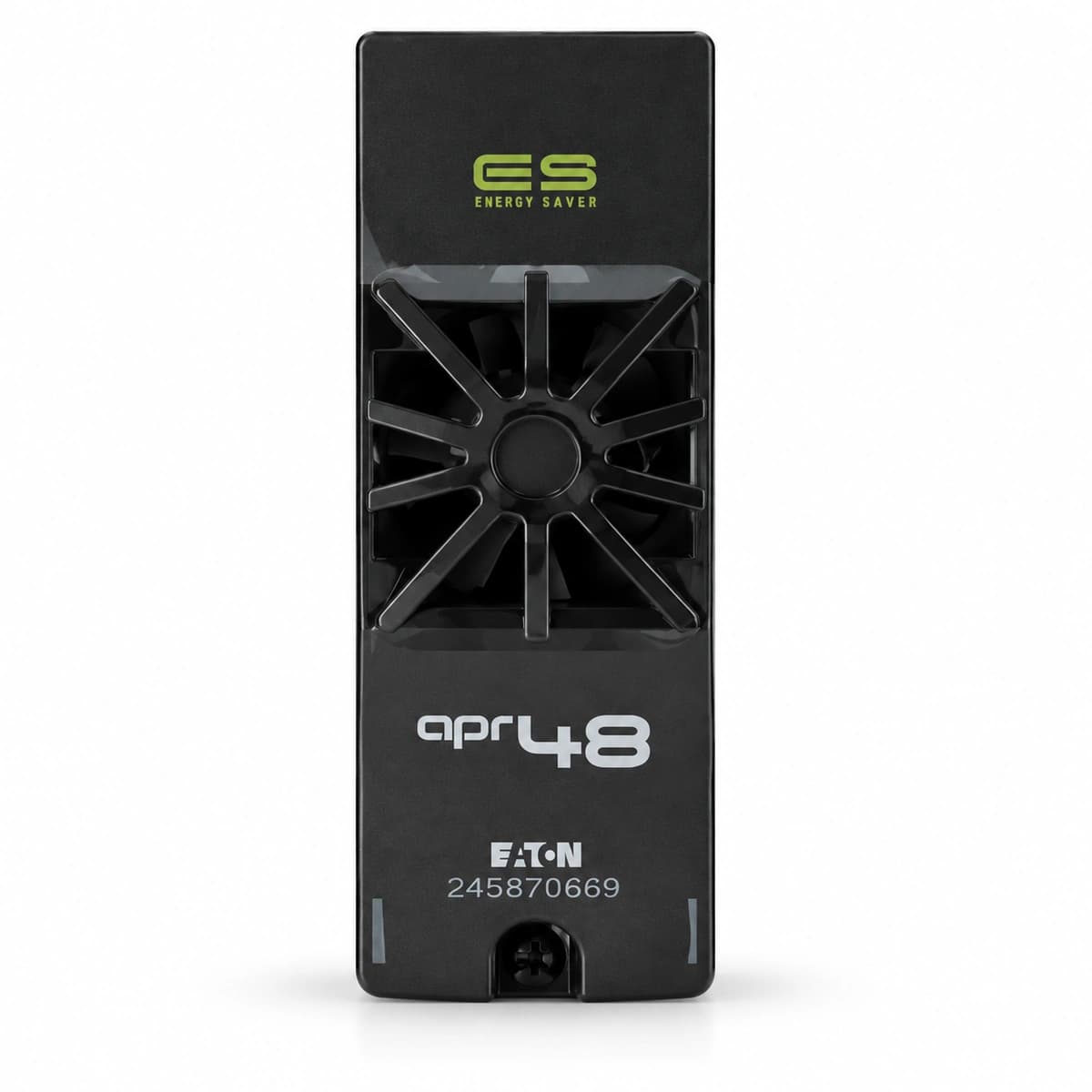

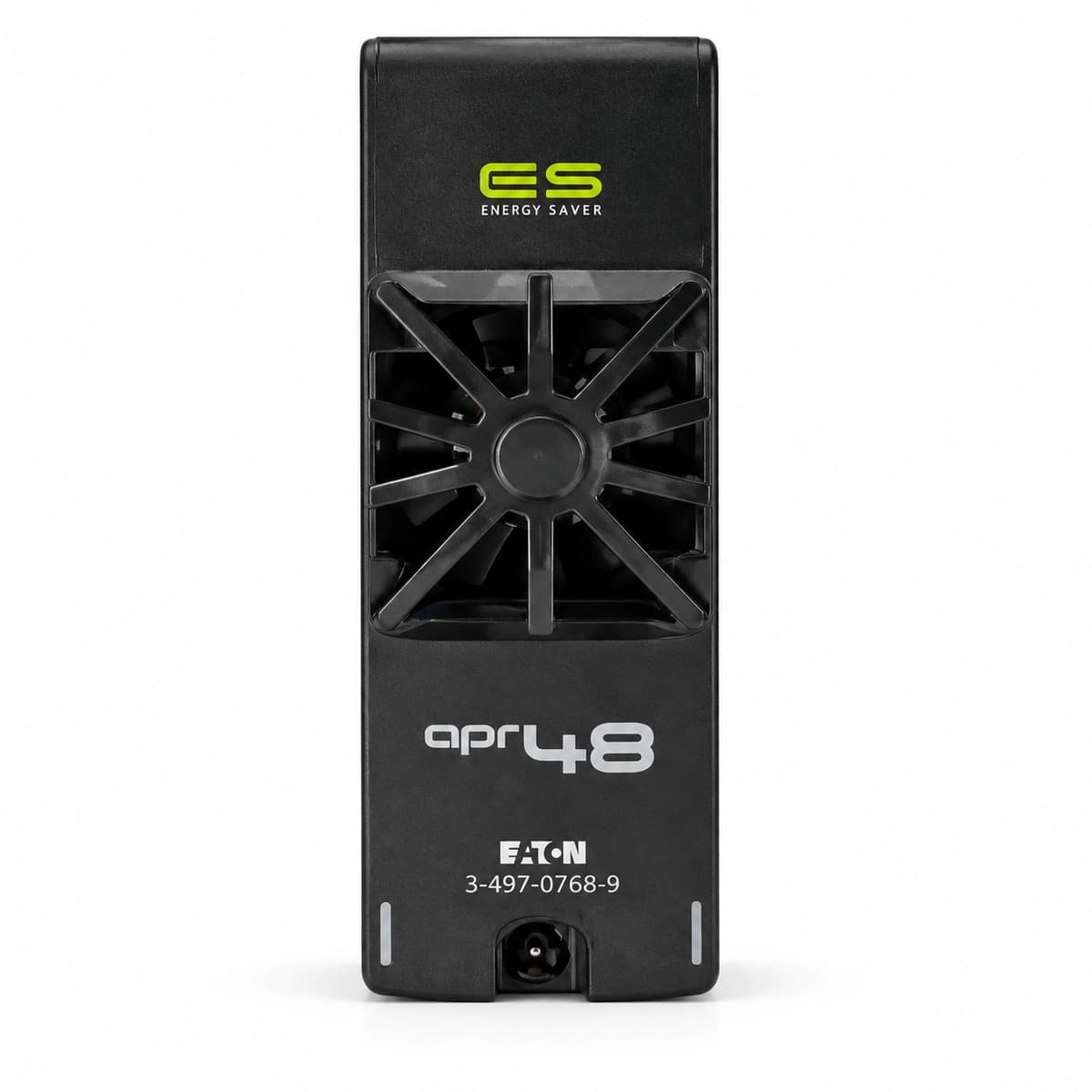

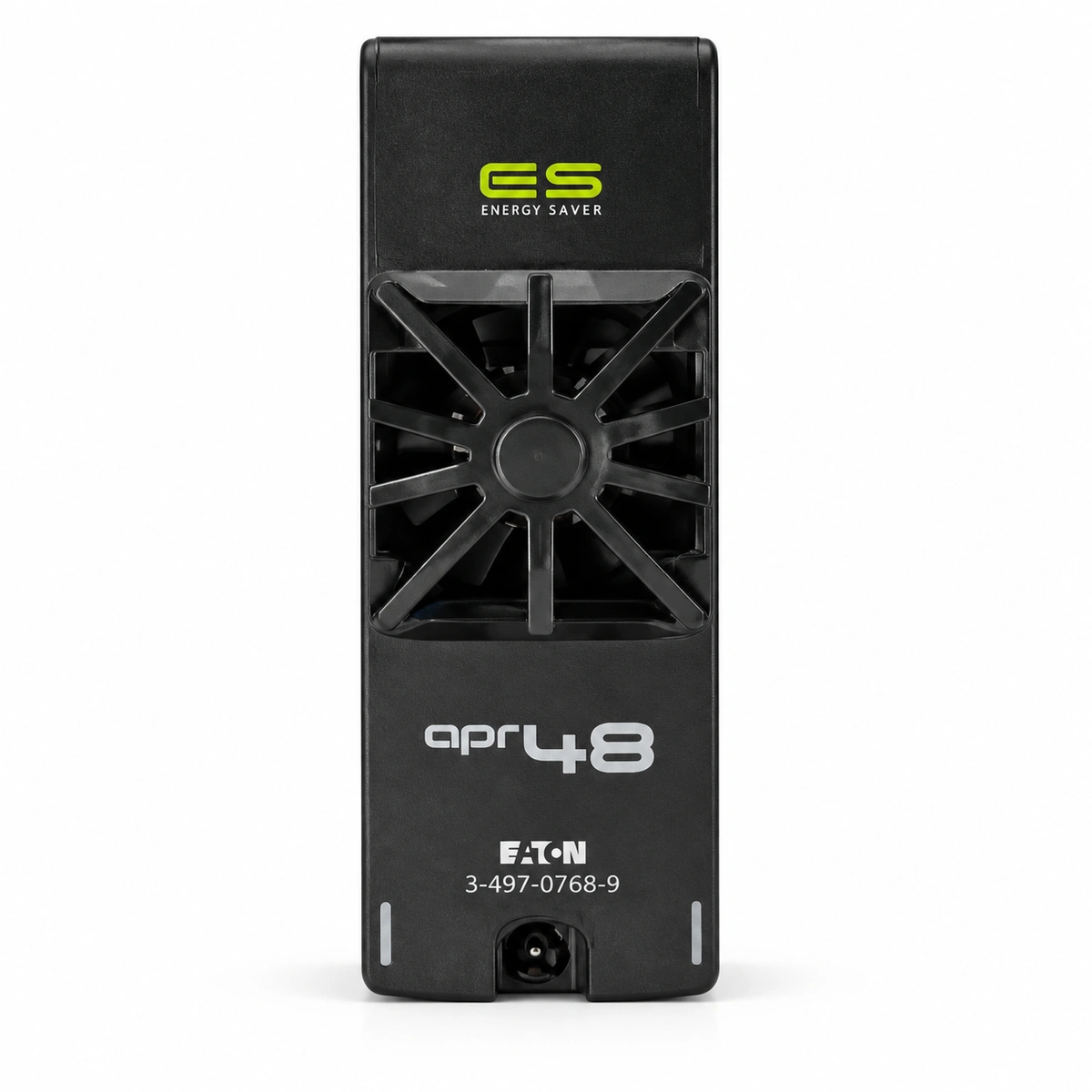

The Eaton APR48-ES is a 48V, 2000W enterprise-class ultra-efficient telecom rectifier module delivering an exceptional peak conversion efficiency exceeding 96%, engineered for mission-critical industrial communications and power distribution.
Pricing is confirmed by project configuration and quantity
Request a quoteThe APR48-ES incorporates a fully digital power conversion architecture driven by an onboard micro-controller/DSP. The front stage employs an active power factor correction (PFC) boost topology accepting a wide input voltage window (90V–300V AC) while maintaining near-unity power factor and negligible THD. The DC-DC transformation utilizes an LLC resonant topology providing low-loss soft switching, galvanic isolation, and tight regulation over the 48V DC bus. Module-to-controller communication is executed via high-speed internal CAN bus for dynamic auto-sharing of load current.
Eliminates the unsustainable operational electricity and thermal HVAC costs common to legacy 88%–92% legacy rectifiers; prevents network drops and component destruction during extreme utility grid fluctuations or brownouts; removes single points of failure through hot-swappable N+1 modular redundancy.
5G and 4G macro telecom base stations, cloud and edge computing DC power shelves, optical transmission hubs, enterprise data room DC backbones, and mission-critical railway signaling substations.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
