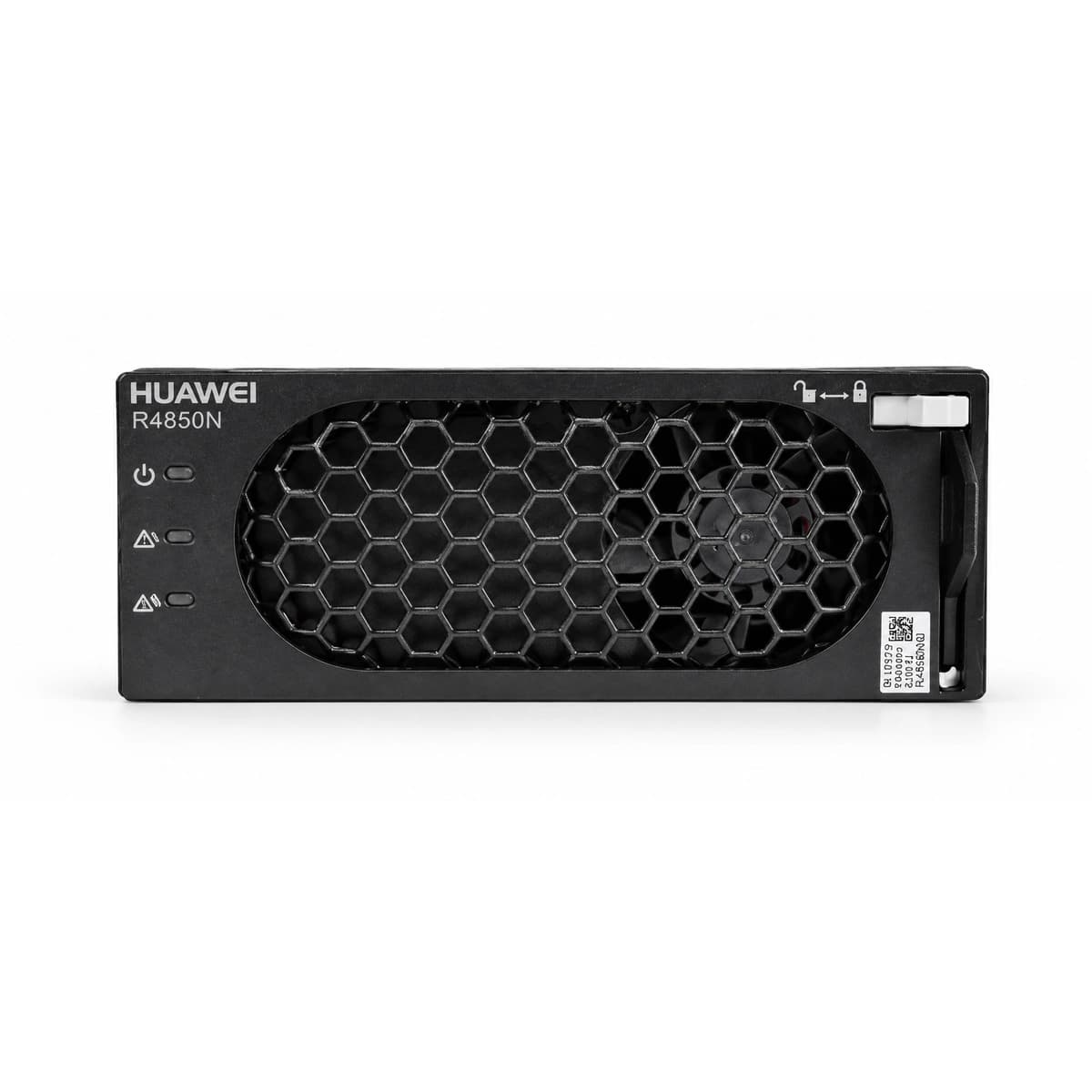

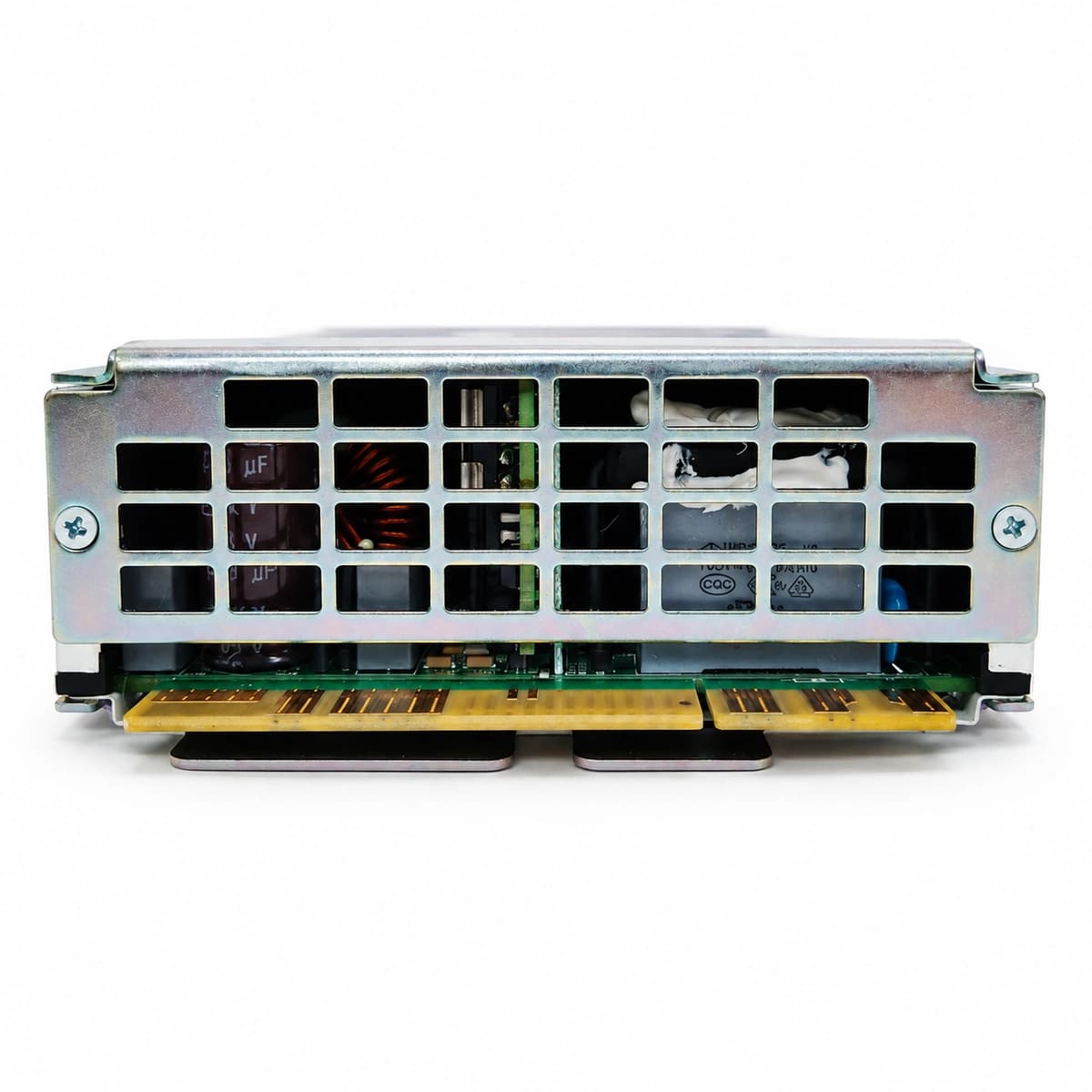

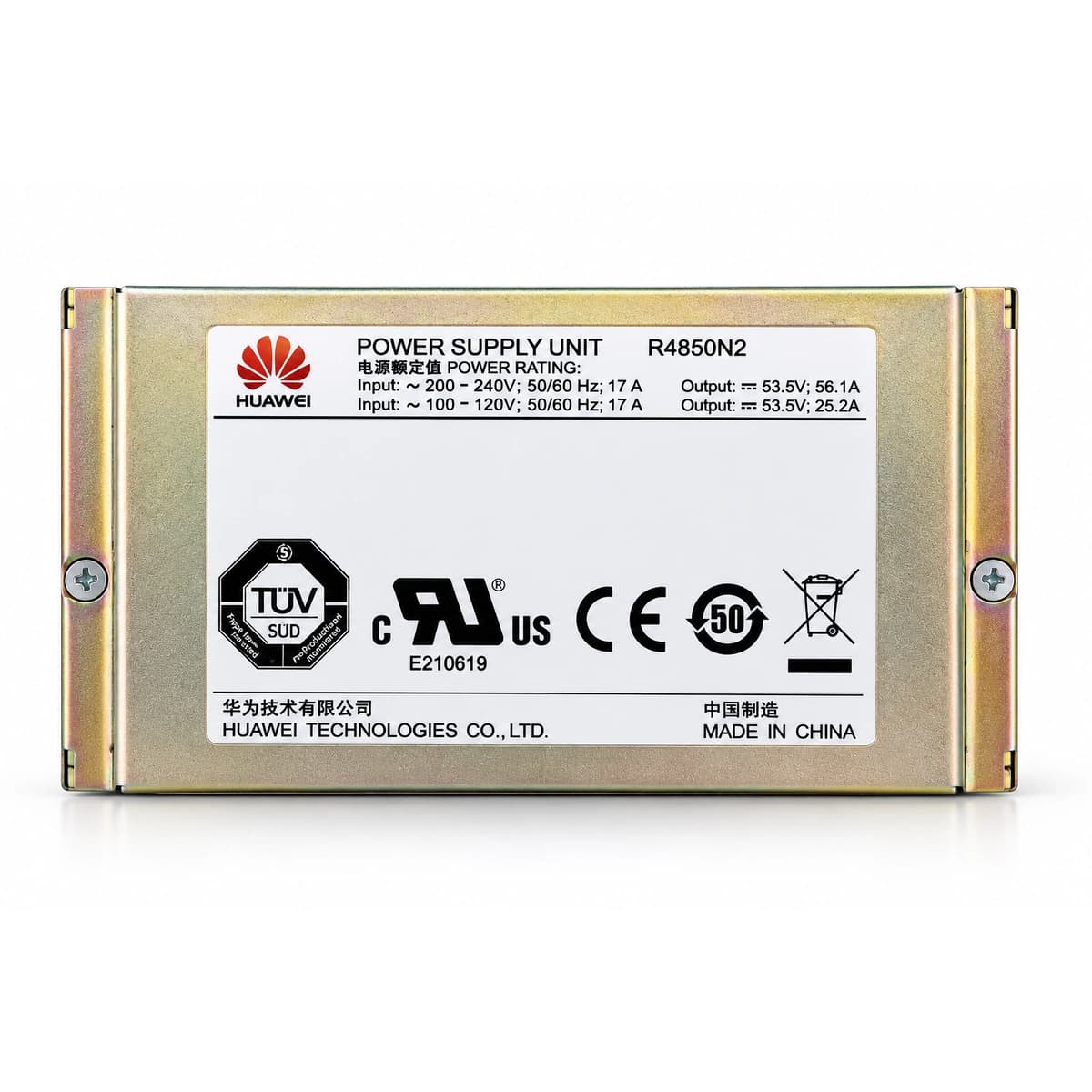

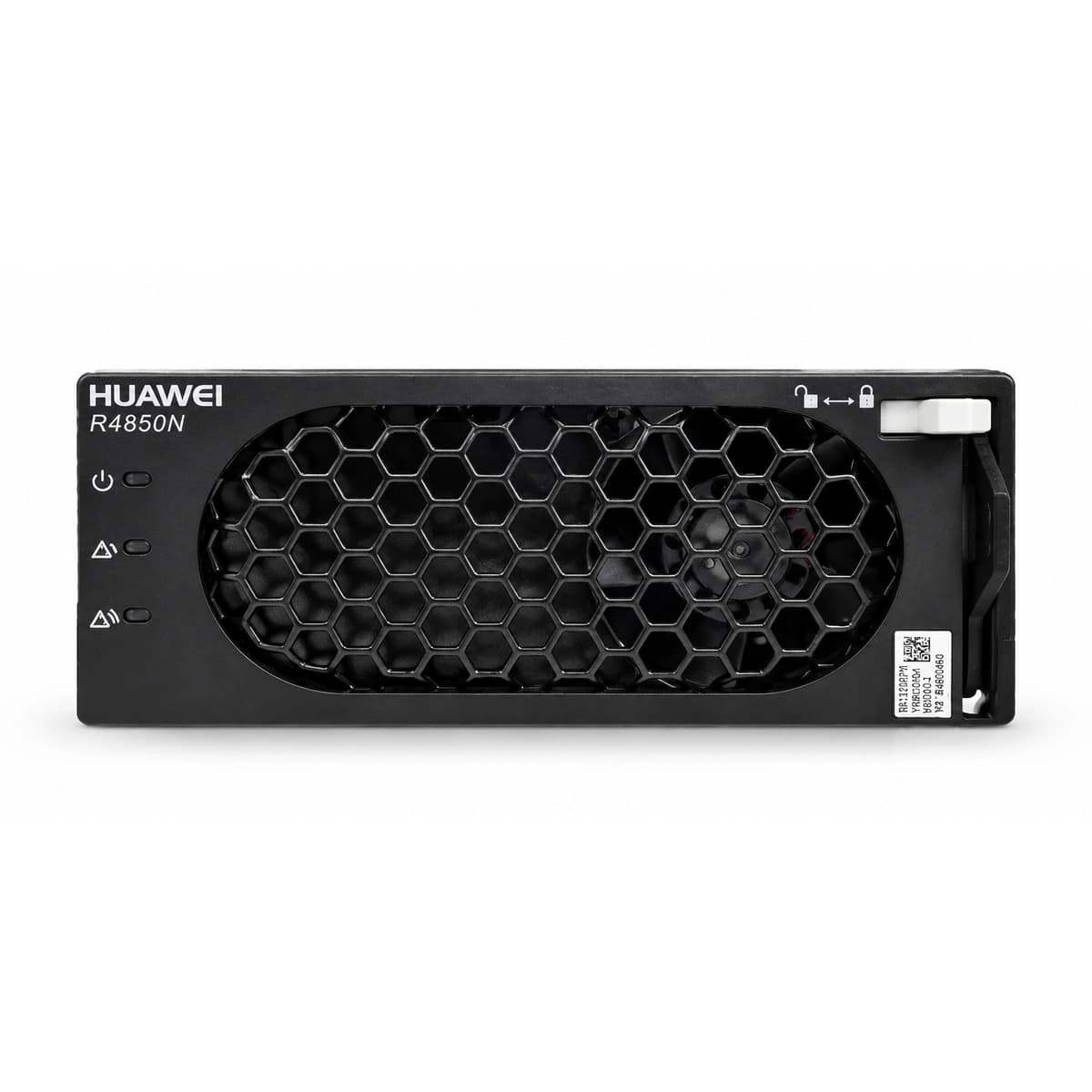

The Huawei 4850N2 is a carrier-grade high-efficiency digital telecom rectifier module rated for -48V DC nominal output (53.5V standard, adjustable from 42V to 58V DC) with a maximum current of 50A and a rated power of 3000W. Engineered with advanced high-frequency switching technology and digital signal processor (DSP) controls, it supplies robust, low-noise DC power for mission-critical telecommunications infrastructure.
Pricing is confirmed by project configuration and quantity
Request a quoteArchitecturally, the 4850N2 integrates a high-performance active boost PFC front-end with an isolated LLC resonant DC-DC converter, overseen by real-time DSP microcontrollers for cycle-by-cycle control and monitoring. The unit incorporates two-stage input EMI filtering, robust surge suppression, and synchronous rectification on the secondary side, meeting stringent ITU-T, IEC, and ETSI standards for electrical insulation and safety clearances.
It eliminates equipment damage and service downtime caused by unstable utility grids and severe phase fluctuations through an ultra-wide 85V to 300V AC input window. By delivering rapid digital transient response and precise current limit controls, it prevents DC bus voltage drops during abrupt load spikes and protects battery strings from accelerated sulfation through precise temperature-compensated charging regulation.
Ideal for 4G/5G wireless base transceiver stations, optical fiber transmission nodes, enterprise core data closets, intelligent rail transport communications, and modular integration within Huawei ETP48 and TP48 series power distribution cabinets.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V DC, 标称53.5V) |
| Maximum Output Current | 50A |
| Rated Output Power | 3000W |
| AC Input Voltage Range | 85V AC ~ 300V AC |
| Peak Conversion Efficiency | ≥ 94.5% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
Huawei

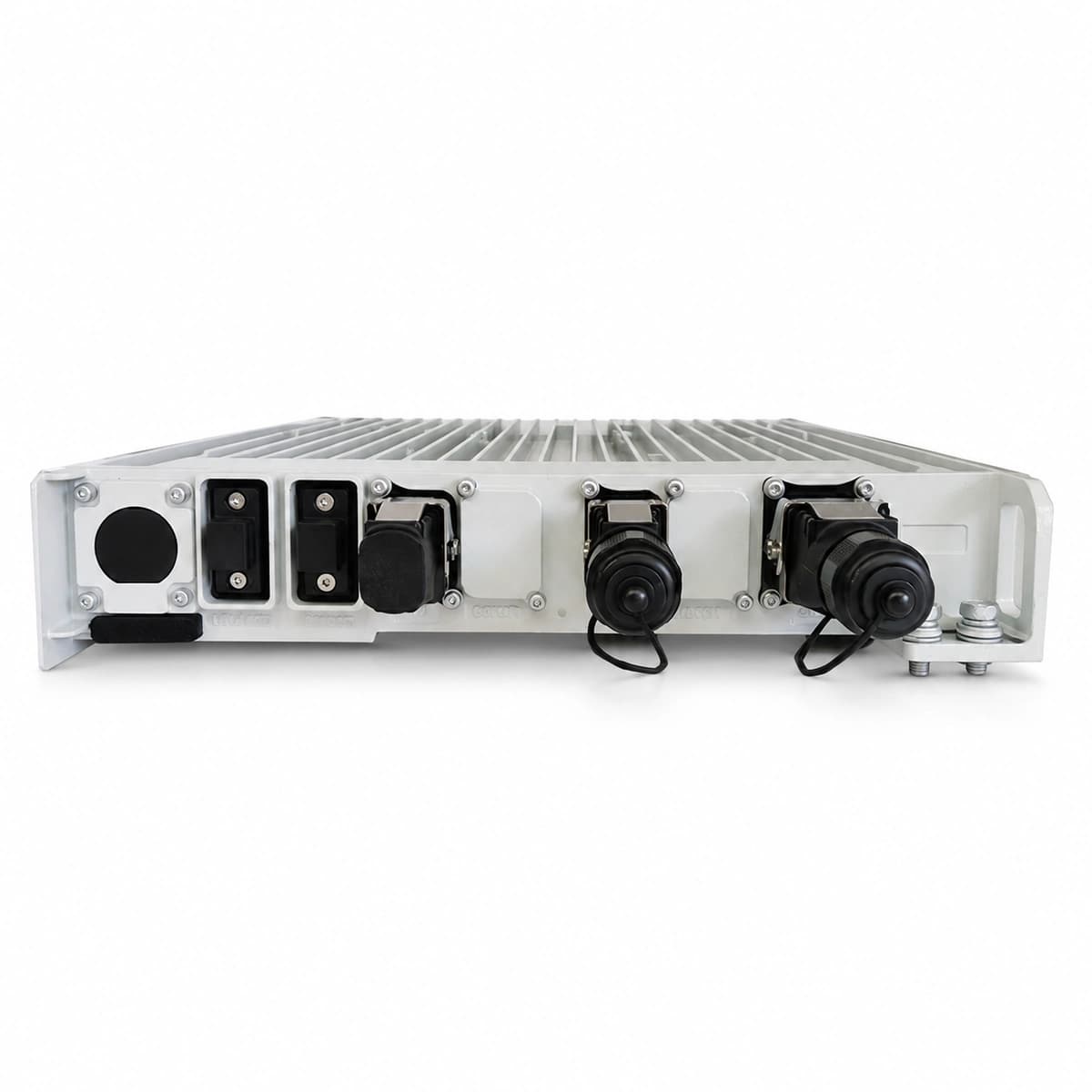

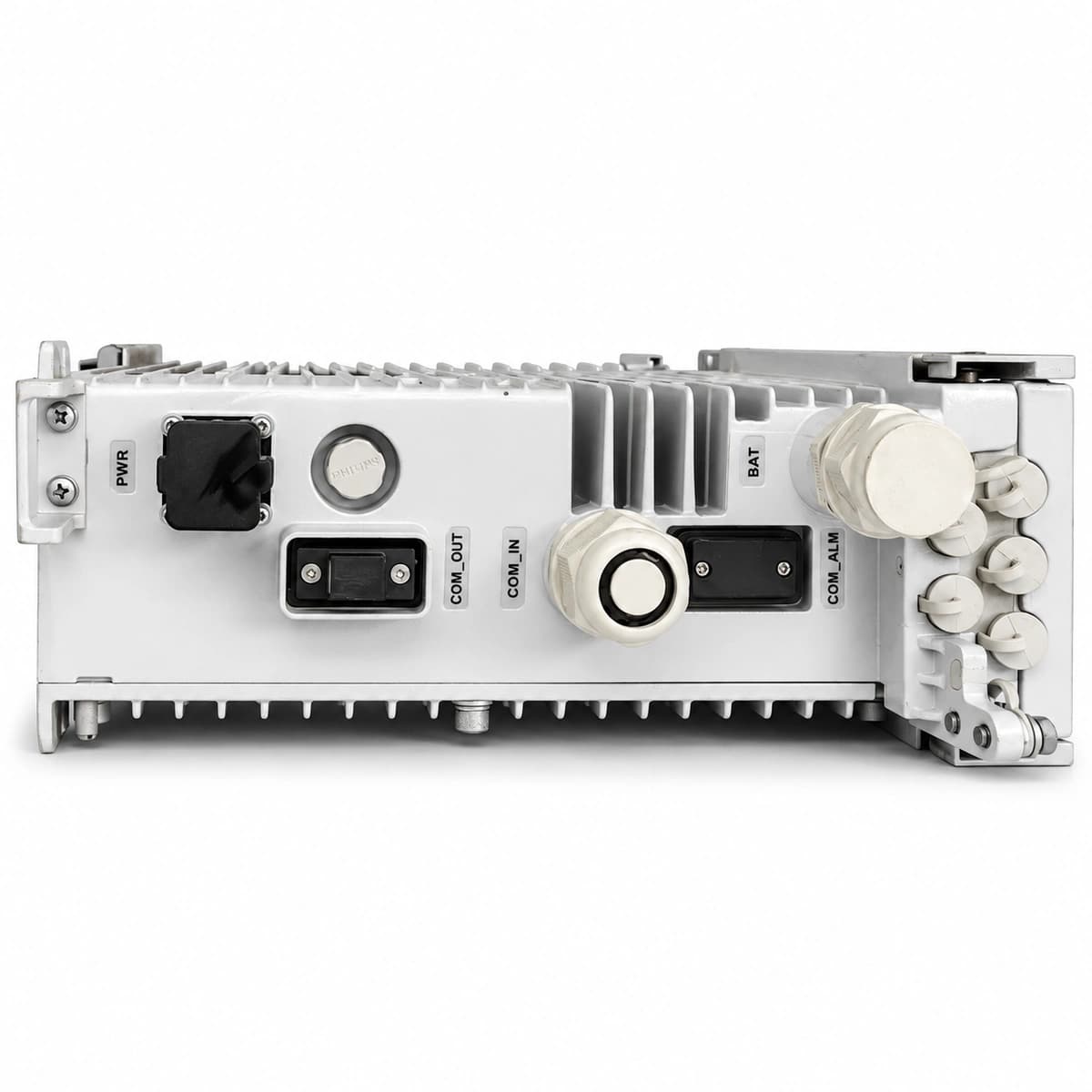

Featuring a digital DSP-controlled topology with active Power Factor Correction (PFC) and resonant conversion, the OPM40M attains over 96% peak energy efficiency. Its fanless, ingress-protected enclosure eliminates acoustic noise and mechanical vulnerabilities, ensuring maintenance-free, continuous operation in mission-critical outdoor environments.

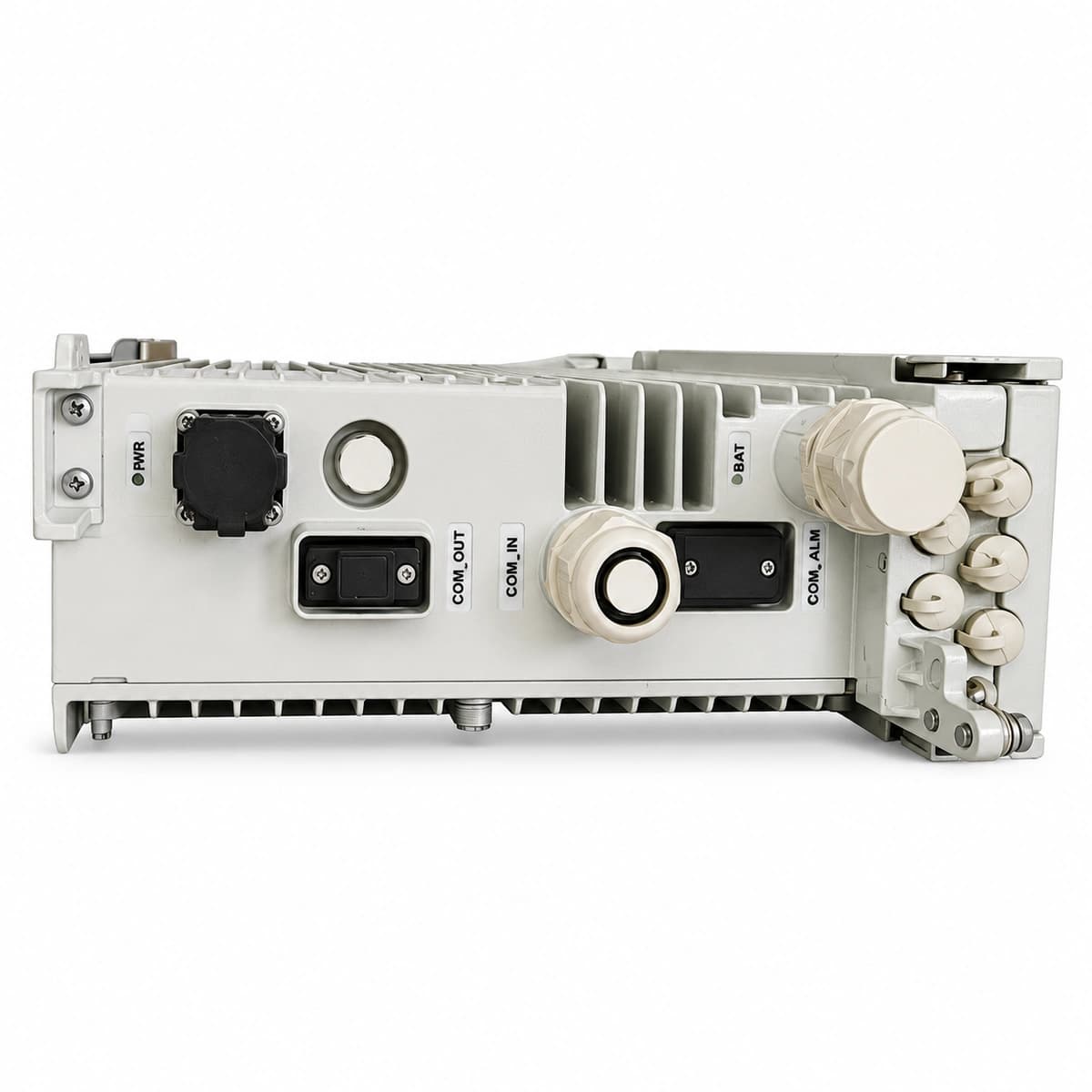

Engineered with advanced DSP digital control, active PFC, and high-efficiency LLC resonant topology, the unit achieves over 96% conversion efficiency, offering carrier-grade reliability and robust thermal dissipation in harsh outdoor deployments.

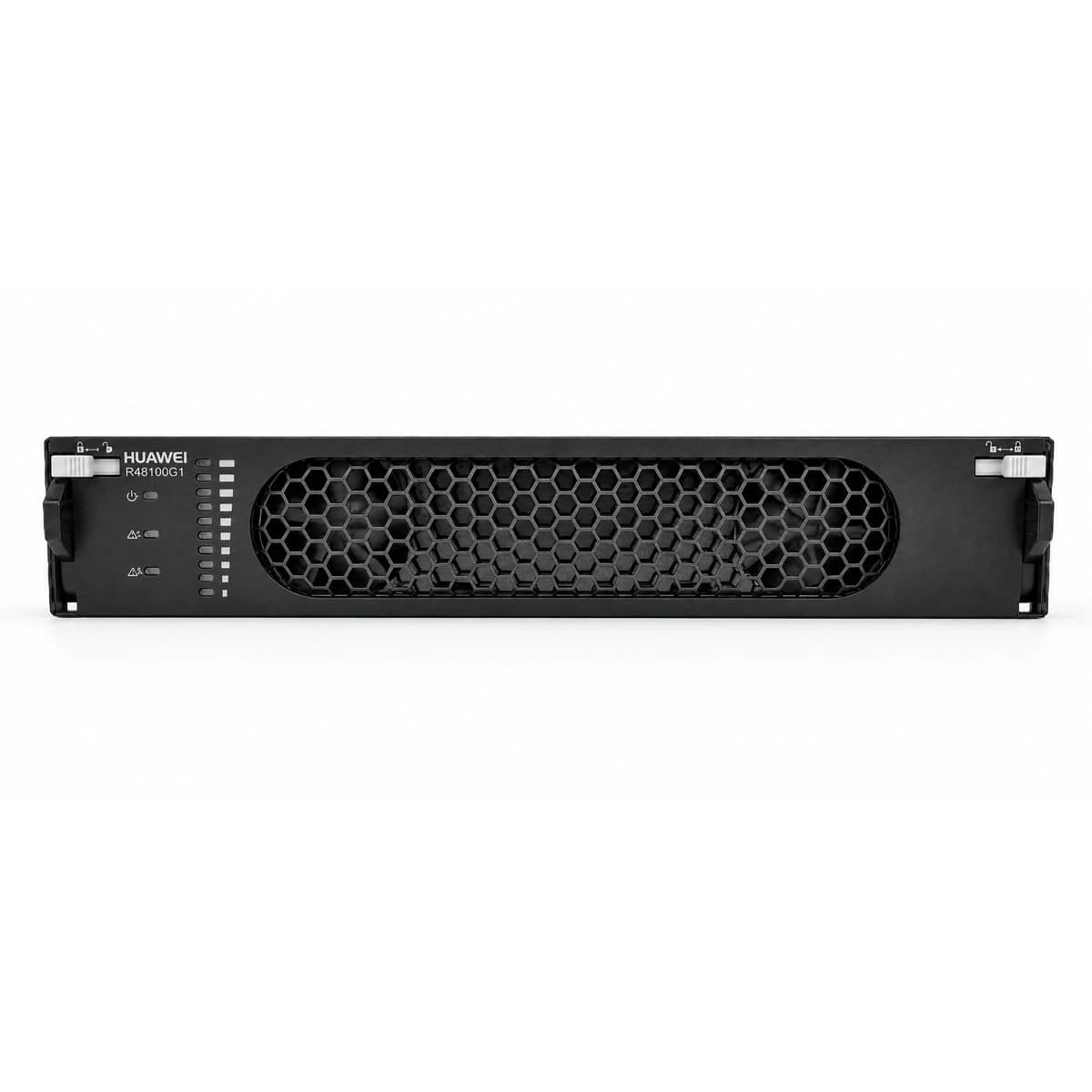

Engineered with fully digital signal processor (DSP) control and soft-switching resonant topologies, the R48100G1 combines class-leading power density with peak conversion efficiency (≥96.0%) to slash operational thermal footprints. Featuring forced air cooling via an intelligent variable-speed fan, an extended operating temperature profile of -40°C to +75°C, high-speed CAN bus telemetry, and live hot-plug capability, it ensures uninterrupted DC bus reliability in mission-critical N+1 and N+X redundant architectures.
