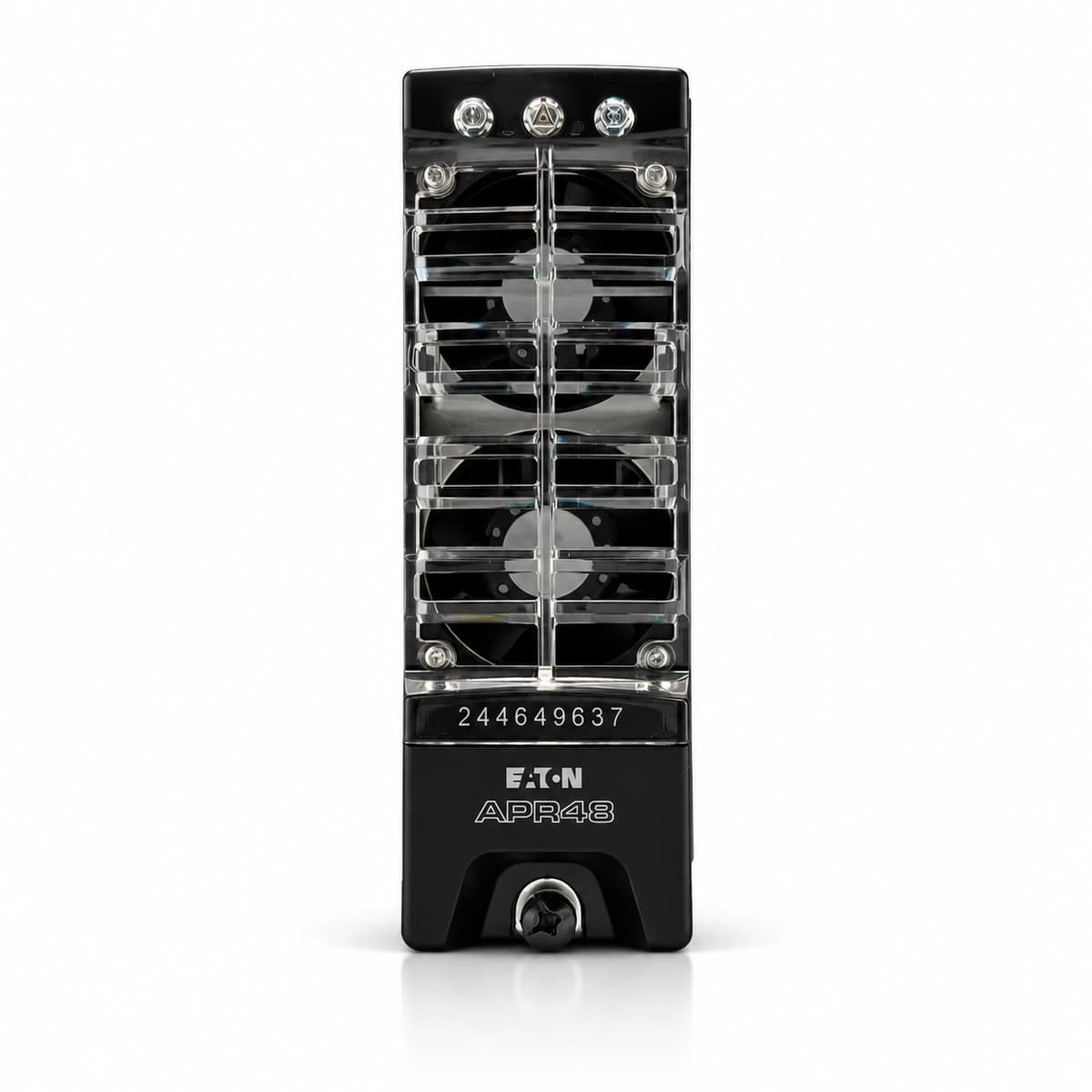

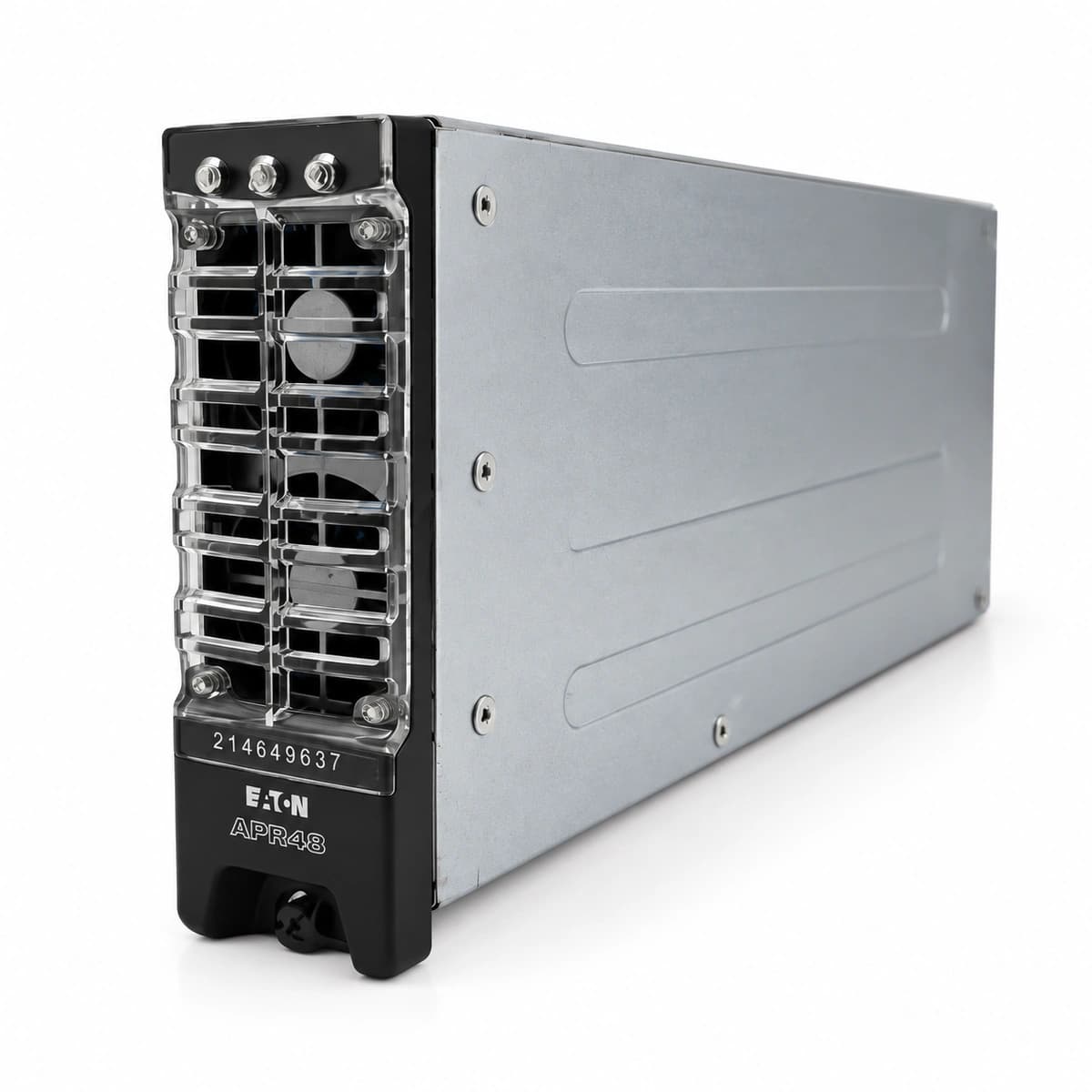

The Eaton APR48-3G is a third-generation, high-density carrier-grade switch-mode rectifier module engineered for telecom access networks, delivering a nominal 48V DC output at 1800W with up to 37.5A output current.
Pricing is confirmed by project configuration and quantity

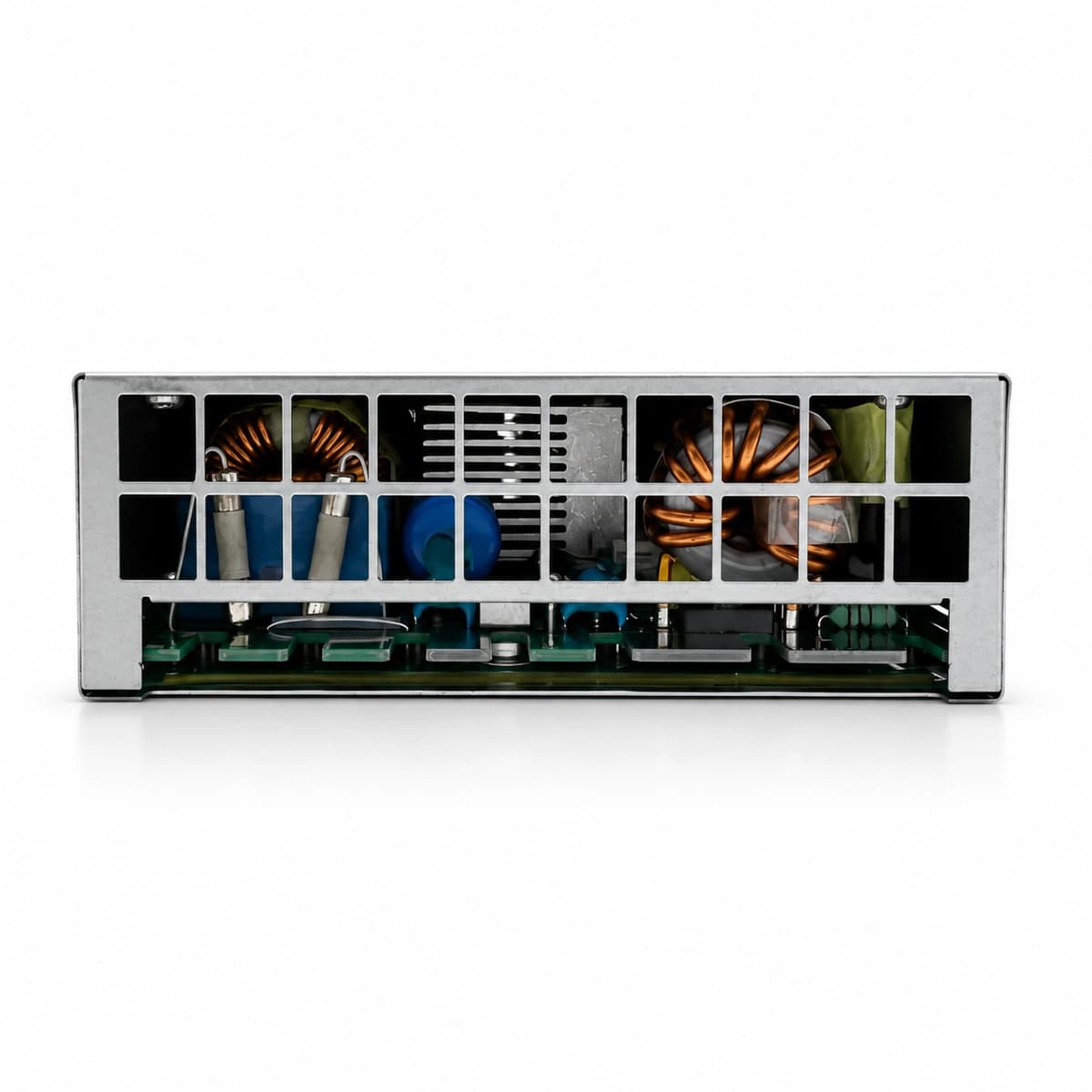

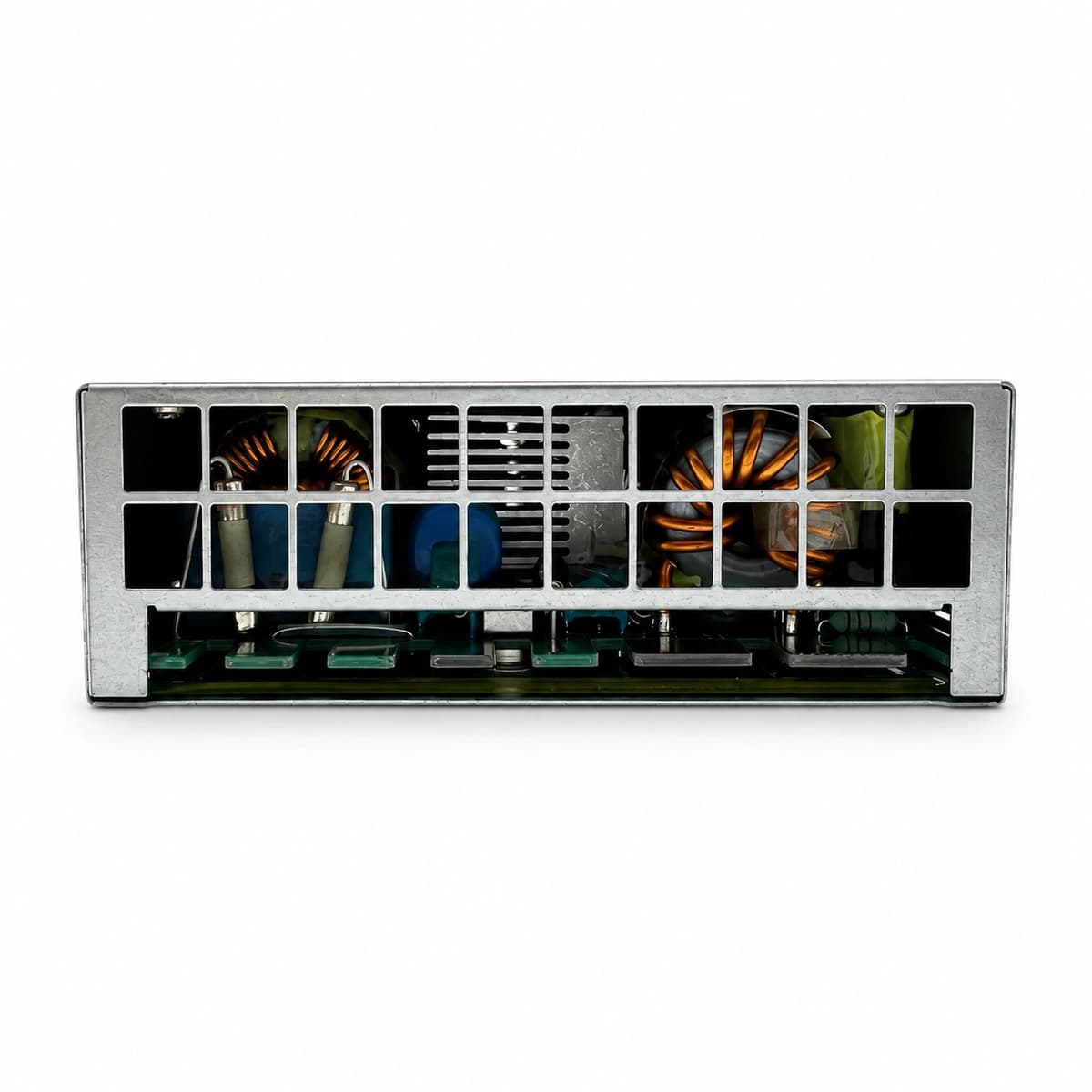

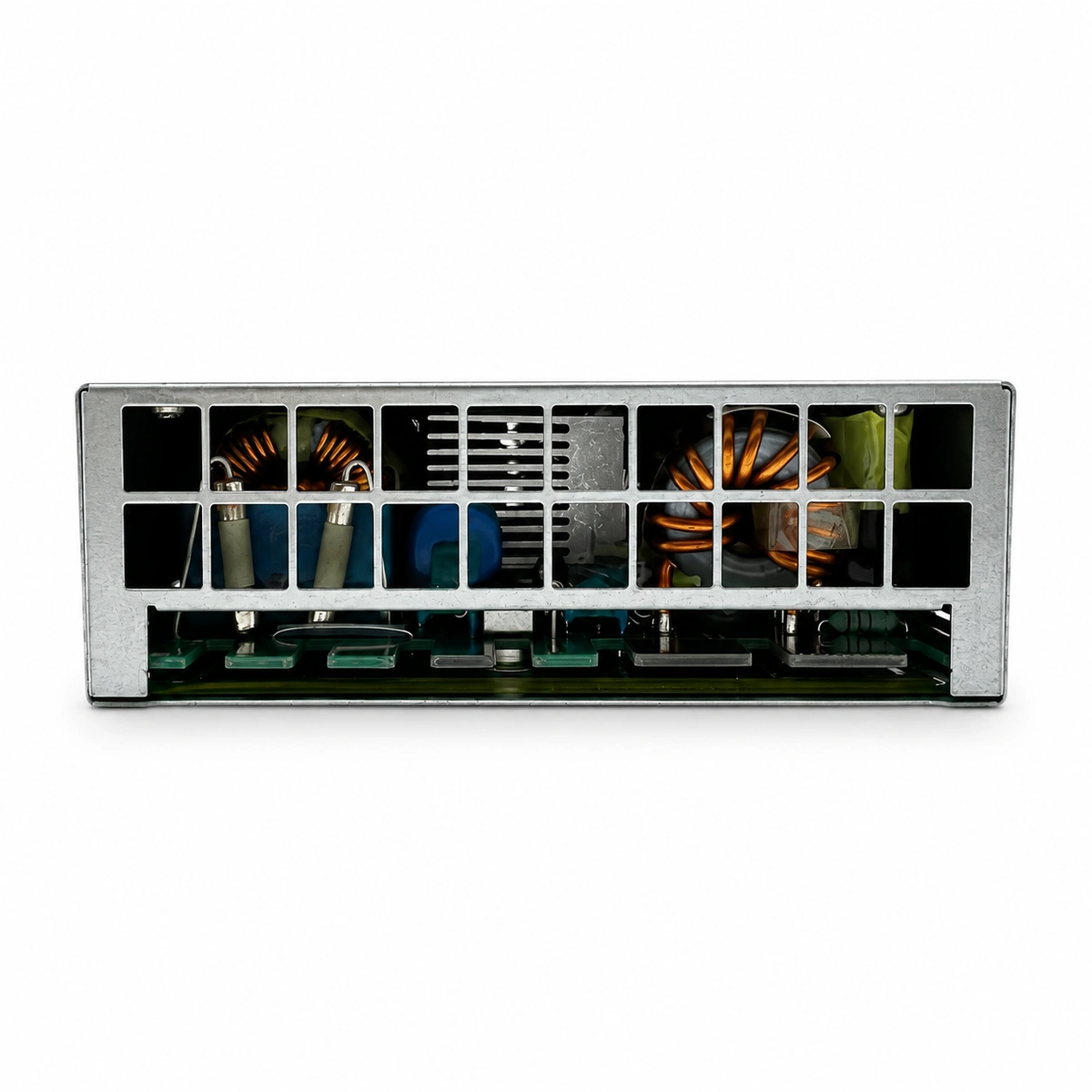

Request a quoteThe APR48-3G operates as the fundamental AC-to-DC conversion block within modular telecommunications power systems. Its hardware integrates an active front-end power factor correction stage, an isolated high-frequency DC-DC converter, and comprehensive digital microprocessor control. Interfacing via a rear blind-mate hot-swap connector, it ties into the AC distribution, DC bus, and internal communication bus, working alongside system supervisory units to achieve automatic active load sharing.
It mitigates vulnerabilities associated with unstable electrical utility grids through an ultra-wide AC input range; eliminates localized thermal hotspots via load-dependent variable-speed cooling; and prevents network downtime using an N+1 modular architecture that removes single points of failure.
Targeted at cellular macro base stations, enterprise edge telecom rooms, optical line termination points, industrial automation power networks, and distributed roadside communication shelters.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | -48V DC (42V~58V) |
| Peak Conversion Efficiency | ≥ 96.0% |
| Operating Temperature Range | -40°C to +75°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Protection Features | Over-voltage, Short-circuit, Over-temperature, Surge |
| Hot-Swappable Support | Yes (Live Plug-and-Play Support) |
| Total Harmonic Distortion (THD) | ≤ 5% (Total Harmonic Distortion) |
| Rated Power Factor | ≥ 0.99 at Rated Load |
| Standard Compliance & Certifications | CE, UL, RoHS, IEC 60950, EN 300 386 |
