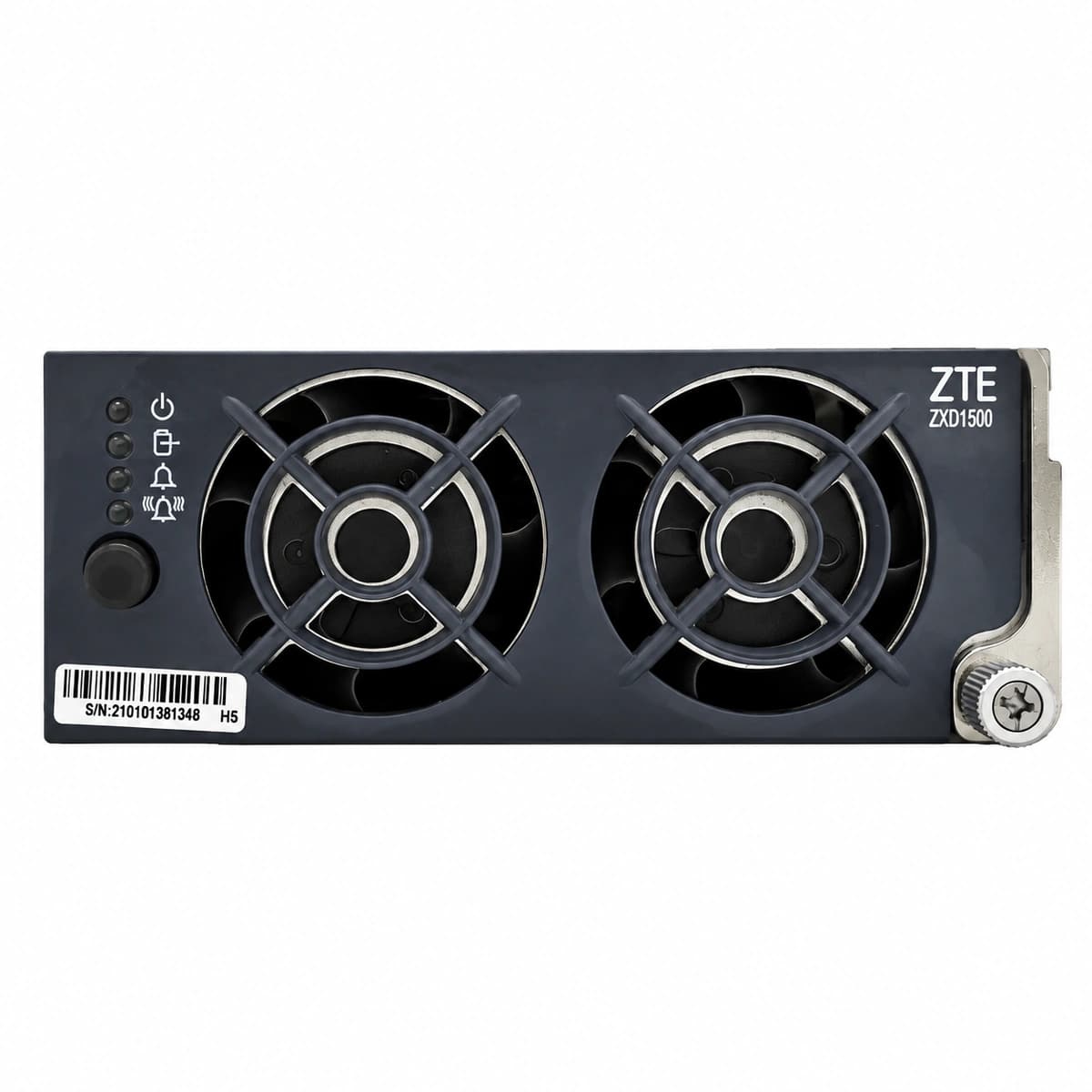

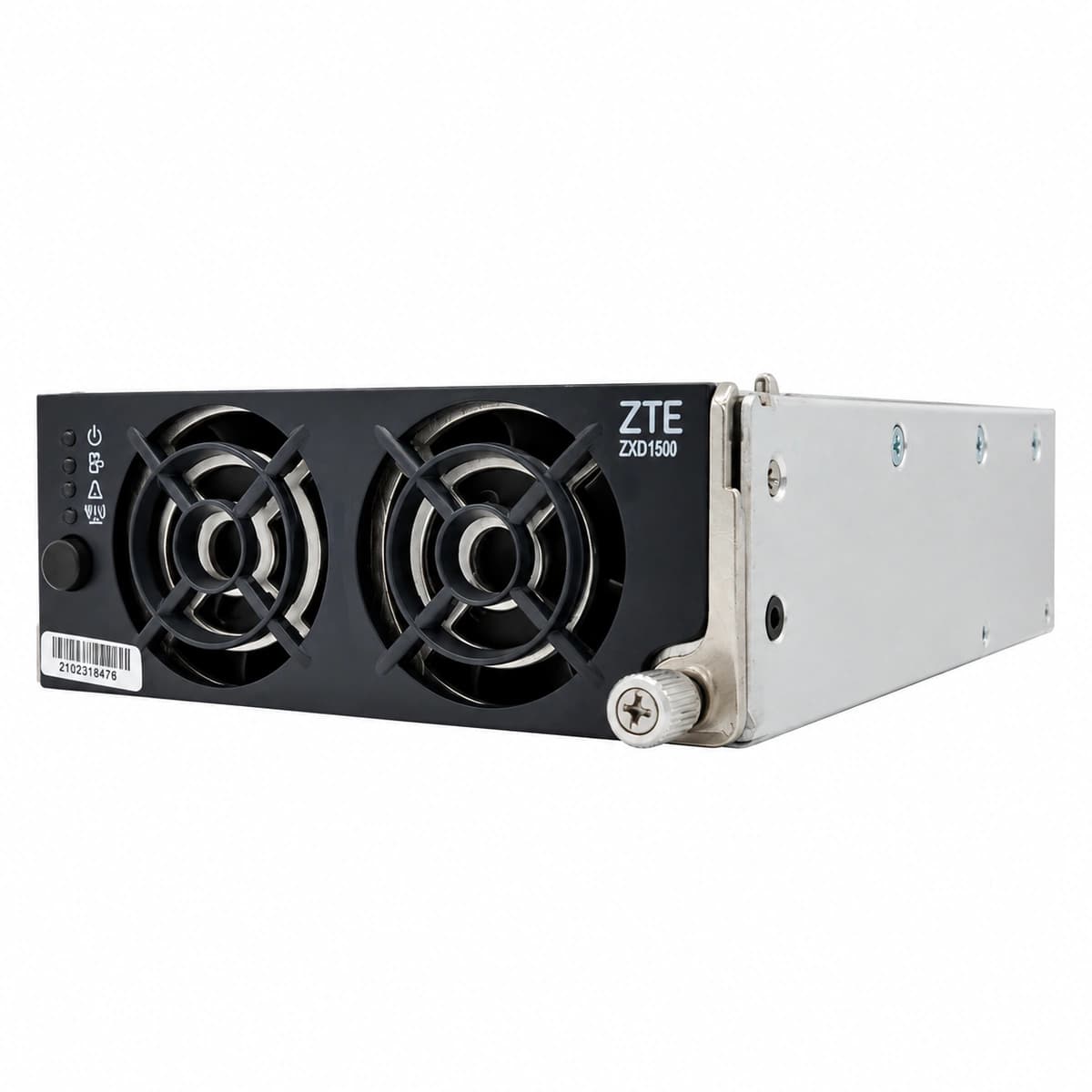

ZTE ZXD1500 (V5.0) R03 Telecom Power Rectifier Module (48V 30A 1500W Compact Subrack Module)
The ZTE ZXD1500 (V5.0) R03 is an ultra-compact, high-efficiency telecom rectifier supplying -48V 30A (1500W) in a 1U-compatible hot-swappable form factor, widely deployed across indoor DAS and wireless microcell sites.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated Output VA / Wattage
- 1500W Compact Rating
- Rated DC Output Current
- 30A @ -48V DC Nominal
- Nominal DC Output Voltage
- -42V ~ -58V DC (Adjustable)
- AC Input Voltage Range
- 80V - 300V AC Wide Tolerance
- Peak Energy Efficiency
- >94.0% Energy Efficiency
- Chassis Form Factor
- Standard Compact Hot-Pluggable
What this product is
What this product is
The ZTE ZXD1500 (V5.0) R03 is an ultra-compact, high-efficiency telecom rectifier supplying -48V 30A (1500W) in a 1U-compatible hot-swappable form factor, widely deployed across indoor DAS and wireless microcell sites.
What problem it solves
Resolves severe power grid instability, excessive OPEX energy dissipation, battery degradation, and cabinet thermal constraints.
Who and where it is for
5G cellular cell sites, core telecom DC plants, data center critical power infrastructure, railway signaling, and industrial UPS.
Core advantages
- Ultra-Compact Chassis: Lightweight profile installs effortlessly into 2U/3U subracks and shallow wall cabinets.
- Resilient AC Ingestion: Wide 80V-300V AC operating window guarantees stable DC supply in volatile rural power grids.
- Whisper-Quiet Operation: Smart variable-speed fan keeps acoustic noise low, ideal for residential indoor installations.
- Comprehensive Multi-Fault Defense: Input over/undervoltage, output latching OVP, short circuit, and thermal protection.
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Output VA / Wattage | 1500W Compact Rating |
| Rated DC Output Current | 30A @ -48V DC Nominal |
| Nominal DC Output Voltage | -42V ~ -58V DC (Adjustable) |
| Chassis Form Factor | Standard Compact Hot-Pluggable |
| AC Input Voltage Range | 80V - 300V AC Wide Tolerance |
| Peak Energy Efficiency | >94.0% Energy Efficiency |
Applications
01
4G/5G Telecom Cell Sites & Distributed Power Systems
02
Carrier Core Network Facilities & IDC DC Plants
03
Industrial Automation & Utility Substation DC UPS
