ZTE ZXDT02-PU V2.5 Telecom Grade -48V DC Power Distribution Unit 19-inch Rack PDU
The ZTE ZXDT02-PU V2.5 is a high-reliability -48V DC Power Distribution Unit (PDU) engineered for wireless macro base stations, ZTE B8200 BBUs, and remote RRUs,
ZTEModel: ZTE ZXD3000 V5.5

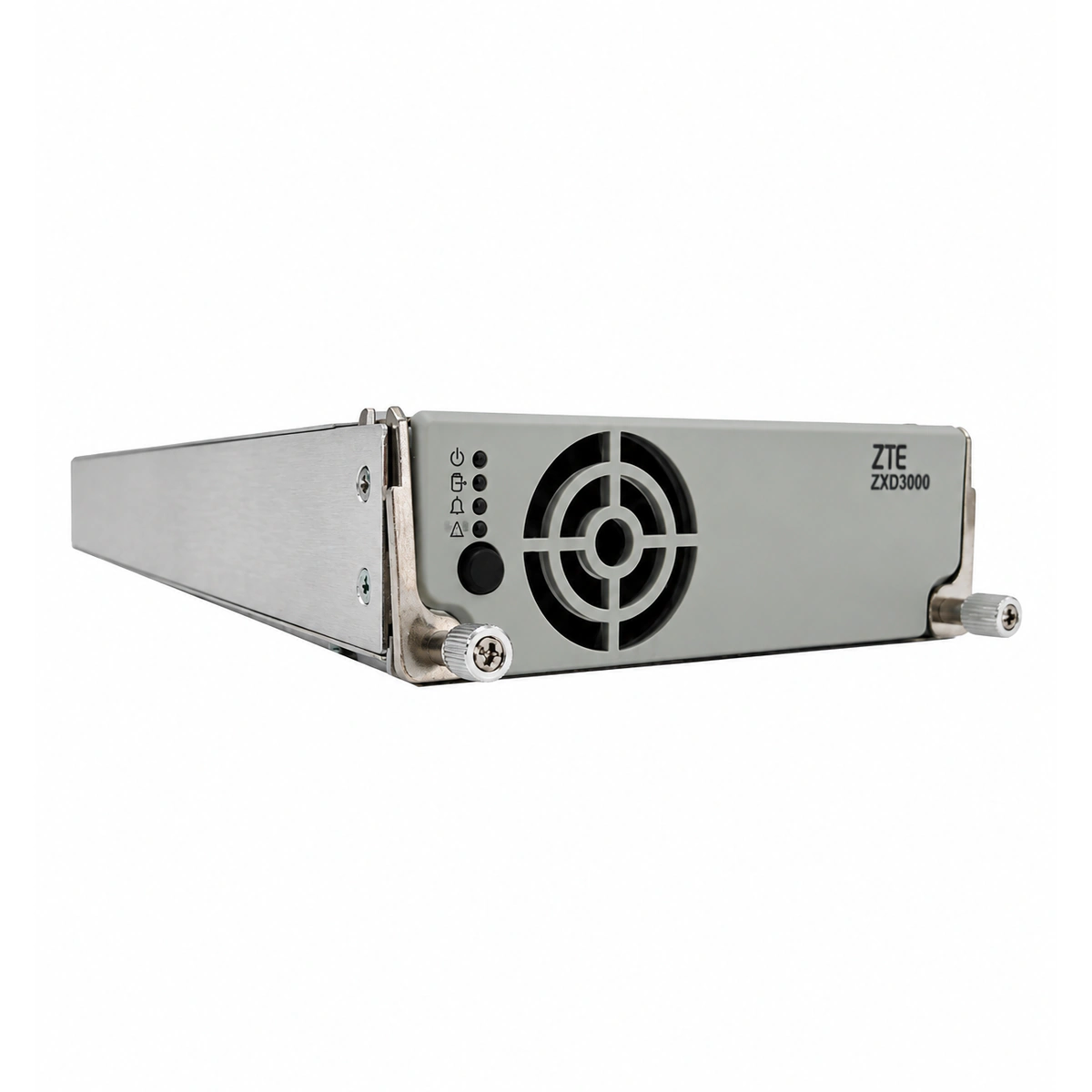

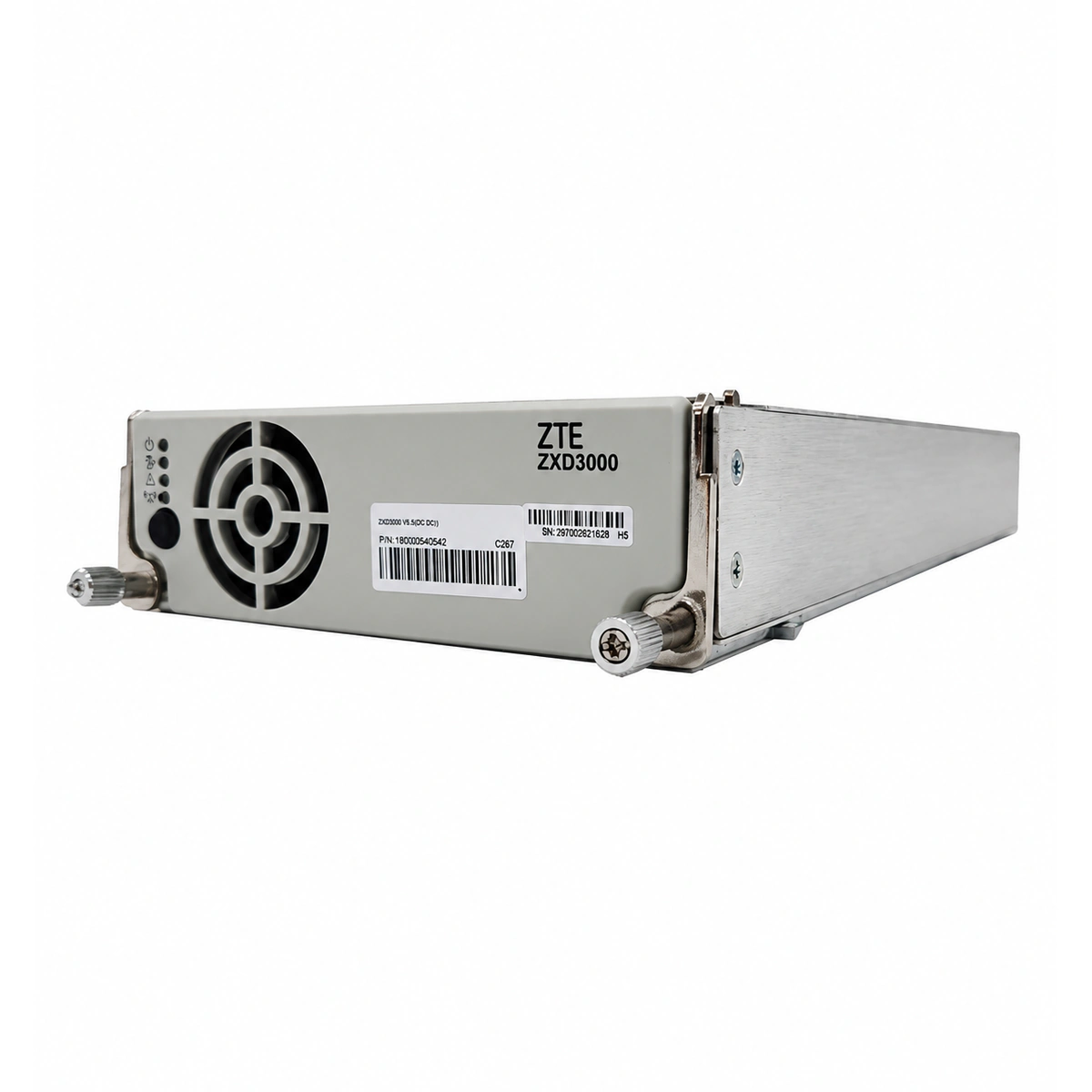

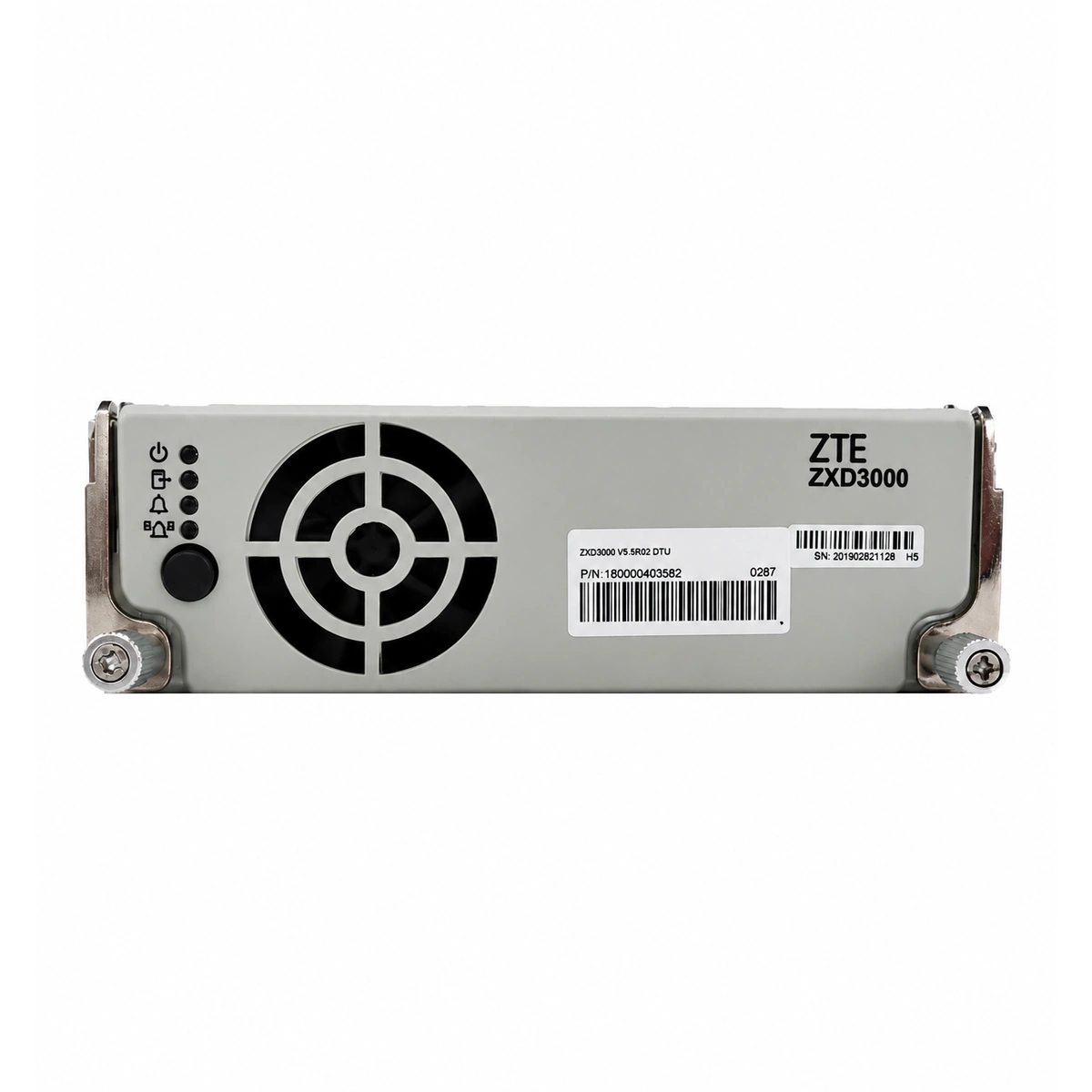

ZTE ZXD3000 V5.5 3000W 50A High Efficiency Telecom Rectifier Module (-48V DC)
The ZTE ZXD3000 V5.5 is a high-density, hot-swappable 3000W single-phase telecom switch-mode rectifier utilizing advanced soft-switching APFC topology and an isolated LLC resonant stage. It accepts a wide AC input range of 85V~295V AC to deliver a regulated nominal -48V DC (50A continuous) with an industry-leading peak efficiency of ≥ 96.3%, engineered for central telecom offices and wireless base stations.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated Output Power
- 3000W Rated Output Power
- Nominal DC Output Voltage
- -48V DC (Adjustment Range: -42V ~ -58V DC)
- Rated Output Current
- 50A Continuous Constant Current Output
- Power Conversion Efficiency
- ≥ 96.3% (Gold Standard Ultra-High Efficiency)
- AC Input Voltage Range
- 85V AC ~ 295V AC (Wide AC Input Range)
- Cooling Method
- Built-in Forced Air Temperature Controlled Fan
What this product is
What this product is

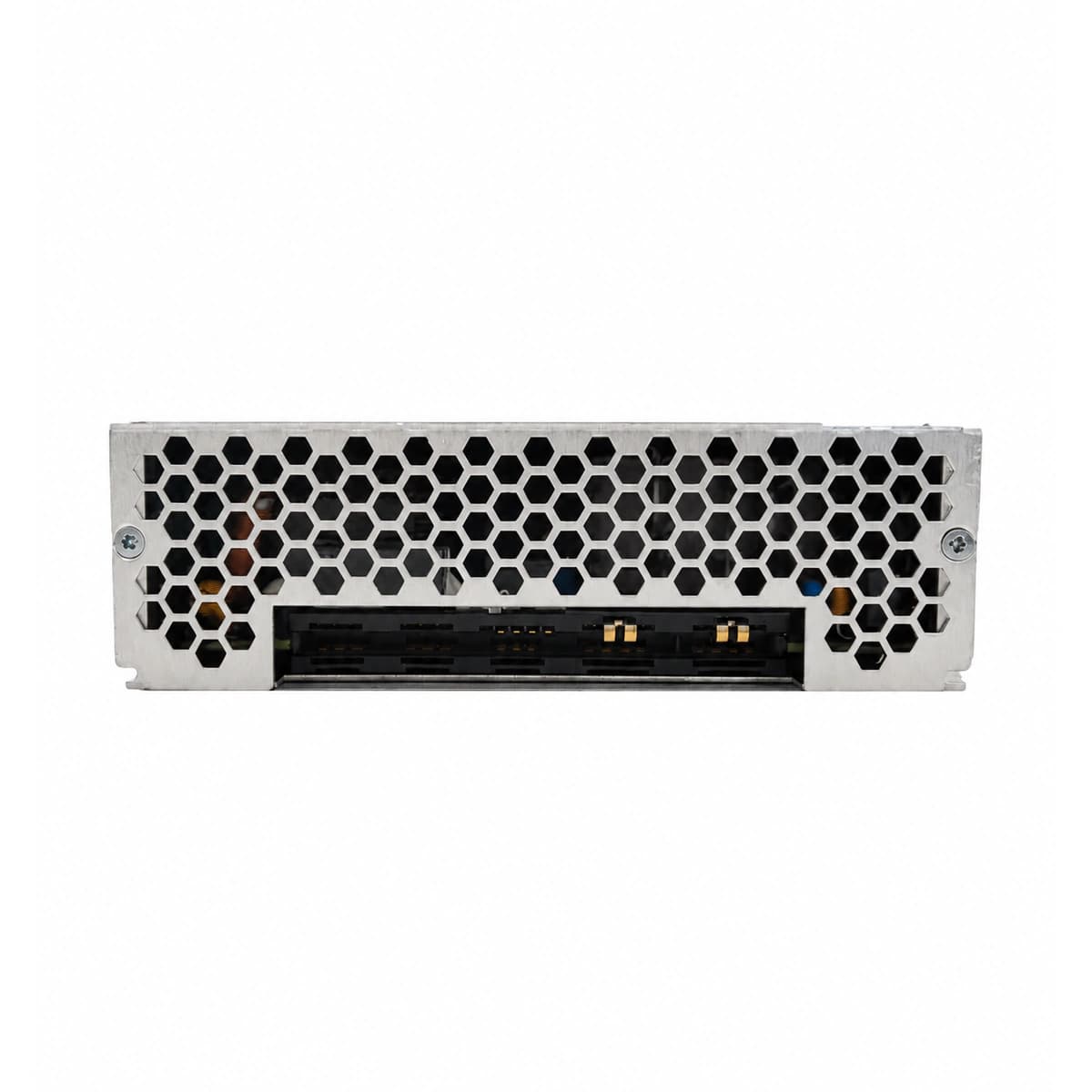

A 1U-profile, hot-pluggable telecom rectifier module integrating an active power factor correction (APFC) circuit and a high-frequency isolated LLC DC-DC stage. It utilizes a heavy-duty blind-mate backplane edge connector for consolidated AC input, high-current DC power output, and system management telemetry.
What problem it solves
Eliminates high operating expenses (OPEX) and high PUE caused by low electrical efficiency in base stations; prevents downtime in regions with erratic, low-voltage, or high-surge electrical grids; and removes single-point-of-failure risks via autonomous load-sharing.
Who and where it is for
5G/4G macro base station shelters, telecom switching centers, microwave links, fiber optical transmission terminals, and mission-critical enterprise DC microgrids.
Core advantages
- Ultra-high 96.3% peak efficiency reduces HVAC load and total power cost
- Wide AC operating window (85V~295V AC) with robust surge withstand capability
- Active autonomous digital load sharing maintaining imbalance under ±3%
- Seamless hot-plug capability with smart fan-speed acoustic noise reduction
Technical specifications
| Key specifications | Value |
|---|---|
| Output Power Factor PF | ≥ 0.99 (Ultra-Low Harmonic Distortion THD<5%) |
| Cooling Method | Built-in Forced Air Temperature Controlled Fan |
| Nominal DC Output Voltage | -48V DC (Adjustment Range: -42V ~ -58V DC) |
| Rated Output Current | 50A Continuous Constant Current Output |
| Power Conversion Efficiency | ≥ 96.3% (Gold Standard Ultra-High Efficiency) |
| Rated Output Power | 3000W Rated Output Power |
| AC Input Voltage Range | 85V AC ~ 295V AC (Wide AC Input Range) |
| Operating Temperature | -40°C to +75°C |
Applications
01
System upgrades for ZTE ZXDU68 S001, T601, and S301 power racks
02
Capacity expansion in high-density ZXDU88 telecom cabinet frameworks
03
Hybrid microgrid renewable power conversion (-48V DC distribution)
04
Floating charge power for core telecom battery banks
