Question 1

What are the core electro-optical specifications and link budget performance of the ZTE-OPT-10G-SFP-15KM-I industrial transceiver?

Accepted Answer

The ZTE SM-15KM-1310-10G-I industrial-grade transceiver integrates an uncooled 1310nm DFB laser and a high-sensitivity PIN receiver, compliant with SFF-8431 and IEEE 802.3ae 10GBASE-LR/LW standards. Operating at 10.3125 Gbps, it provides a Tx optical output between -8.2 and +0.5 dBm, an Rx sensitivity better than -14.4 dBm, and an optical overload of +0.5 dBm, delivering an optical power budget of at least 6.2 dB for robust 15 km transmission over G.652 single-mode fiber (SMF). Powered by a standard 3.3V DC rail, its maximum power consumption is strictly capped under 1.2W across the entire -40°C to +85°C operating envelope, mitigating thermal stress in high-density port configurations.

Question 2

How does this module perform regarding ZTE platform compatibility, DDM diagnostics, and hot-swap interoperability?

Accepted Answer

Pre-coded with ZTE-native EEPROM firmware, the module ensures 100% plug-and-play identification without CLI alarms across ZTE transport and enterprise platforms, including ZXR10 5960/8900E switches, ZXCTN 6000/9000 packet transport networks, and TITAN C600/C300 OLT 10G uplink cards. It fully implements SFF-8472 Digital Diagnostic Monitoring (DDM/DOM), providing real-time telemetry on module temperature, Vcc supply voltage, Tx bias current, Tx output power, and Rx input power. The unit supports mixed-slot deployment alongside standard commercial SFP+ optics and features integrated ESD clamping and soft-start surge suppression to prevent power bus dropouts during live hot-swapping.

Question 3

What industrial reliability features ensure module survival in outdoor non-temperature-controlled enclosures?

Accepted Answer

Engineered for harsh deployments, the SM-15KM-1310-10G-I operates reliably from -40°C to +85°C with carrier-grade cold-start capabilities. It utilizes wide-temperature semiconductors and AuSn (Gold-Tin) hard soldering to withstand cyclic thermal fatigue. The fully shielded, zinc die-cast housing with an industrial blue bail latch delivers superior EMI shielding compliant with FCC Part 15 Class B and EN 55022. Qualified under rigorous temperature cycling, damp heat (5% to 95% non-condensing RH), and mechanical shock/vibration standards, it boasts an MTBF exceeding 5,000,000 hours, making it ideal for outdoor integrated cabinets, wireless RRU/AAU fronthaul/backhaul, and industrial smart grid nodes.

Key specifications	Value
Physical Form Factor	SFP+
Data Rate	10.3125 Gbps
Central Wavelength	1310 nm
Maximum Distance	15 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC Connector
Typical Power Consumption	< 1.2 W
Operating Temperature	-40°C ~ +85°C (industrial-grade)

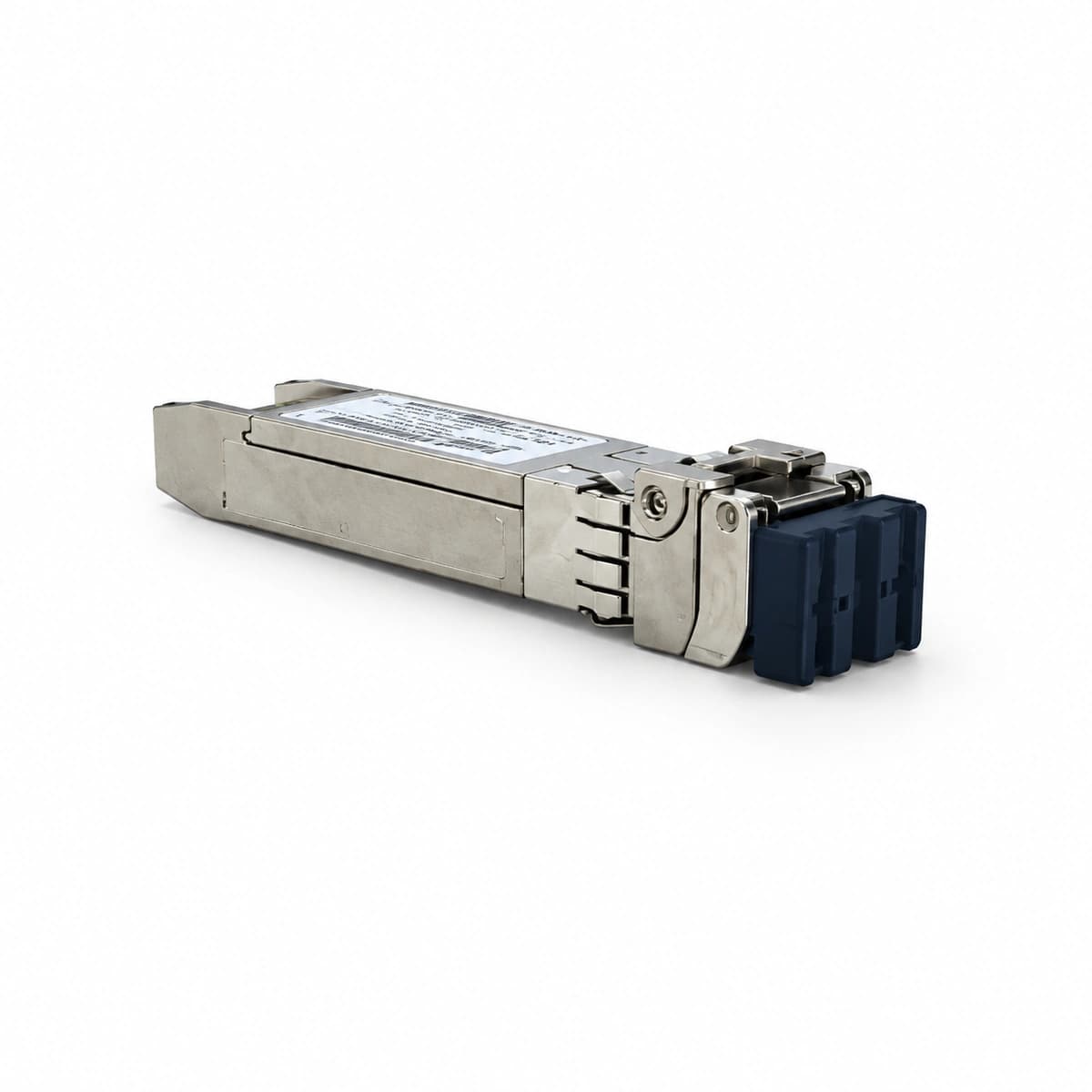

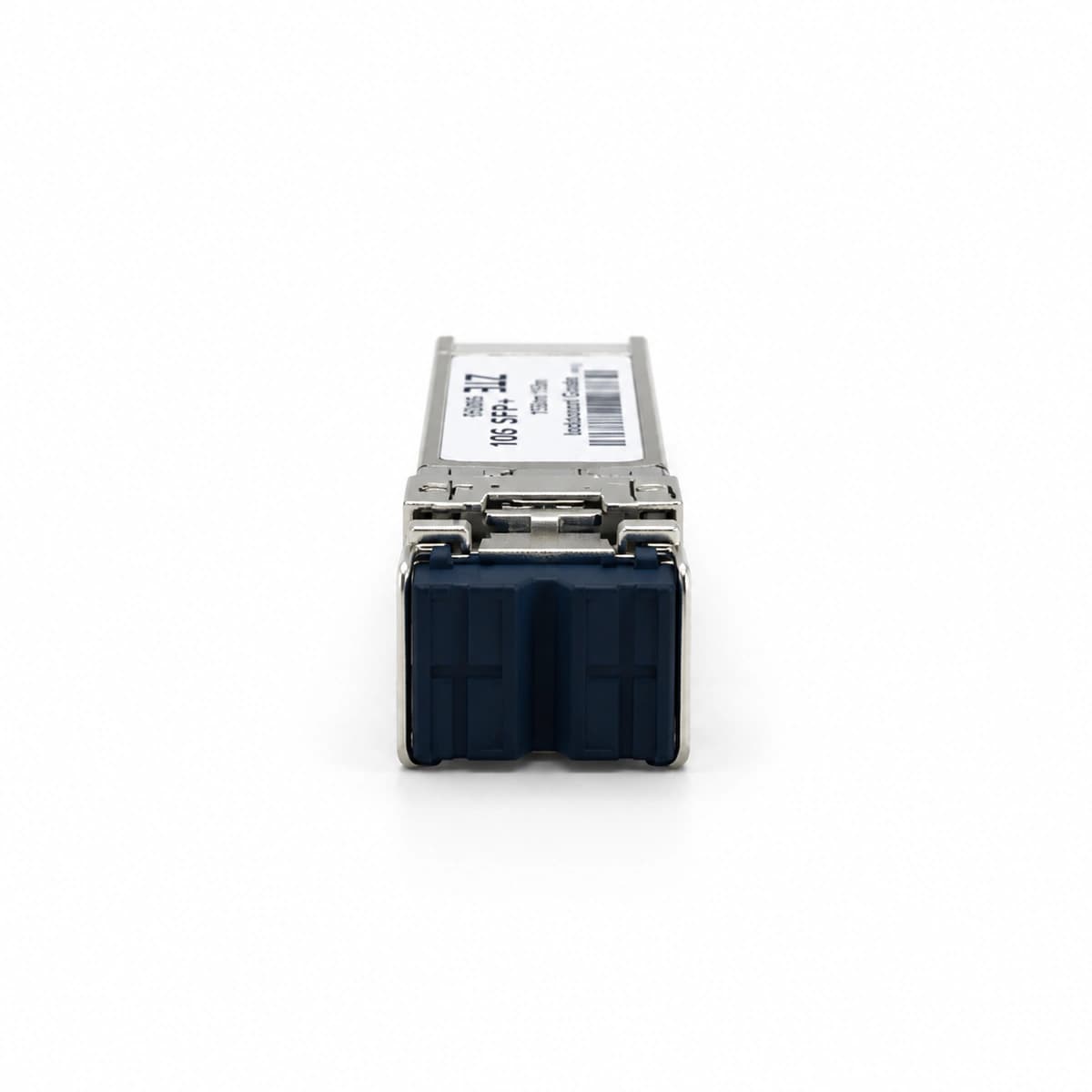

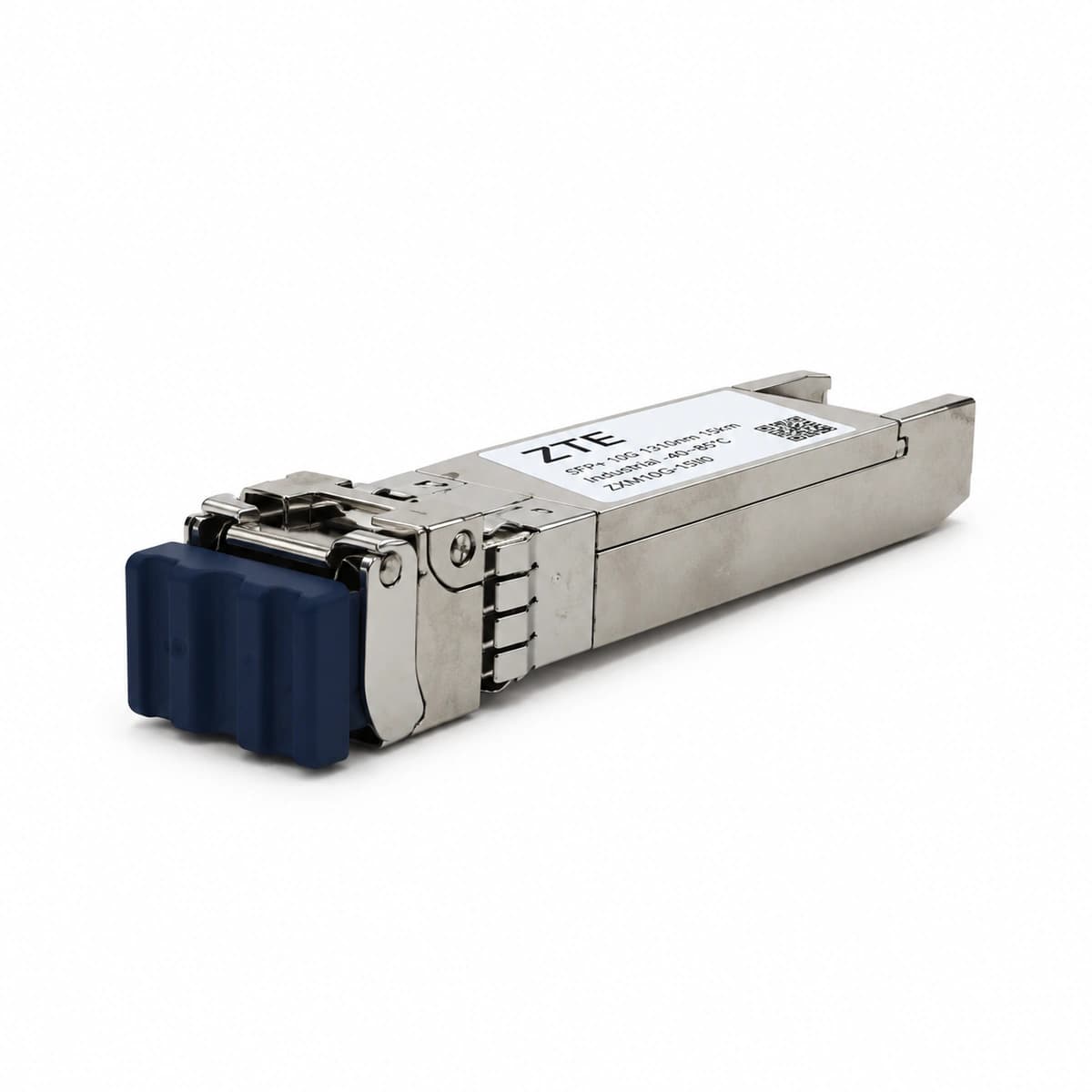

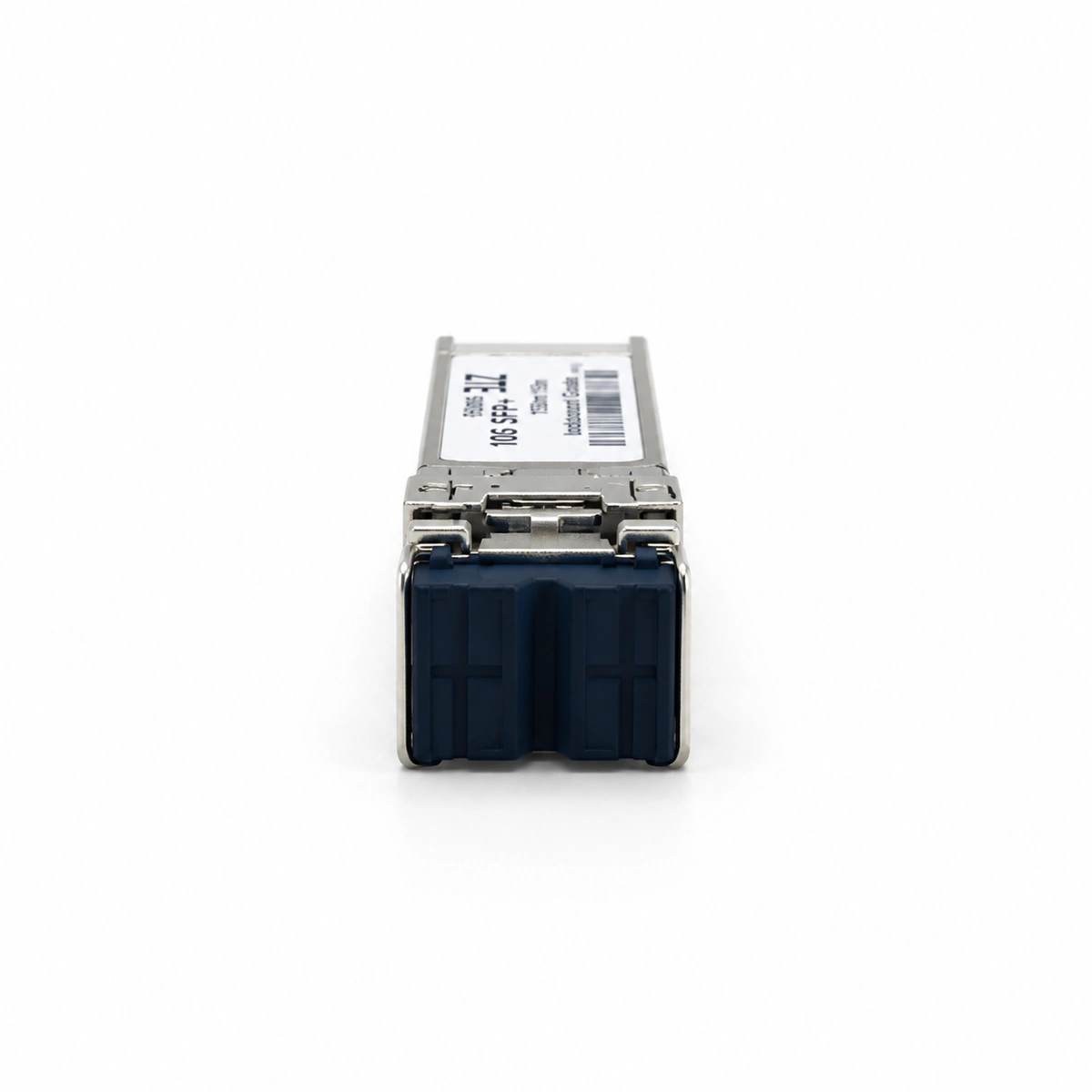

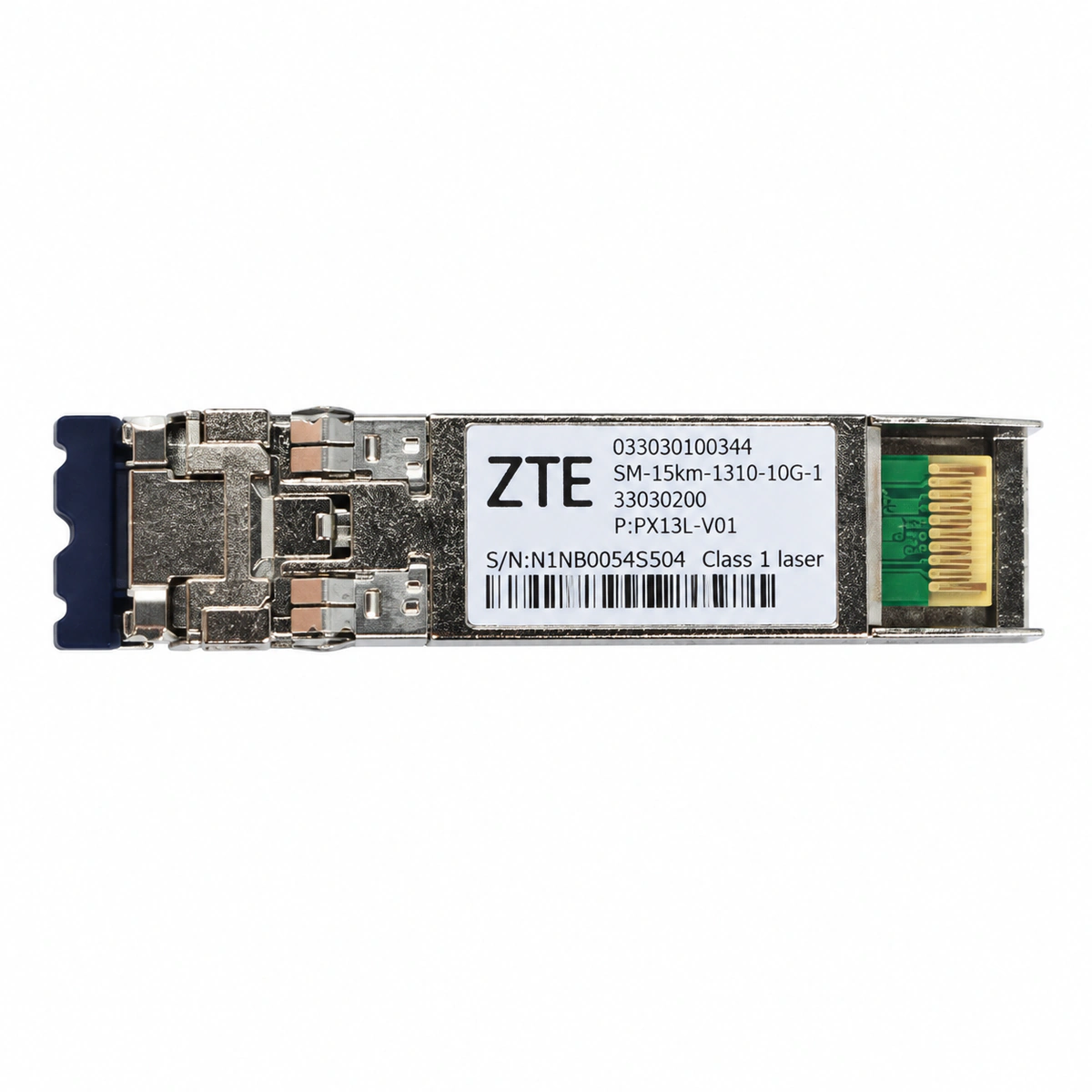

ZTE 10G SFP+ 1310nm 15km Industrial-Grade Optical Transceiver (-40°C to +85°C)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Suburban macro tower site clustering

Electric power substation telemetry

Mining and oilfield harsh communication networks

Frequently asked questions
