Question 1

How is this module's compatibility across ZTE switches, core routers, and 5G bearer platforms, and does it support hot-plugging and mixed port deployment?

Accepted Answer

Pre-programmed with genuine ZTE EEPROM vendor coding, the SM-10KM-1310-10G-C delivers native compatibility across the entire ZTE telecom ecosystem. This includes ZXR10 5960/5900E/8900E series switches, ZXR10 M6000-S/T8000 core routers, ZXCTN 6100/6700/9000-E 5G IPRAN bearer platforms, and C300/C600 OLT uplink modules (e.g., HUGO/XUTQ). It fully supports hot-plugging with built-in inrush current limiting and robust ESD clamping to protect line cards against bus transients during live insertions. It can be freely mixed on high-density line cards alongside 10GBASE-SR (850nm), 10GBASE-ER (1550nm), or CWDM SFP+ optics without channel crosstalk or unrecognized module alarms.

Question 2

What are the mechanical reliability, thermal dissipation, and EMI protection standards of the SM-10KM-1310-10G-C under demanding datacenter conditions?

Accepted Answer

Designed for standard commercial environments (0°C to +70°C operating, -40°C to +85°C storage, 5% to 95% non-condensing relative humidity), the module is housed in an all-metal zinc alloy die-cast shell. This structure delivers superior EMI suppression compliant with FCC Class B and CISPR 22. It features an integrated Class 1 eye-safe laser design and an ergonomic blue pull-latch mechanism with port dust shutter compatibility. Electrical pins provide electrostatic discharge (ESD) immunity rated up to 2kV HBM, 4kV contact, and 8kV air discharge. Combined with sub-1.0W power draw, it maintains optimal passive heat conduction in fully populated 48-port 1RU chassis, delivering an MTBF exceeding 1,000,000 hours.

Question 3

How are the optical transceiver physical interface, fiber matching rules, and digital diagnostic communications defined?

Accepted Answer

According to the manual specifications: 1. Physical Interface: Uses a standard LC duplex connector (Connector Type: LC). 2. Fiber Matching and Transmission Rules: Strict matching is required; single-mode transceivers (typical wavelengths 1310nm, 1550nm) correspond to single-mode fiber (typically yellow), while multimode transceivers (typical wavelength 850nm) correspond to multimode fiber (typically orange, e.g., OM1/OM2/OM3/OM4). 3. Communications and Diagnostics: Supports Digital Diagnostic Monitoring (DDM: YES), allowing the host switch to retrieve optical transmit/receive power, vendor serial number, production date, and operating diagnostic parameters via internal registers.

Key specifications	Value
Physical Form Factor	SFP+
Data Rate	10.3125 Gbps
Central Wavelength	1310 nm
Maximum Distance	10 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC (blue pull tab)
Typical Power Consumption	< 1.0 W
Operating Temperature	0°C ~ +70°C

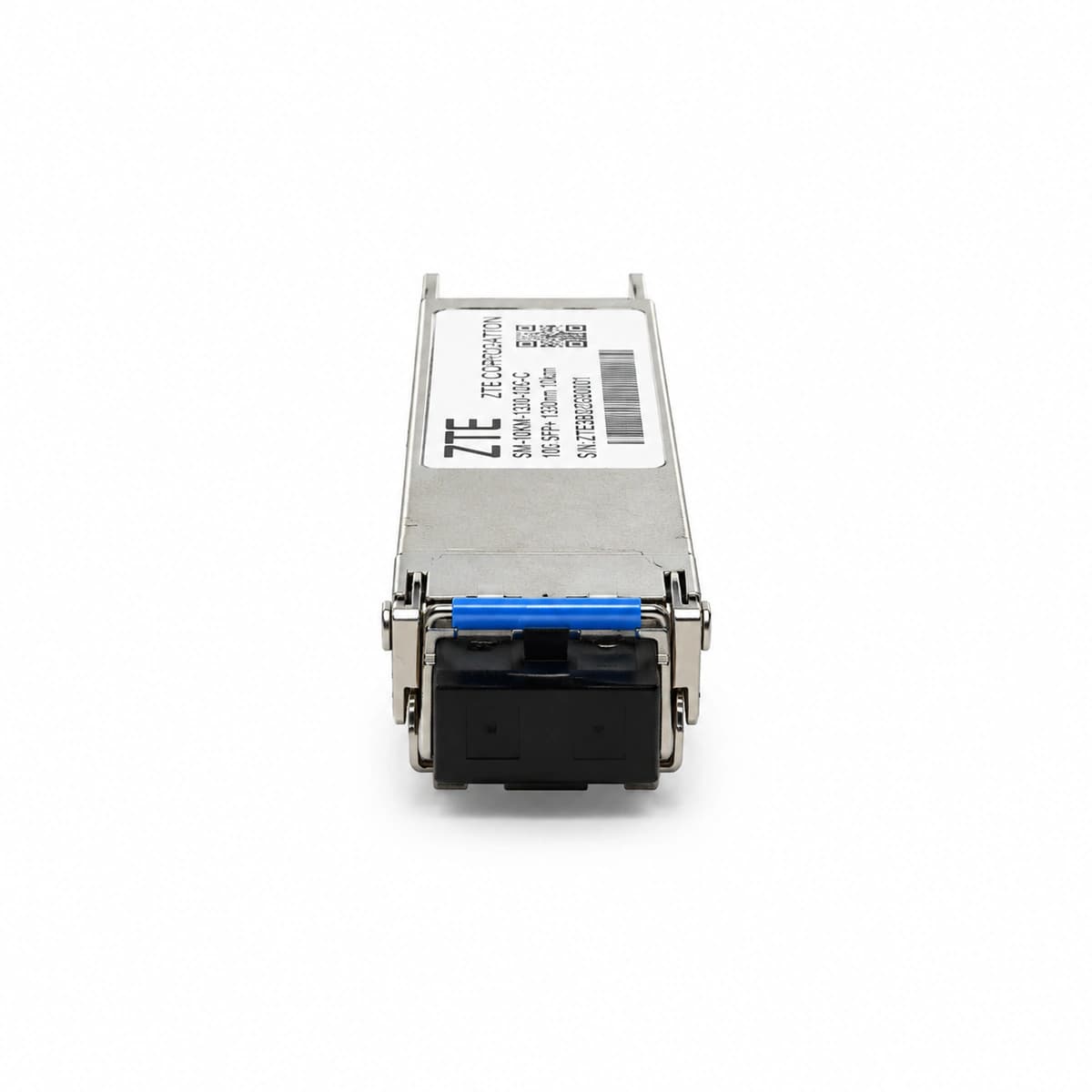

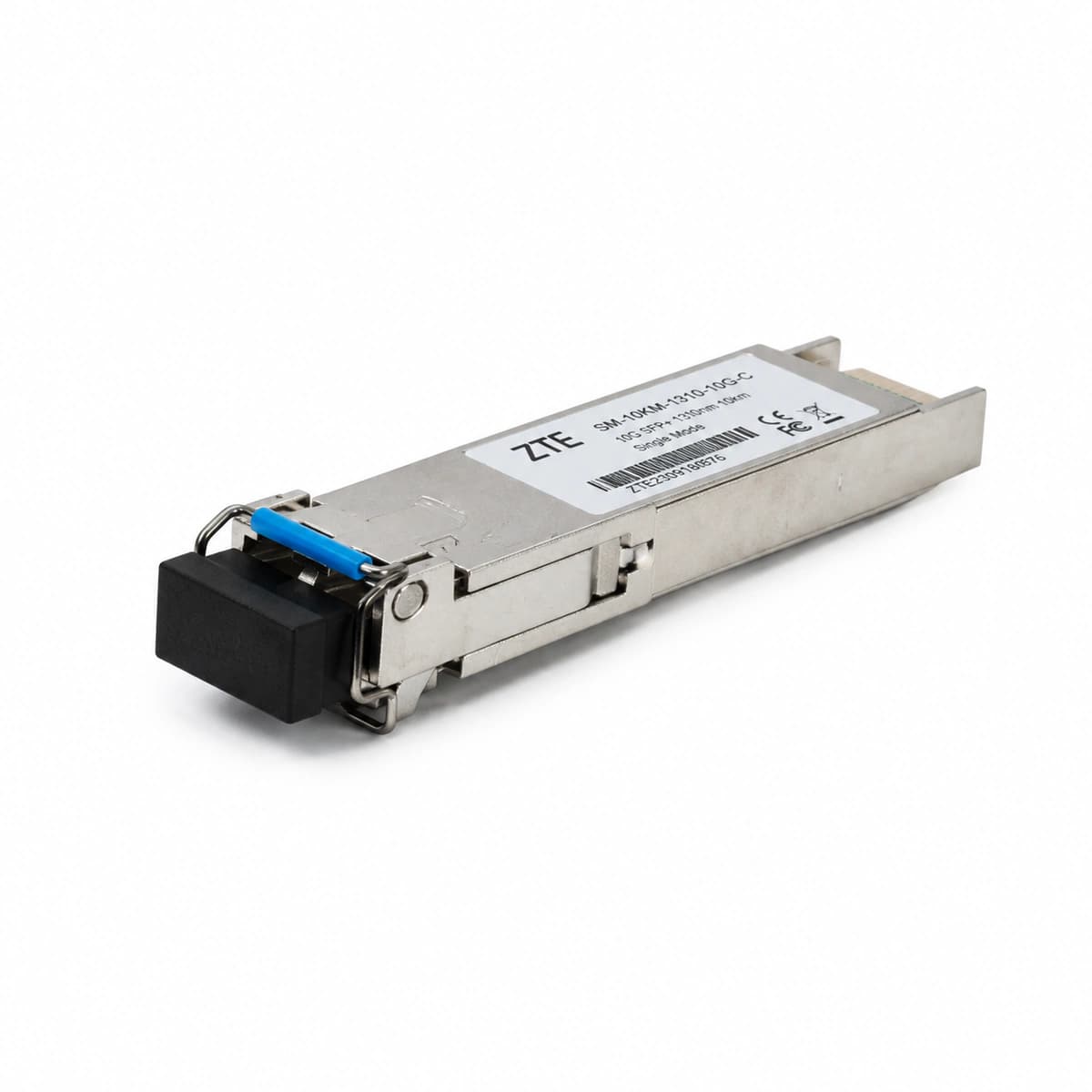

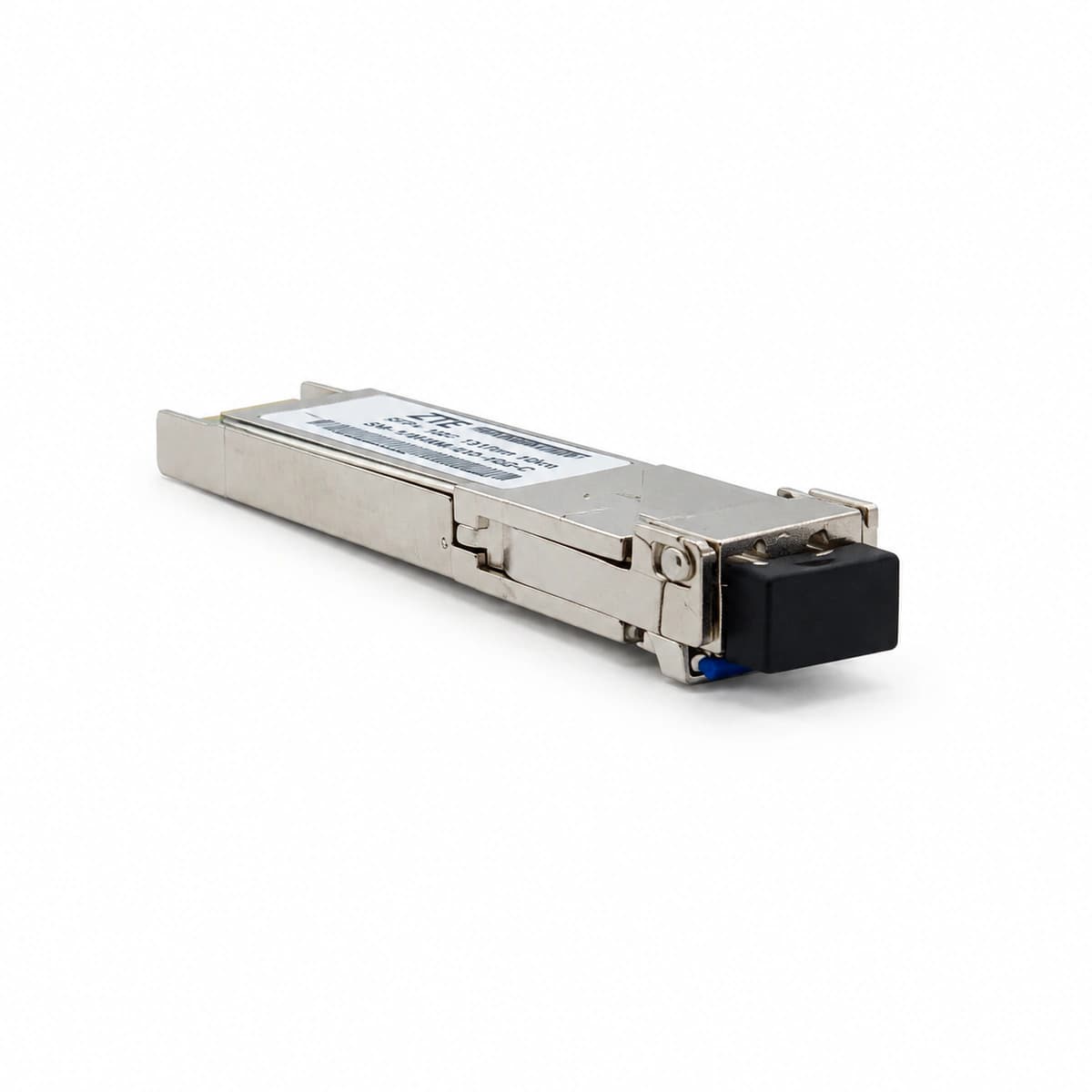

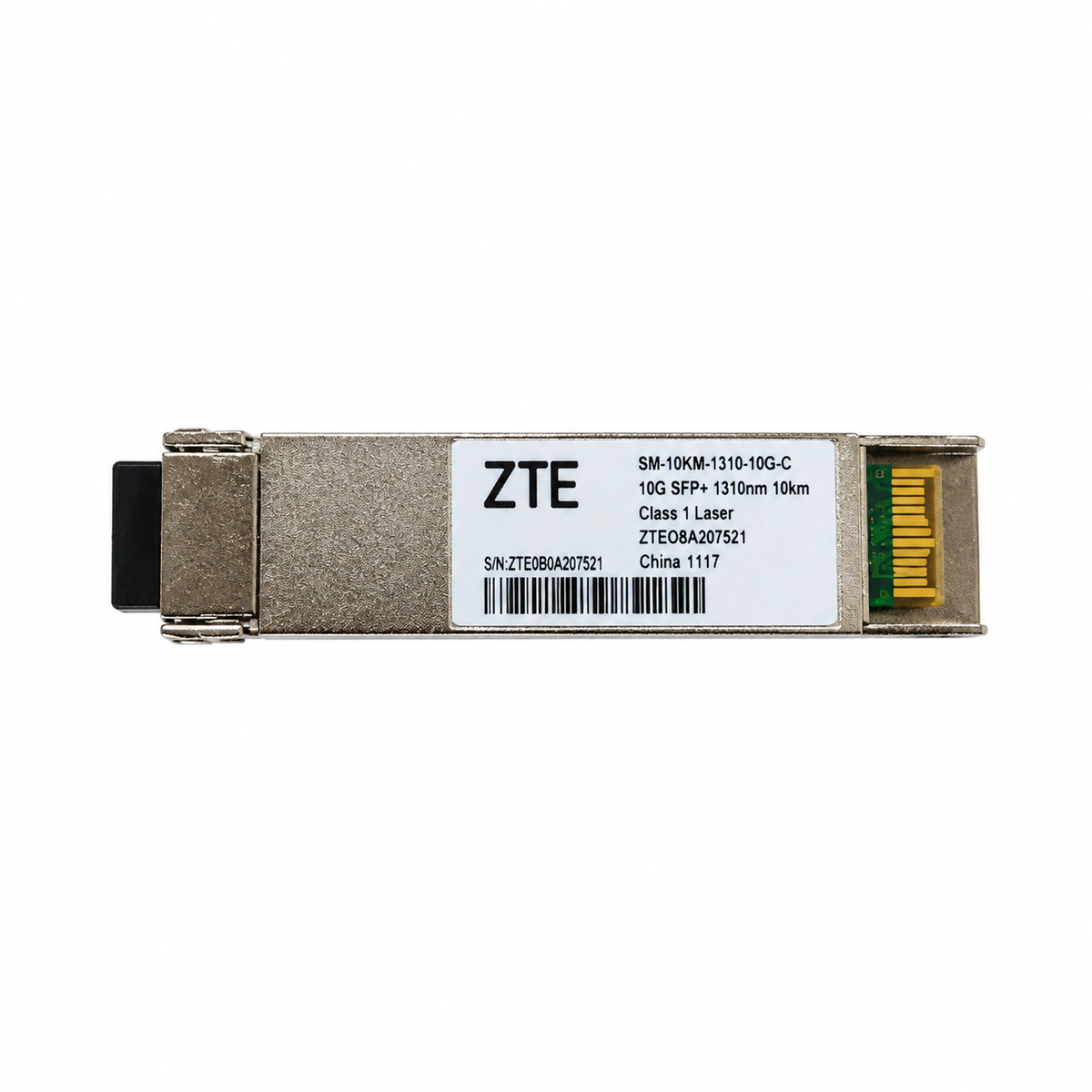

ZTE 10G SFP+ 1310nm 10km Single-Mode Optical Transceiver Module

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

5G mobile transport network nodes

Carrier central office core routing

Enterprise campus high-speed backbones

Frequently asked questions
