Question 1

Which ZTE hardware platforms are compatible with this industrial transceiver, and does it support dual CPRI and Ethernet protocols?

Accepted Answer

Factory-coded with ZTE-native EEPROM firmware, the transceiver offers seamless plug-and-play interoperability across ZTE wireless and transport equipment. In RAN deployments, it supports CPRI Option 7/8 on ZXSDR B8200, B8300, and V9200 BBU baseband cards (e.g., UBBP/BPK/VBP). For IP transport and switching, it is fully verified on ZXCTN 6100/6200/6300 PTN platforms and ZXR10 5900E/8900E enterprise/carrier switches. Featuring SFF-8472 standard DDM/DOM real-time telemetry, it supports hot-swapping and can coexist with 10GBASE-LR links (subject to link budget calibration) without triggering uncertified hardware alarms.

Question 2

What environmental hardening and EMI protection designs allow this module to operate reliably in outdoor RRU/AAU and extreme edge setups?

Accepted Answer

Engineered to full Industrial Grade specifications, the module operates continuously within -40°C to +85°C. The internal laser driver incorporates closed-loop wide-temperature compensation circuitry to maintain optical eye-diagram stability. Its chassis features a high-density, die-cast zinc alloy housing with a ruggedized black bail latch, offering superior thermal conductivity, anti-corrosion, and anti-vibration qualities. The electrical interface conforms to IEC 61000-4-2 Level 4 ESD standards (6kV contact / 8kV air discharge) and satisfies Telcordia GR-468-CORE reliability requirements, making it ideal for unconditioned outdoor cabinets, pole-mounted RRUs, and harsh industrial environments.

Question 3

What are the manufacturer specifications for transceiver physical interfaces and link communication matching?

Accepted Answer

According to the manual technical specifications: 1. Interface and fiber type matching: The optical module adopts an LC connector. Single-mode optical modules (typically 1310nm, 1550nm wavelengths) must be matched with single-mode fiber (typically yellow), while multi-mode optical modules (typically 850nm wavelength) must be matched with multi-mode fiber (typically orange, e.g., OM1/OM2/OM3/OM4). The optical module must also match the specifications of the peer optical module. 2. Communication monitoring and negotiation: Supports Digital Diagnostic Monitoring (DDM: YES); operational parameters including transceiver type, wavelength, transmission distance, manufacturer serial number, and diagnostic alarms can be retrieved via the 'display interface transceiver [verbose]' command. 3. Port communication state: If ports are administratively shut down, the link will be down; verify via 'display this' under interface mode and execute 'undo shutdown' to resume communication.

Key specifications	Value
Physical Form Factor	SFP+
Data Rate	9.8 ~ 10.3125 Gbps
Central Wavelength	1310 nm
Maximum Distance	1.4 km
Fiber Type	Single-Mode Fiber (SMF) (SMF)
Optical Connector	Duplex LC Connector
Typical Power Consumption	< 1.0 W
Operating Temperature	-40°C ~ +85°C (industrial-grade operating conditions)

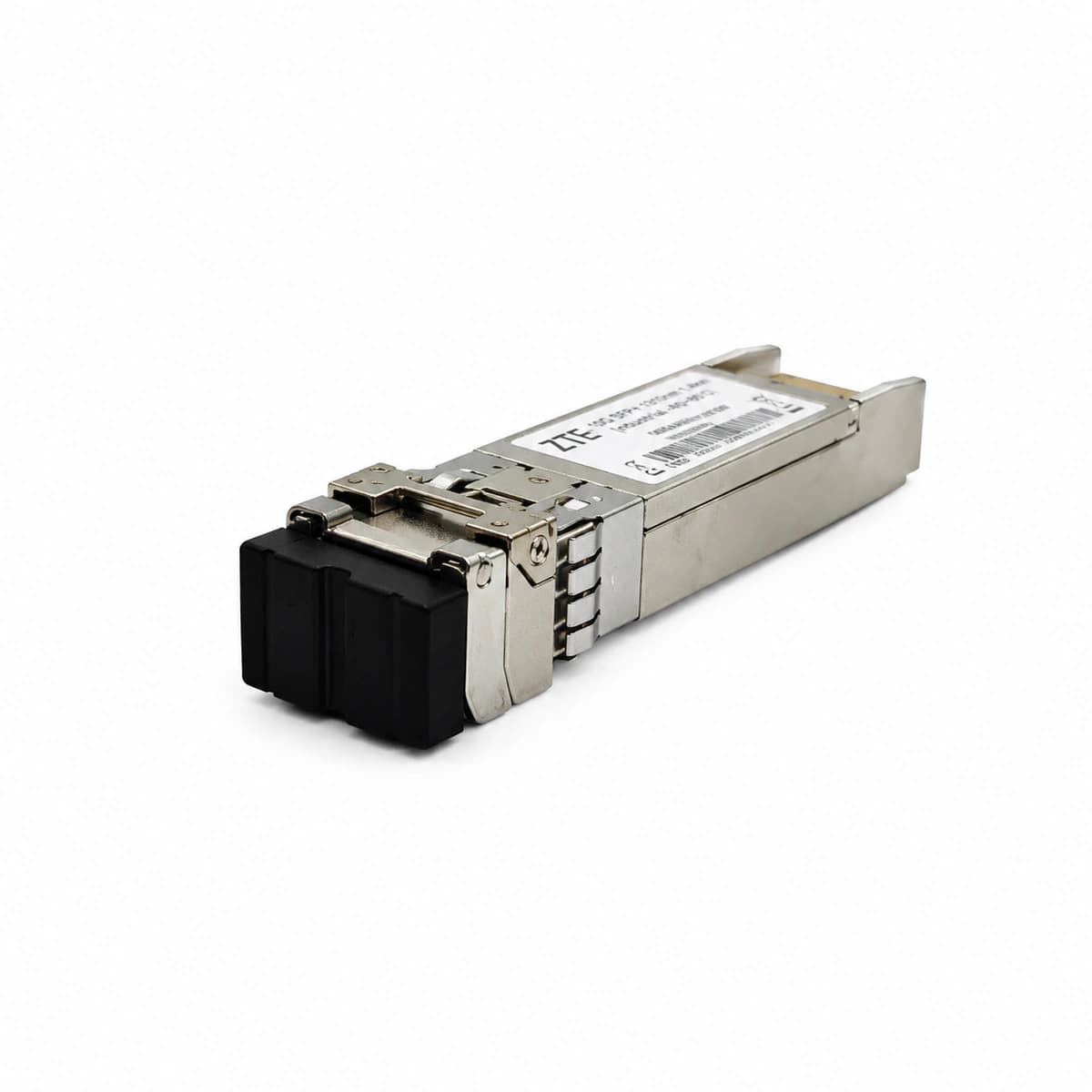

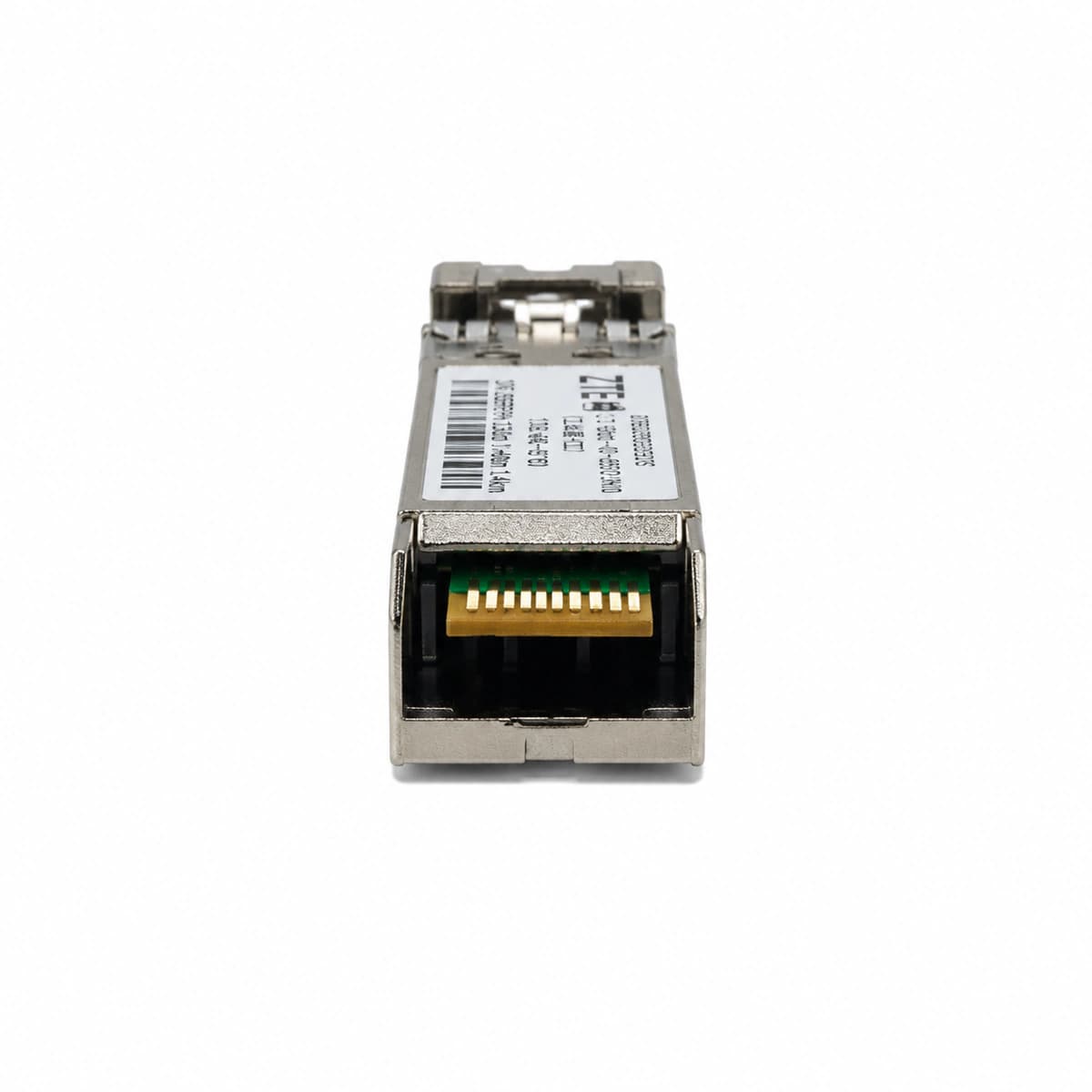

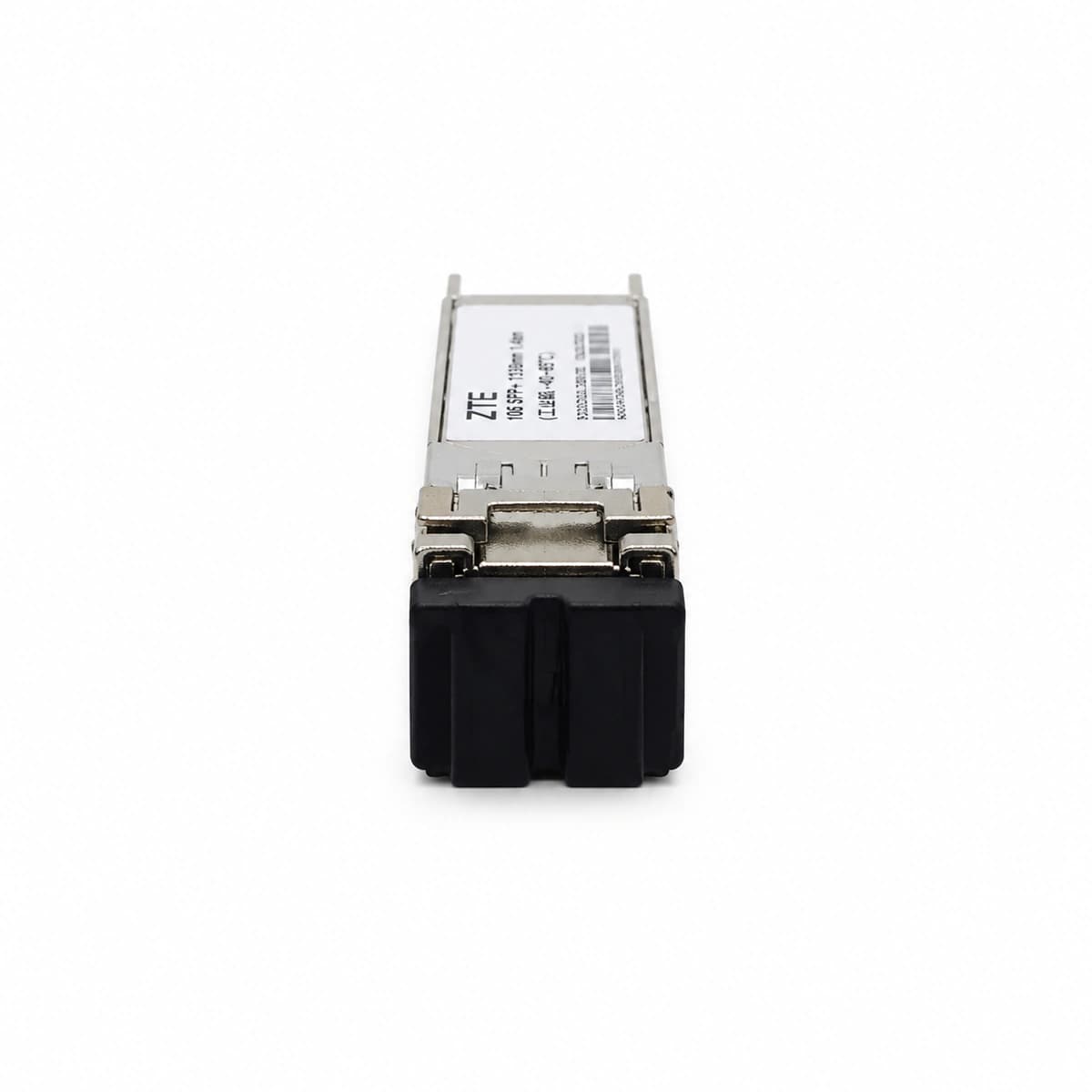

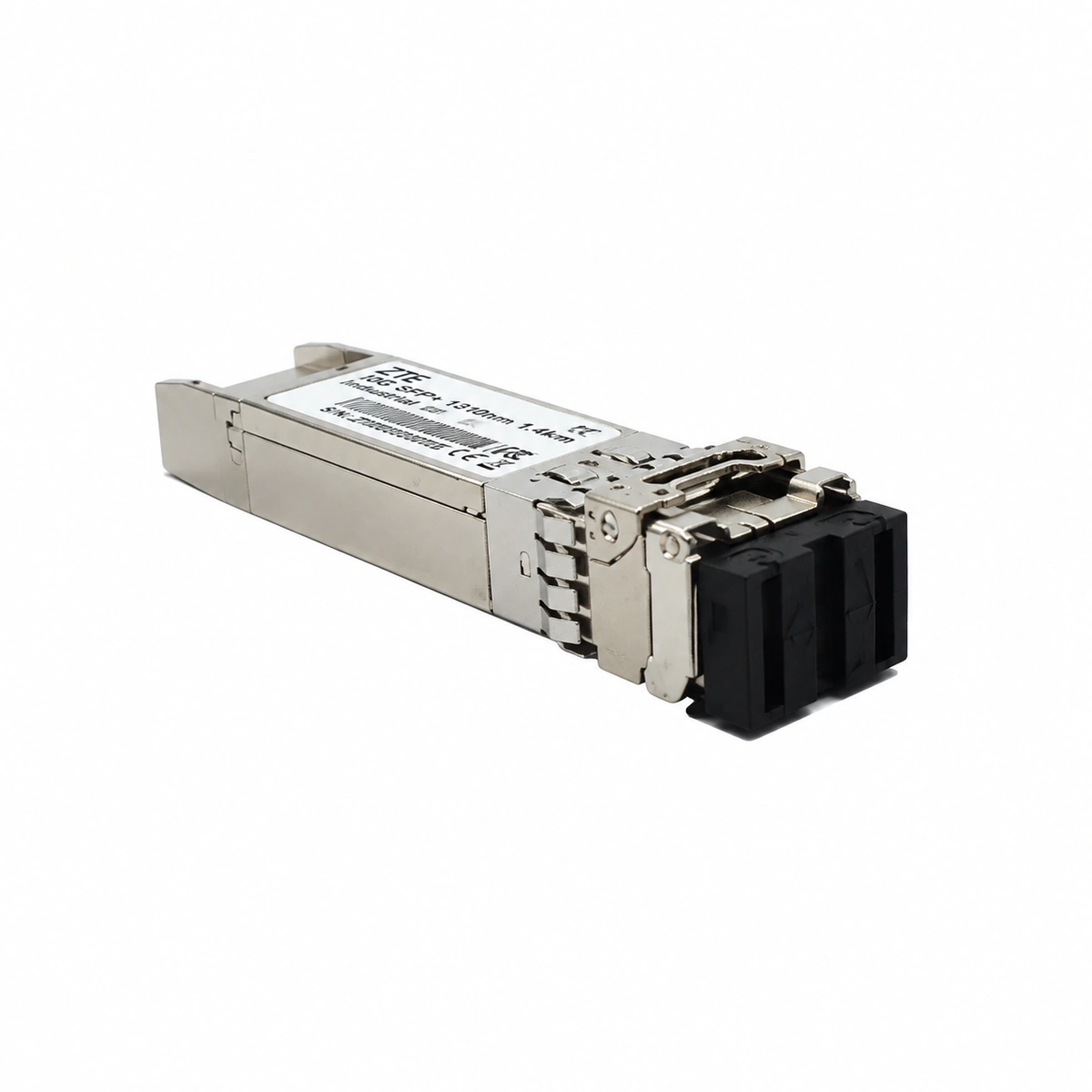

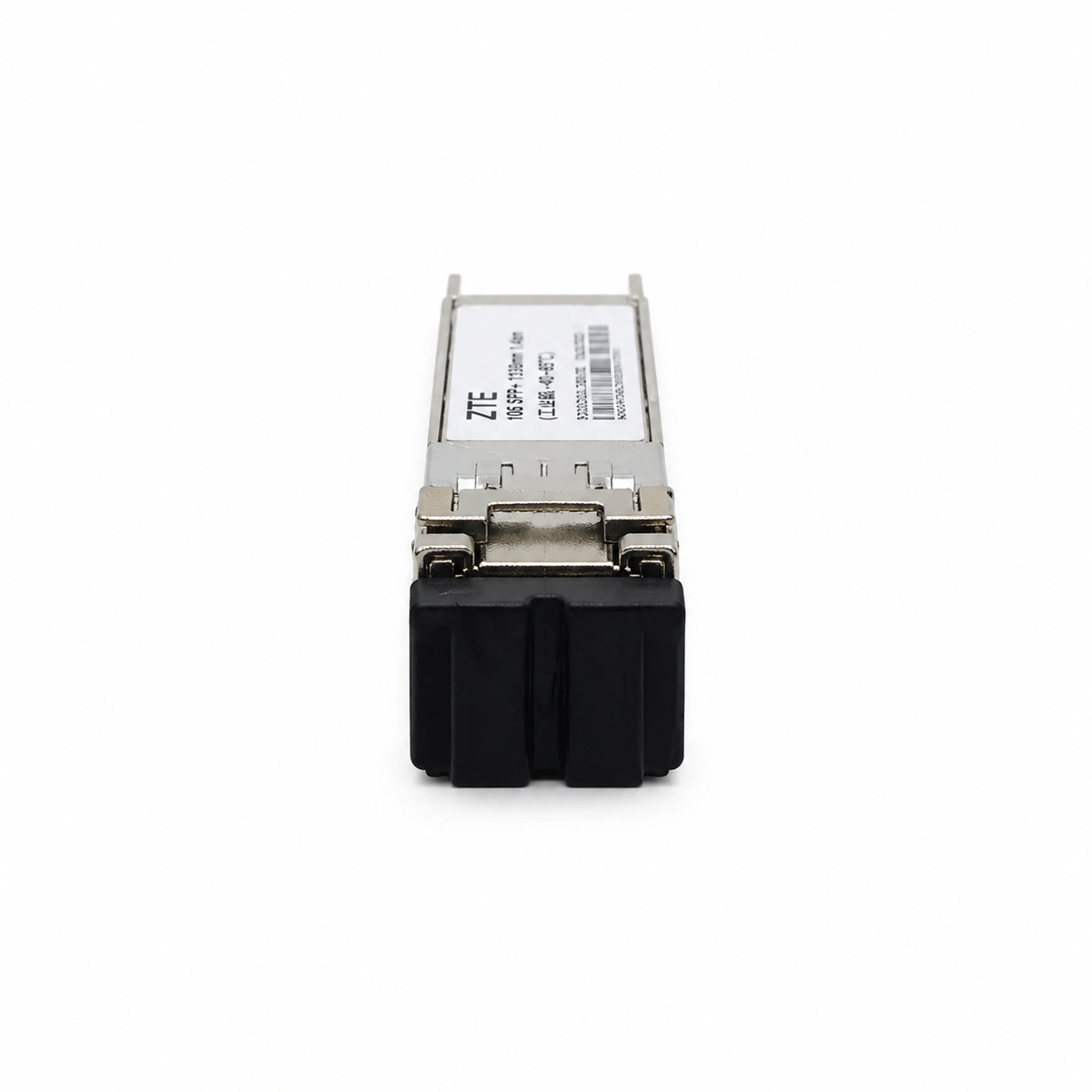

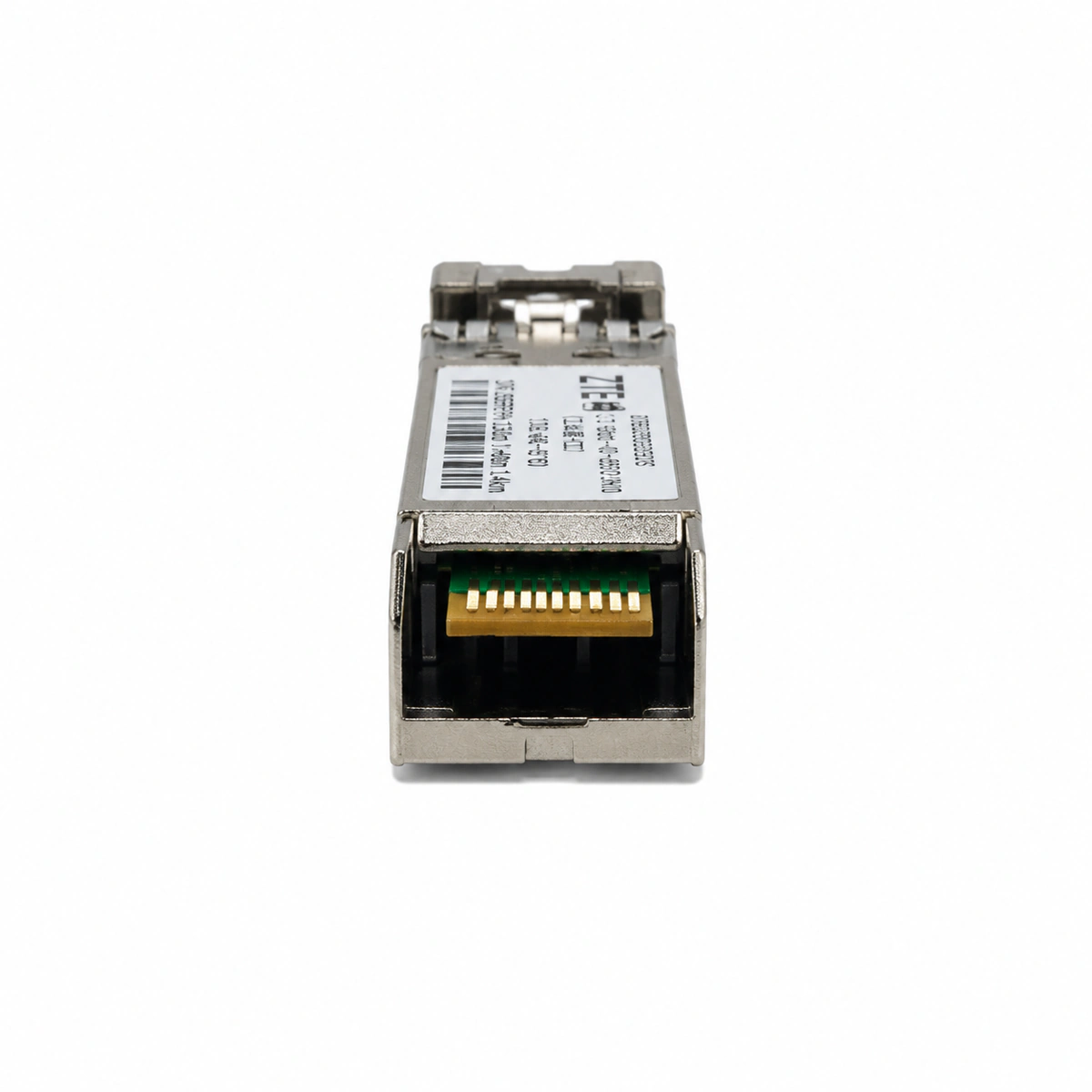

ZTE 10G SFP+ 1310nm 1.4km Industrial-Grade Optical Transceiver (-40°C to +85°C)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Outdoor macro tower antenna links

Harsh utility substation networks

Railway wayside automated signaling

Frequently asked questions
