Q: Which subrack platforms support the SMPS1002H-I, and what are its parallel expansion and active current-sharing capabilities?

With standard dimensions of 132×85×280 mm, the SMPS1002H-I seamlessly fits Zhujiang 19-inch and 21-inch telecom subracks with full hot-swap capability. It supports multi-module parallel N+1 redundancy, featuring an autonomous active current-sharing bus that limits current imbalance to <±5% across load profiles. Backward compatible with legacy Zhujiang monitoring systems, the unit incorporates hardware-level output overvoltage latch-off, short-circuit foldback current limiting, and output reverse-polarity isolation, ensuring zero downtime switchover if a single unit faults.

Q: What environmental tolerances, cooling mechanisms, and surge suppression designs are built into the Zhujiang SMPS1002H-I?

The SMPS1002H-I is built for harsh telecom edge and CO environments, rated for operational temperatures from -25°C to +65°C (with smart derating above +55°C) and storage from -40°C to +70°C at 5%~95% RH (non-condensing). Thermal management relies on an internal temperature-controlled variable-speed DC fan to optimize airflow, dust resistance, and acoustic performance. The AC port features telecom-grade surge protection conforming to 2kV differential mode and 4kV common mode (8/20μs lightning surge waveform), yielding an MTBF rating of ≥320,000 hours.

Question 1

What are the core electrical conversion specifications and input/output parameters of the Zhujiang SMPS1002H-I rectifier module?

Accepted Answer

The Zhujiang SMPS1002H-I (SKU: ZJ-REC-SMPS1002H-I) is engineered for telecom DC applications, delivering a rated output of -48VDC/20A (1000W) with an adjustable voltage window from -40V to -60VDC. Featuring an advanced topology with Active Power Factor Correction (APFC), it achieves a power factor of ≥0.99 and a peak conversion efficiency >92.5%. The unit operates across a wide single-phase AC input range of 90VAC to 290VAC (with linear derating under low input voltages) and maintains input current THD <5%, minimizing harmonic feedback to grid or backup generator sources.

Question 2

Which subrack platforms support the SMPS1002H-I, and what are its parallel expansion and active current-sharing capabilities?

Accepted Answer

With standard dimensions of 132×85×280 mm, the SMPS1002H-I seamlessly fits Zhujiang 19-inch and 21-inch telecom subracks with full hot-swap capability. It supports multi-module parallel N+1 redundancy, featuring an autonomous active current-sharing bus that limits current imbalance to <±5% across load profiles. Backward compatible with legacy Zhujiang monitoring systems, the unit incorporates hardware-level output overvoltage latch-off, short-circuit foldback current limiting, and output reverse-polarity isolation, ensuring zero downtime switchover if a single unit faults.

Question 3

What environmental tolerances, cooling mechanisms, and surge suppression designs are built into the Zhujiang SMPS1002H-I?

Accepted Answer

The SMPS1002H-I is built for harsh telecom edge and CO environments, rated for operational temperatures from -25°C to +65°C (with smart derating above +55°C) and storage from -40°C to +70°C at 5%~95% RH (non-condensing). Thermal management relies on an internal temperature-controlled variable-speed DC fan to optimize airflow, dust resistance, and acoustic performance. The AC port features telecom-grade surge protection conforming to 2kV differential mode and 4kV common mode (8/20μs lightning surge waveform), yielding an MTBF rating of ≥320,000 hours.

Key specifications	Value
Nominal Output Voltage	-48 VDC
Output Voltage Range	-40 ~ -60 VDC
Rated Output Power	1000 W
Physical Dimensions Spec	132 × 85 × 280 mm
Power Conversion Efficiency	> 92.5%
AC Input Voltage Range	90 ~ 290 VAC (Single Phase Wide Range)
Operating Temperature	-20°C ~ +65°C
Rated Output Current	20 A
Output Power Factor PF	> 0.99

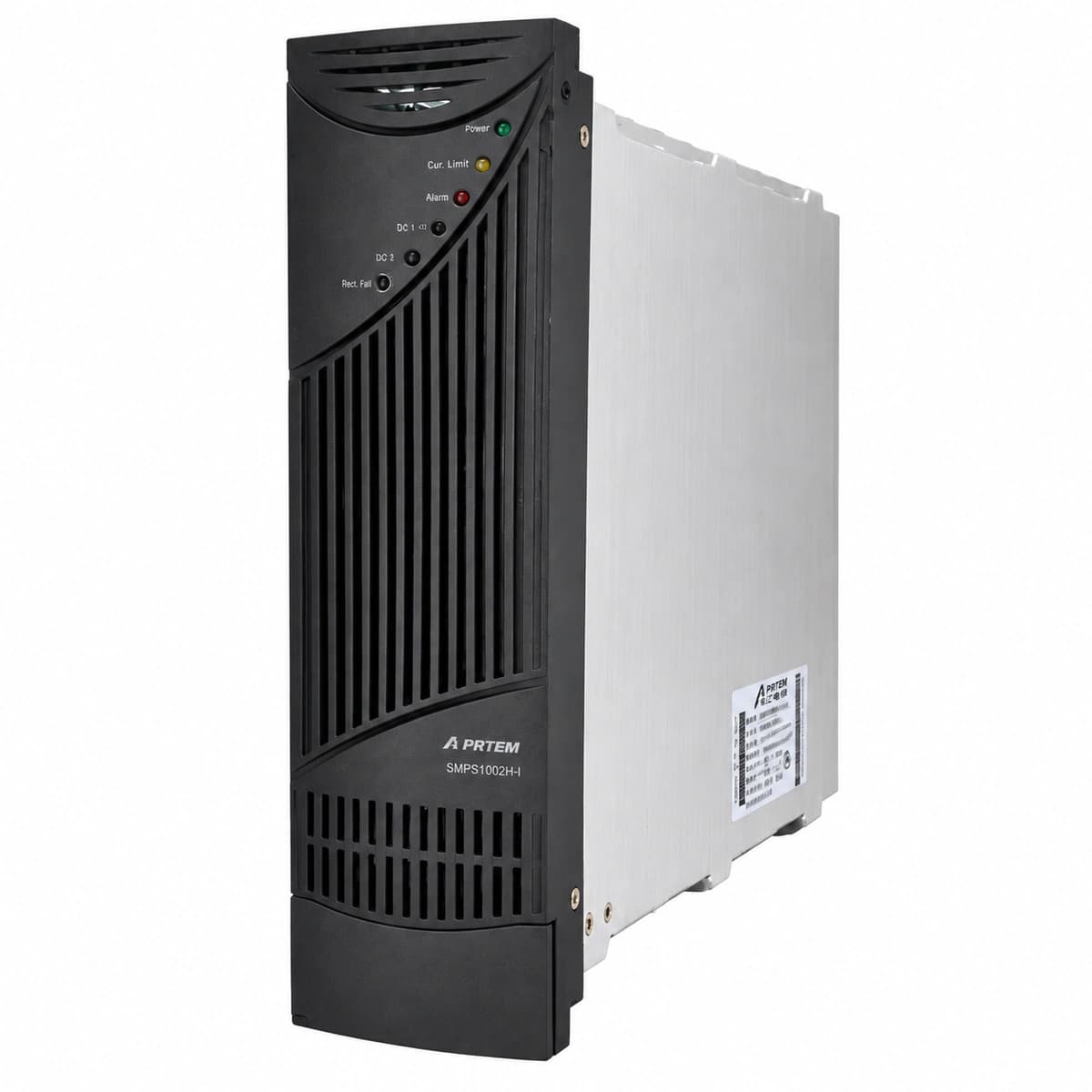

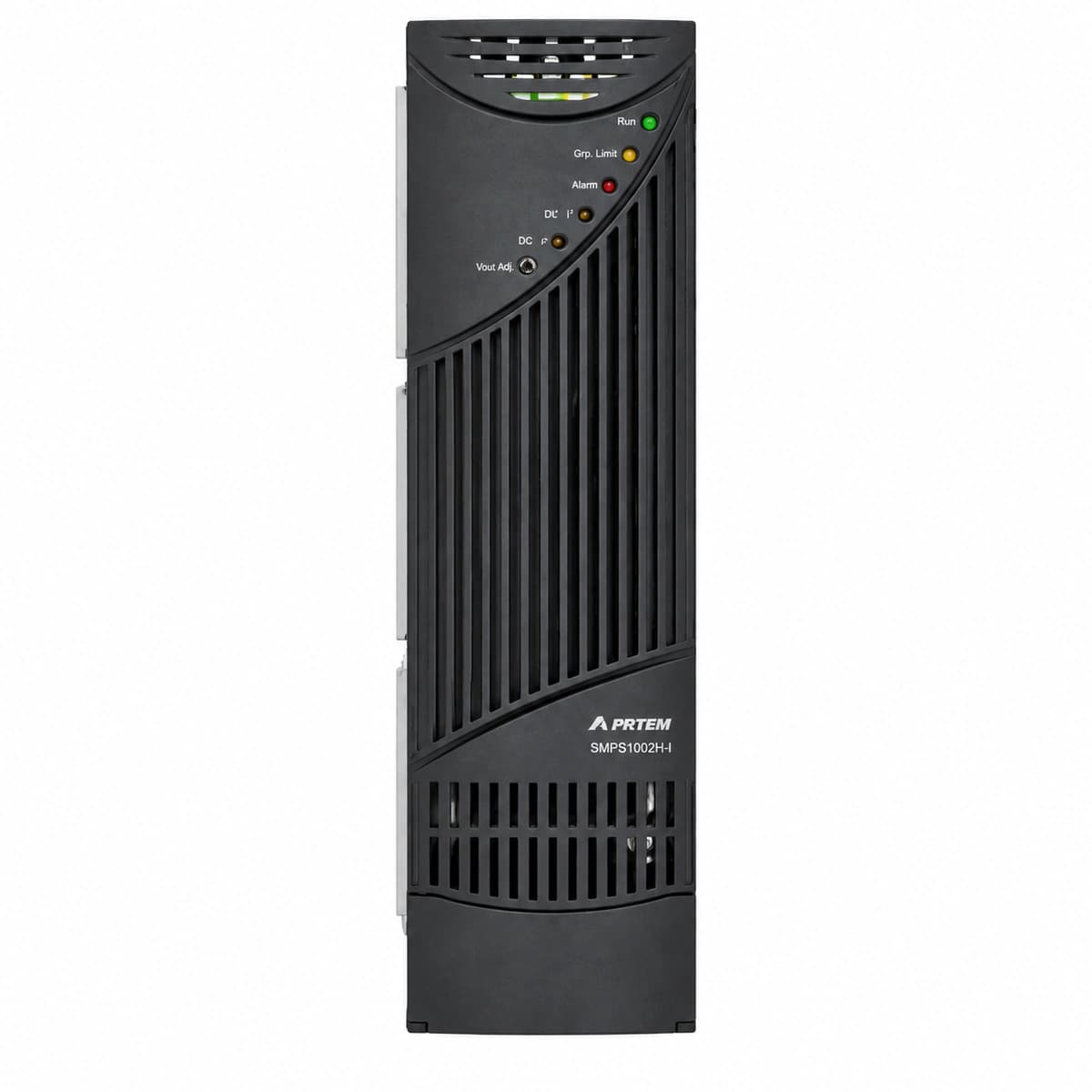

Zhujiang SMPS1002H-I Industrial Telecom Rectifier Module (-48V 20A 1000W)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Electric utility SCADA transmission stations

Broadband municipal access points

Railway signaling relay huts

Frequently asked questions

Continue exploring

Zhujiang SMPS2004 Industrial Switch-Mode DC Power Rectifier Module (48V 30A 1700W)

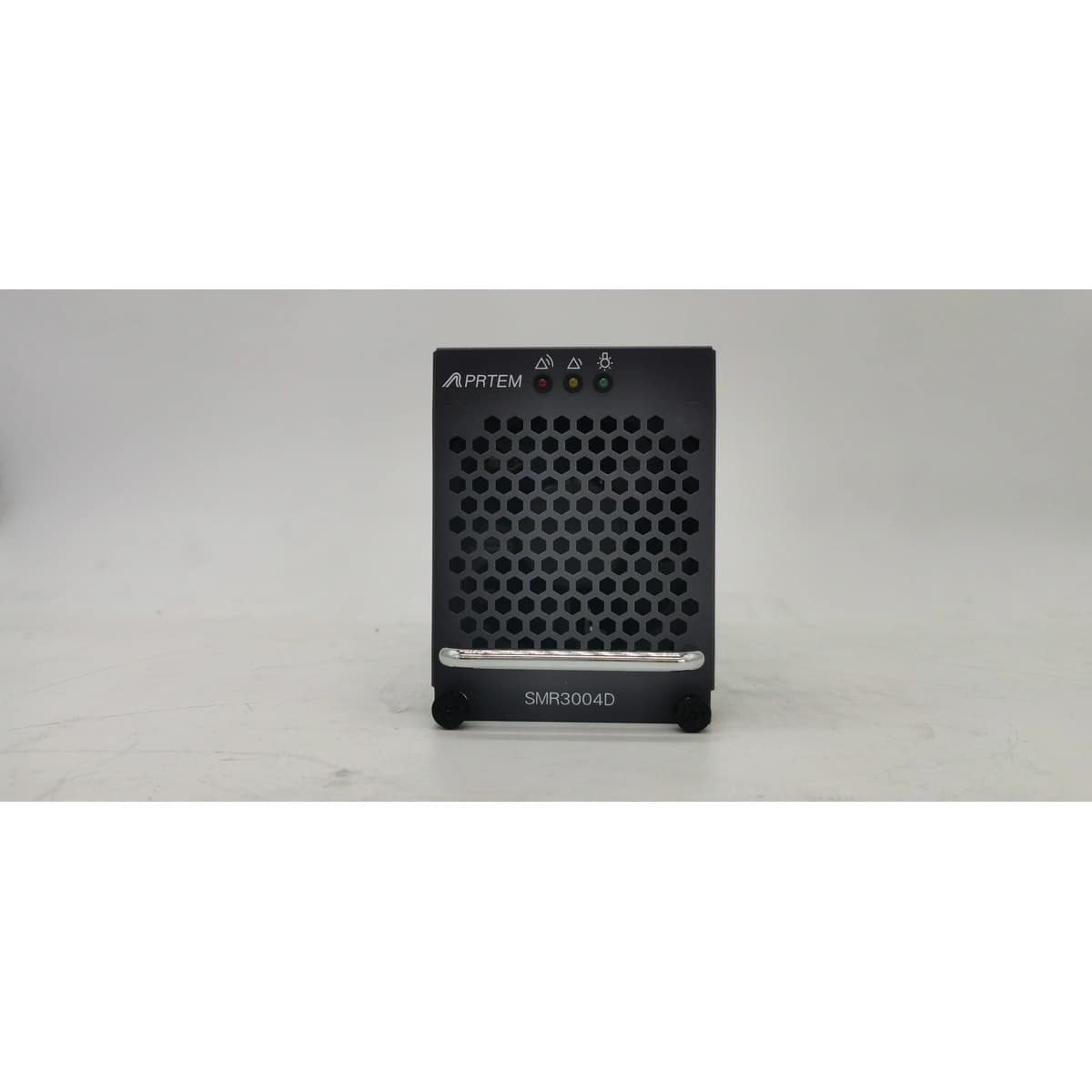

Zhujiang SMR3004D High-Power Telecom Base Station Rectifier Module (48V 50A 2900W)
