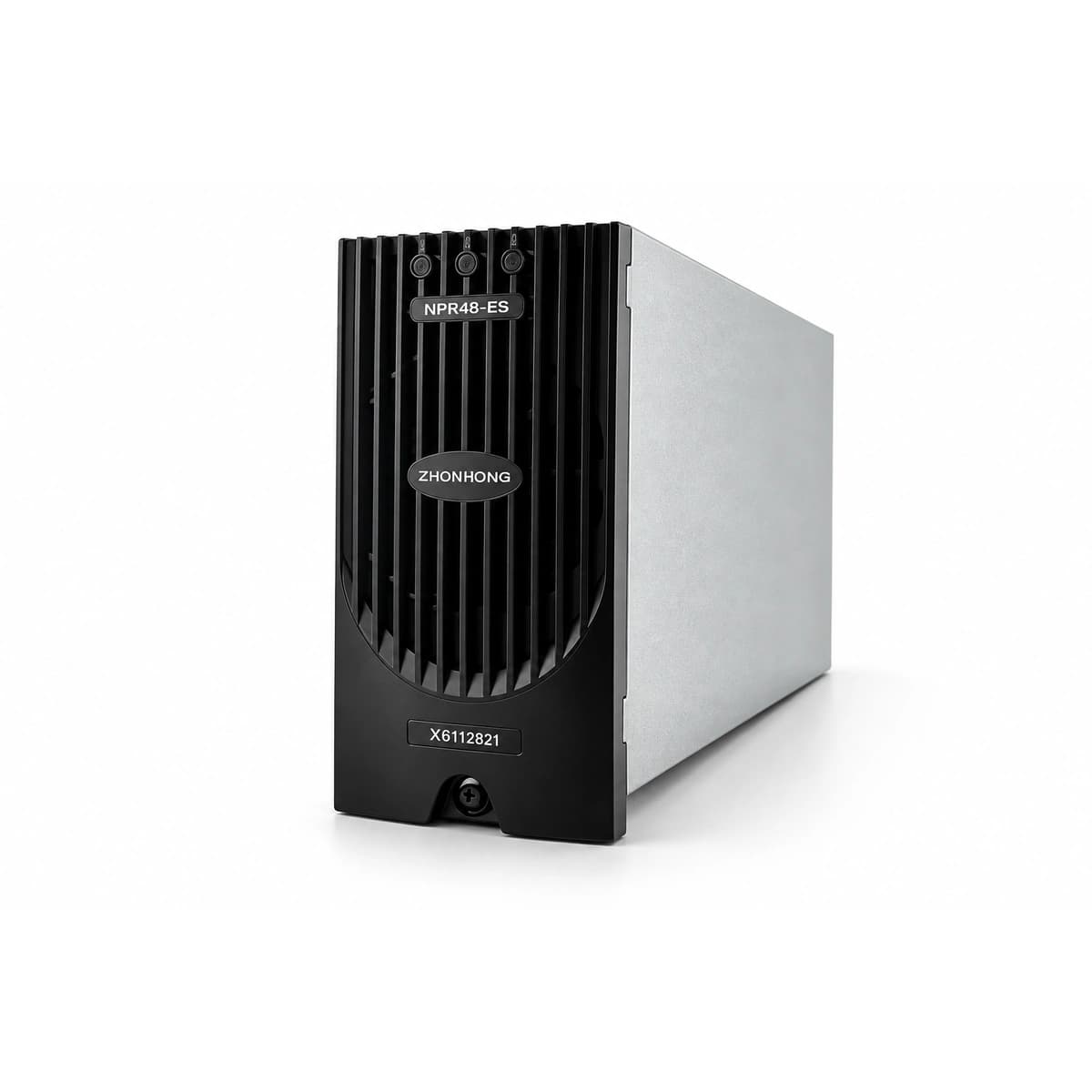

The Zhongheng NPR48-ES is an enterprise- and carrier-grade high-frequency switch-mode telecom rectifier module engineered for continuous 48V DC power distribution. It delivers a nominal output voltage of 53.5V DC (adjustable from 42V to 58V DC), a maximum continuous output current of 30A, a rated capacity of 1800W, and a peak electrical conversion efficiency equal to or exceeding 95.0%.
Pricing is confirmed by project configuration and quantity
Request a quoteThe NPR48-ES comprises an active EMI suppression network, a single-phase APFC boost converter, an LLC half-bridge resonant DC-DC stage, and synchronous secondary rectification. Controlled by an onboard digital signal processor (DSP) linked via a digital communications interface to the centralized supervisory unit (CSU), it complies with international electrical safety and EMC benchmarks including IEC/EN 62368 and EN 55032 Class B.
Eliminates network outages caused by volatile commercial utility grids through its 85V–300V AC operational tolerance. It solves thermal congestion and high operational expenditures (OPEX) in compact outdoor enclosures through its ≥95.0% efficiency, and it minimizes Mean Time to Repair (MTTR) by allowing hot-swappable module replacement without dropping active DC bus loads or disturbing battery float charging.
Ideal for cellular 4G/5G macro and micro base transceiver stations, fiber-to-the-home (FTTH) aggregation nodes, central office DC UPS systems, railway communication and signaling networks, and industrial SCADA 48V backup DC plants.
| Key specifications | Value |
|---|---|
| Rated Output Voltage | 48V DC (42V~58V DC, 标称53.5V) |
| Maximum Output Current | 30A |
| Rated Output Power | 1800W |
| AC Input Voltage Range | 85V AC ~ 300V AC |
| Peak Conversion Efficiency | ≥ 95.0% |
| Operating Temperature Range | -25°C to +70°C |
| Cooling Method | Forced Air Cooling with Intelligent Speed Fan |
| Hot-Swappable Support | Yes (Live Hot-Pluggable / Plug-and-Play without Power Interruption) |
