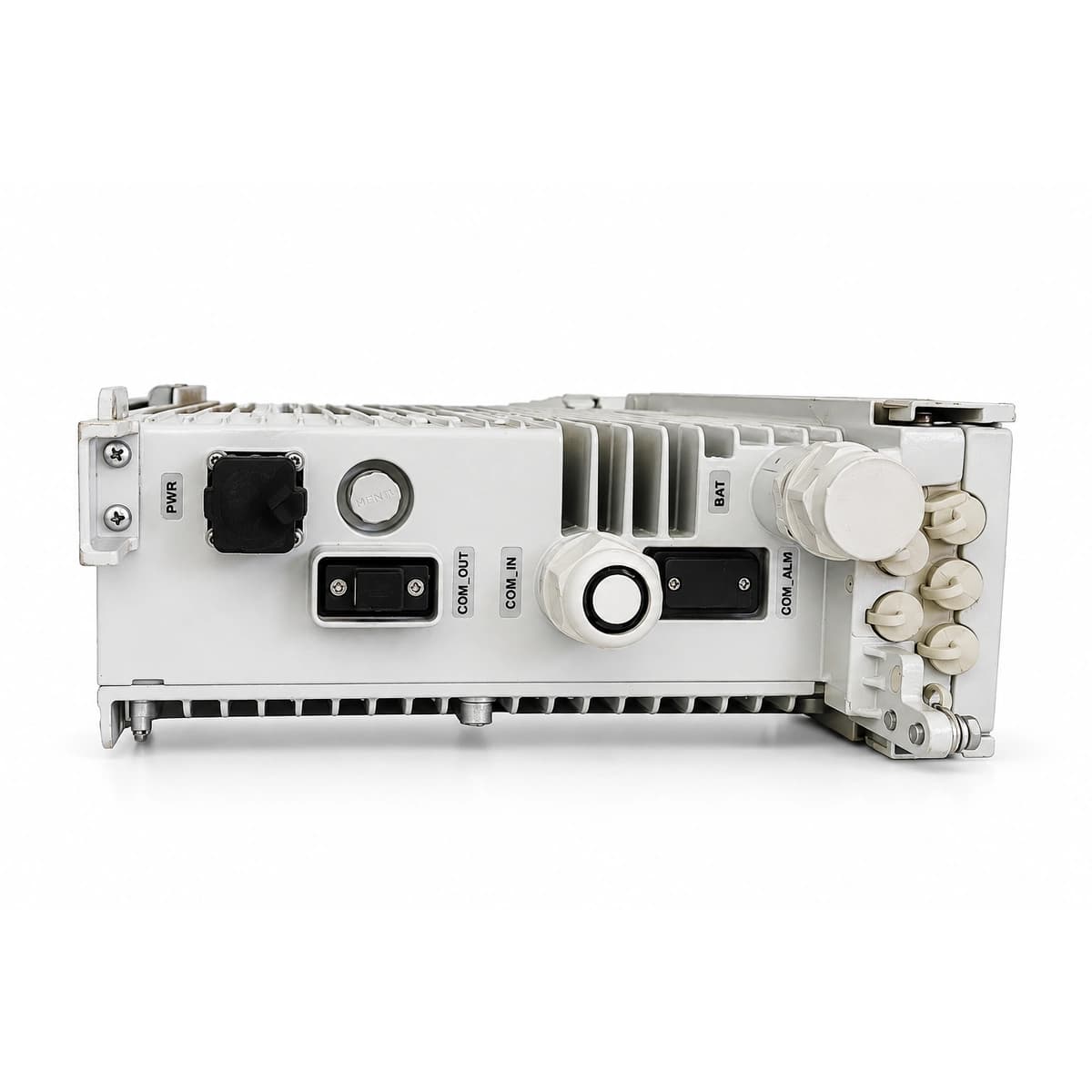

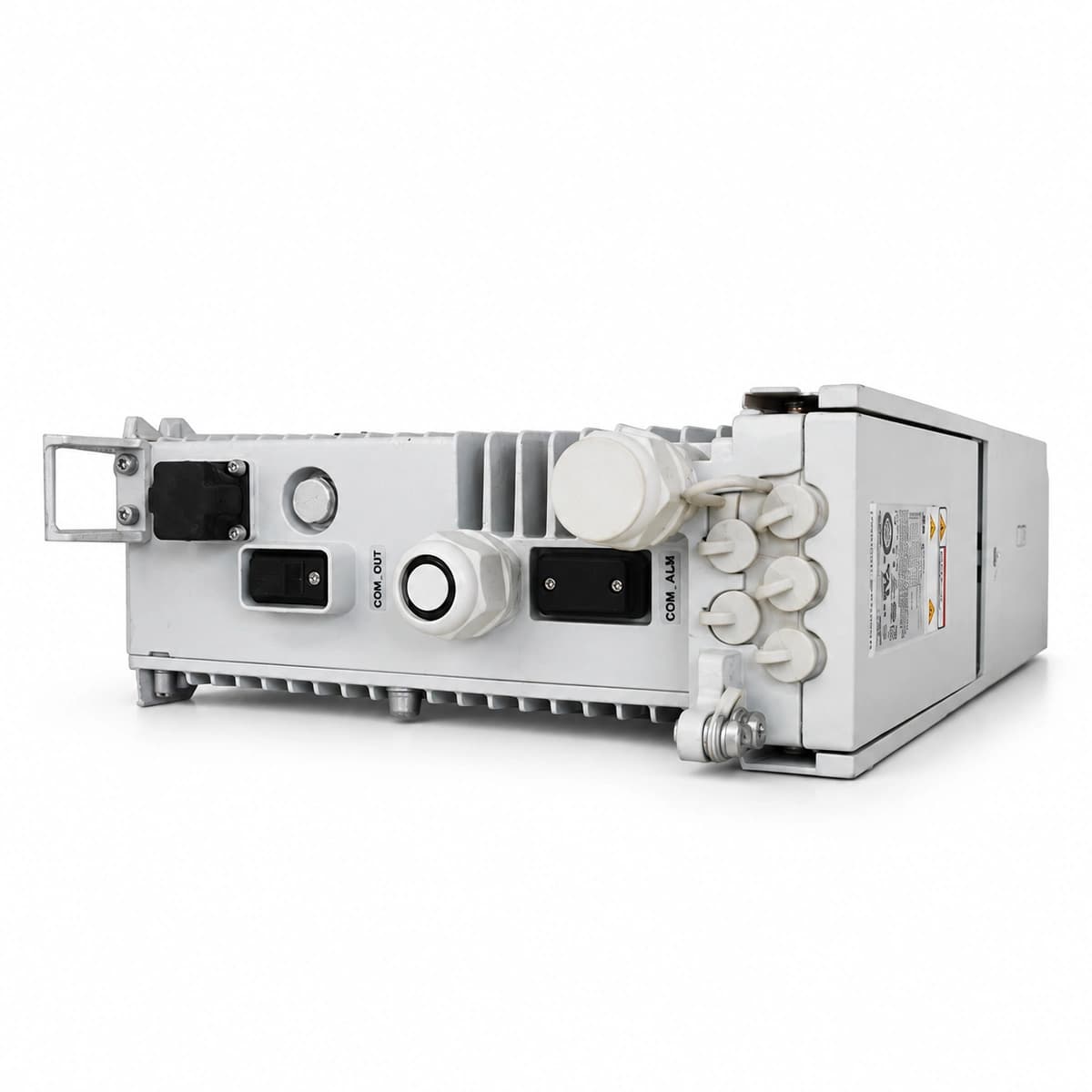

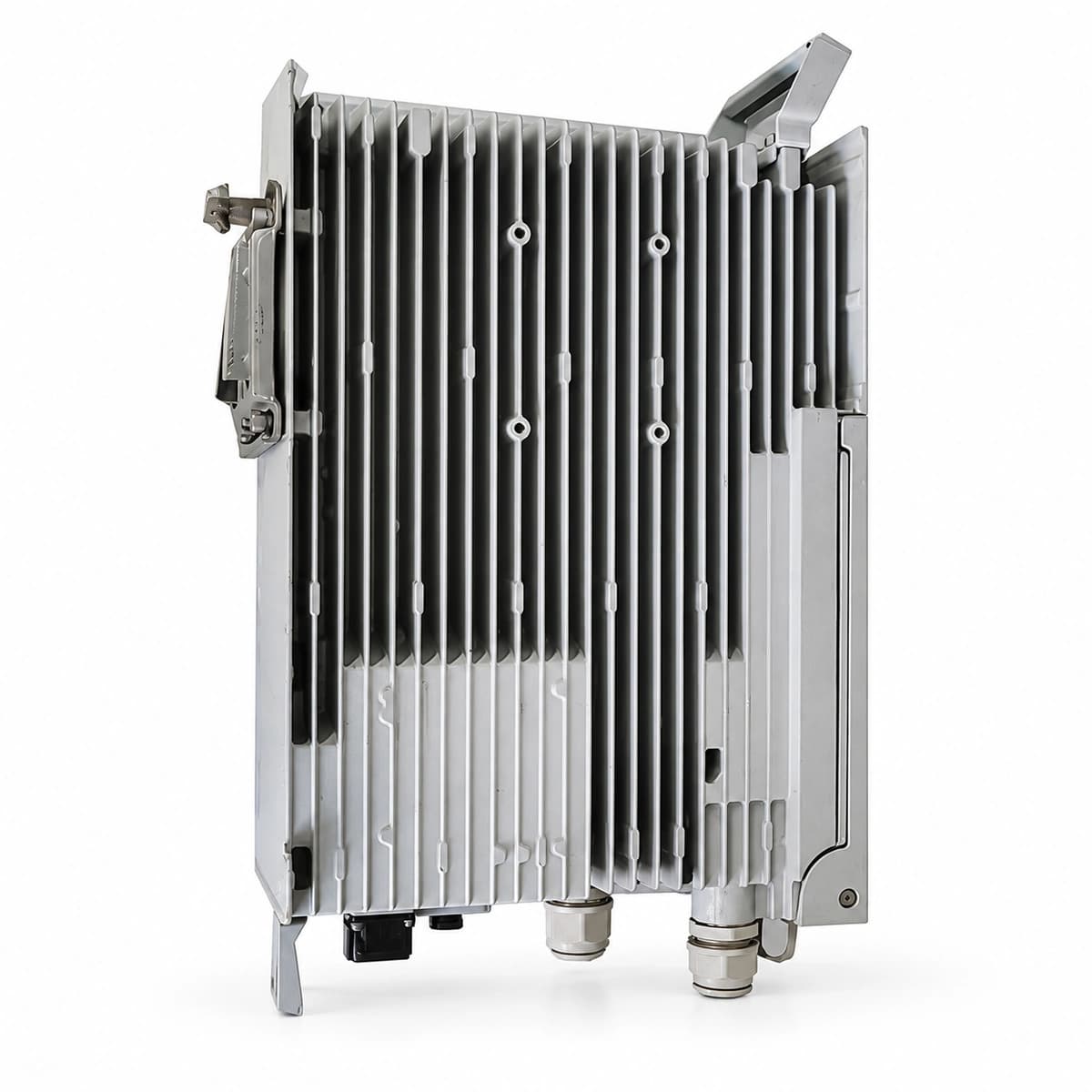

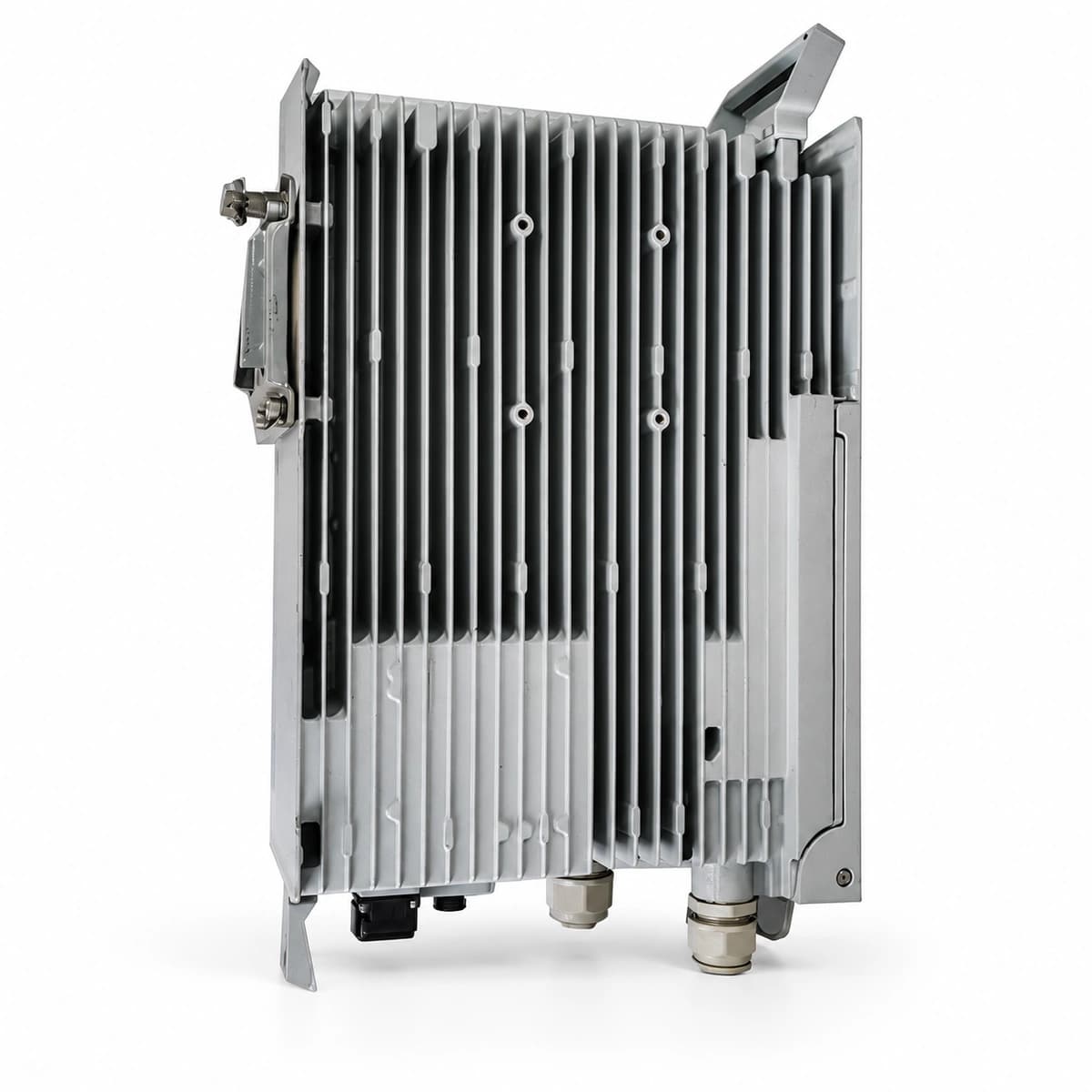

Huawei OPM50M pure white studio product shot
HuaweiModel: OPM50M

Huawei OPM50M Outdoor Compact High-Frequency AC-DC Power Converter Unit (-48V 50A IP55)

The Huawei OPM50M is an outdoor compact high-frequency AC-DC power converter unit engineered for telecom and edge environments, delivering a nominal -48V DC output at up to 50A with IP55 ingress protection.

Pricing is confirmed by project configuration and quantity

Request a quote
Rated Output Voltage
-48V DC (42V~58V)
Peak Conversion Efficiency
≥ 96.0%
Operating Temperature Range
-40°C to +75°C
Cooling Method
Forced Air Cooling with Intelligent Speed Fan
Protection Features
Over-voltage, Short-circuit, Over-temperature, Surge
Hot-Swappable Support
Yes (Live Plug-and-Play Support)

What this product is

What this product is

The system incorporates an AC surge protective device (SPD), digital active power factor correction (APFC) circuit, high-frequency isolated DC-DC resonant power stage, integrated DC power distribution unit (PDU), and an intelligent monitoring supervisory controller. It orchestrates real-time parameter tracking, battery charging/discharging algorithms, and bus voltage regulation to feed wireless baseband, radio, and auxiliary telecom equipment safely.

What problem it solves

Eliminates downtime caused by severe grid voltage fluctuations and transient lightning surges in edge locations. It prevents insulation breakdown and equipment failure caused by ambient dust, humidity, and rainwater ingress, while doing away with the single-point-of-failure risk via modular live-swappable architecture.

Who and where it is for

Pole-mount and wall-mount 5G macro sites, edge computing telecom cabins, remote microwave backbone relay links, highway video surveillance nodes, and harsh industrial automation plants.

Core advantages

  • IP55 rated ruggedized enclosure enabling fast pole or wall outdoor mounting
  • Carrier-class efficiency surpassing 96% with ultra-low harmonic distortion
  • Ultra-wide AC operating input range (85V to 300V AC) with 40kA surge suppression
  • Embedded supervisory controller supporting full integration with DCIM and OSS

Technical specifications

Key specificationsValue
Rated Output Voltage-48V DC (42V~58V)
Peak Conversion Efficiency≥ 96.0%
Operating Temperature Range-40°C to +75°C
Cooling MethodForced Air Cooling with Intelligent Speed Fan
Protection FeaturesOver-voltage, Short-circuit, Over-temperature, Surge
Hot-Swappable SupportYes (Live Plug-and-Play Support)
Total Harmonic Distortion (THD)≤ 5% (Total Harmonic Distortion)
Rated Power Factor≥ 0.99 at Rated Load
Standard Compliance & CertificationsCE, UL, RoHS, IEC 60950, EN 300 386

Applications

01

5G/4G outdoor macro cell radio (AAU/RRU) and baseband (BBU) power feeding

02

Remote microwave transmission nodes and fiber optic repeater sites

03

Railway signaling, wayside control enclosures, and trackside telemetry

04

Industrial IoT outdoor cabinets, perimeter security, and environmental monitors
