Question 1

What are the rated output capacity, grid adaptability, and conversion efficiency specifications of the Huawei EPS200-4850A?

Accepted Answer

The Huawei EPS200-4850A (SKU: HW-SYS-EPS200-4850A) is a 5U 19-inch subrack DC power system delivering a maximum output of 200A (approx. 12kW) with 4 hot-swappable 50A rectifier slots at nominal -48VDC (adjustable from -42VDC to -58VDC). It supports an ultra-wide AC input range of 85–300VAC (adaptive to single-phase 220VAC or three-phase five-wire 380V/220VAC), maintaining 100% full-load output between 176–300VAC and linear derating between 85–176VAC. Fitted with R4850G rectifiers, the system achieves >96.0% peak conversion efficiency with THD ≤ 5% and power factor PF ≥ 0.99, minimizing operational heat dissipation and optimizing site PUE.

Question 2

Which rectifier modules are compatible with the EPS200-4850A 5U subrack, and how does the active current-sharing mechanism operate during expansion?

Accepted Answer

The EPS200-4850A chassis natively supports Huawei R4850-series 50A rectifiers, including R4850G (high efficiency, >96%) and R4850N (standard efficiency, >94%). Utilizing an internal high-speed CAN bus, all rectifier slots support true hot-plugging without service interruption. The SMU02B/SMU02C supervisory unit executes autonomous digital active current-sharing, keeping the current imbalance between parallel rectifiers within ±5%. It accommodates mixed deployments of R4850 modules across different revisions, dynamically coordinating load management and intelligent module cycling for maximized operational life and energy savings.

Question 3

How does the EPS200-4850A ensure system reliability under harsh site conditions regarding ambient temperature, surge suppression, and battery protection?

Accepted Answer

The EPS200-4850A is engineered for harsh operating environments, certified for ambient temperatures from -40°C to +65°C (with intelligent thermal derating above 55°C) and 5% to 95% relative humidity (non-condensing) within an IP20 subrack. Surge protection features integrated Class C AC SPDs (nominal 20kA, maximum 40kA at 8/20μs) alongside 10/20kA DC surge suppression. Battery management incorporates dual-stage disconnect contactors—LLVD (Load Low Voltage Disconnect for non-critical drops) and BLVD (Battery Low Voltage Disconnect to prevent irreversible deep discharge)—regulated by SMU thermal compensation and intelligent boost-charge algorithms.

Key specifications	Value
System Output Capacity	200 A
Nominal Output Voltage	-48 VDC
Output Voltage Range	-42 ~ -58 VDC

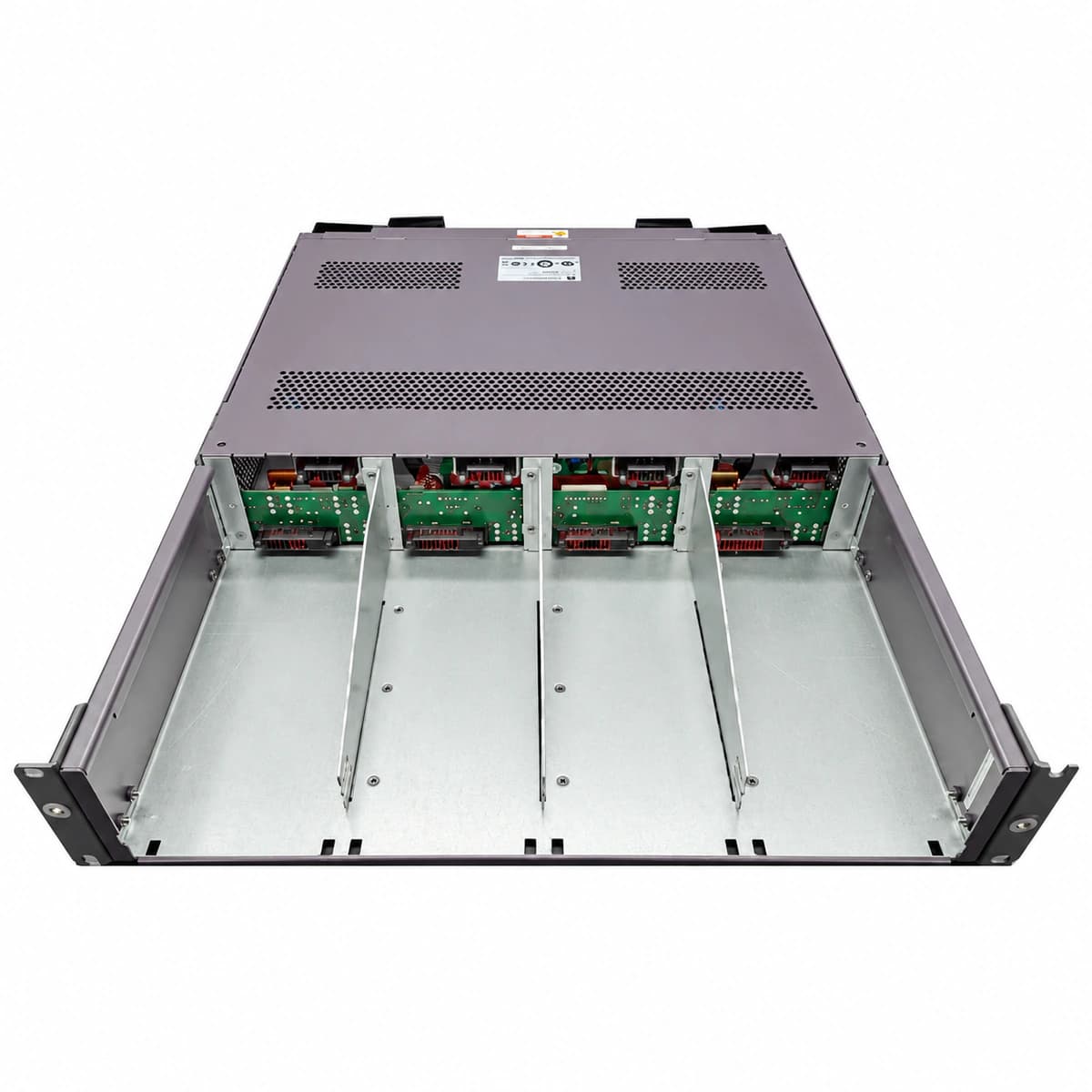

Rectifier Module Slots	4 slots (compatible with R4850G / R4850N high-efficiency rectifiers)
System Comprehensive Efficiency	> 96.0%
Physical Dimensions Spec	222 × 482 × 330 mm (5U 19-inch)
Ingress Protection (IP Rating)	IP20 embedded 5U rack-mount design
AC Input Voltage Range	85 ~ 300 VAC (three-phase five-wire / single-phase auto-adaptive)
System Monitoring Controller	SMU02B / SMU02C intelligent LCD monitoring unit
Operating Temperature	-40°C to +65°C

Huawei EPS200-4850A Embedded Telecom DC Power System (-48V 200A 5U)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Cellular macro site indoor equipment cabinets

Metropolitan transport optical aggregation rooms

Railway signaling and power grid substations

Frequently asked questions
