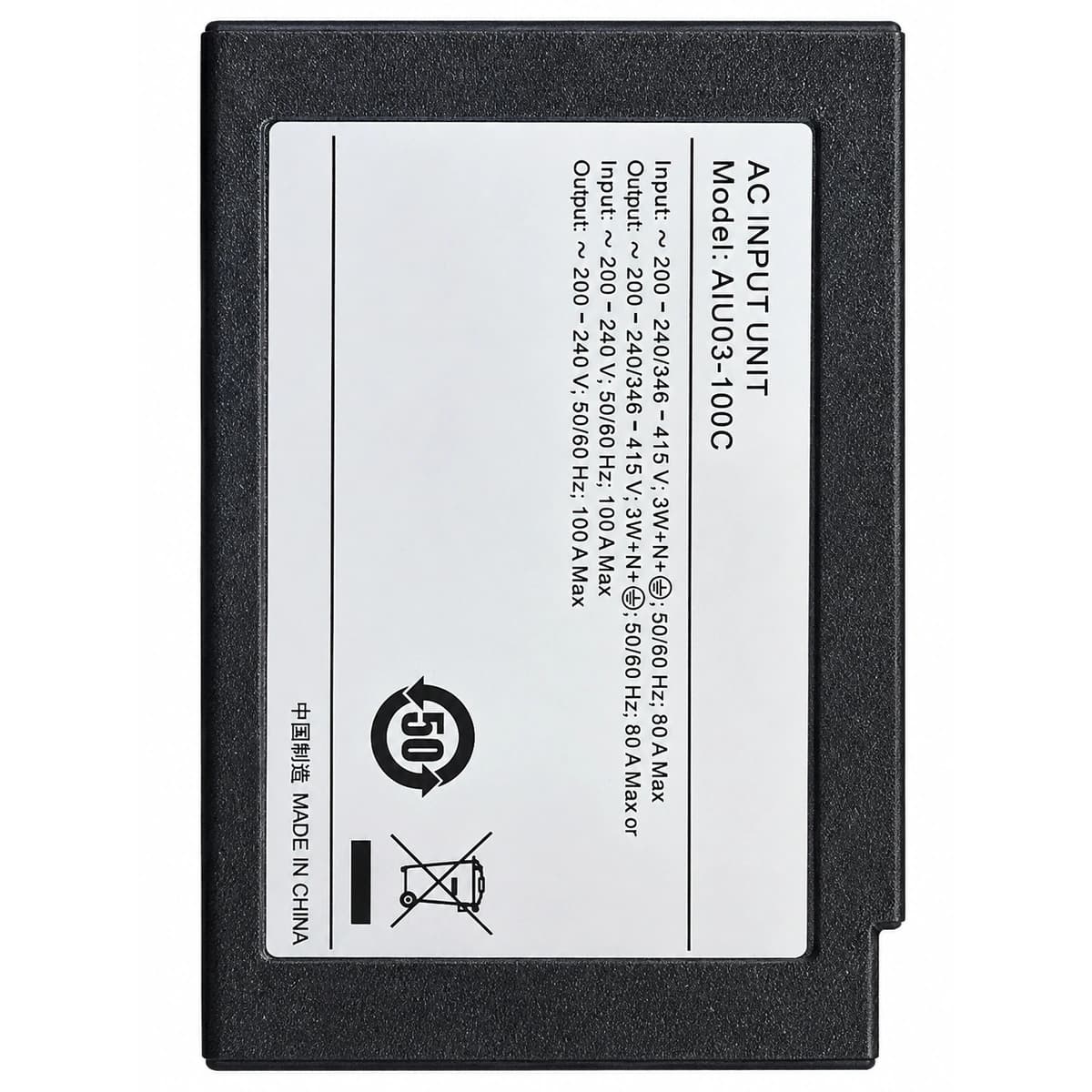

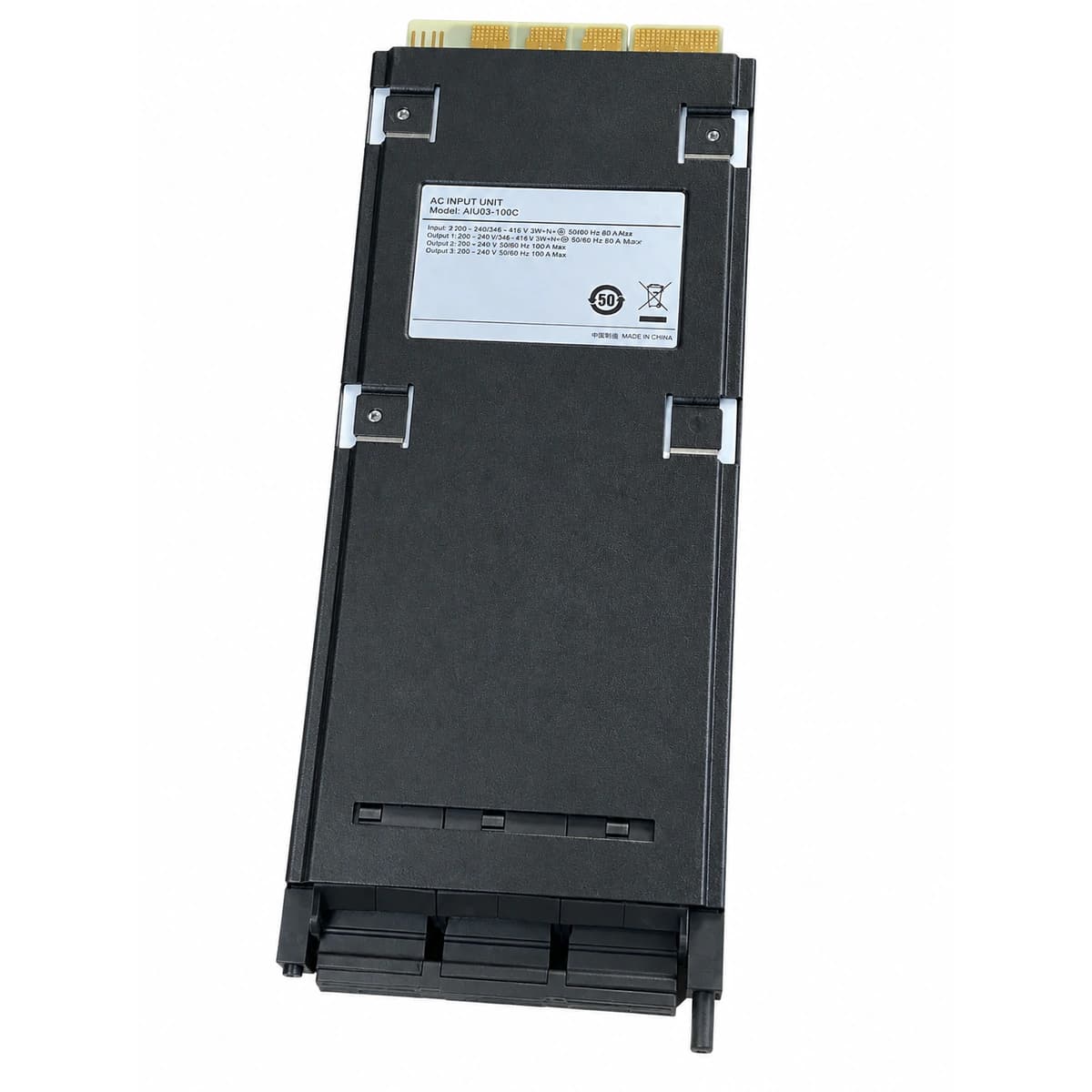

Huawei AIU03-100C AC Input Unit Power Module (200-240V/346-415V 100A Busbar Blind-Mate) - Official Front View
HuaweiModel: AIU03-100C

Huawei AIU03-100C AC Input Unit Power Module (200-240V/346-415V 100A Busbar Blind-Mate)

The Huawei AIU03-100C (Part Number: 02312MUD) is a carrier-grade AC Input Unit power distribution module engineered for high-capacity telecom DC power systems (such as TP482000B and ETP48400), featuring heavy-duty busbar blind-mate connectors and comprehensive input protection.

Pricing is confirmed by project configuration and quantity

Request a quote
Rated Operational Voltage
200-240V / 346-415V AC
Maximum Rated Input Current
80A / 100A Max
AC Power Input System
3-Phase 4-Wire / Single-Phase AC
Connection & Busbar Interface
High-Current Blind-Mate Gold-Plated Busbar
Operating Temperature Range
-40°C to +70°C
System & Cabinet Compatibility
Huawei TP482000B / ETP48400 Series

What this product is

What this product is

This unit serves as the primary AC ingress power distribution interface in large Huawei telecom power cabinets, distributing utility or generator AC power directly to the rectifier subrack backplane while providing over-current isolation and energy sampling.

What problem it solves

Eliminates complex external cabling, prevents busbar overheating through low-impedance gold-plated contacts, and enables hot-swap maintenance without powering down the entire telecom power cabinet.

Who and where it is for

Engineered for telecom switching centers, 5G core network facilities, modular IDC energy rooms, and maintenance/expansion of Huawei TP482000B and ETP48400 power systems.

Core advantages

  • 100A High-Current Capacity: Supports 200~240V / 346~415VAC 3-phase and single-phase AC input, reliably carrying continuous loads up to 100A.
  • Heavy-Duty Blind-Mate Connectors: Features gold-plated low-resistance busbar contact fingers and alignment guide rails for secure, low-loss power transfer.
  • Comprehensive Electrical Protection: Integrates circuit breakers and overload isolation to safeguard downstream rectifier modules from grid surges.
  • Native Huawei Architecture Integration: Seamless mechanical and electrical fit for Huawei high-capacity power cabinet backplanes with true plug-and-play operation.

Technical specifications

Key specificationsValue
Rated Operational Voltage200-240V / 346-415V AC
Maximum Rated Input Current80A / 100A Max
AC Power Input System3-Phase 4-Wire / Single-Phase AC
Connection & Busbar InterfaceHigh-Current Blind-Mate Gold-Plated Busbar
System & Cabinet CompatibilityHuawei TP482000B / ETP48400 Series
Operating Temperature Range-40°C to +70°C

Applications

01

Huawei TP482000B / TP483000D Central DC Power System Cabinets

02

Huawei ETP48400 / ETP48600 High-Capacity Power Enclosures

03

Carrier-Grade 5G Core Network Switching Centers & IDC Energy Rooms
