HEFENGQIModel: ODU-PWR-1000W

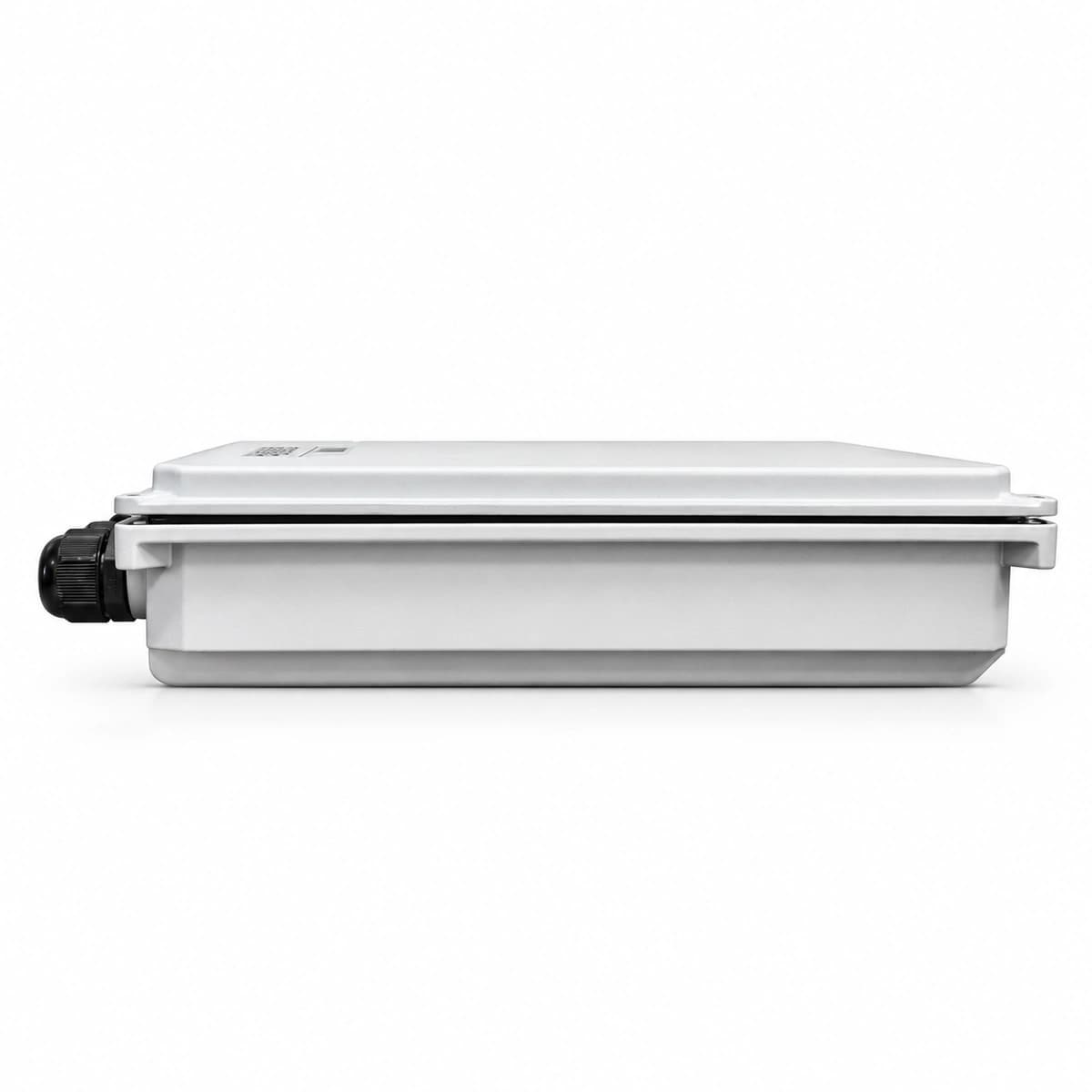

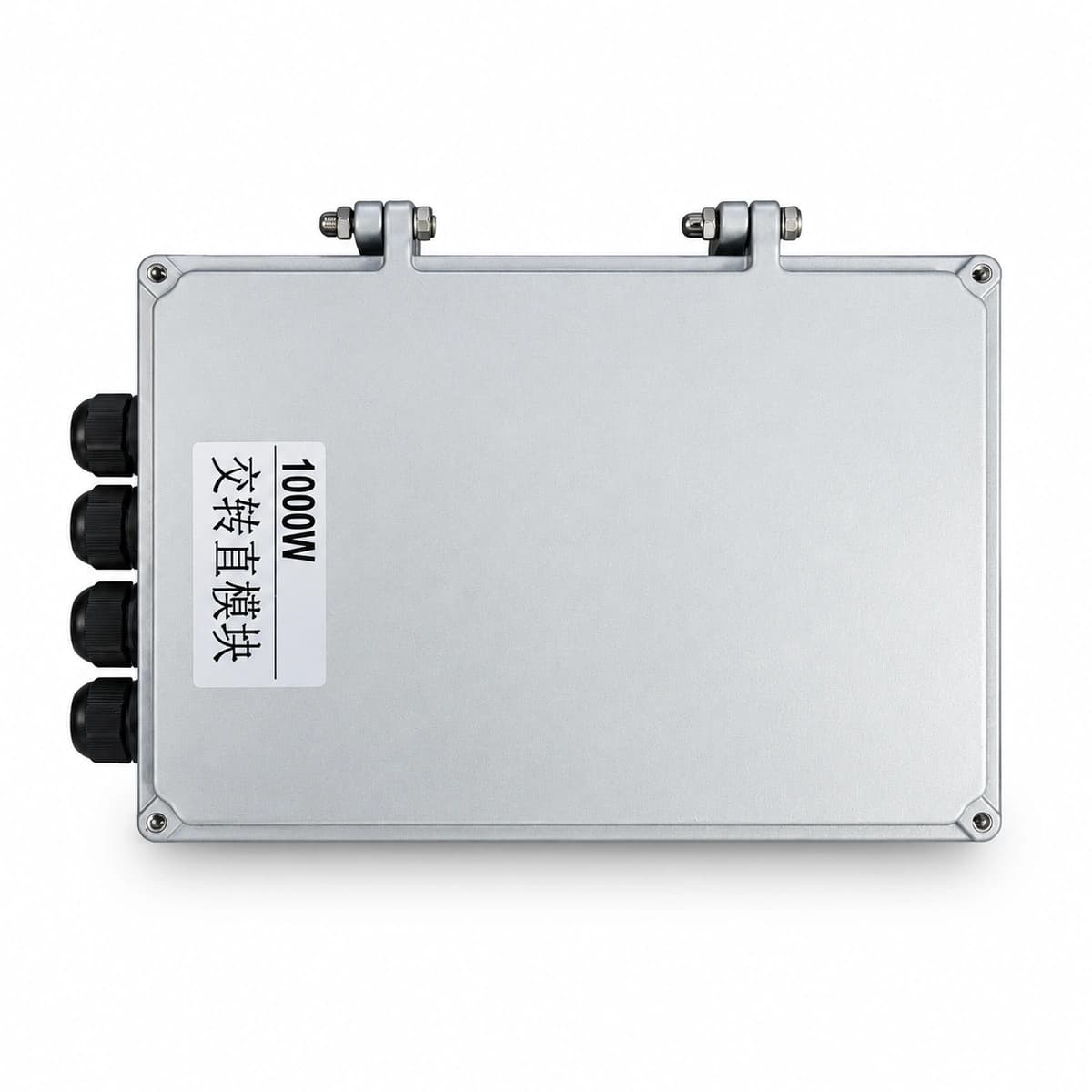

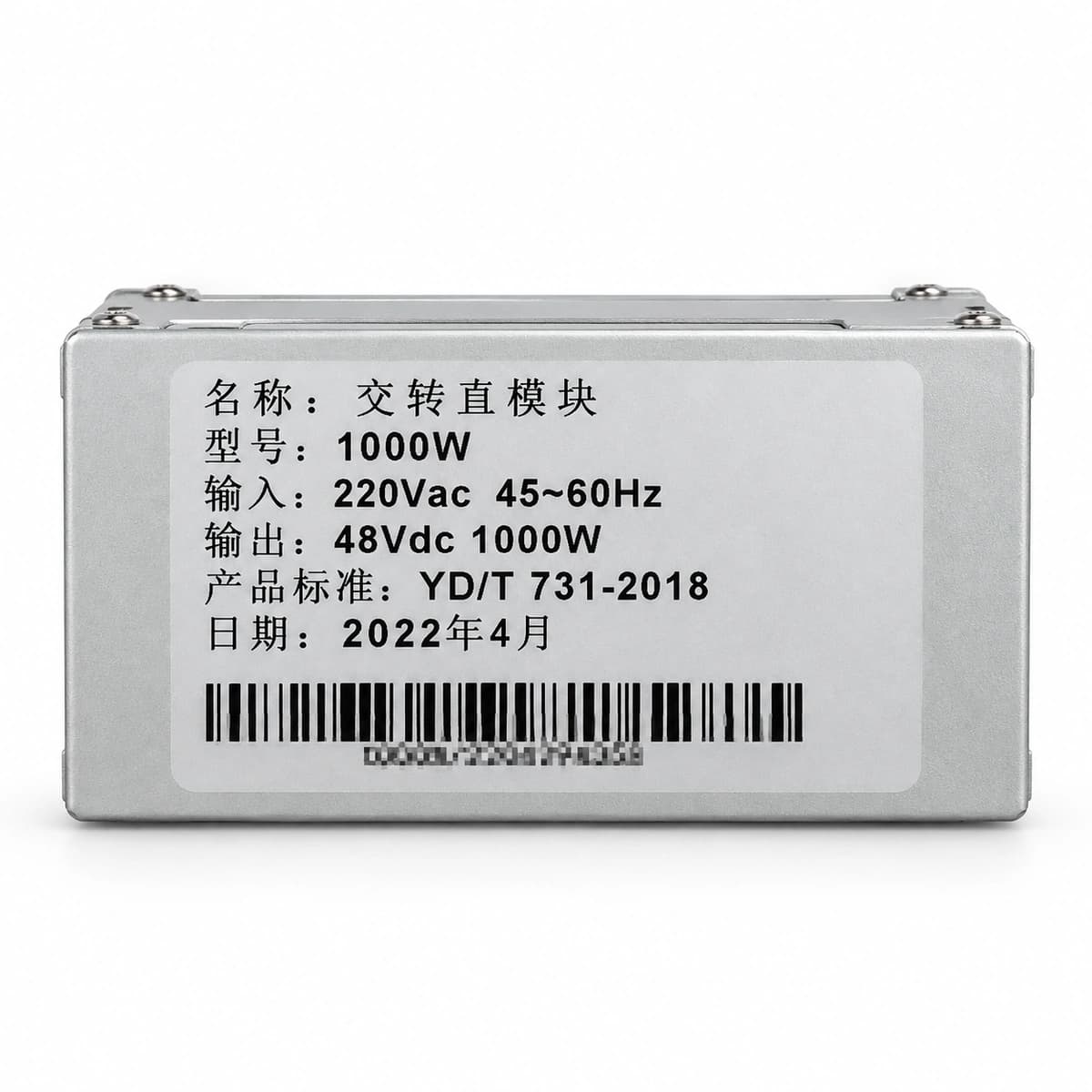

HEFENGQI ODU-PWR-1000W IP65 Weatherproof Outdoor Micro-Station Power Module (-48V 20A 1000W)
The HEFENGQI ODU-PWR-1000W is an industrial-grade, IP65-rated outdoor micro-station DC power module delivering a rated output of -48V DC (-42V to -58V DC adjustable) at 20A, providing 1000W continuous carrier-grade power.
Pricing is confirmed by project configuration and quantity
Request a quoteWhat this product is
What this product is

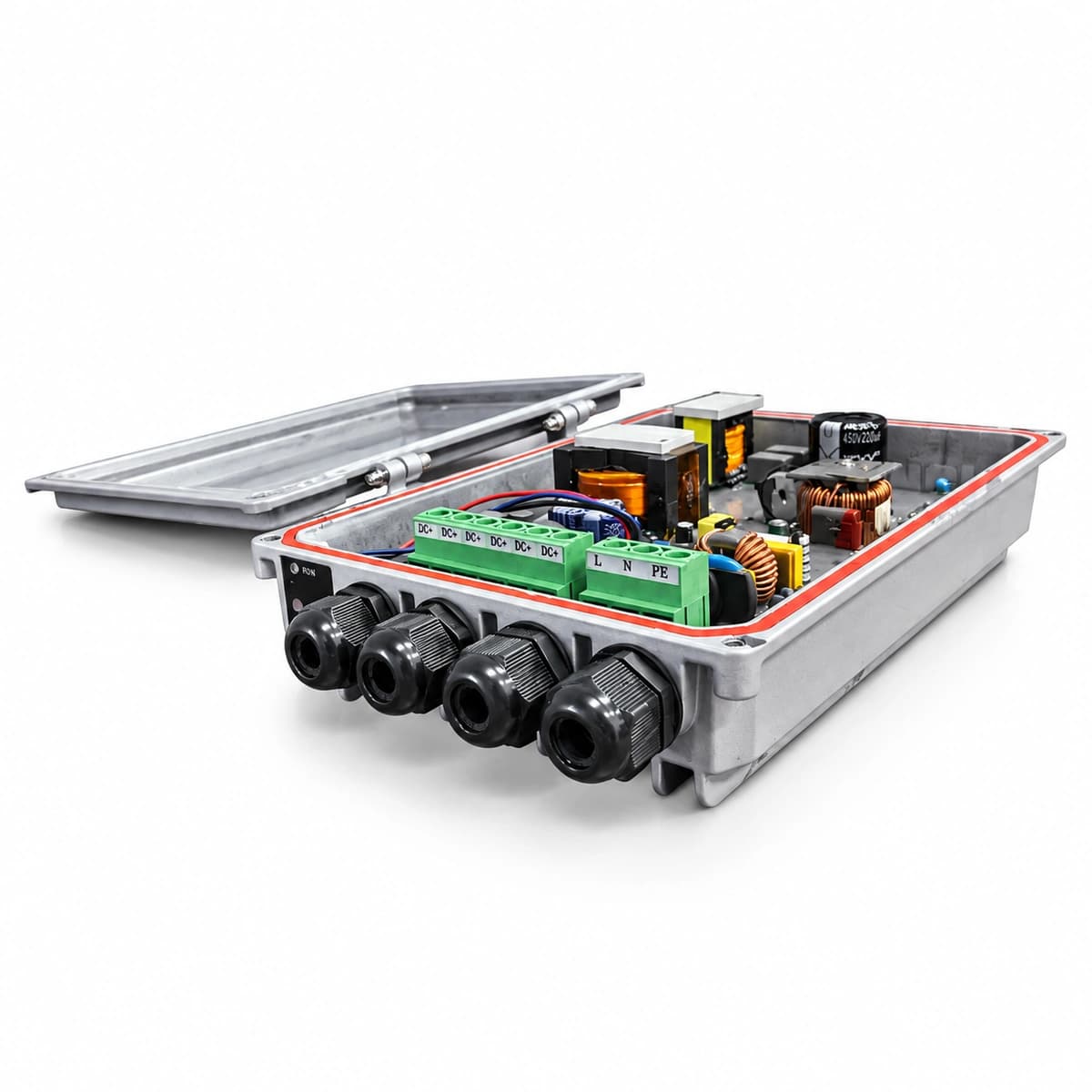

The ODU-PWR-1000W integrates an active power factor correction (APFC) front-end with an isolated high-frequency LLC resonant DC-DC converter inside an IP65 cast-aluminum enclosure. Designed to meet IEC/EN 62368 and ETSI outdoor environmental standards, it integrates differential 6kV/10kV lightning protection, active inrush current limiting, and automatic thermal foldback circuitry.
What problem it solves
It eliminates common outdoor field failures such as ingress-induced PCB short-circuits, electrolytic capacitor degradation under extreme diurnal temperature swings, lightning-induced rectifier blowouts, and thermal shutdowns under direct solar radiation in cabinet-free pole and wall installations.
Who and where it is for
Ideal for 5G micro-cell and small-cell AAU/RRU pole deployments, smart city street pole systems, highway edge computing terminals, outdoor microwave backhaul, and cabinet-free telecom edge nodes.
Core advantages
Technical specifications
| Key specifications | Value |
|---|---|
| Ingress Protection Rating | IP65 Outdoor Weatherproof, Dustproof & Waterproof Enclosure |
| Rated Output Voltage | -48V DC (-42V ~ -58V DC) |
| Maximum Output Current | 20A |
| Rated Output Power | 1000W |
| Peak Conversion Efficiency | ≥ 94.0% |
| Operating Temperature Range | -40°C to +65°C |
| Cooling Method | Natural Convection Cooling / Assist Fan |
Applications
01
Pole-mounted DC power supply for 5G small cells and distributed RRU/AAU nodes
02
Smart light poles integrating HD PTZ security surveillance, IoT gateways, and public Wi-Fi
03
Highway, railway, and pipeline telemetry and edge computing outdoor field sites
04
Marine port crane telemetry and harsh industrial perimeter wireless transmission links
