HEFENGQIModel: Telecom Rackmount Pure Sine Wave Inverter 48V to 220V 3kW

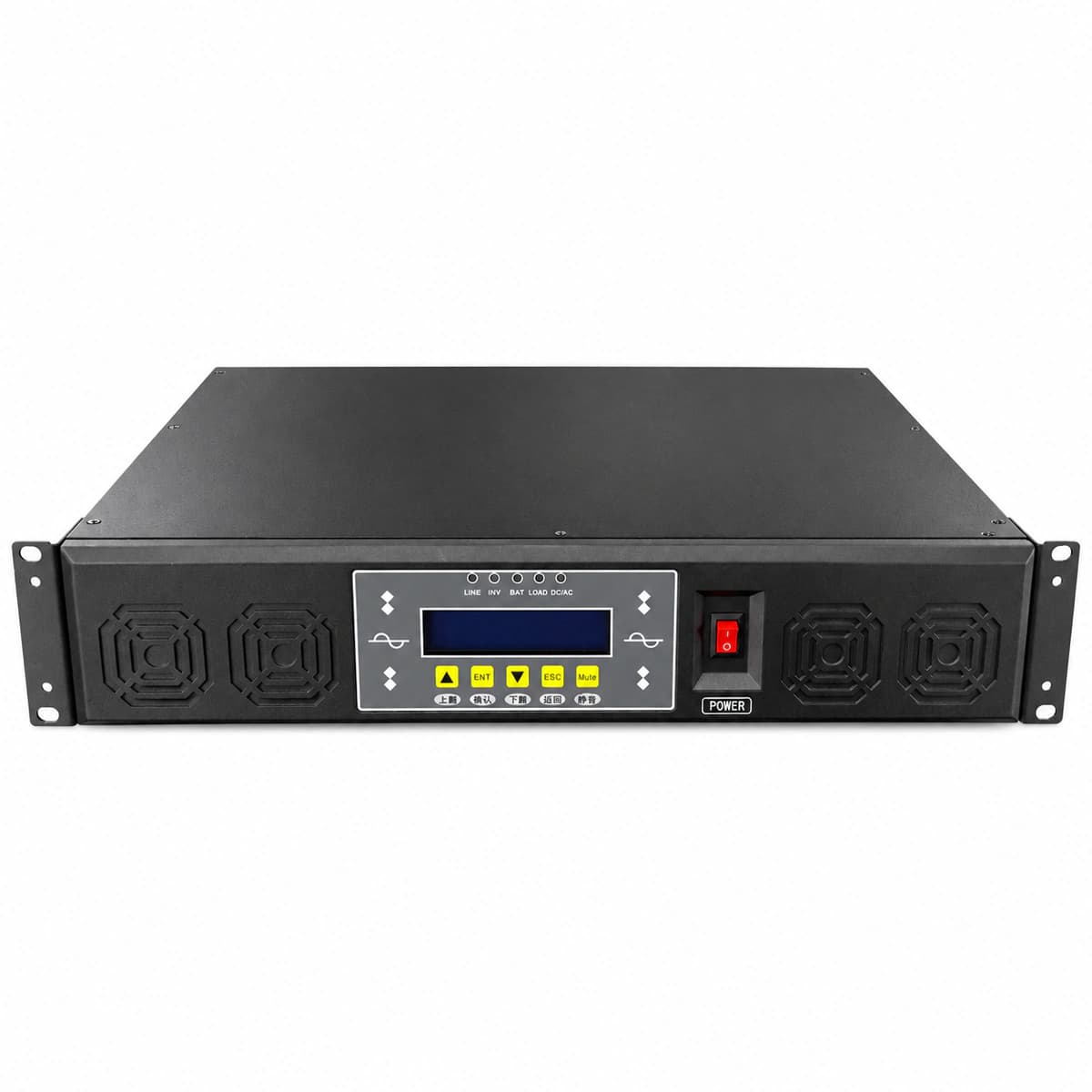

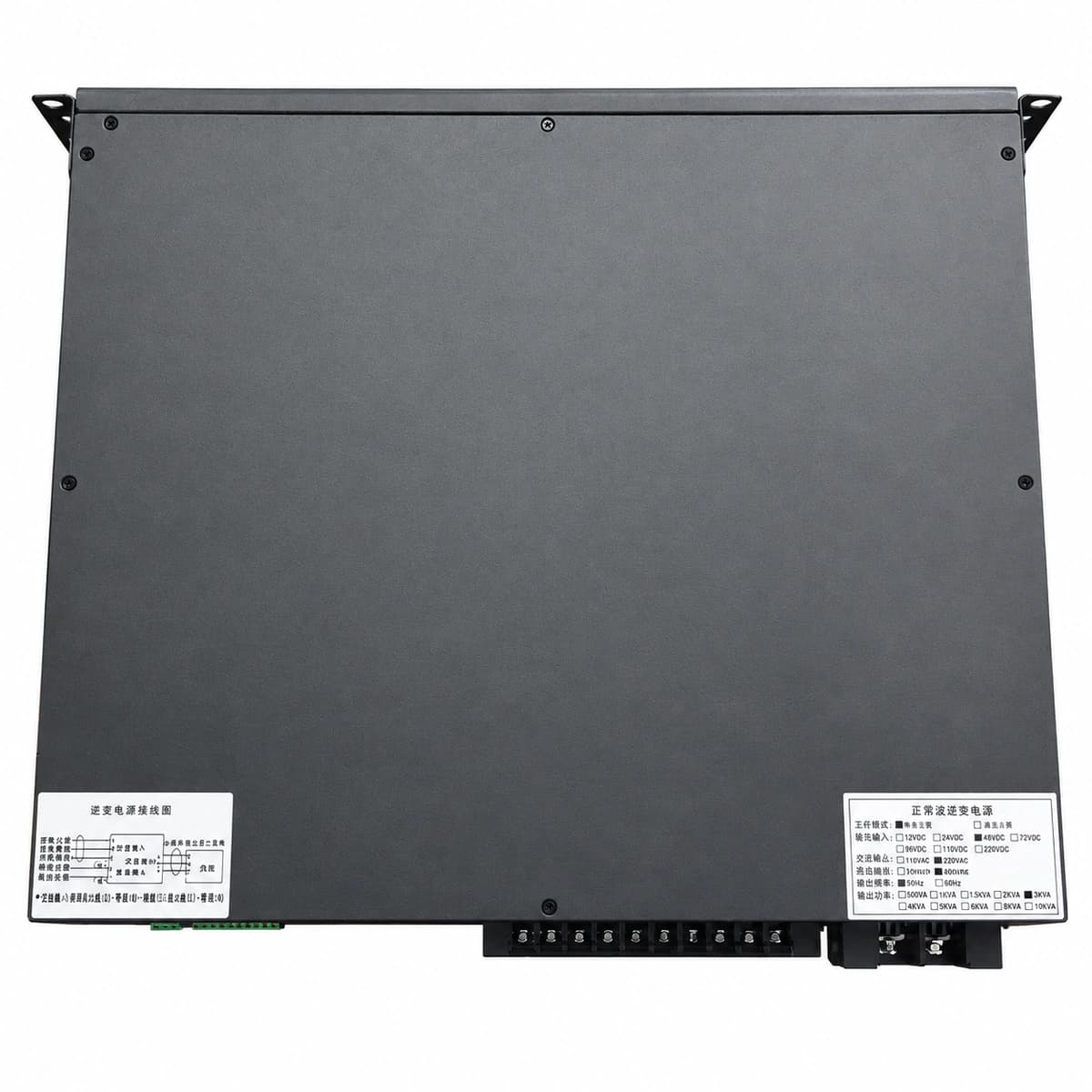

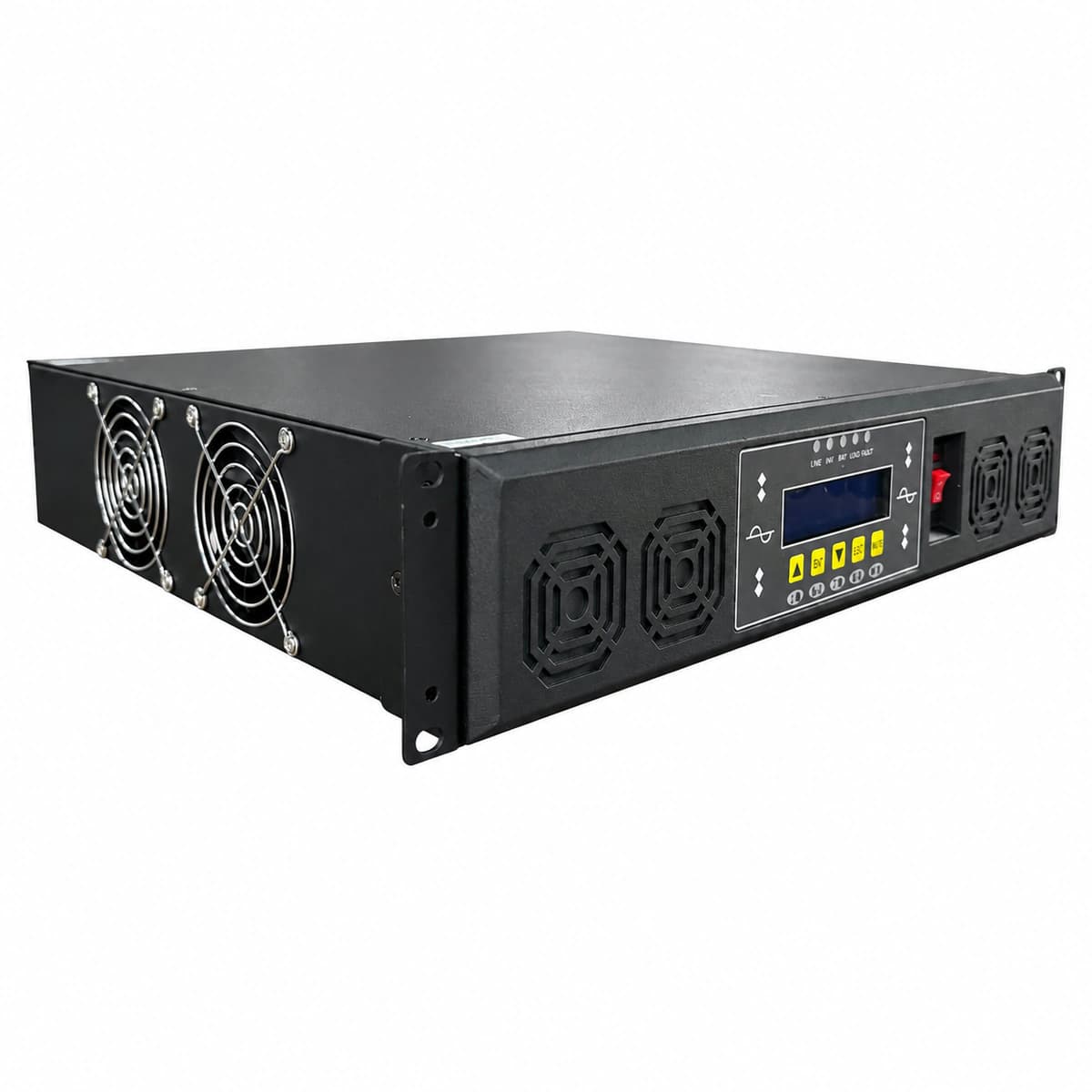

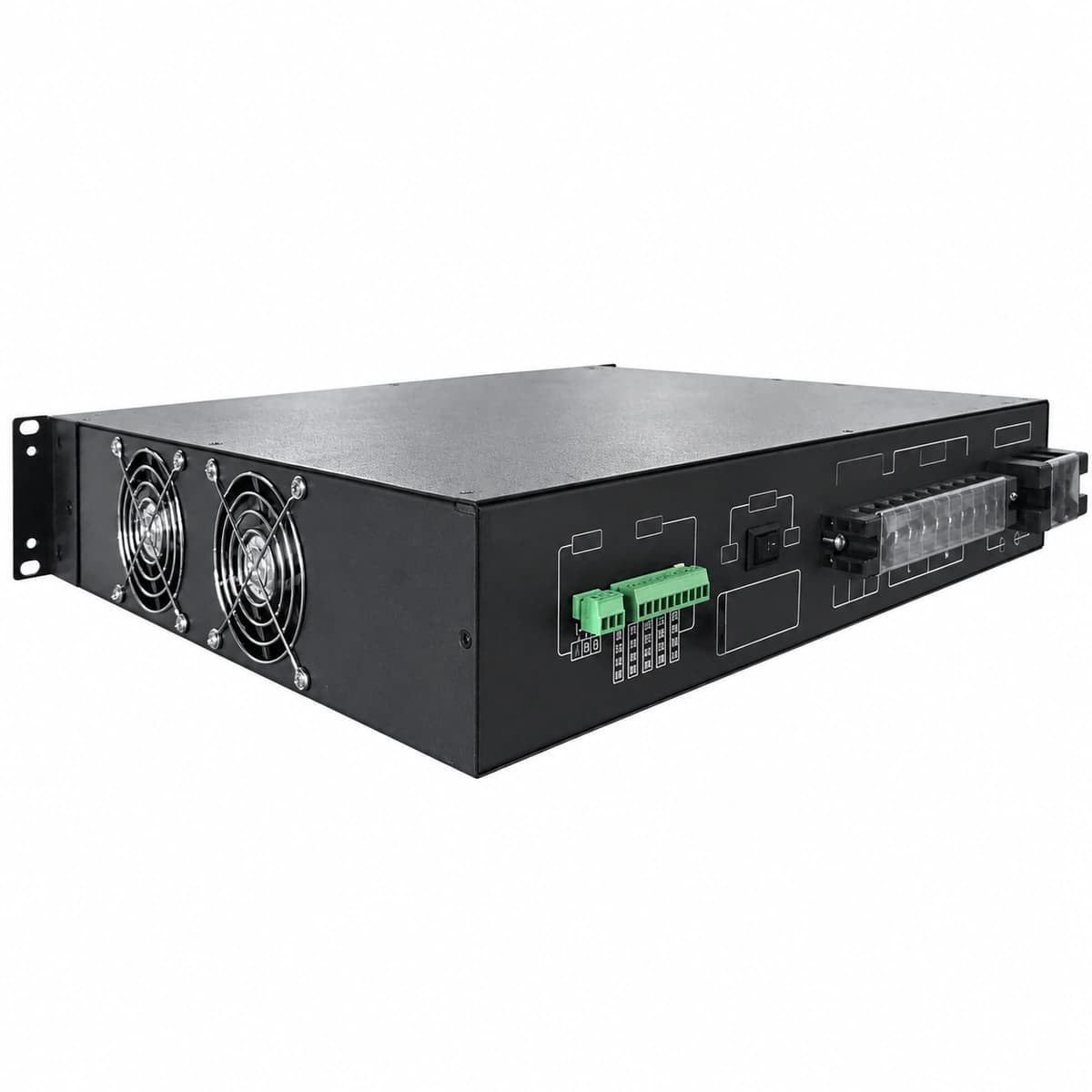

HEFENGQI 48V to 220V 3kW Telecom 19-Inch 2U Rackmount Pure Sine Wave Inverter
This industrial-grade standard 19-inch 2U rackmount pure sine wave power inverter is engineered for telecom shelters and industrial automation. Operating on a nominal -48V DC bus, it delivers a continuous 3000W 220V AC output through high-frequency galvanic isolation, featuring an integrated static transfer switch for sub-4ms bypass transfer.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated System Capacity
- 3000VA / 3000W Full Active Power Pure Sine Wave Continuous Output
- DC Input Voltage
- -48V DC Nominal DC Input (-40V ~ -60V DC Wide Range)
- Rated AC Output Voltage
- 220V AC ± 2% Pure Sine Wave with Ultra-Low Distortion (THD < 3%)
- Transfer Time
- ≤ 4ms Seamless Static Bypass Transfer Time (Zero Drop Transfer)
- Physical Form Factor
- Standard 19-inch 2U Rack-Mount Enclosure with Front/Rear Handles
- Display & Control Interface
- High-Definition LCD Display for Voltage, Current, Load Ratio & Alarms
What this product is
What this product is
This industrial-grade standard 19-inch 2U rackmount pure sine wave power inverter is engineered for telecom shelters and industrial automation. Operating on a nominal -48V DC bus, it delivers a continuous 3000W 220V AC output through high-frequency galvanic isolation, featuring an integrated static transfer switch for sub-4ms bypass transfer.
What problem it solves
The HEFENGQI 48V to 220V 3kW rackmount inverter is tailored to meet the mission-critical uptime requirements of carrier-class installations and industrial control infrastructures. Powered by high-speed dual DSP architecture, it converts nominal -48V battery bus power into ultra-clean 220V AC power with total harmonic distortion (THD) under 3% and a peak operating efficiency exceeding 92%. Equipped with a fast static transfer switch (STS), the system ensures seamless grid-to-inverter switching within 4ms, preventing unexpected reboots or disruptions to sensitive servers and network transmission nodes. The front-panel high-definition LCD display provides real-time telemetry, including input/output electrical parameters, load percentage, and detailed alarm status. The mechanical design complies with severe electromagnetic compatibility (EMC) standards and houses robust protective circuitry: DC polarity reverse protection, over/under-voltage shutdown, overload, short-circuit, and smart temperature-triggered thermal throttling. Standard isolated RS485 interfaces running Modbus-RTU alongside optional SNMP cards enable seamless integration into central telecom power environment monitoring systems across a broad operating temperature range of -20°C to +55°C.
Who and where it is for
This industrial-grade standard 19-inch 2U rackmount pure sine wave power inverter is engineered for telecom shelters and industrial automation. Operating on a nominal -48V DC bus, it delivers a continuous 3000W 220V AC output through high-frequency galvanic isolation, featuring an integrated static transfer switch for sub-4ms bypass transfer.
Core advantages
- Wide DC input range of -40V to -60V perfectly matches lead-acid and lithium batteries
- Standard 19-inch 2U compact chassis with ruggedized front handles optimizes cabinet space
- Dual galvanic isolation topology eliminates DC bus noise and transient surge propagation
- Static bypass switch delivers ≤4ms transfer time for uninterrupted power continuity
- Ultra-low total harmonic distortion (THD < 3%) protects sensitive connected instruments
- Isolated RS485 port supporting Modbus-RTU simplifies integration with central EMS platforms
Technical specifications
| Key specifications | Value |
|---|---|
| Rated System Capacity | 3000VA / 3000W Full Active Power Pure Sine Wave Continuous Output |
| DC Input Voltage | -48V DC Nominal DC Input (-40V ~ -60V DC Wide Range) |
| Rated AC Output Voltage | 220V AC ± 2% Pure Sine Wave with Ultra-Low Distortion (THD < 3%) |
| Transfer Time | ≤ 4ms Seamless Static Bypass Transfer Time (Zero Drop Transfer) |
| Display & Control Interface | High-Definition LCD Display for Voltage, Current, Load Ratio & Alarms |
| Conversion Efficiency | Peak Efficiency ≥ 92% (Galvanic Isolation High-Frequency Topology) |
| Operating Temperature | -20°C ~ +55°C |
| Physical Form Factor | Standard 19-inch 2U Rack-Mount Enclosure with Front/Rear Handles |
Applications
01
4G/5G cellular telecom base transceiver stations and remote radio heads
02
Electric power utility substation SCADA, protection, and carrier communication racks
03
Railway signaling control systems and trackside monitoring communications hubs
04
Offshore oil, gas valve stations, and marine wind turbine telemetry facilities
