HEFENGQIModel: Eltek 268035 Flatpack2 4AC HC HVDC Power Shelf

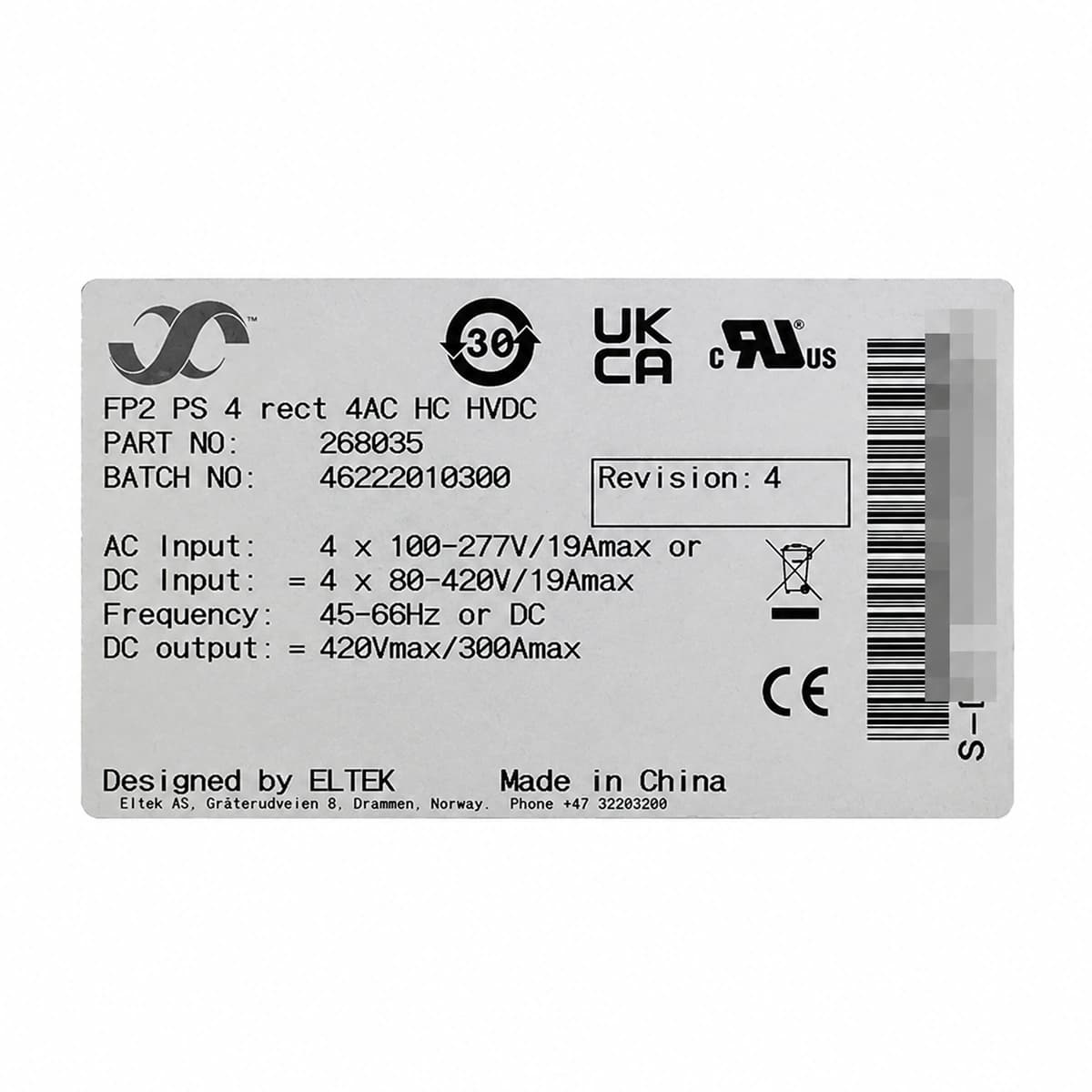

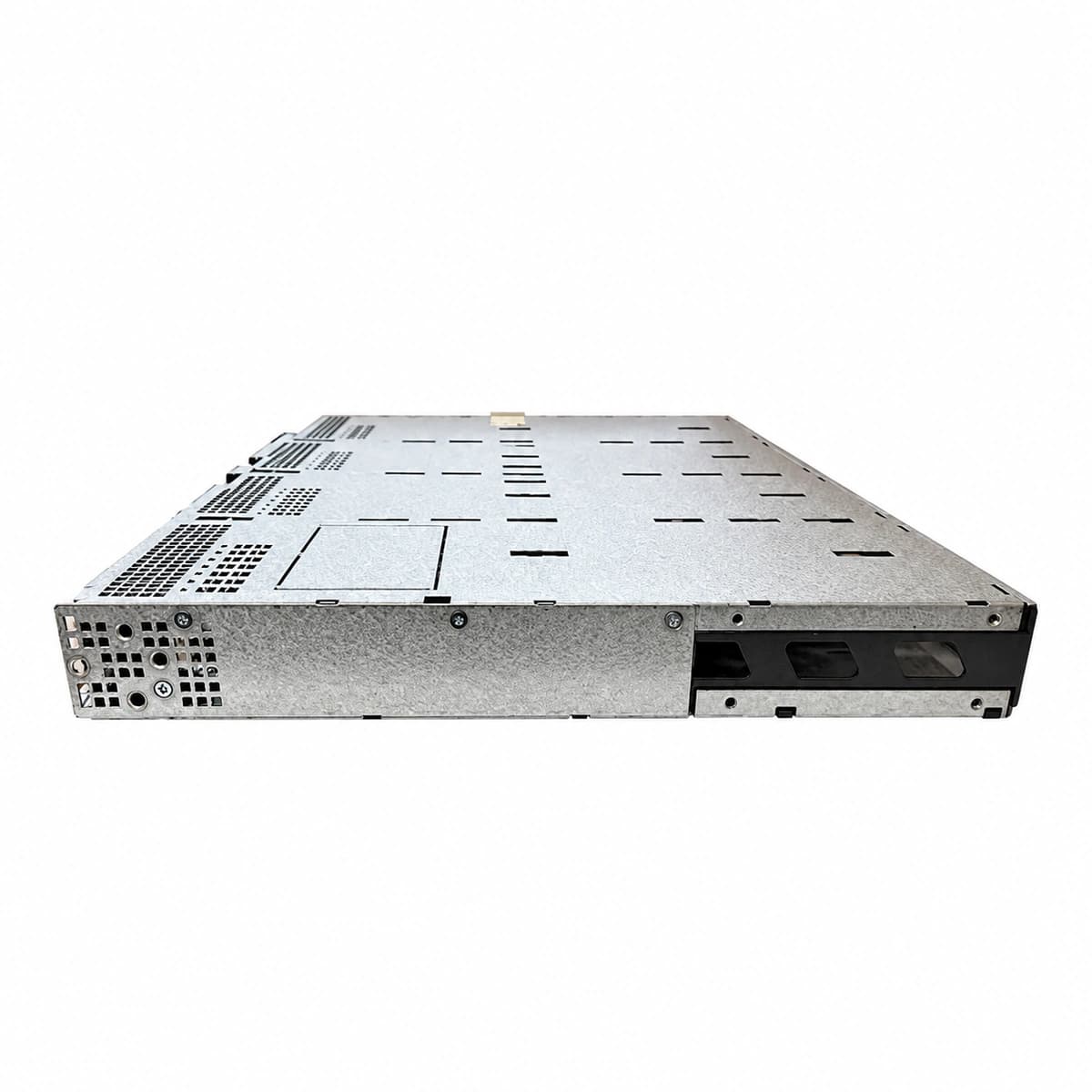

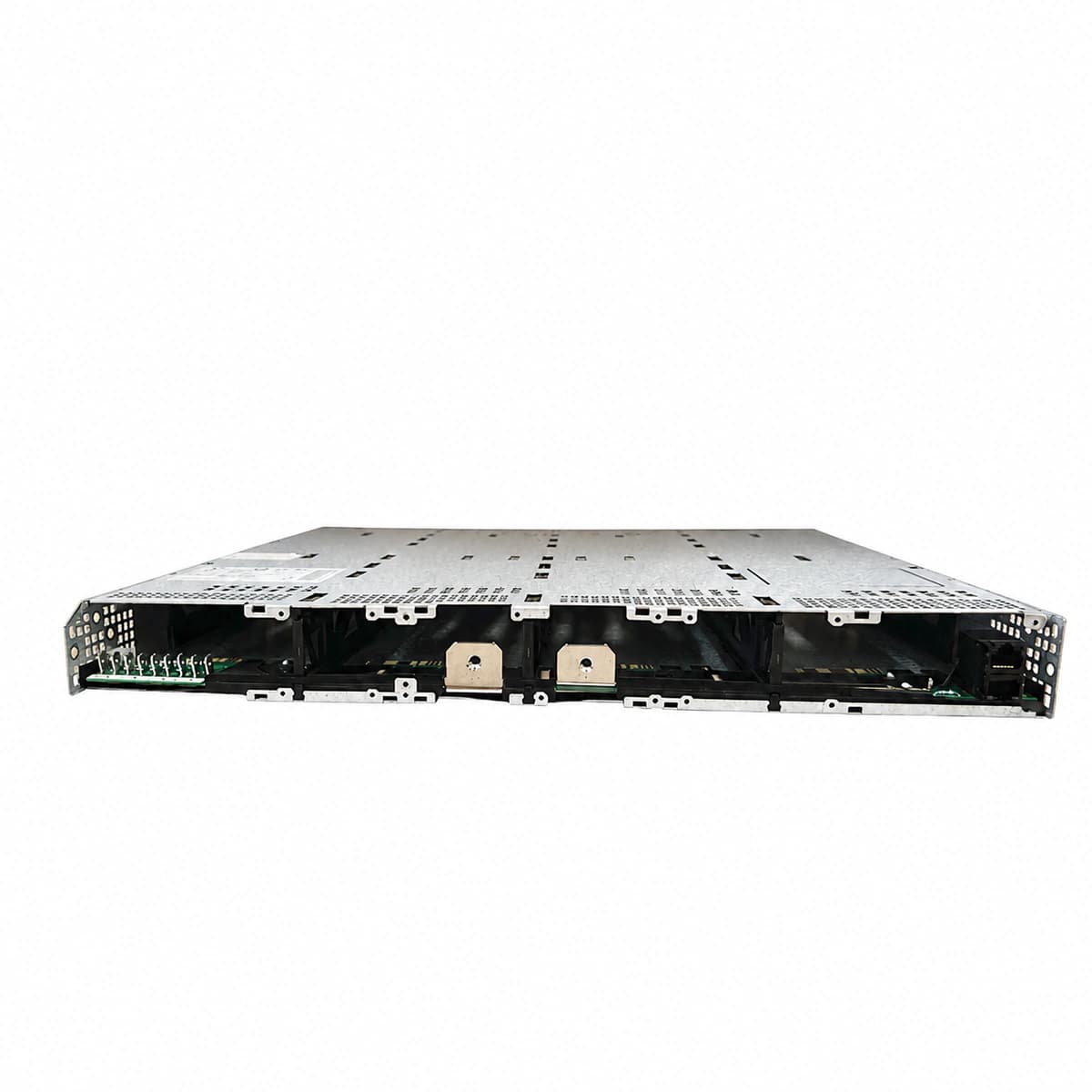

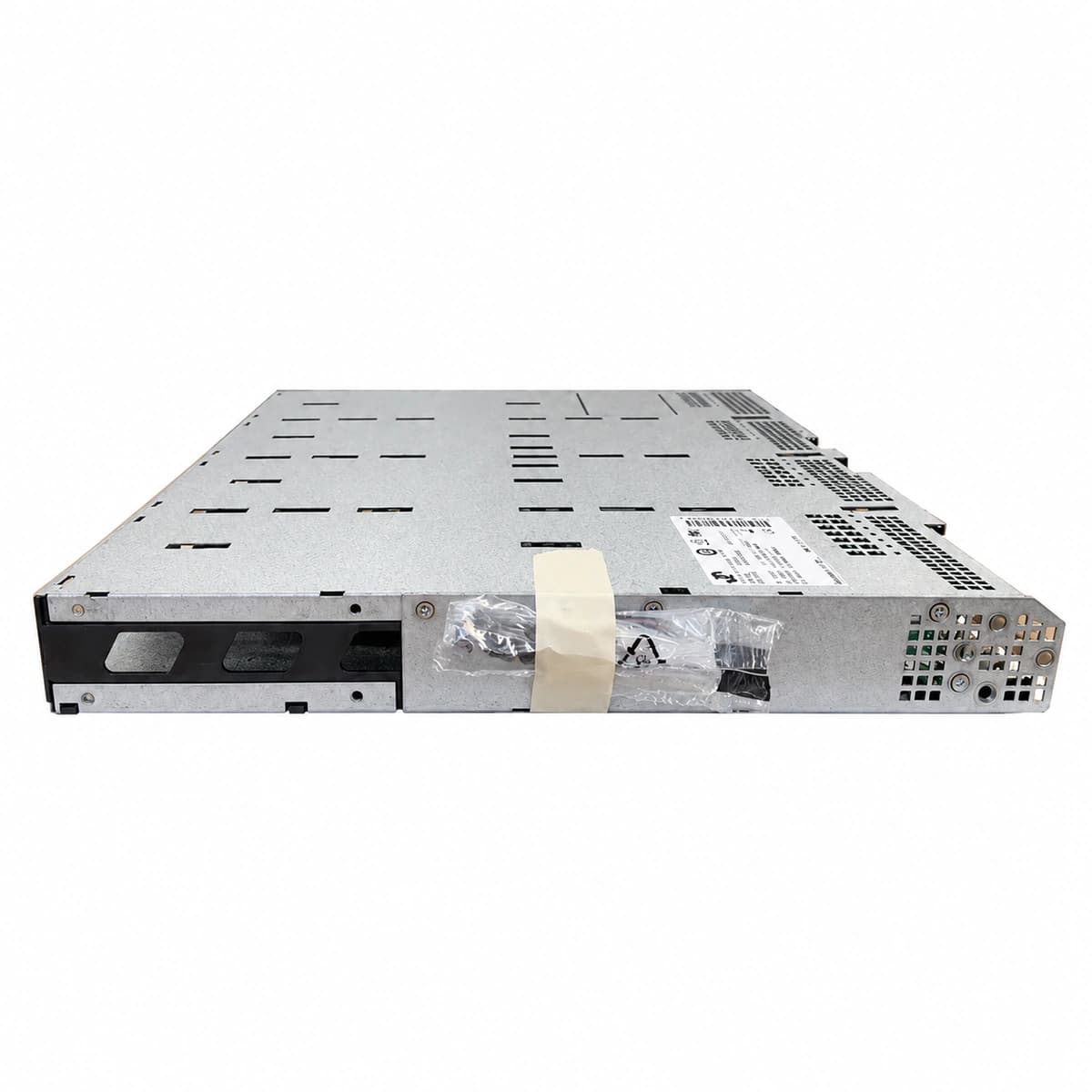

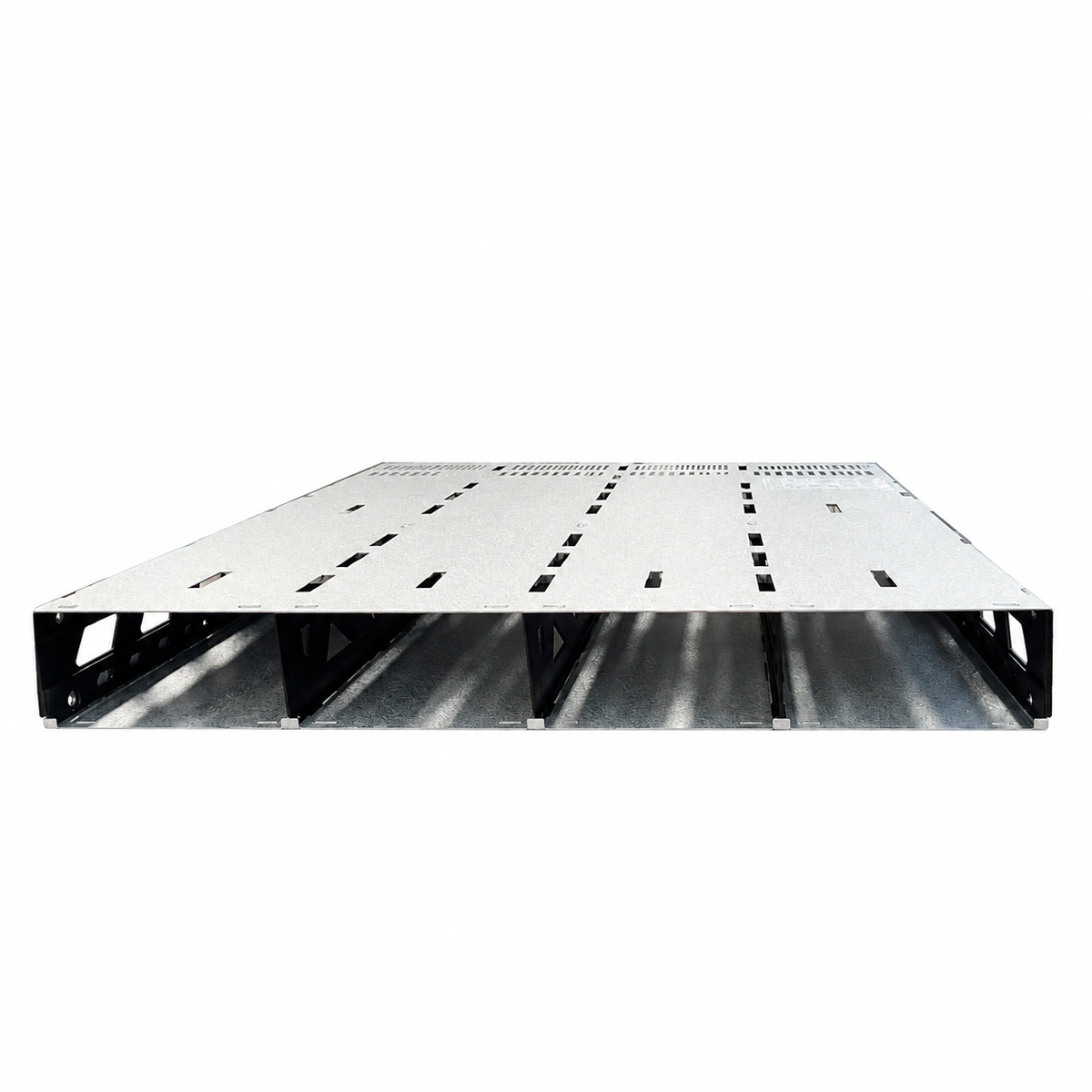

Eltek 268035 Flatpack2 4AC HC 19-inch 1U High-Density Power Shelf (12kW/240A HVDC/-48V)
The Eltek 268035 is an industrial 19-inch 1U high-density Flatpack2 4AC HC power shelf designed for mission-critical telecom and HVDC power systems. It features 4 dedicated AC input feeds and accommodates up to 4 Flatpack2 HE rectifiers, delivering up to 12kW / 240A DC power across -48V or HVDC bus architectures, with CAN-bus integration for Smartpack controllers.
Pricing is confirmed by project configuration and quantity
Request a quote- System Output Capacity
- Supports 4x Flatpack2 Rectifiers (Up to 12kW / 240A Total)
- AC Input Wiring Spec
- 4 Independent AC Feed Terminals (4AC Input Isolation)
- DC Output Bus Spec
- Compatible with Standard -48V DC Telecom Output & HVDC Distribution
- Power Conversion Efficiency
- Combined Efficiency ≥ 96.5% when Paired with HE Rectifiers
- Physical Form Factor
- Standard 19-inch 1U Ultra-Slim High-Density Power Shelf
- Monitoring Controller Configuration
- Integrated Dedicated Slot for Smartpack2 / Smartpack S Controllers
What this product is
What this product is
The Eltek 268035 is an industrial 19-inch 1U high-density Flatpack2 4AC HC power shelf designed for mission-critical telecom and HVDC power systems. It features 4 dedicated AC input feeds and accommodates up to 4 Flatpack2 HE rectifiers, delivering up to 12kW / 240A DC power across -48V or HVDC bus architectures, with CAN-bus integration for Smartpack controllers.
What problem it solves
The Eltek 268035 Flatpack2 4AC HC power shelf establishes an industry-leading benchmark for ultra-compact DC power distribution. Built with a standard 19-inch 1U profile, it integrates low-impedance heavy-duty copper DC busbars and 4 individual AC feed terminals, providing complete physical isolation against AC phase cross-faults. Engineered specifically for Eltek Flatpack2 HE (High Efficiency) rectifiers, the shelf achieves full-system conversion efficiency above 96.5%, dramatically reducing operational thermal footprint. The power shelf features true blind-mate hot-swappable architecture, allowing non-disruptive rectifier insertion and extraction under live loads without DC bus voltage dips or arcing. A dedicated controller bay accommodates Smartpack2 or Smartpack S master modules, interfacing through CAN-bus networks and delivering SNMP, Modbus, and secure HTTPS remote management. Operating reliably across -40°C to +75°C via front-to-back straight-through airflow, the 268035 is built for telecom base stations, modular HVDC distribution, and mission-critical power grids.
Who and where it is for
The Eltek 268035 is an industrial 19-inch 1U high-density Flatpack2 4AC HC power shelf designed for mission-critical telecom and HVDC power systems. It features 4 dedicated AC input feeds and accommodates up to 4 Flatpack2 HE rectifiers, delivering up to 12kW / 240A DC power across -48V or HVDC bus architectures, with CAN-bus integration for Smartpack controllers.
Core advantages
- 19-inch 1U form factor delivering up to 12kW / 240A DC capacity
- Four dedicated AC input feeds provide robust electrical isolation
- Over 96.5% overall efficiency when paired with Flatpack2 HE rectifiers
- Full blind-mate hot-plugging enables zero-downtime maintenance
- Dedicated controller slot supports Smartpack series CAN-bus units
- Industrial -40°C to +75°C tolerance under extreme grid conditions
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Wiring Spec | 4 Independent AC Feed Terminals (4AC Input Isolation) |
| DC Output Bus Spec | Compatible with Standard -48V DC Telecom Output & HVDC Distribution |
| System Output Capacity | Supports 4x Flatpack2 Rectifiers (Up to 12kW / 240A Total) |
| Monitoring Controller Configuration | Integrated Dedicated Slot for Smartpack2 / Smartpack S Controllers |
| Hot-Swap Live Maintenance | Full Blind-Mate Hot-Pluggable Design with Front-to-Back Airflow |
| Operating Temperature | -40°C ~ +75°C (Harsh Industrial Wide Temperature Operation) |
| Power Conversion Efficiency | Combined Efficiency ≥ 96.5% when Paired with HE Rectifiers |
| Physical Form Factor | Standard 19-inch 1U Ultra-Slim High-Density Power Shelf |
Applications
01
5G macro and micro base station 1U embedded telecom enclosures
02
Modular edge computing data centers with -48V DC / HVDC racks
03
Electrical utility substation secondary control and protection DC supplies
04
Railway signaling, communications, and trackside uninterruptible power
Frequently asked questions
Continue exploring
HEFENGQI

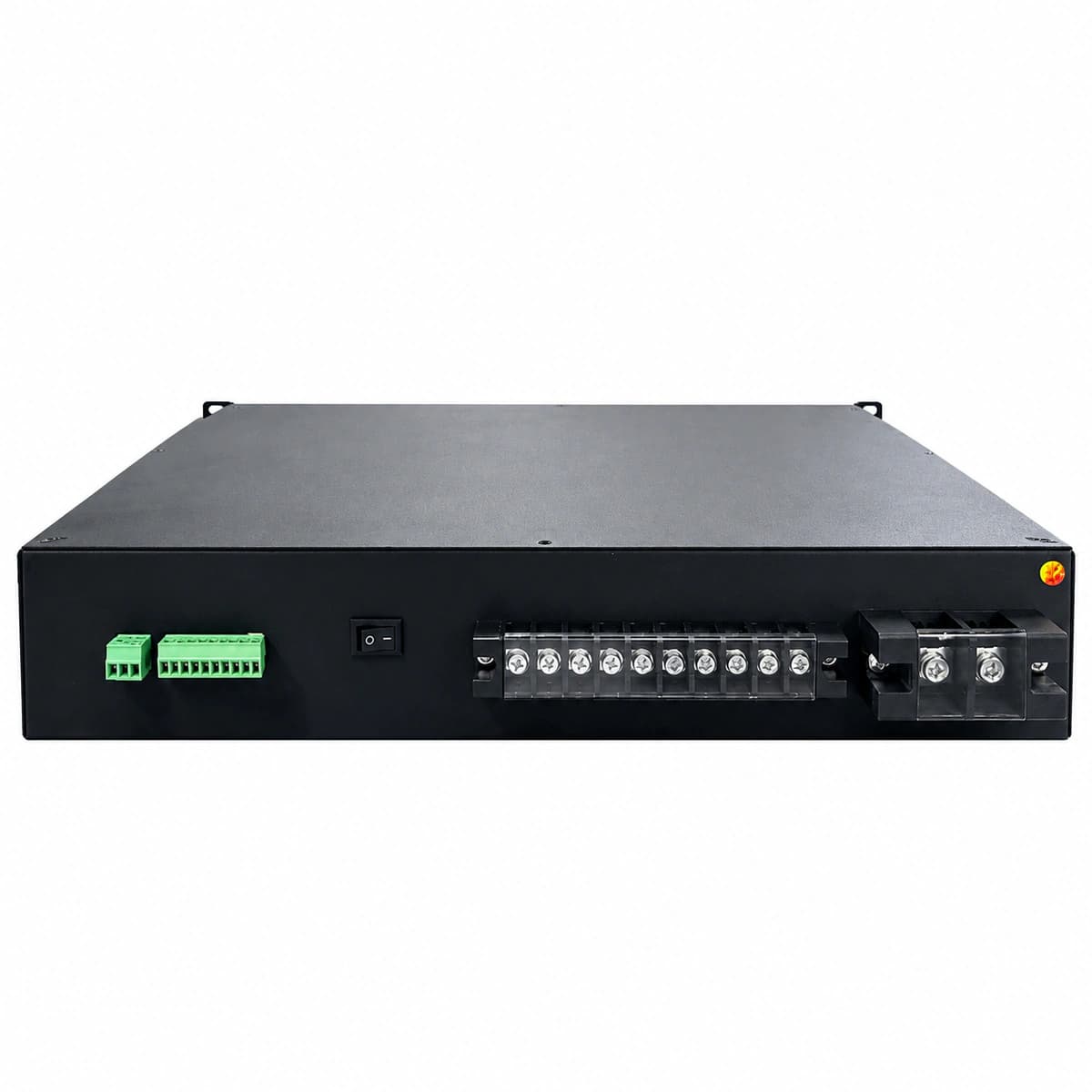

HEFENGQI 48V to 220V 3kW Telecom 19-Inch 2U Rackmount Pure Sine Wave Inverter
This industrial-grade standard 19-inch 2U rackmount pure sine wave power inverter is engineered for telecom shelters and industrial automation. Operating on a n

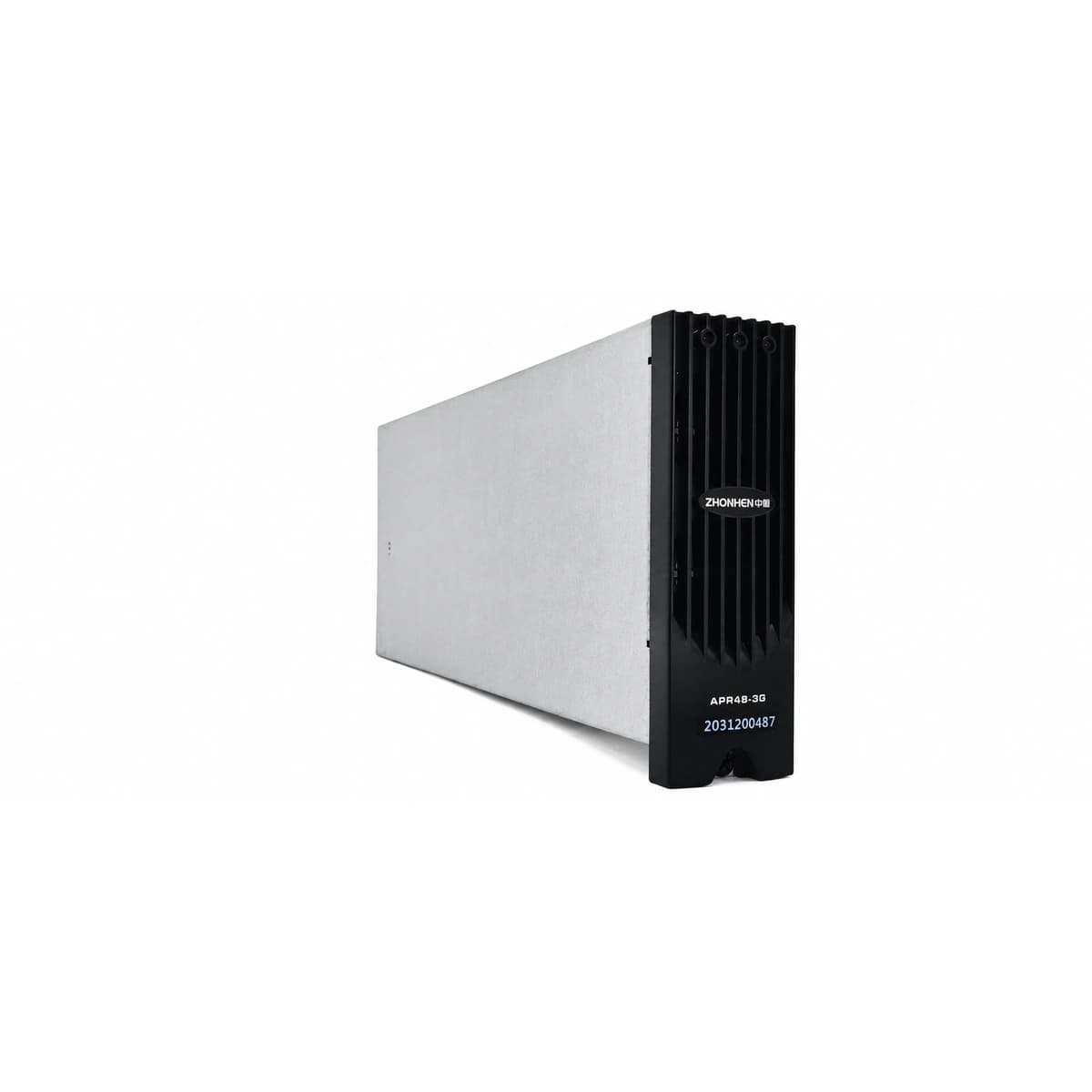

Zhongheng APR48-3G 1800W 33A Telecom Switched-Mode Rectifier Module (-48V DC Hot-Swap)
