What this product is

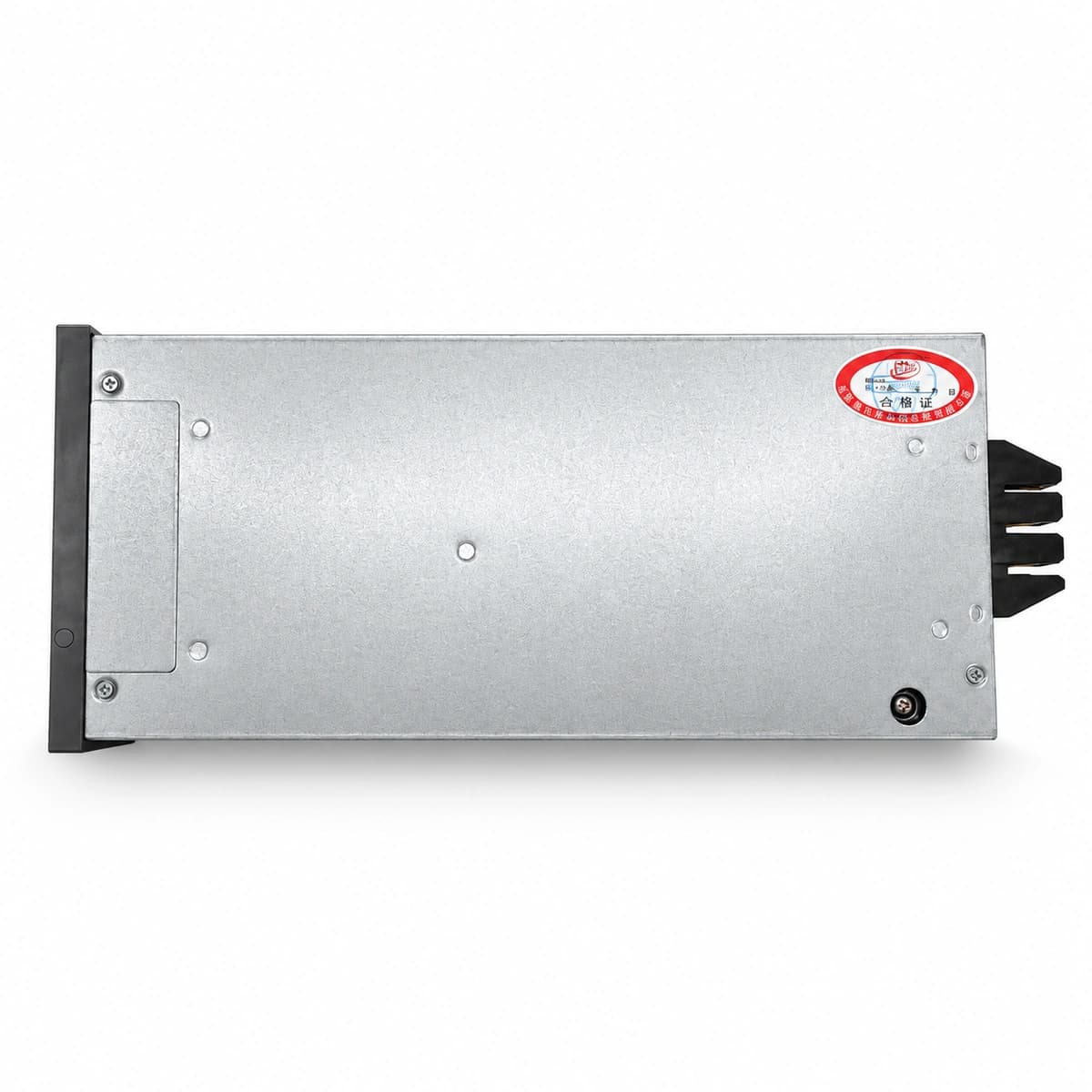

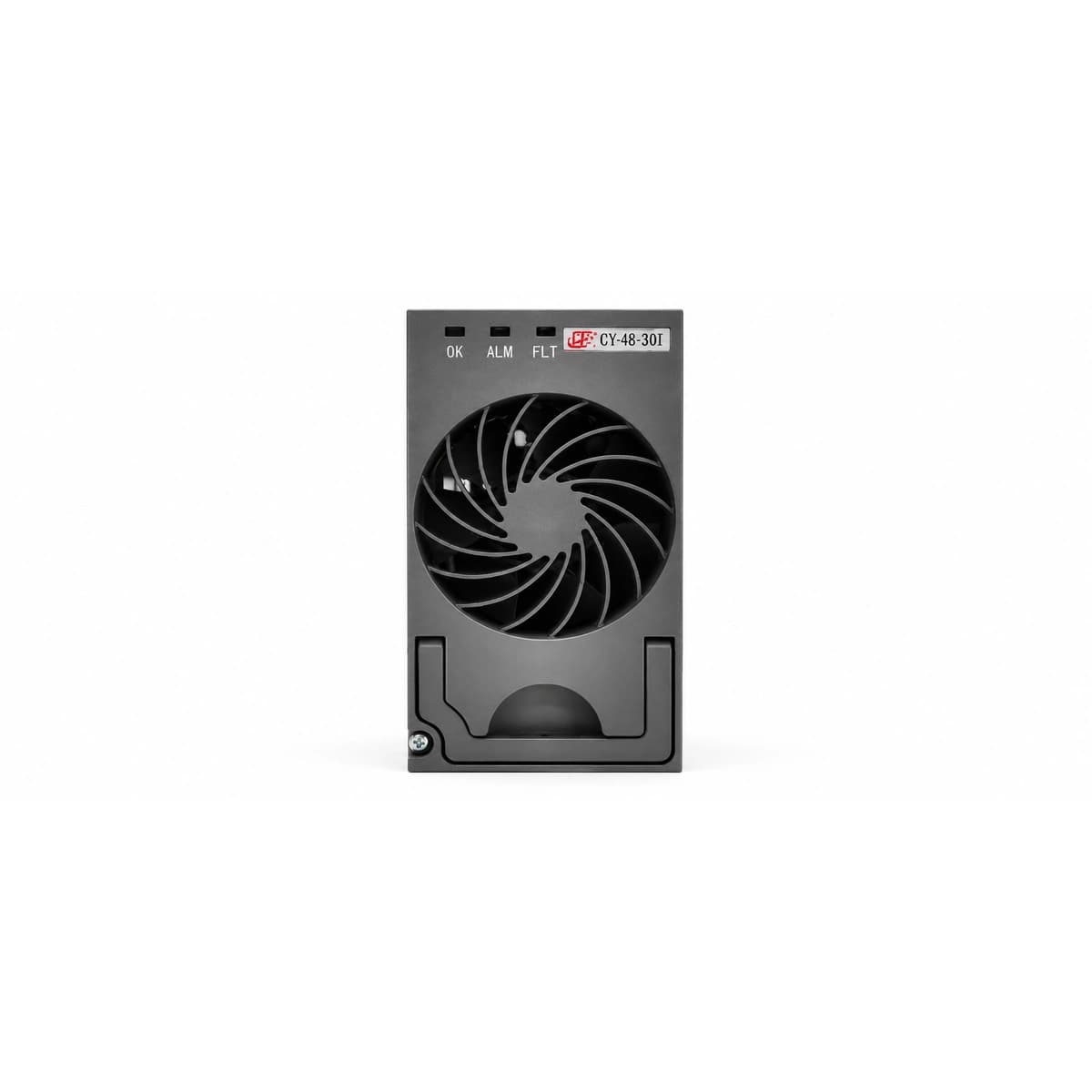

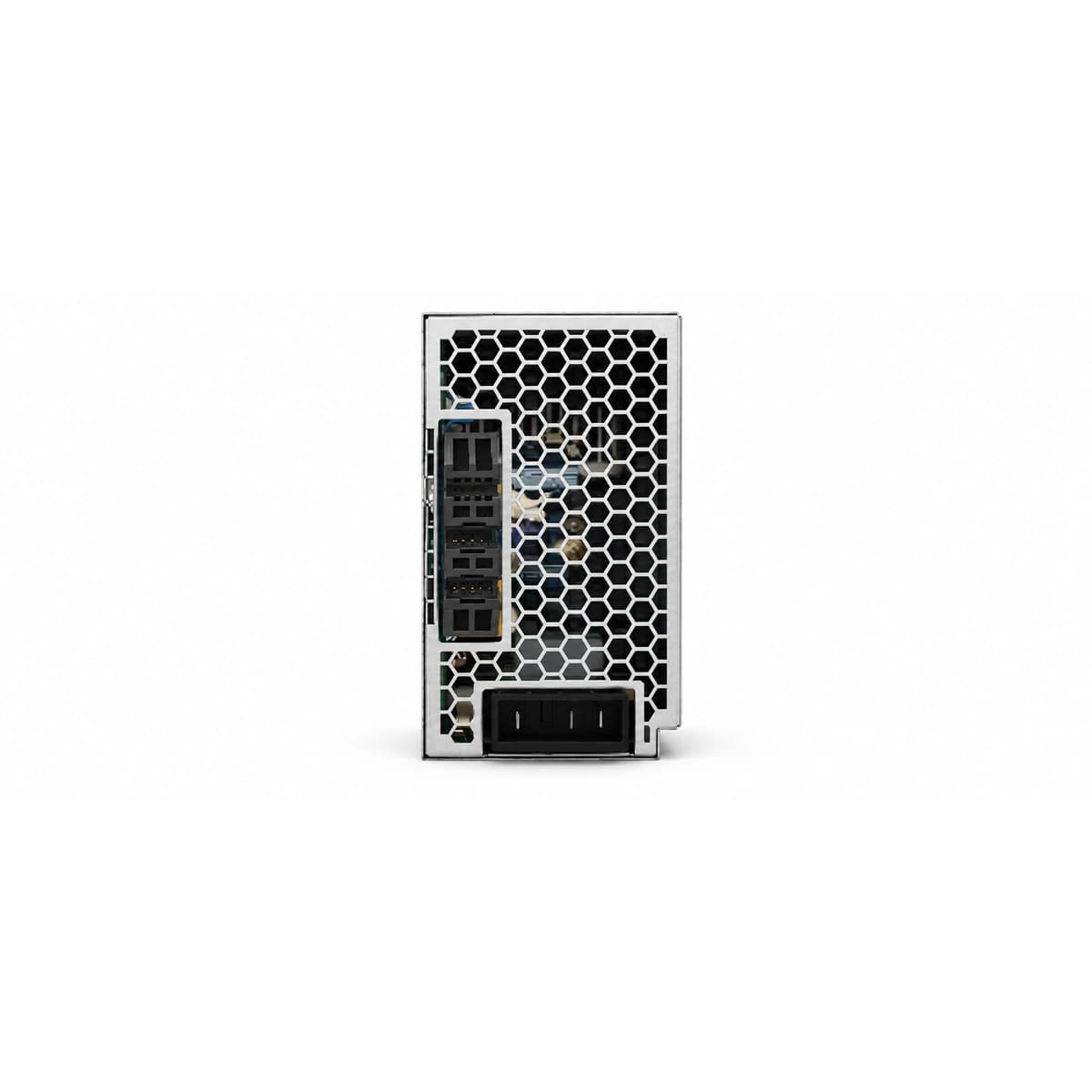

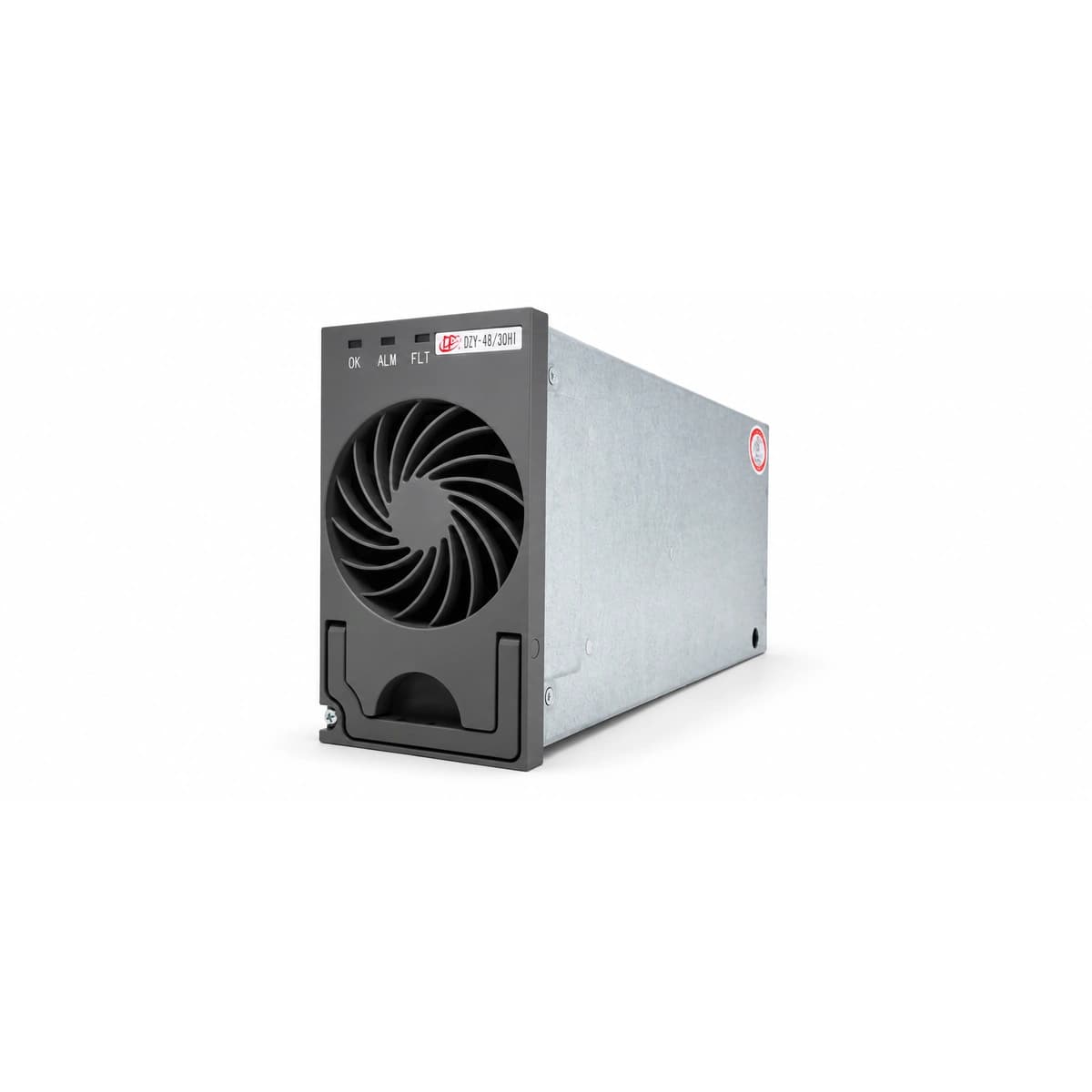

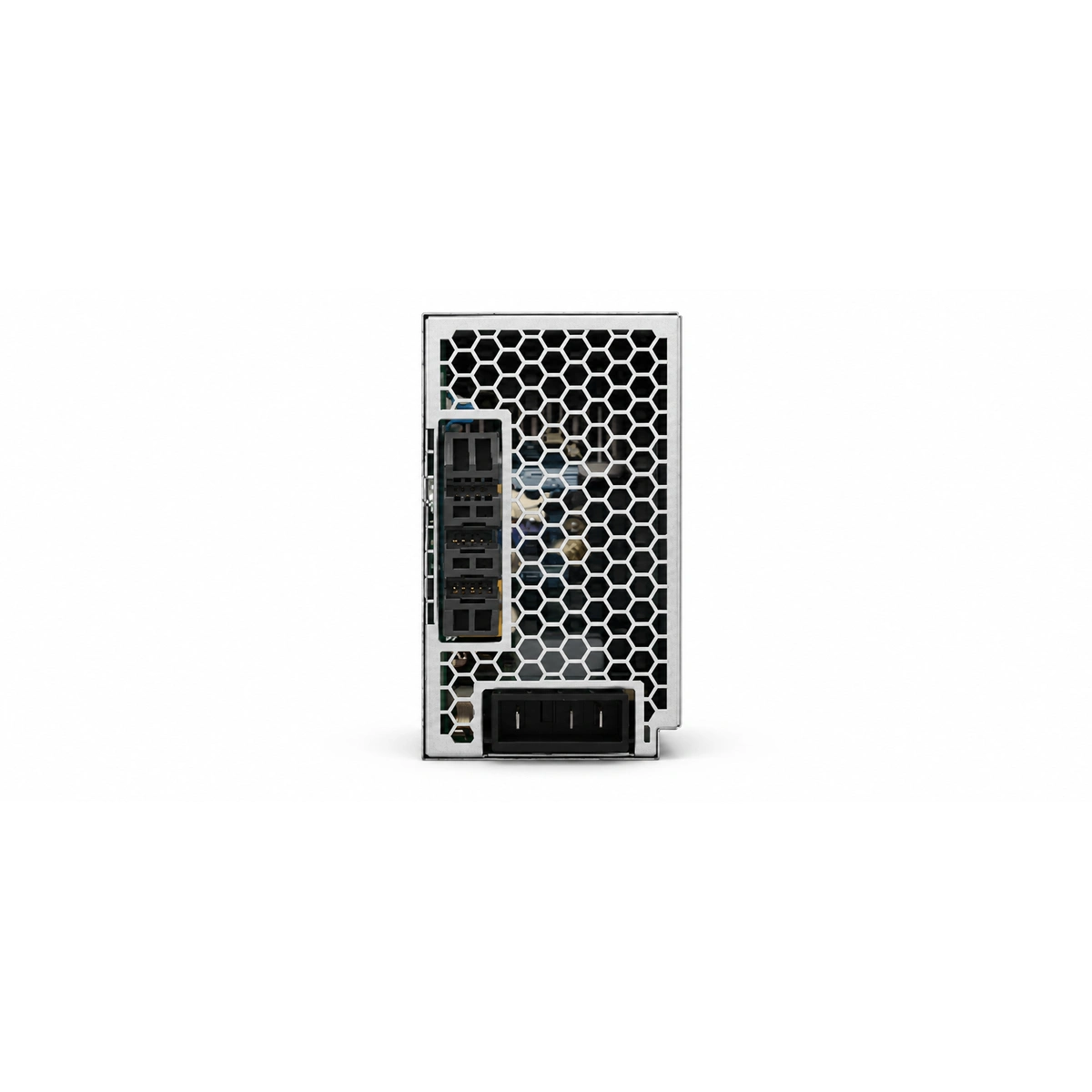

The DZY4830HI architecture integrates a two-stage power conversion train driven by full digital control. The primary stage employs an active boost PFC front-end that guarantees ultra-low harmonic distortion and wide input acceptance. The secondary stage utilizes an isolated DC-DC resonant LLC tank operating with Zero Voltage Switching (ZVS) to reduce power transistor stress. An onboard industrial MCU continuously tracks line-voltage perturbations, thermal curves, and bus transients, coordinating dynamic autonomous current sharing via internal CAN/RS485 buses linked to the central system controller (CSU).
What problem it solves
This rectifier module eliminates critical field failures triggered by frequent grid surges, severe brownouts, and localized overheating inside dense outdoor cabinets. Its expansive 85V to 300V AC input window prevents deep battery cycling during voltage sags. Fully autonomous N+1 active current-sharing mitigates single points of failure, while multi-tier thermal throttling algorithms keep the site online during high-temperature anomalies where conventional rectifiers trip entirely.
Who and where it is for
Ideal for 4G/5G macro cell outdoor power enclosures, micro-edge data center DC power distribution, railway signaling substations, fiber-optic transmission stations, and mission-critical industrial automation switchgear.
