ZTEModel: ZXDU58 B900

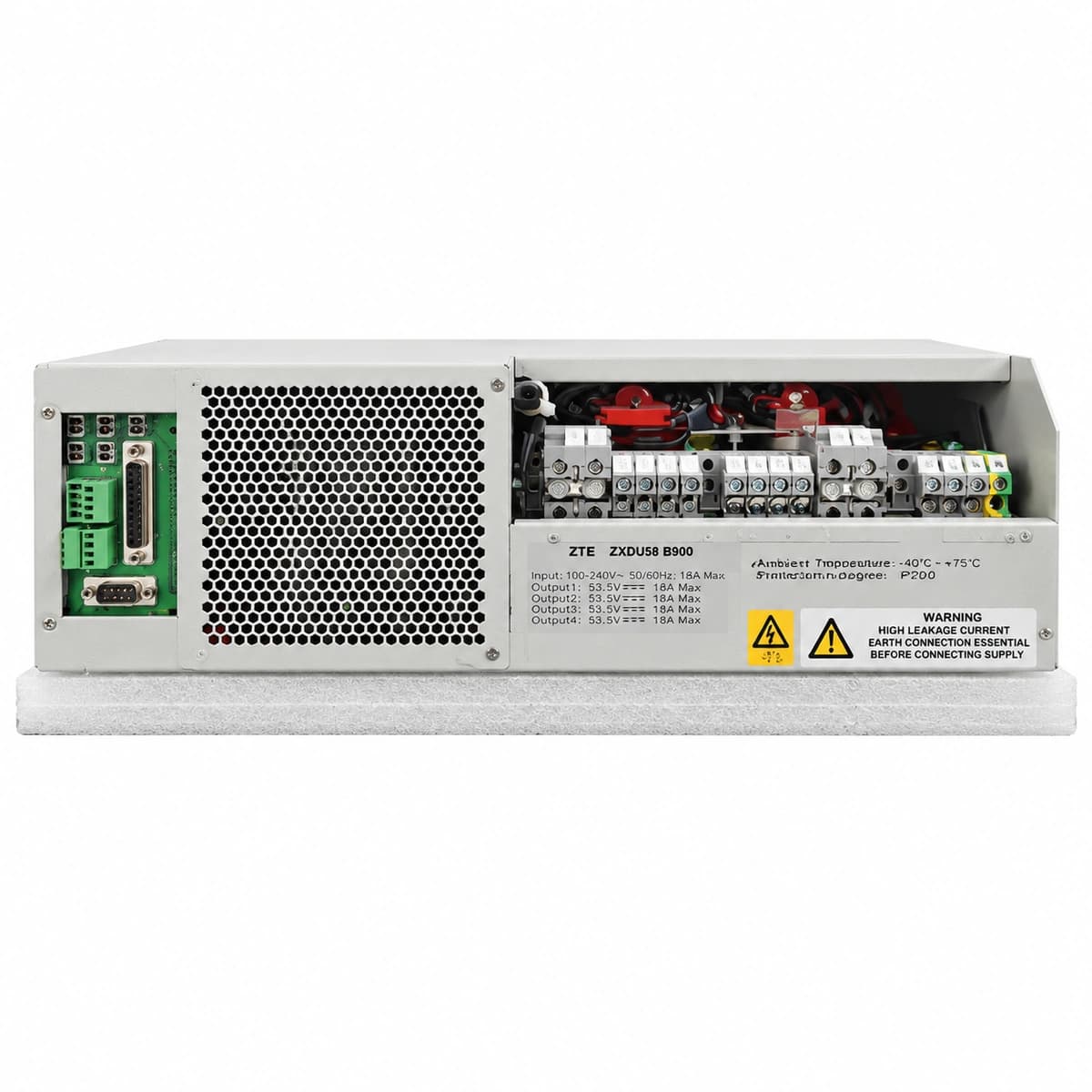

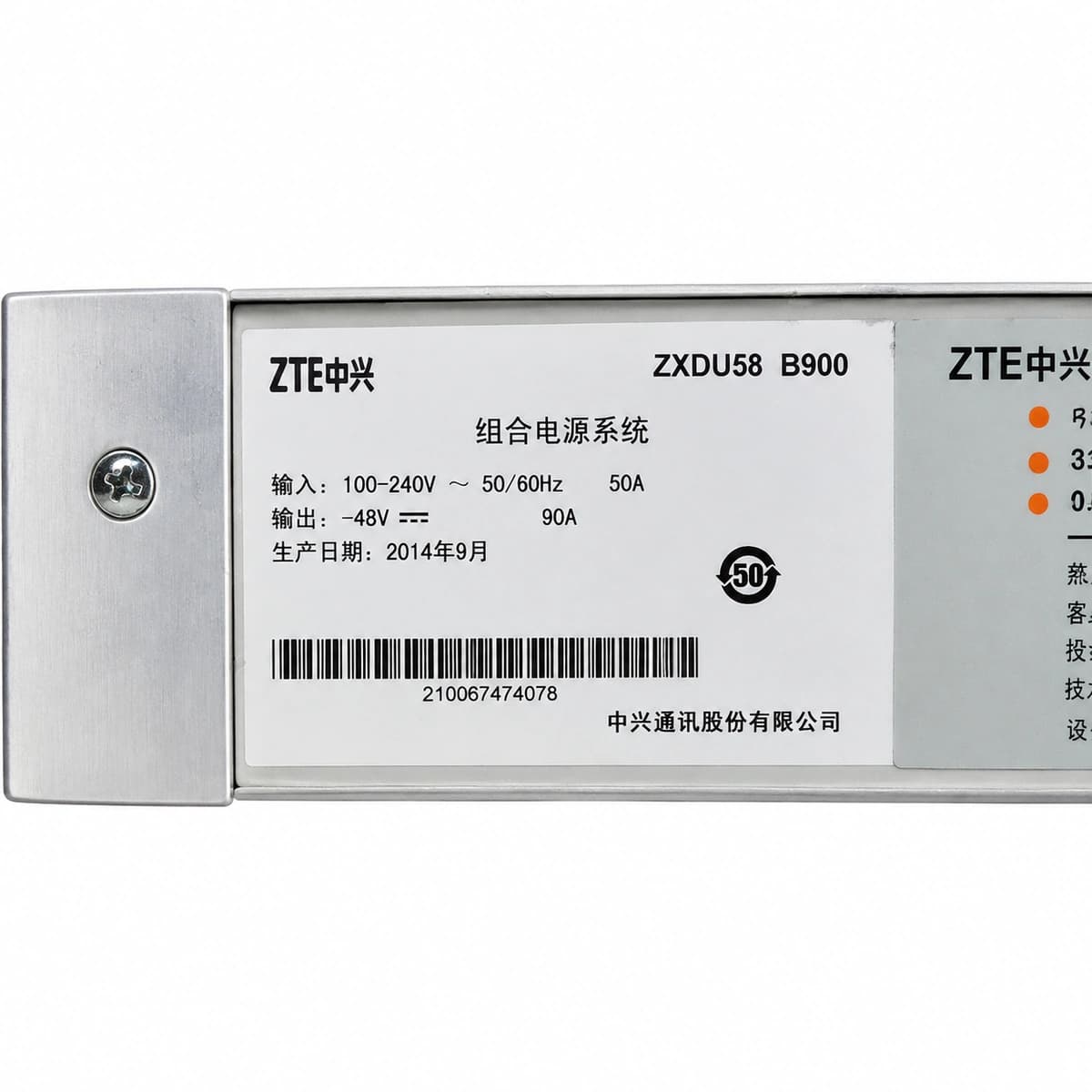

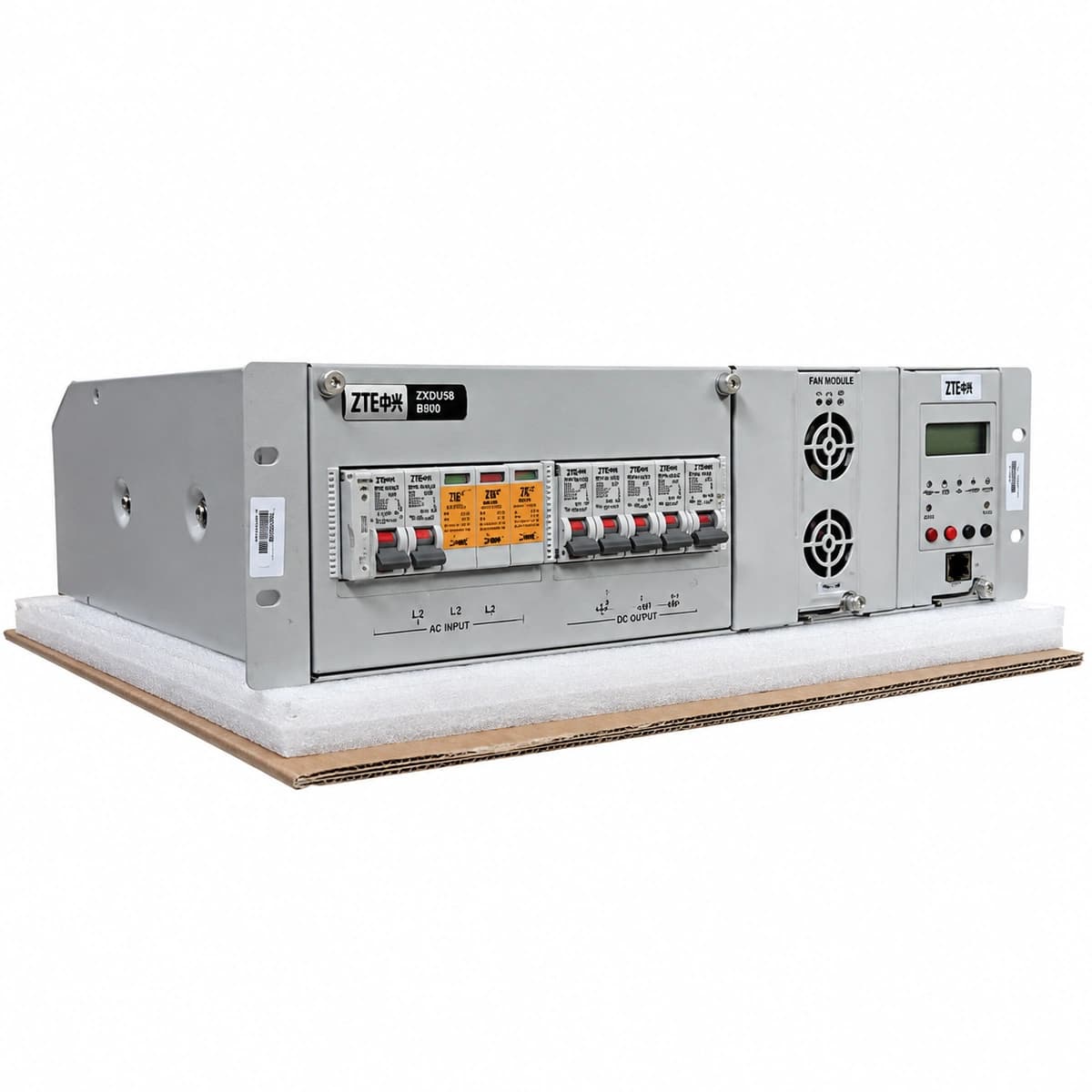

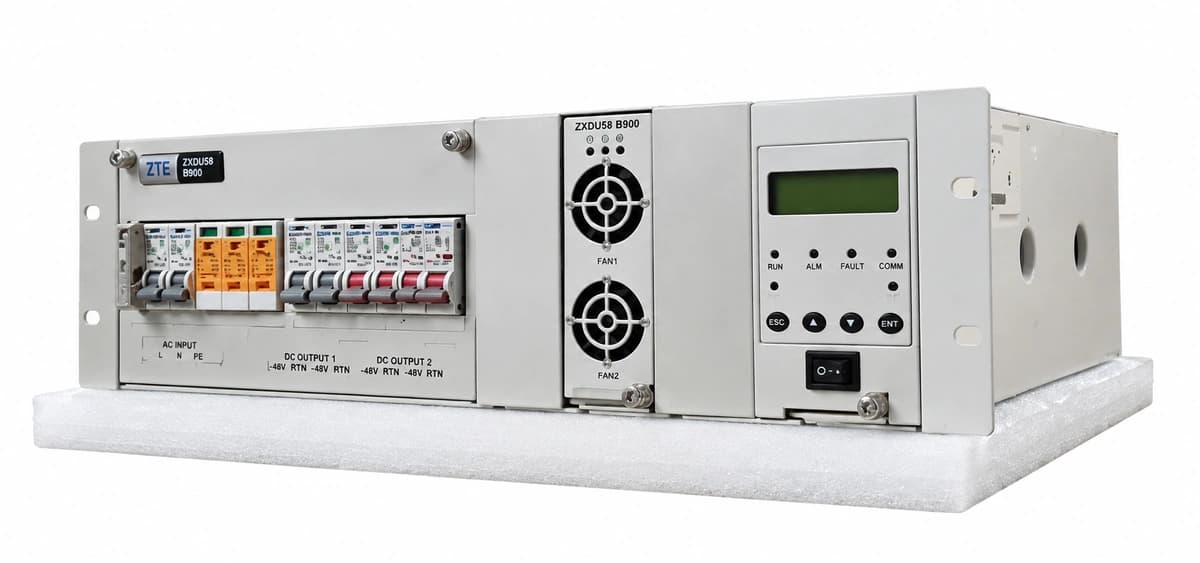

ZTE ZXDU58 B900 Floor-Standing Telecom DC Power Cabinet System (-48V 900A 2.0m)
The ZTE ZXDU58 B900 is an enterprise-grade -48V floor-standing indoor telecom DC power system engineered to deliver up to 900A of high-reliability output power with hot-pluggable high-efficiency rectifiers and intelligent dual-stage Low Voltage Disconnect (LLVD/BLVD) battery management.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 80VAC ~ 300VAC (3-Phase 5-Wire 380VAC) VAC
- Rated Output Current
- 900A (Cabinet Capacity 52.2kW)
- Peak Conversion Efficiency
- ≥96.2%
- Managed Rectifier Capacity
- Supports up to 18 × ZXD2400 / ZXD3000 Rectifiers
- Smart Monitoring Controller
- CSU500B / CSU401S Central Monitoring System
What this product is
What this product is
The ZXDU58 B900 is an integrated DC power plant comprising three-phase AC distribution, parallel rectifier module slots, a central supervisory unit (CSU), and multi-circuit DC breakers. It operates as the primary source of stable -48VDC power for carrier-grade network equipment while providing comprehensive battery charge/discharge control.
What problem it solves
Eliminates power continuity loss caused by severe AC grid fluctuations, resolves online expansion risks via robust live hot-plug rectifiers, and prevents irreversible battery bank deep-discharge damage through programmable tiered load shedding.
Who and where it is for
Carrier core central offices, large mobile transmission aggregation hubs, metro edge data facilities, and railway signaling telecom rooms.
Core advantages
- High-efficiency rectifier topology achieving system conversion efficiency ≥96.0%.
- Ultra-wide input voltage tolerance (85VAC to 300VAC phase voltage) protecting against utility instability.
- Precision dual-stage LVD (LLVD/BLVD) distribution prevents deep battery depletion while safeguarding critical loads.
- Fully digital CAN-bus autonomous active current sharing with deviation controlled under ±3%.
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Voltage Range | 80VAC ~ 300VAC (3-Phase 5-Wire 380VAC) VAC |
| Smart Monitoring Controller | CSU500B / CSU401S Central Monitoring System |
| Cooling Method | Top exhaust fans and module smart thermal cooling |
| Nominal Output Voltage | -48VDC VDC |
| Rated Output Current | 900A (Cabinet Capacity 52.2kW) |
| Managed Rectifier Capacity | Supports up to 18 × ZXD2400 / ZXD3000 Rectifiers |
| Form Factor Dimensions (HxWxD) | 2000 × 600 × 600 mm (2.0m Floor Cabinet) |
| Peak Conversion Efficiency | ≥96.2% |
| Operating Temperature Range | -15°C ~ +55°C |
Applications
01
Telecom operator core central offices and aggregation hub sites
02
High-density baseband centralized pooling (C-RAN) hub centers
03
Mission-critical railway signaling and dispatch telecommunication power systems
04
Enterprise private cloud datacenters requiring resilient -48VDC infrastructure
