ZTEModel: ZXDU98 B601 (V5.0)

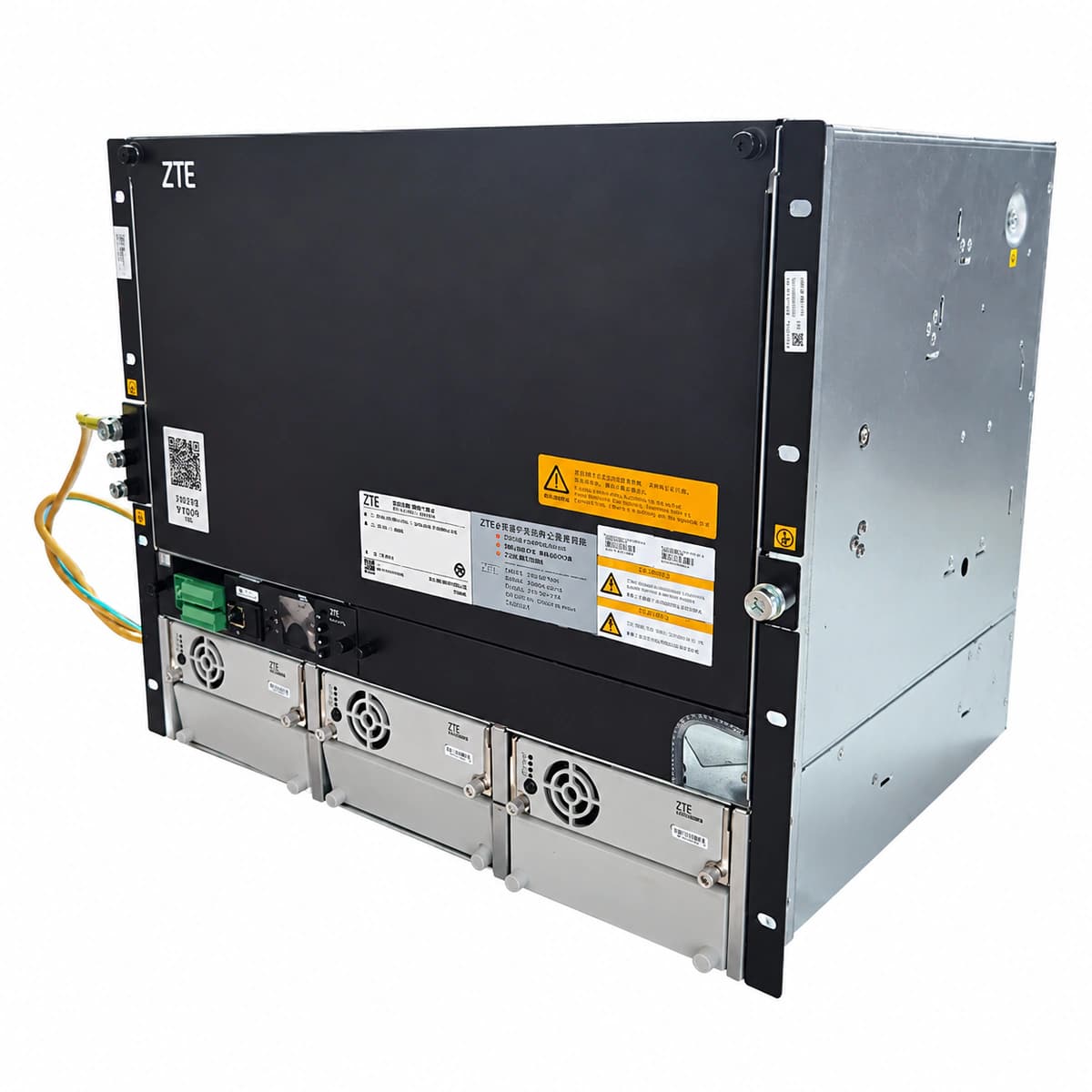

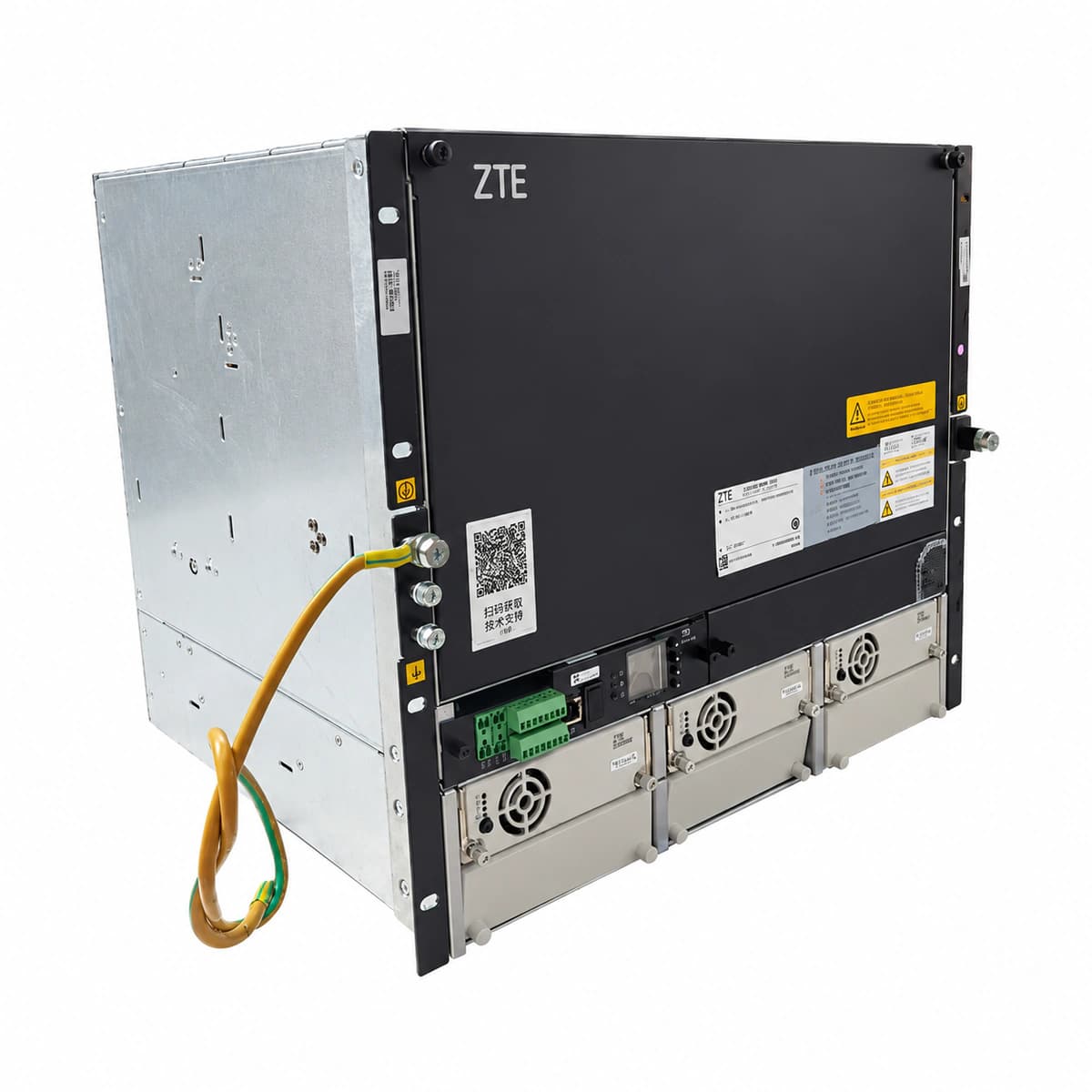

ZTE ZXDU98 B601 (V5.0) Embedded HVDC Power System (240V 60A Subrack)
The ZTE ZXDU98 B601 (V5.0) is a 240V High Voltage DC (HVDC) embedded subrack system delivering 60A/15kW output, engineered for next-generation data centers to minimize power transmission losses.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal DC Output Voltage
- 240V DC (Adjustable 200V - 280V)
- Rated Distribution Capacity
- 60A / 15kW High Voltage Capacity
- AC Input Voltage Range
- 260V - 485V AC (3-Phase Utility)
- Chassis Form Factor
- 5U Height / 19-Inch Subrack
- System Energy Efficiency
- >96% Digital Power Conversion
- Insulation Monitoring
- Built-in DC Bus Insulation Monitor
What this product is
What this product is
The ZTE ZXDU98 B601 (V5.0) is a 240V High Voltage DC (HVDC) embedded subrack system delivering 60A/15kW output, engineered for next-generation data centers to minimize power transmission losses.
What problem it solves
Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.
Who and where it is for
5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.
Core advantages
- 240V HVDC High Efficiency: Slashes transmission line losses by >80% compared to traditional -48V busbars.
- Carrier-Grade Insulation Safety: Integrated ground-fault insulation monitoring detects micro-leakages instantly.
- Modular Hot-Swap Architecture: Online hot-pluggable HVDC rectifiers ensure zero downtime for critical servers.
- Unified DCIM Integration: Full Ethernet and RS485 telemetry integrates smoothly into data center infrastructure.
Technical specifications
| Key specifications | Value |
|---|---|
| Nominal DC Output Voltage | 240V DC (Adjustable 200V - 280V) |
| Rated Distribution Capacity | 60A / 15kW High Voltage Capacity |
| AC Input Voltage Range | 260V - 485V AC (3-Phase Utility) |
| System Energy Efficiency | >96% Digital Power Conversion |
| Chassis Form Factor | 5U Height / 19-Inch Subrack |
| Insulation Monitoring | Built-in DC Bus Insulation Monitor |
Applications
01
4G/5G Telecom Cell Sites & Distributed Power Systems
02
Carrier Core Network Facilities & IDC DC Plants
03
Industrial Automation & Utility Substation DC UPS
