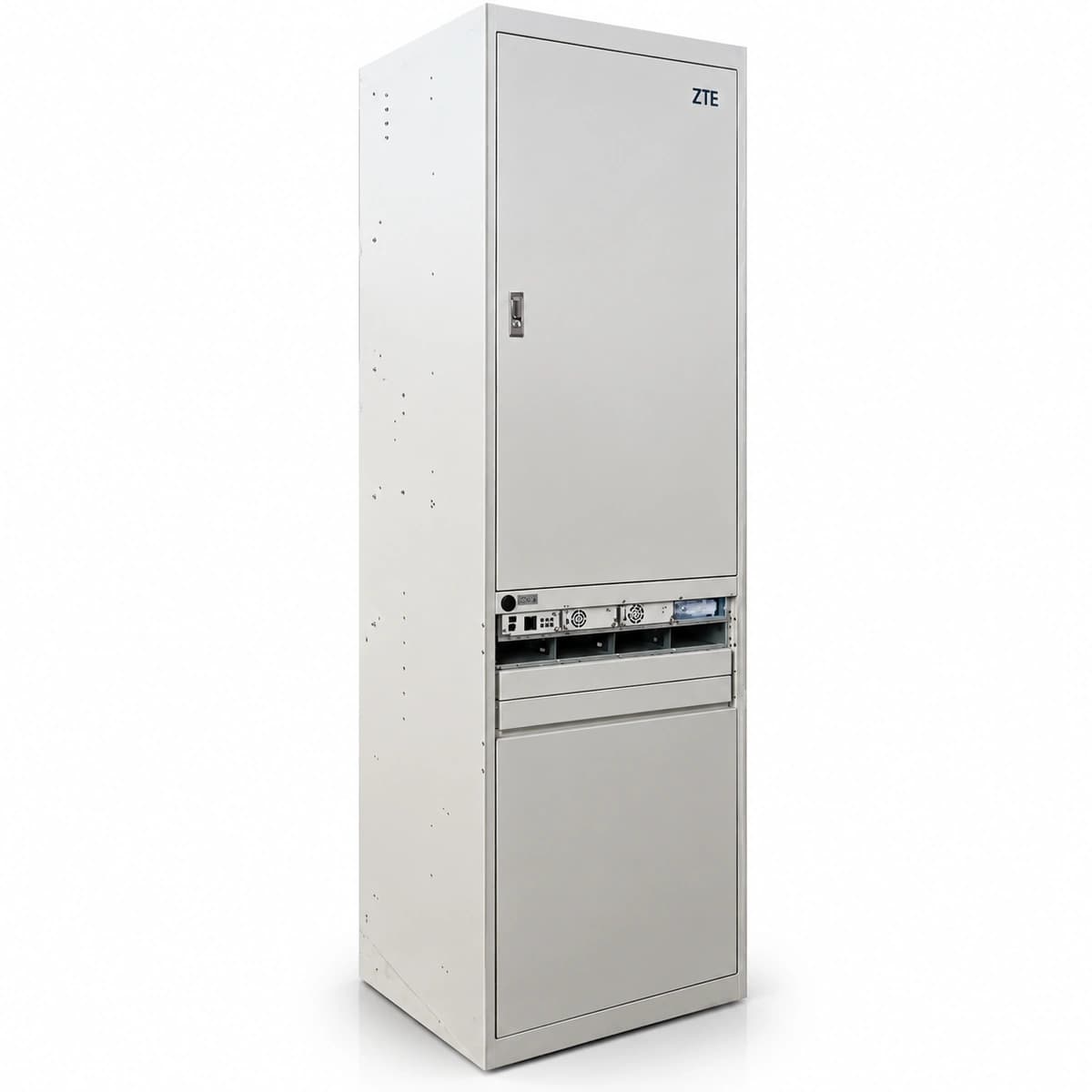

The ZTE ZXDU60 S301 R10M01 is an industrial-grade telecom power infrastructure unit engineered for high-reliability base stations and mission-critical edge facilities.
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
A carrier-grade power unit designed by ZTE to deliver stable DC/AC electricity under demanding grid conditions and harsh outdoor environments.
Eliminates unexpected site downtime caused by AC utility voltage surges, severe brownouts, and load transient disruptions.
Telecom macro sites, small cells, edge computing nodes, optical transport nodes, and railway signaling power systems.
| Key specifications | Value |
|---|---|
| Rated System Output Capacity | 300A (Expandable up to 6x 50A Rectifier Modules) |
| Input Voltage Range | Three-phase 380VAC / Single-phase 220VAC |
| Nominal DC Output Voltage | -48VDC Nominal (Adjustable -42VDC ~ -58VDC) |
| system_efficiency | ≥96.5% with High-Efficiency Rectifiers |
| Monitoring Controller Unit | Integrated CSU Smart Monitoring Controller with LCD |
| Form Factor & Mounting | 1.6m / 2.0m Indoor Integrated Telecom Power Cabinet |
| Wide Operating Temperature Range | -25°C ~ +55°C |
| DC Distribution Configuration | Dual Battery Disconnects, Multichannel Critical & Non-critical DC Breakers |
