Question 1

How should an engineer troubleshoot an illuminated steady red ALM indicator with no DC output on the ZXD3000 (V5.8)?

Accepted Answer

A steady red ALM LED indicates a critical self-protection latch-out state. Primary causes include: 1) Output Overvoltage Protection (OVP): Triggered when output exceeds ~59.5V DC, latching the converter off; reset by completely de-energizing the AC input breaker for at least 3 minutes to discharge internal bus capacitors. 2) Thermal trip-out: Heatsink thermistors exceed safety thresholds (>85°C); inspect intake air filters and check for internal fan rotation blockages. 3) AC input anomalies out of the safe window (<80V AC or >305V AC). If persistent after re-seating and cold cycling, interrogate the Central Supervision Unit (CSU) for internal hardware fault codes indicating primary PFC or LLC switch degradation.

Question 2

What electrical verification procedure must be performed when the CSU reports a CAN communication loss with a ZXD3000 (V5.8)?

Accepted Answer

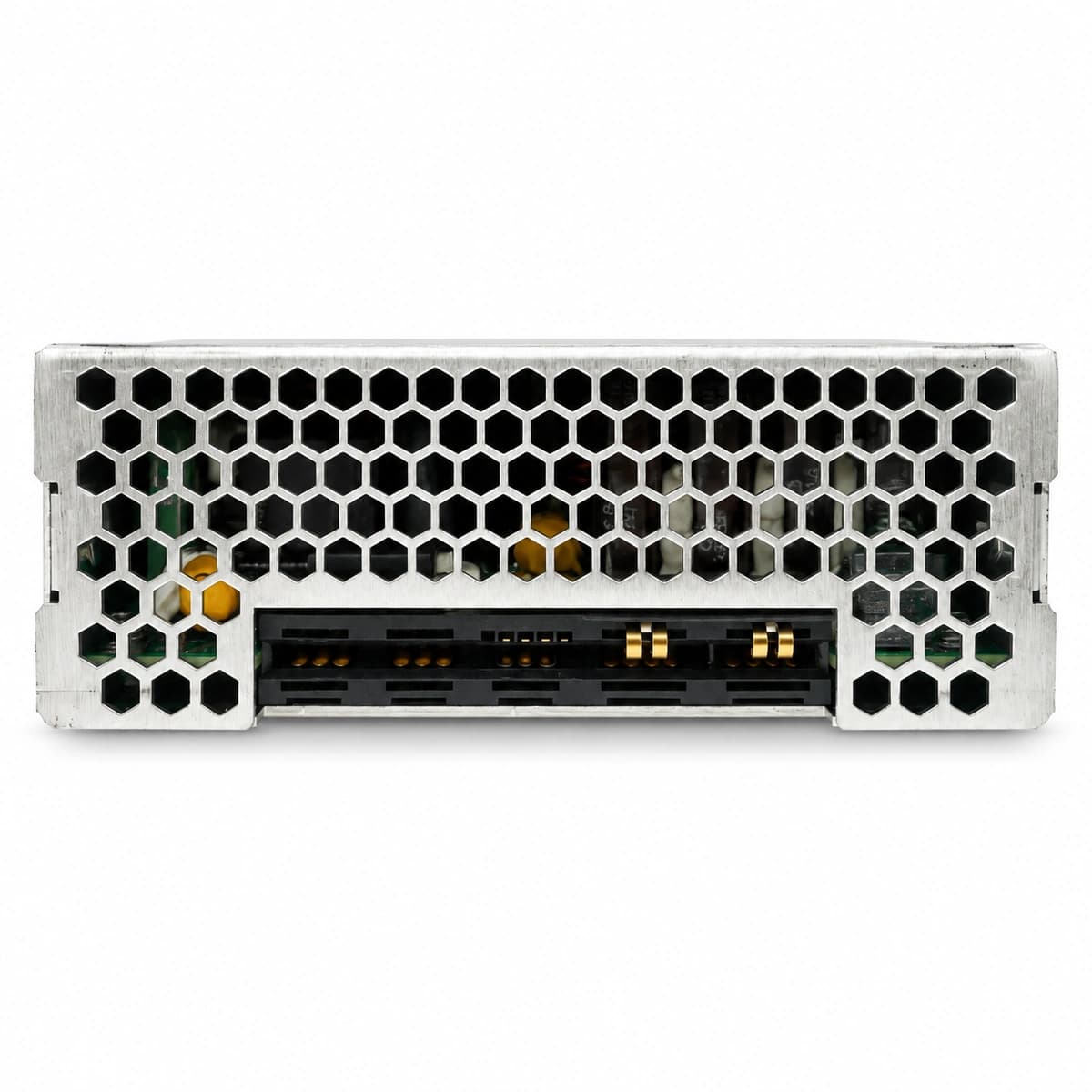

1) Physical interface: Unseat the module and inspect the rear hot-plug gold-finger connector pins for mechanical bending, thermal pitting, or contamination. 2) Bus termination impedance: De-energize the rack and measure resistance across CAN_H and CAN_L at the backplane test pins; the equivalent resistance should measure between 55Ω and 65Ω (two 120Ω end-of-line resistors in parallel). A reading of ~120Ω signifies a missing termination resistor, while near 0Ω indicates a line short. 3) Signal line voltages: When energized, measure differential DC voltages against chassis ground; CAN_H should hover around 2.5V–3.5V and CAN_L around 1.5V–2.5V with dynamic delta toggling. 4) Addressing conflict: Check physical backplane address ID slot identification pins to ensure the module is not reporting an address identical to another parallel node.

Question 3

What triggers thermal output derating in the ZXD3000 (V5.8) under high ambient loads, and what are the field mitigation procedures?

Accepted Answer

Trigger Mechanism: The ZXD3000 (V5.8) delivers 100% rated output (3000W / 50A) up to an ambient intake of +55°C. Between +55°C and +75°C, the DSP implements linear power derating based on NTC readings attached to primary PFC/LLC MOSFET heat bridges to protect semiconductor junction barriers. Complete thermal shutdown trips above +75°C. Corrective Field Actions: 1) Clean or replace intake/exhaust cabinet air filters to eliminate airflow restriction. 2) Verify whether the internal PWM fan scales to maximum RPM under elevated temperature; replace the fan assembly if tachometer feedback fails or bearings drag. 3) Inspect total bus load; if total site demand exceeds the N+1 continuous rating at elevated ambient temperatures, install additional parallel modules in unpopulated shelf slots.

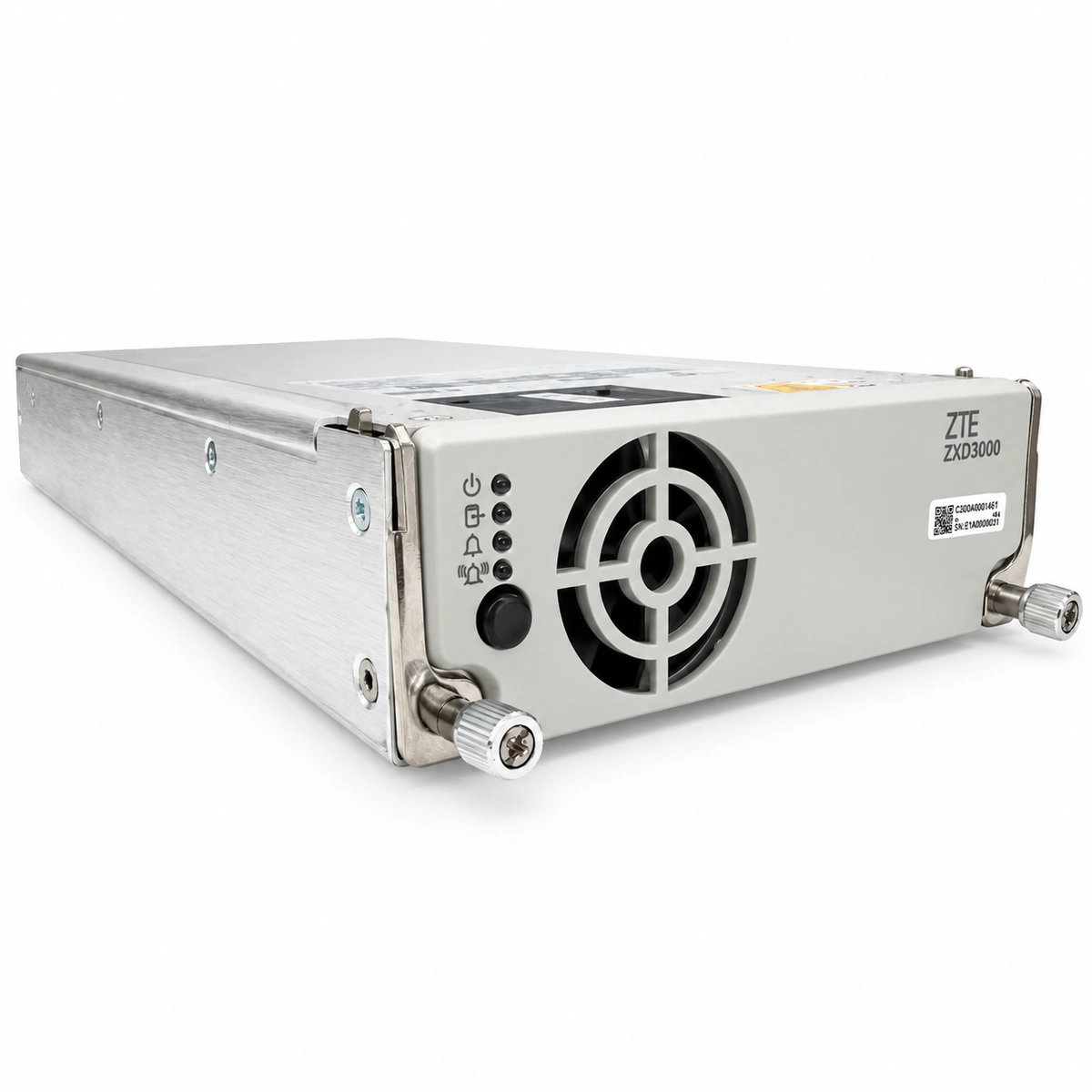

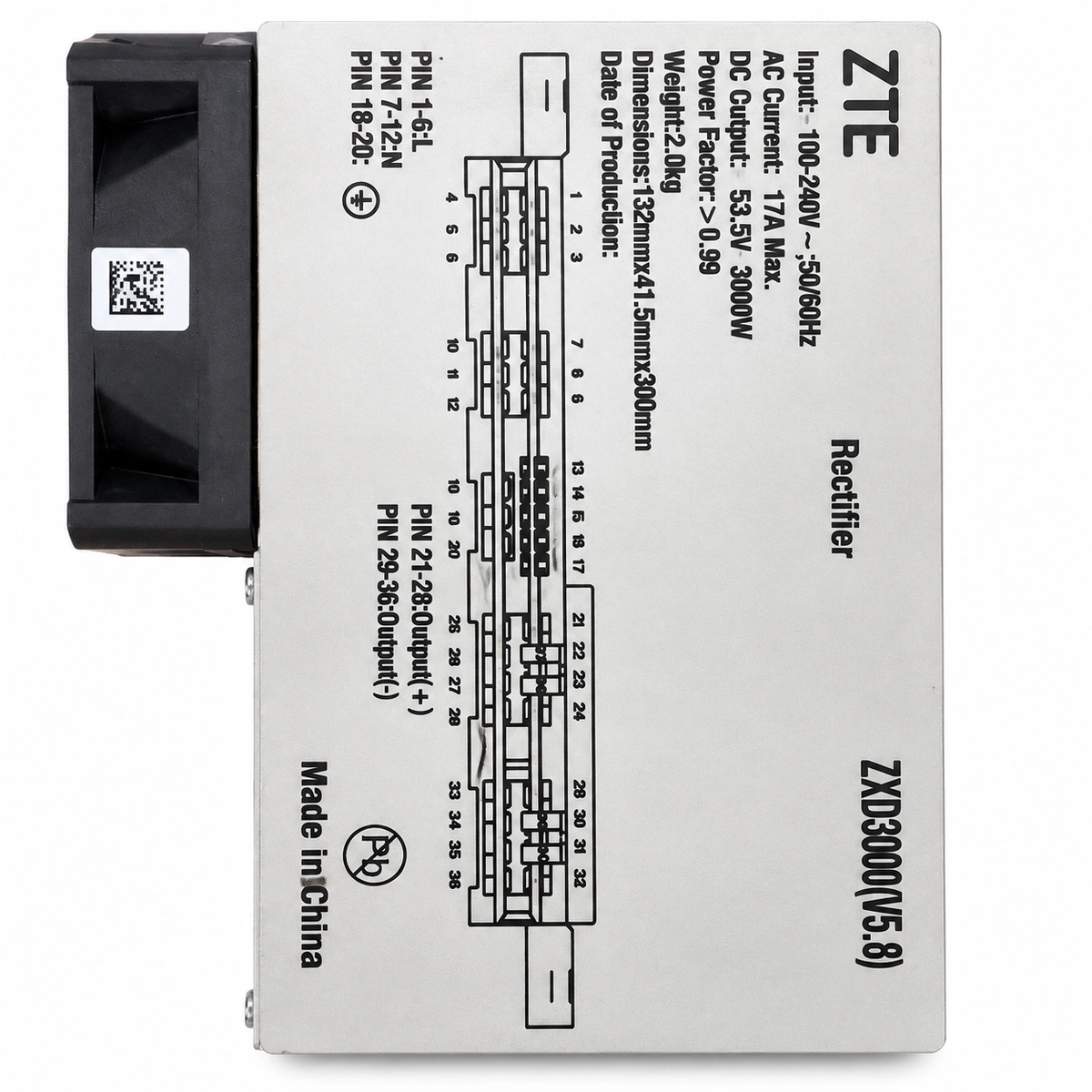

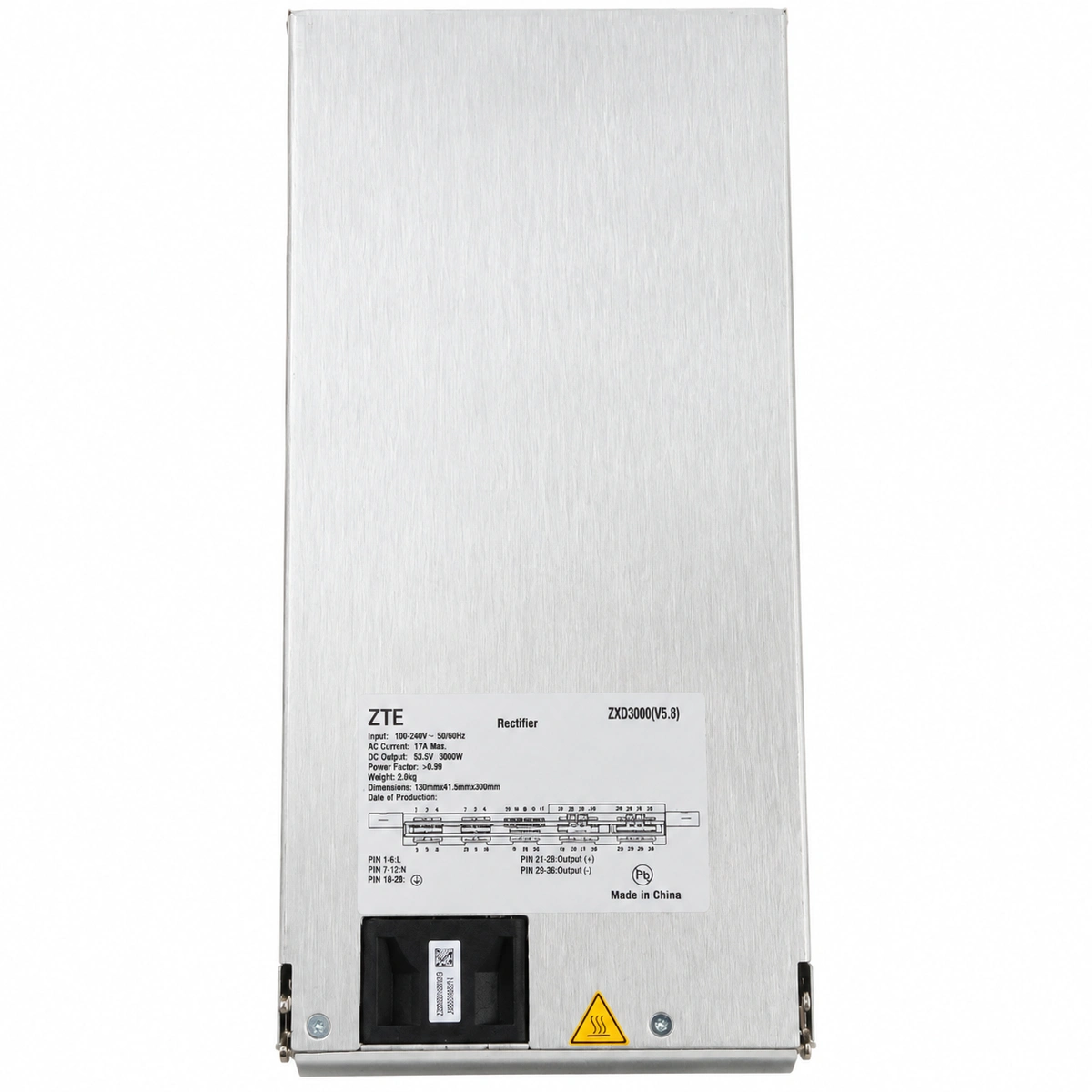

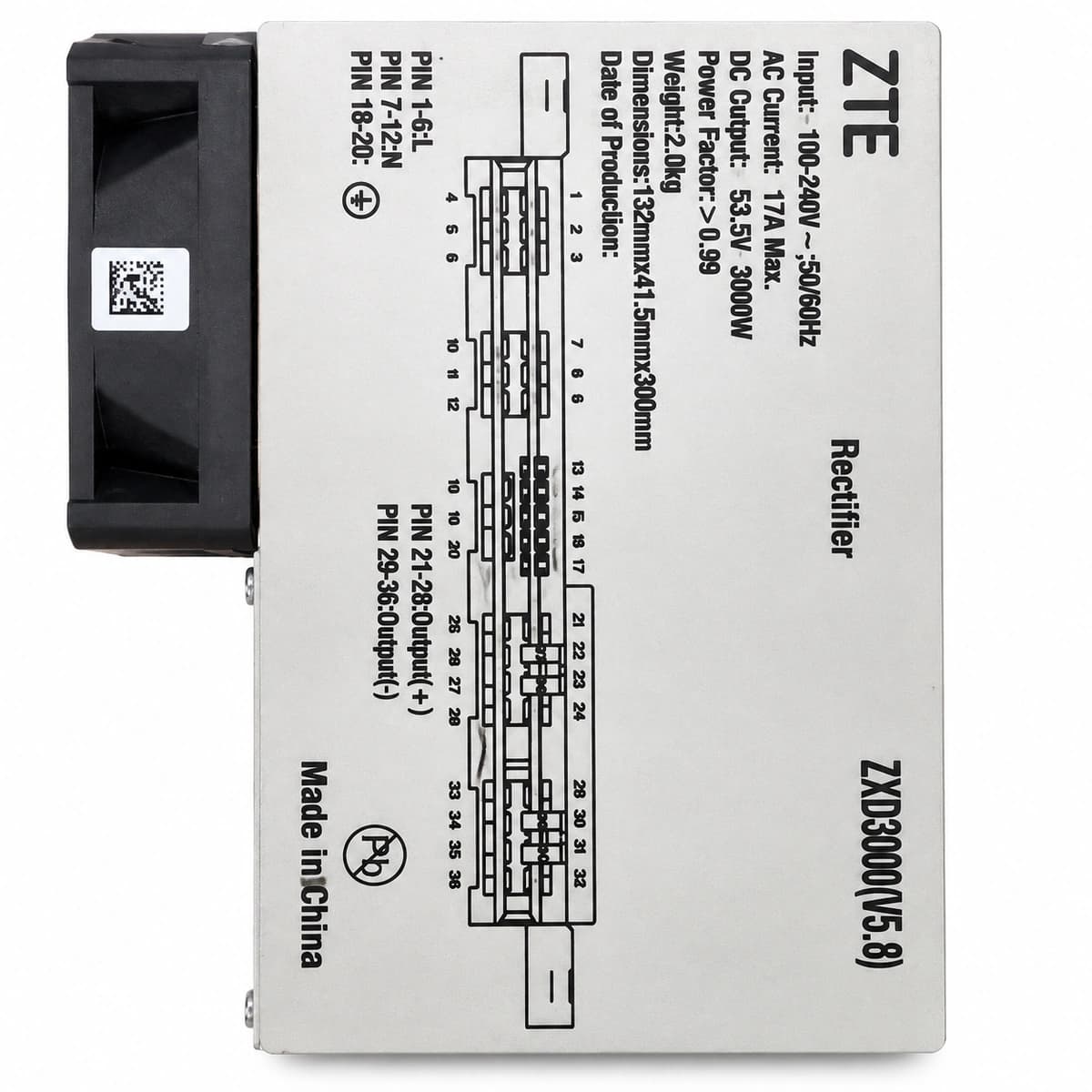

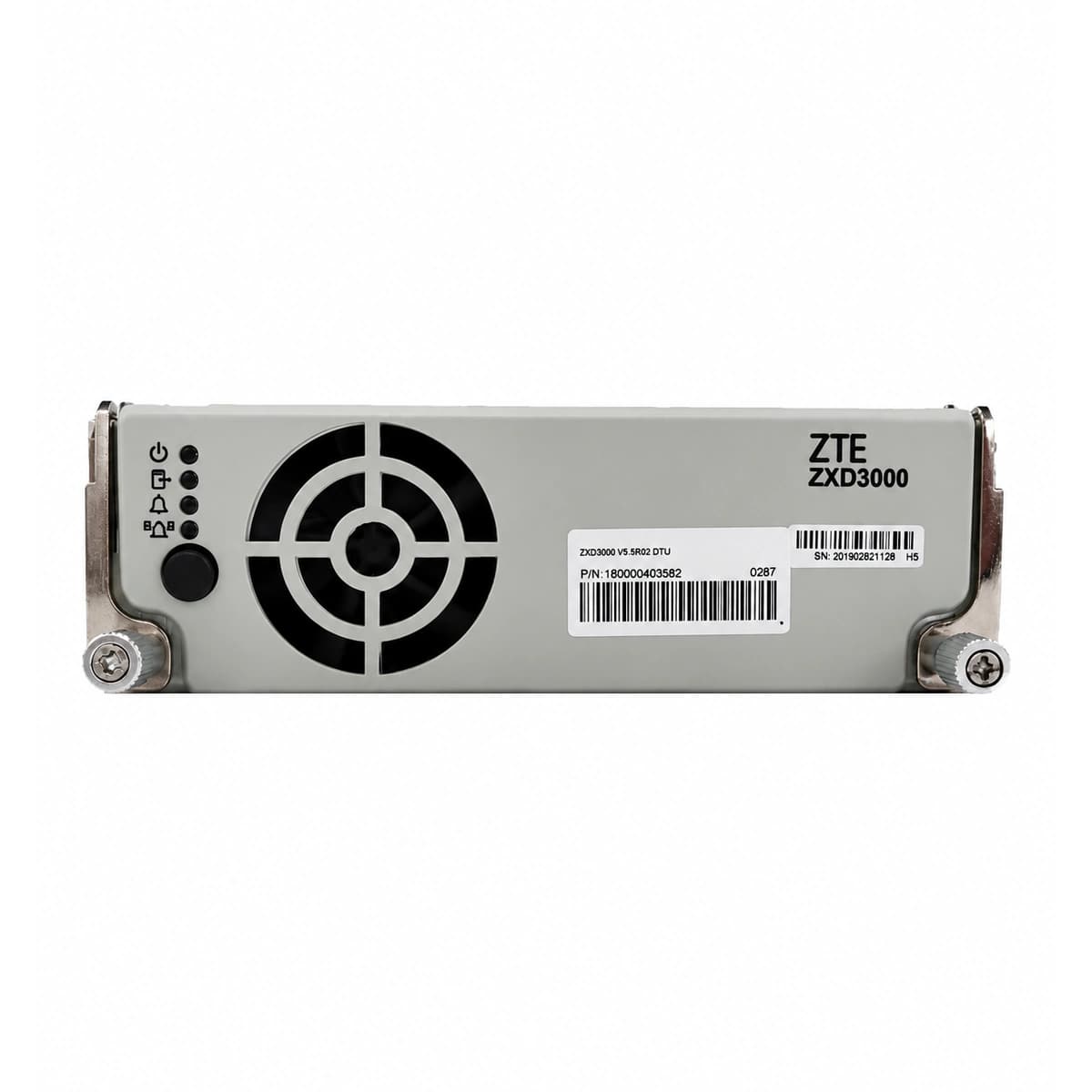

ZTE ZXD3000 (V5.8) 50A High-Efficiency Telecom Rectifier Module

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Macro cell site 4G/5G integrated outdoor telecom power cabinets

Core network telecommunication switching centers and optical nodes

Industrial SCADA and utility electrical substation DC supply arrays

Frequently asked questions

Continue exploring

ZTE CSU401S Centralized Supervisory Unit

ZTE PSU-AC Telecom Switch-Mode Rectifier Power Module (-48V 30A 1740W)

ZTE ZXDU58 B900 Floor-Standing Telecom DC Power Cabinet System (-48V 900A 2.0m)

ZTE DPS3000H-48 Embedded DC Power System Subrack Shelf (-48V 200A 4-Slot)

ZTE ZXD3000 (V5.8) 50A High-Efficiency Telecom Rectifier Module

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Macro cell site 4G/5G integrated outdoor telecom power cabinets

Core network telecommunication switching centers and optical nodes

Industrial SCADA and utility electrical substation DC supply arrays

Frequently asked questions

How should an engineer troubleshoot an illuminated steady red ALM indicator with no DC output on the ZXD3000 (V5.8)?

What electrical verification procedure must be performed when the CSU reports a CAN communication loss with a ZXD3000 (V5.8)?

What triggers thermal output derating in the ZXD3000 (V5.8) under high ambient loads, and what are the field mitigation procedures?

What is the operational protection and recovery behavior of the ZXD3000 (V5.8) during AC low-voltage dips and phase-loss events?

Continue exploring

ZTE CSU401S Centralized Supervisory Unit

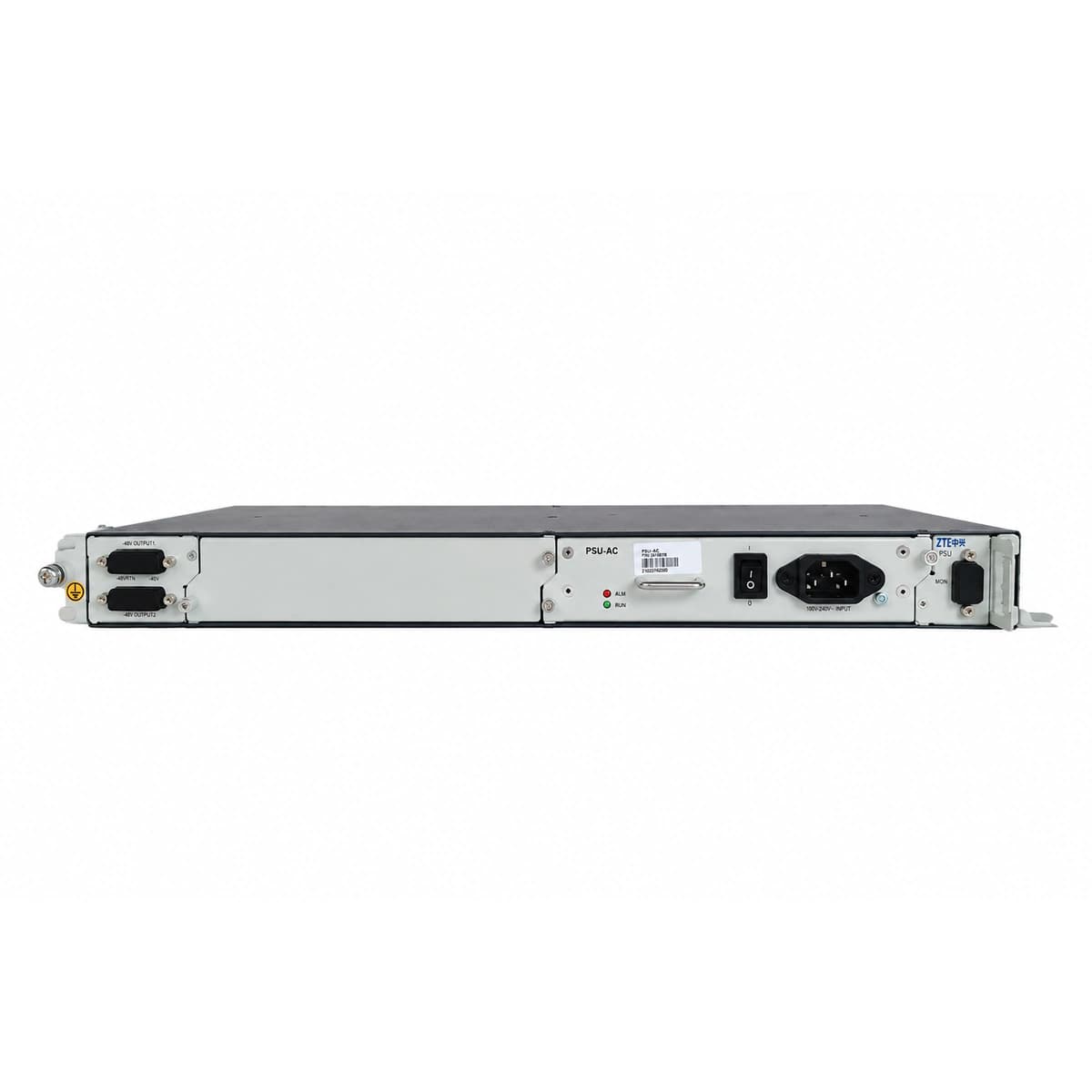

ZTE PSU-AC Telecom Switch-Mode Rectifier Power Module (-48V 30A 1740W)
