The Vertiv NetSure 731 A98 is a 2.1m high-capacity outdoor telecom DC power cabinet system delivering -48V/600A rated output with IP55 protection, engineered for mission-critical macro stations and extreme environmental installations.
Pricing is confirmed by project configuration and quantity
Request a quoteThe Vertiv NetSure 731 A98 is a 2.1m high-capacity outdoor telecom DC power cabinet system delivering -48V/600A rated output with IP55 protection, engineered for mission-critical macro stations and extreme environmental installations.

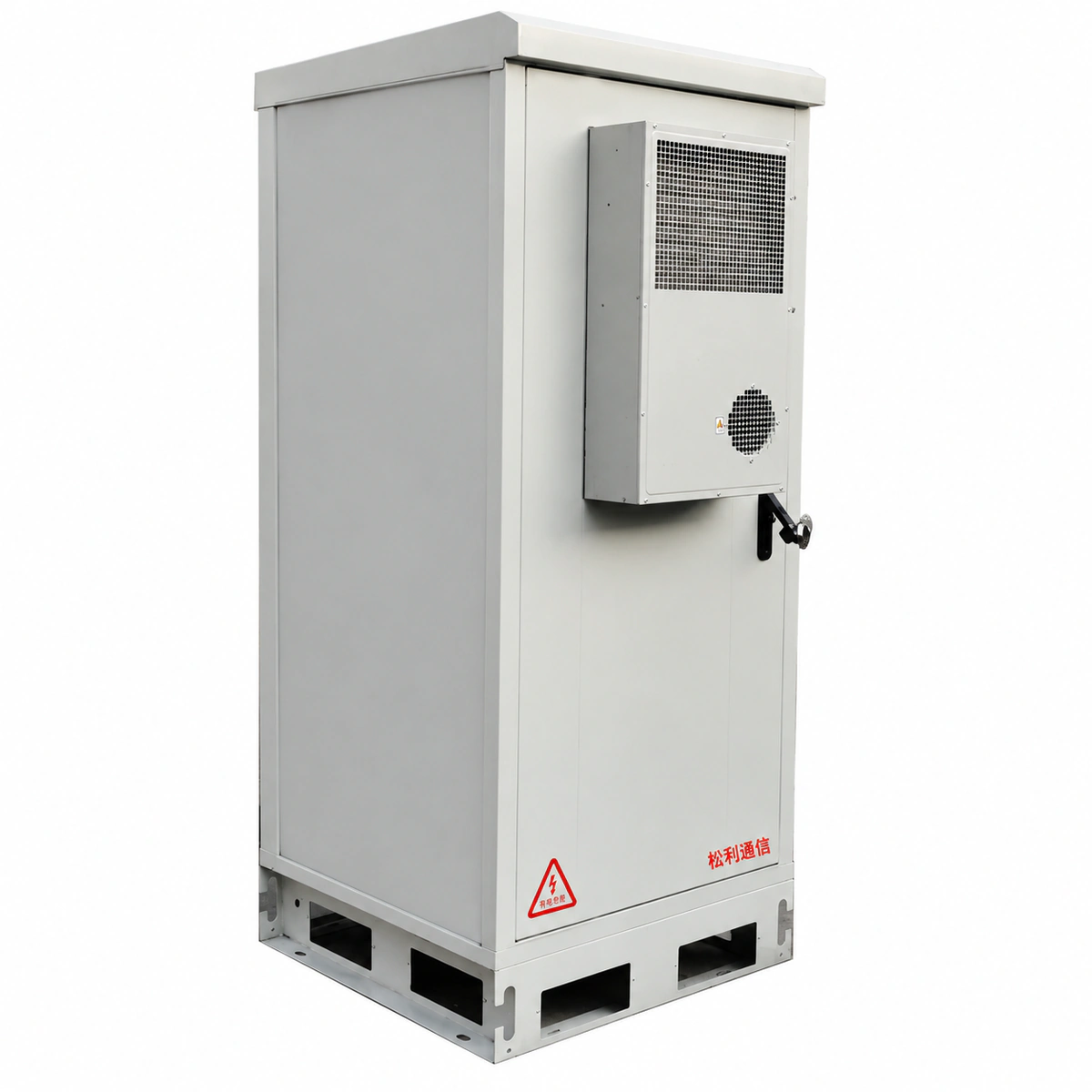

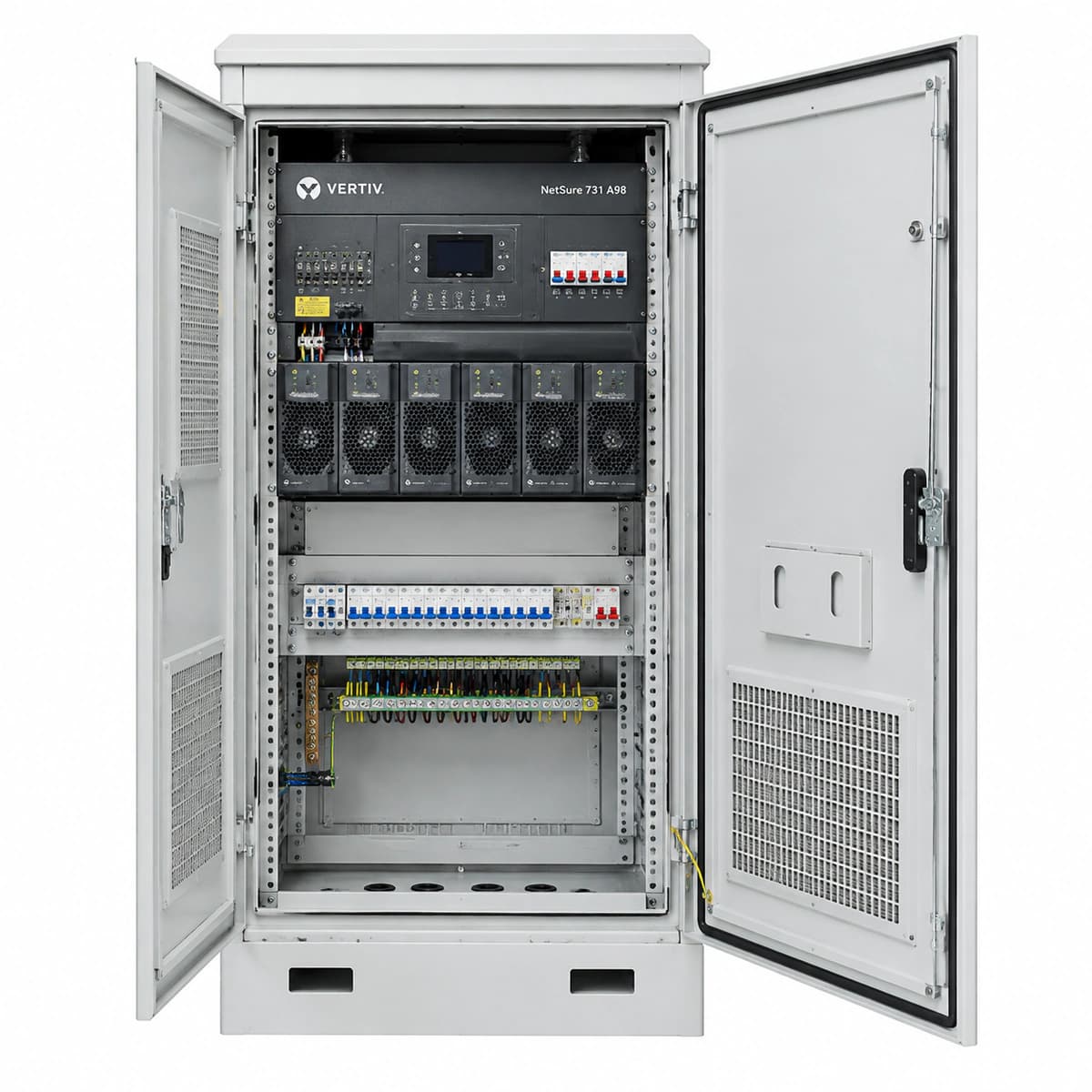

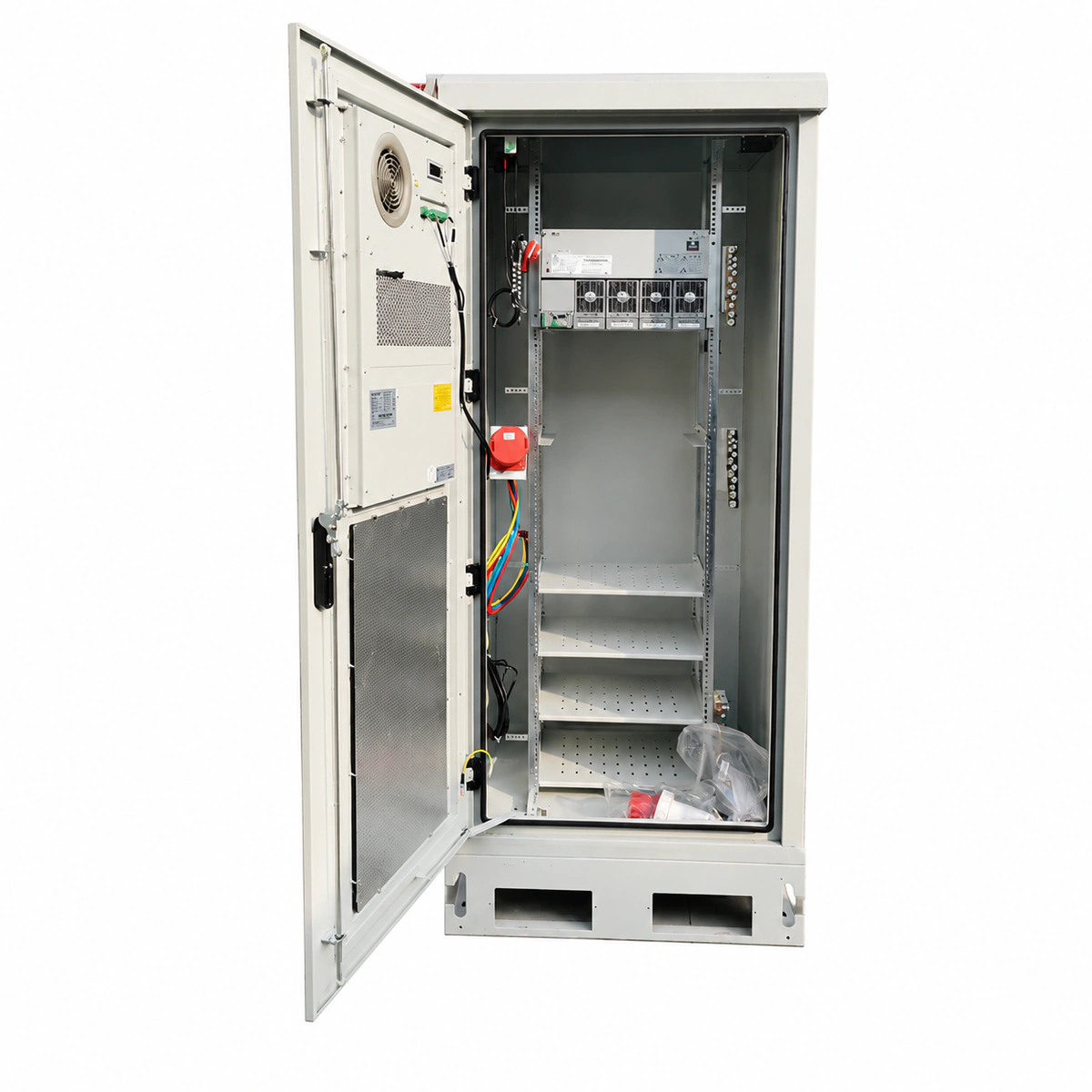

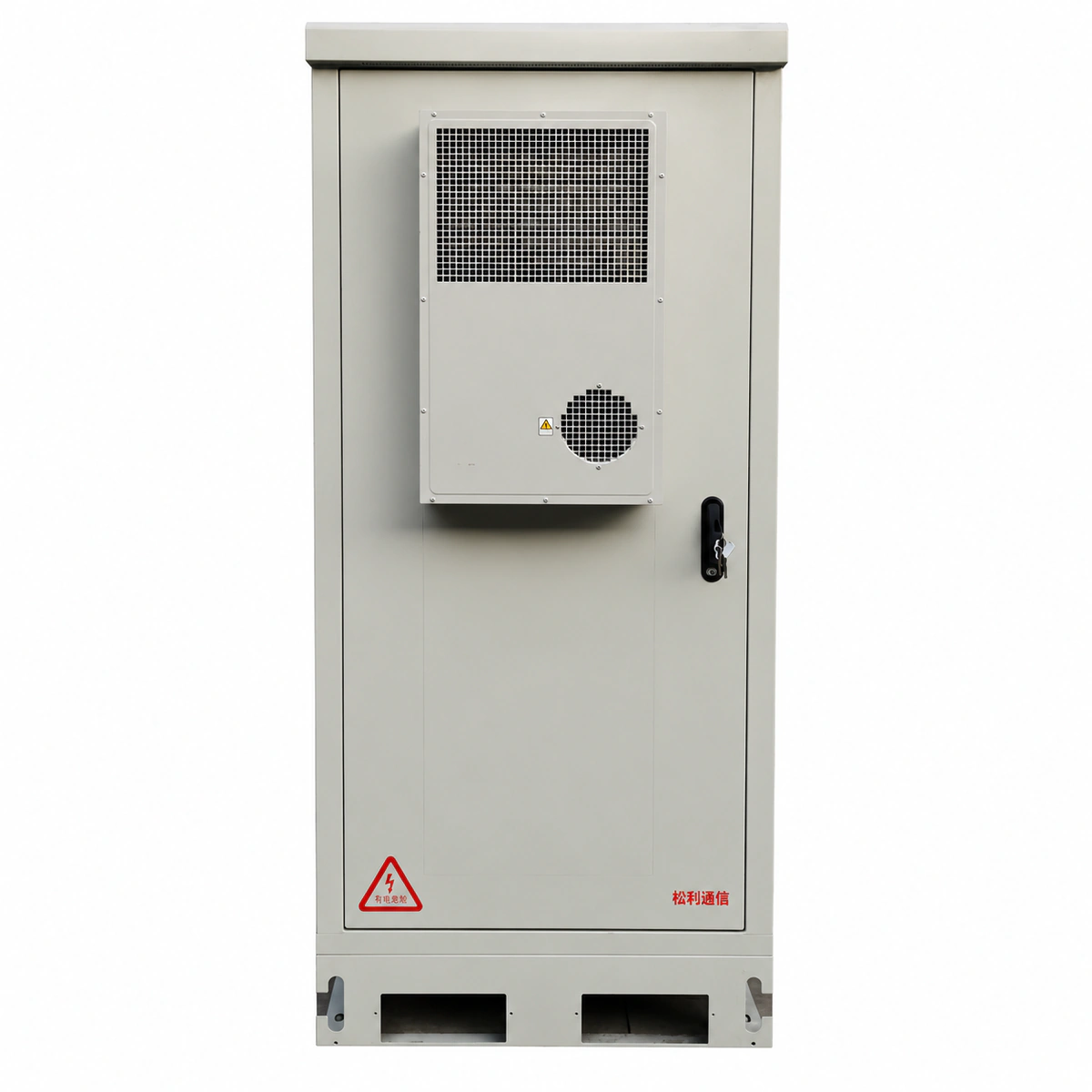

The Vertiv NetSure 731 A98 2.1m outdoor telecom power cabinet system is an integrated industrial platform built for superior durability. Utilizing a dual-compartment insulated architecture, it strictly isolates equipment and battery sections. The cabinet door integrates a high-efficiency heat exchanger and independent emergency ventilation ducting to ensure precise internal thermal regulation while completely blocking ingress of dust and moisture. Accommodating up to 12 hot-swappable R48-2900U or R48-3200e rectifier modules, the system guarantees a sustained 600A DC output. Managed by the M830B controller with dual-stage LVD protection, it delivers continuous, rock-solid power across extreme environments.
The Vertiv NetSure 731 A98 is a 2.1m high-capacity outdoor telecom DC power cabinet system delivering -48V/600A rated output with IP55 protection, engineered for mission-critical macro stations and extreme environmental installations.
| Key specifications | Value |
|---|---|
| Cabinet Structure Spec | 2.1m Dual-Door Compartmentalized Outdoor Cabinet (IP55 Rated) |
| Cabinet Cooling Method | Door-Mounted Heat Exchanger + Dedicated Emergency Ventilation Duct |
| Battery Energy Storage Configuration | Thermally Isolated Battery Bay Supporting 4 Strings of 100Ah~150Ah Batteries |
| DC Distribution Branches | Multi-Branch High-Capacity DC MCBs + Dual LVD Disconnect |
| Operating Temperature | -40°C ~ +50°C Wide Operating Temperature Range |
| System Output Capacity | 600A (-48V DC) Continuous Stable Power Supply Capacity |
| Rectifier Module Slots | 12 Slots (Compatible with R48-2900U / R48-3200e Rectifiers) |
| System Monitoring Controller | M830B Advanced Integrated Supervisory Unit |
