VertivModel: ER22010-T

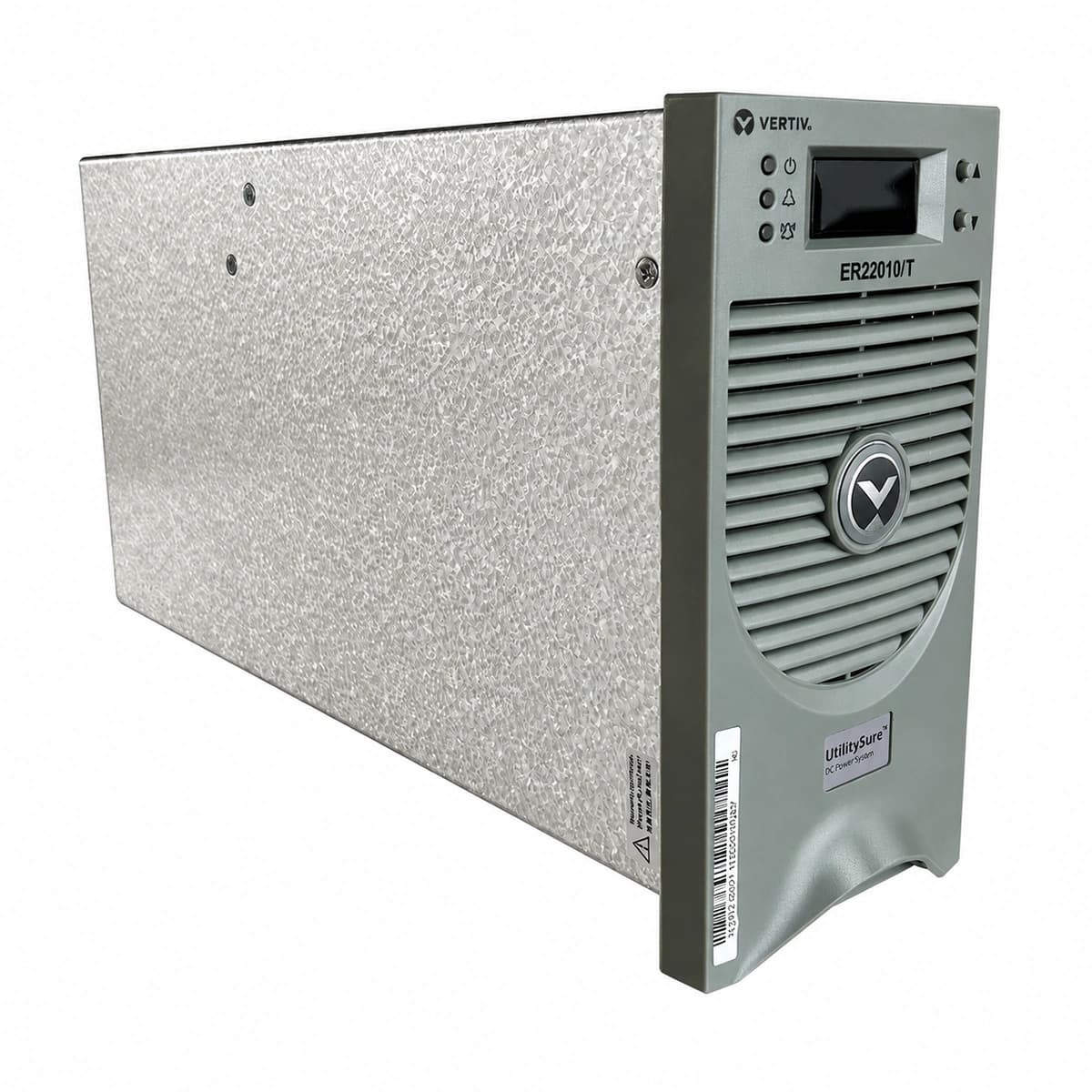

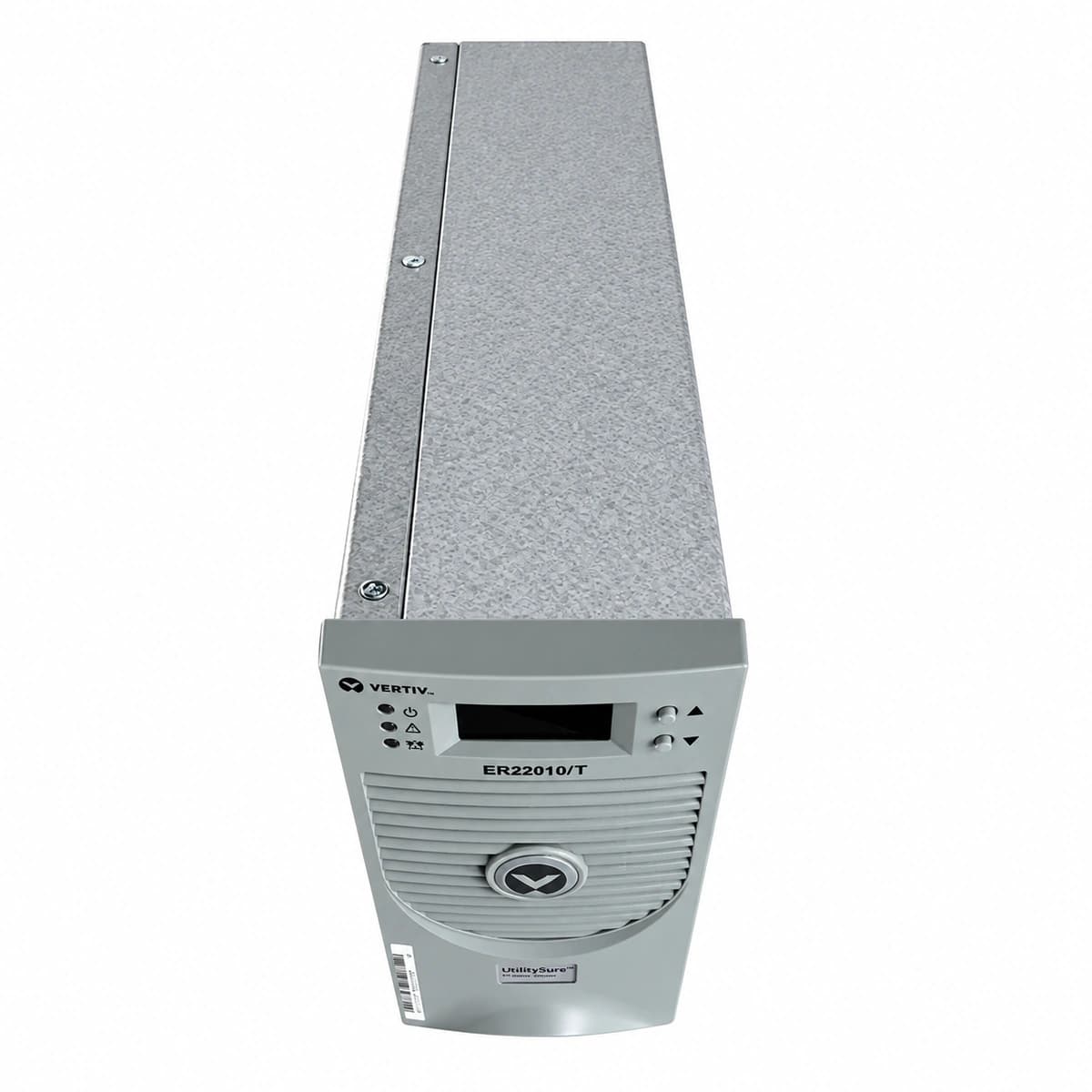

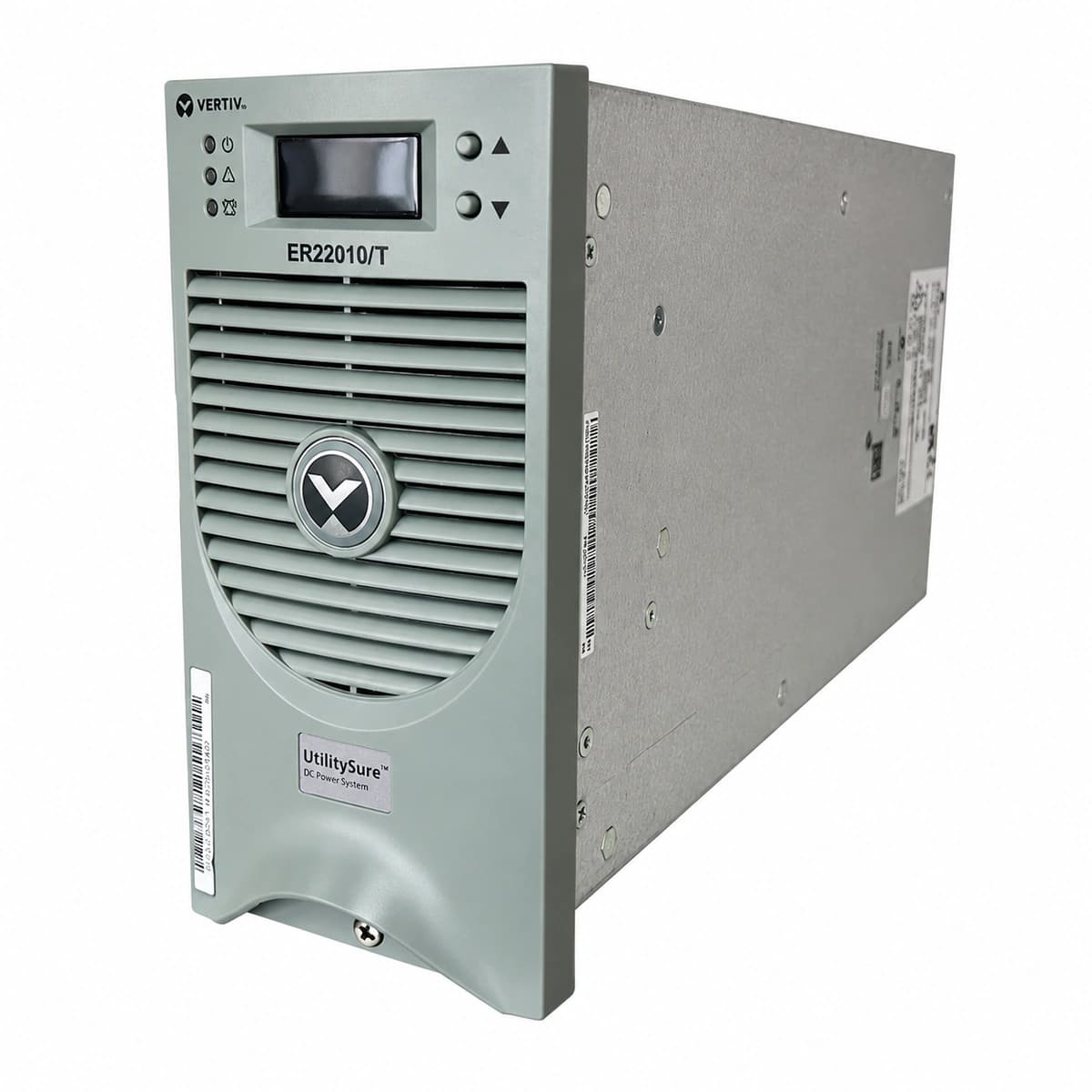

Vertiv ER22010-T High-Voltage DC Rectifier Module (220Vdc/10A Forced Air-Cooled Telecom & Utility Power)
The Vertiv ER22010-T is a 220Vdc/10A high-voltage DC switch-mode rectifier module engineered for utility substations, power plants, and HVDC distribution systems. Utilizing advanced resonant soft-switching technology, it delivers >94% peak efficiency, hot-swappable reliability, and comprehensive electrical protection.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated DC Output Voltage
- 220Vdc (Adjustable 176Vdc - 320Vdc)
- Rated DC Output Current
- 10A Continuous Regulated Current
- AC Input Voltage Range
- 323Vac - 475Vac (Three-Phase Three-Wire) VAC
- Nominal Conversion Efficiency
- ≥ 94.0% High-Efficiency Resonant Topology
- Cooling Architecture
- Internal Intelligent Variable-Speed DC Fan
- Supervisory Interface
- CAN Bus High-Speed Isolated Interface
What this product is
What this product is
The Vertiv ER22010-T is a 220Vdc/10A high-voltage DC switch-mode rectifier module engineered for utility substations, power plants, and HVDC distribution systems. Utilizing advanced resonant soft-switching technology, it delivers >94% peak efficiency, hot-swappable reliability, and comprehensive electrical protection.
What problem it solves
Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.
Who and where it is for
5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.
Core advantages
- Utility-Grade Robustness: Engineered for severe electrical substations with Level 4 surge and electromagnetic immunity.
- Digital Control & Hot-Swap: Full live hot-swap replacement with autonomous CAN bus current sharing (imbalance < 3%).
- Wide AC Grid Resilience: Delivers full continuous output under rigorous 323Vac to 475Vac input fluctuations.
- Ultra-Low Harmonics: Built-in Active PFC ensures PF ≥ 0.99 and THD ≤ 5%, preventing grid interference.
Technical specifications
| Key specifications | Value |
|---|---|
| Rated DC Output Voltage | 220Vdc (Adjustable 176Vdc - 320Vdc) |
| Rated DC Output Current | 10A Continuous Regulated Current |
| Nominal Conversion Efficiency | ≥ 94.0% High-Efficiency Resonant Topology |
| Supervisory Interface | CAN Bus High-Speed Isolated Interface |
| AC Input Voltage Range | 323Vac - 475Vac (Three-Phase Three-Wire) VAC |
| Cooling Architecture | Internal Intelligent Variable-Speed DC Fan |
Applications
01
4G/5G Telecom Cell Sites & Distributed Power Systems
02
Carrier Core Network Facilities & IDC DC Plants
03
Industrial Automation & Utility Substation DC UPS
