How to configure the dual AC input switching threshold on the NetSure 7100 A61-S2?

You can adjust thresholds via the front panel Advanced Controller LCD menu or Web GUI by navigating to 'AC Power -> ATS Settings' to modify over-voltage, under-voltage, and frequency parameters based on local grid conditions. For bench test verification, pinout diagrams, and custom warranty terms, contact our engineering desk via WhatsApp +86 17621197907.

How to manually or automatically restore power after secondary LVD (LLVD and BLVD) is triggered?

The system supports automatic restoration once utility power returns or battery voltage recharges above the configured safety threshold. In manual mode, operator confirmation via monitoring GUI is required. For bench test verification, pinout diagrams, and custom warranty terms, contact our engineering desk via WhatsApp +86 17621197907.

How to troubleshoot internal busbar and circuit breaker overheating alarms on the distribution cabinet?

First identify the faulted breaker via monitoring and use an infrared thermometer. Power down and check if busbar connection bolts meet torque specifications to eliminate loose contacts. For bench test verification, pinout diagrams, and custom warranty terms, contact our engineering desk via WhatsApp +86 17621197907.

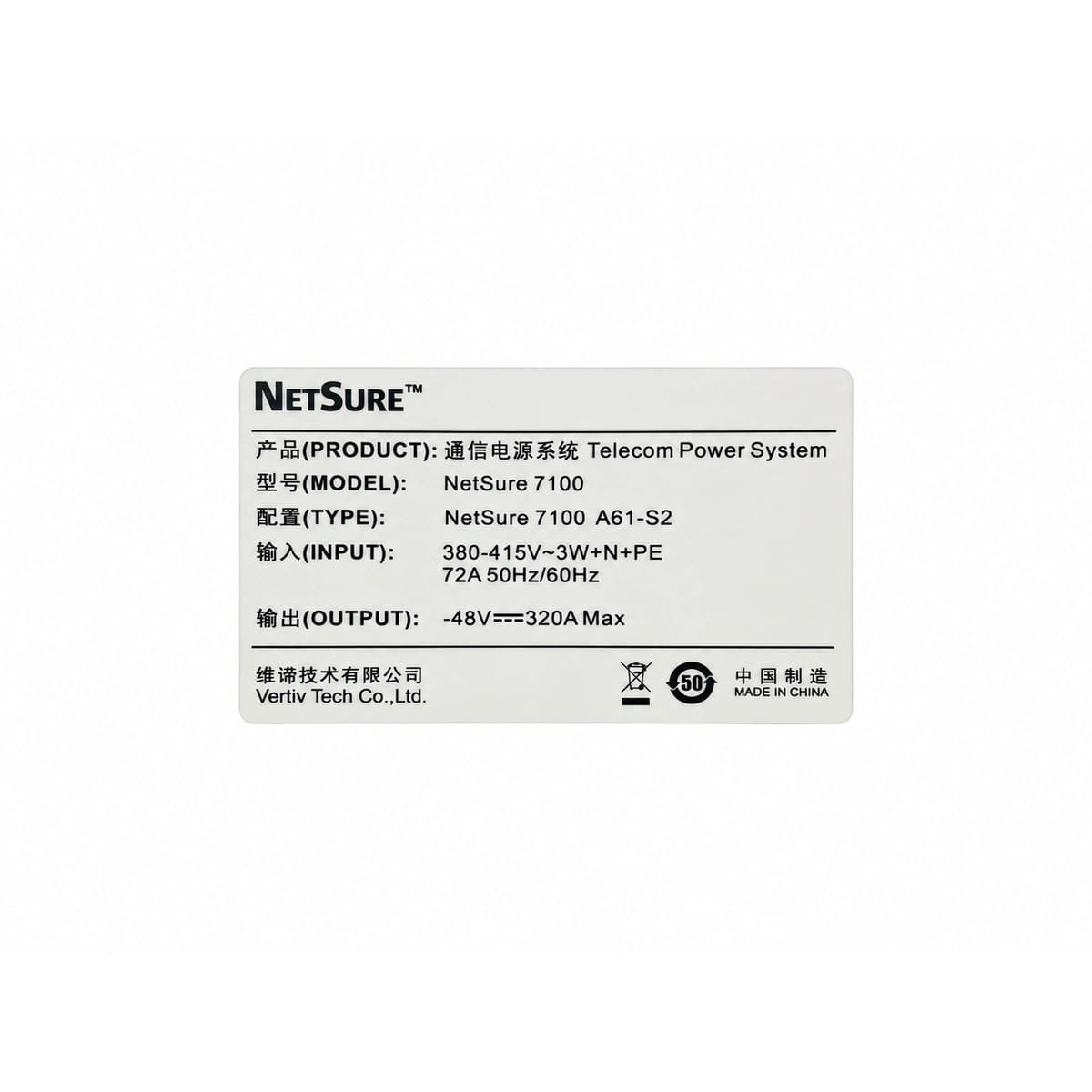

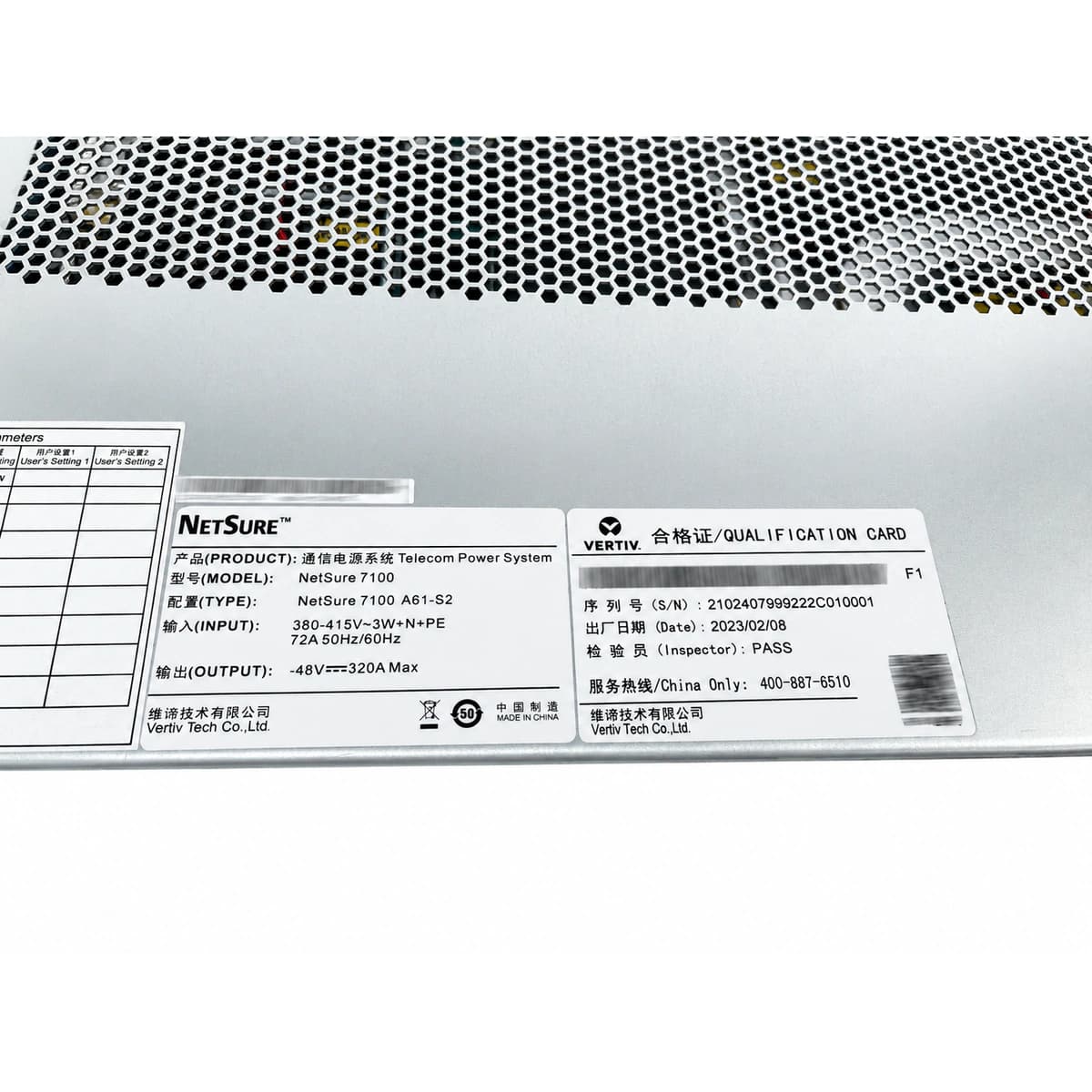

VertivModel: NetSure 7100 A61-S2

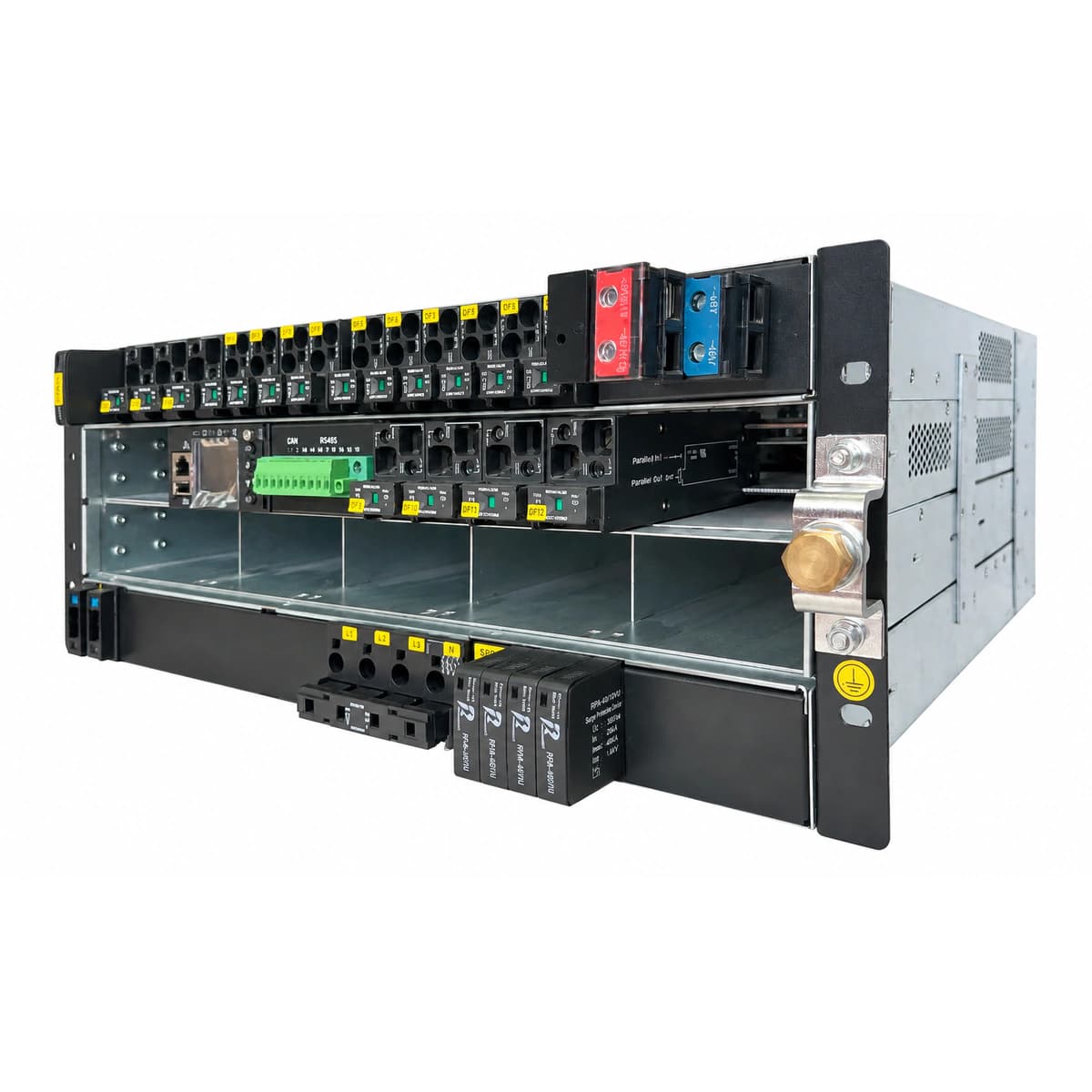

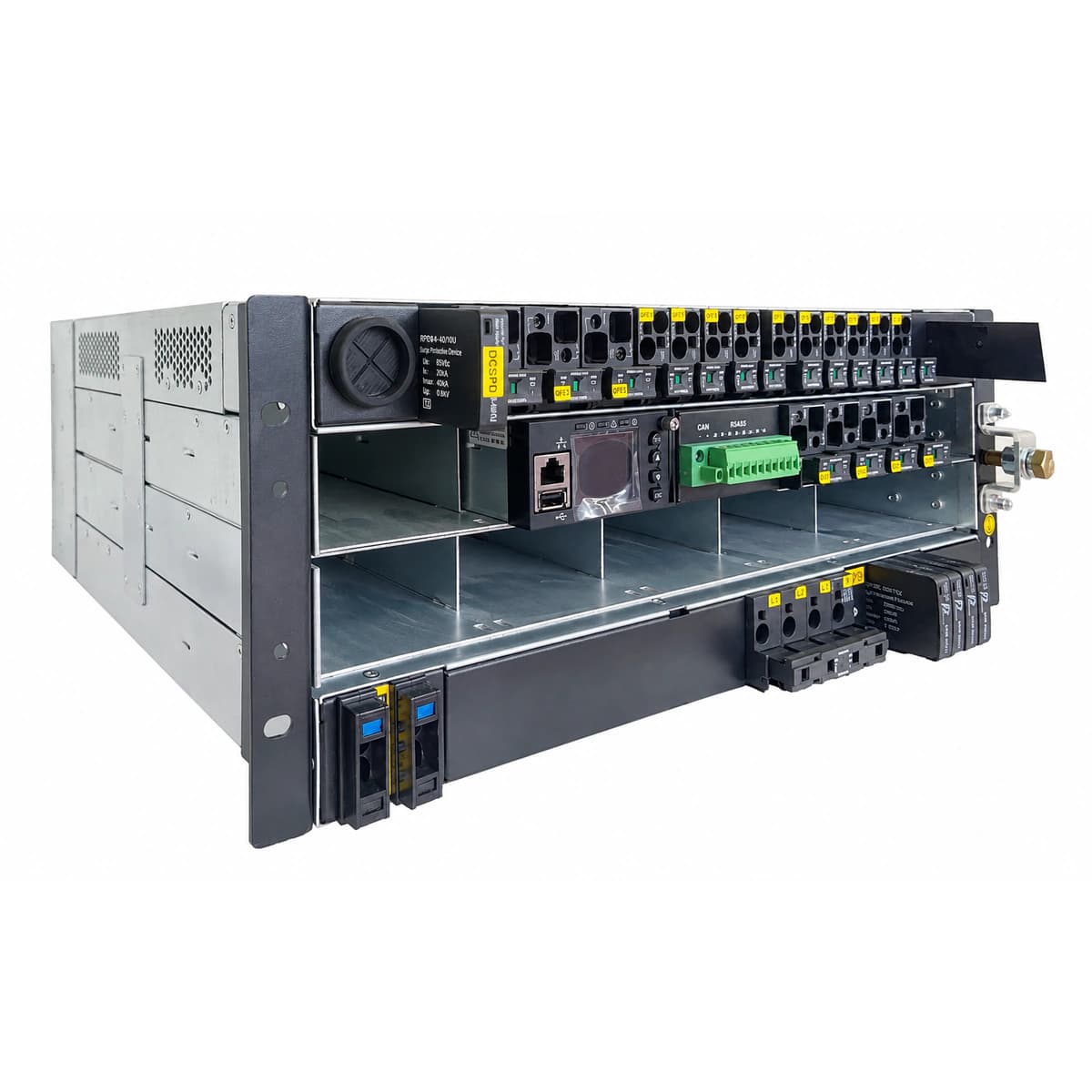

Vertiv NetSure 7100 A61-S2 High-Capacity DC Power Distribution Cabinet (-48V Dual LLVD/BLVD)

The Vertiv NetSure 7100 A61-S2 is a high-reliability, high-capacity DC telecom power distribution cabinet designed for large carrier central offices and core data centers, featuring dual AC auto-switching and secondary load shedding.

Pricing is confirmed by project configuration and quantity

Request a quote

Rated Output Voltage: -48V DC
AC Input Mode: Dual AC Input Auto-Switching (ATS)
Low-Voltage Disconnect: Secondary LVD (LLVD / BLVD)
Monitoring & Communication: RS485 / Ethernet / SNMP / Web GUI
Operating Temperature: -40°C to +65°C
Form Factor & Mounting: Standard Floor-Standing Cabinet

What this product is

Serving as the primary distribution hub for carrier rooms and core network nodes, this unit centrally manages AC utility feed, rectifier power allocation, system monitoring, and critical battery bank protection.

What problem it solves

Completely resolves major pain points in large telecom rooms such as unstable utility power, seamless multi-path power switching, high-capacity load distribution chaos, and battery over-discharge failure.

Who and where it is for

Widely deployed in backbone network switching offices, large Data Centers (IDCs), mobile base stations, and satellite Earth stations for Tier-1 global telecom operators.

Core advantages

Dual AC Hot-Backup Auto-Switching: Built-in high-reliability ATS ensures millisecond-level seamless switching between utility and generator power for zero service interruption.
Tiered Low-Voltage Disconnect: Features dual protection mechanisms for LLVD (Load Low Voltage Disconnect) and BLVD (Battery Low Voltage Disconnect) to safeguard core communications during extended outages.
High-Capacity Modular Distribution: Supports high-density circuit breaker configurations, meeting the ultra-high power density demands of large central offices.
Intelligent Multi-Protocol Monitoring: Integrated advanced controller unit supporting SNMP, Modbus, and Web-based remote network management.

Technical specifications

Key specifications	Value
Rated Output Voltage	-48V DC
AC Input Mode	Dual AC Input Auto-Switching (ATS)
Low-Voltage Disconnect	Secondary LVD (LLVD / BLVD)
Monitoring & Communication	RS485 / Ethernet / SNMP / Web GUI
Operating Temperature	-40°C to +65°C
Form Factor & Mounting	Standard Floor-Standing Cabinet

Applications

Outdoor Macro 4G/5G Telecom Power System

Core Optical Transport & Telecom Switching Center

Industrial SCADA & Substation DC Power Supply

Frequently asked questions
