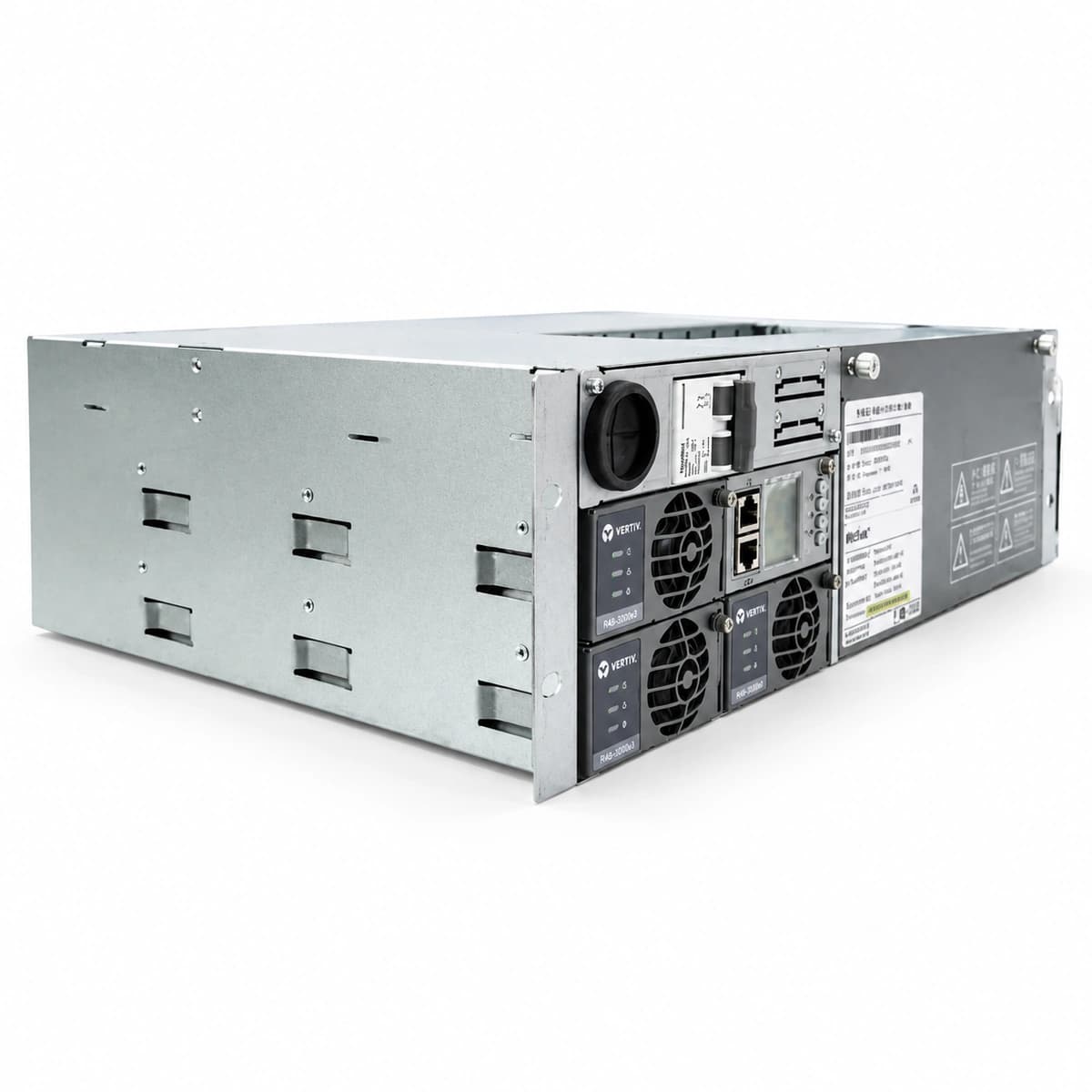

RICEWIND Vertiv NetSure 531 A31 Embedded DC Telecom Power System (-48V 120A-180A 19-Inch Subrack) - View 1
VertivModel: NetSure 531 A31

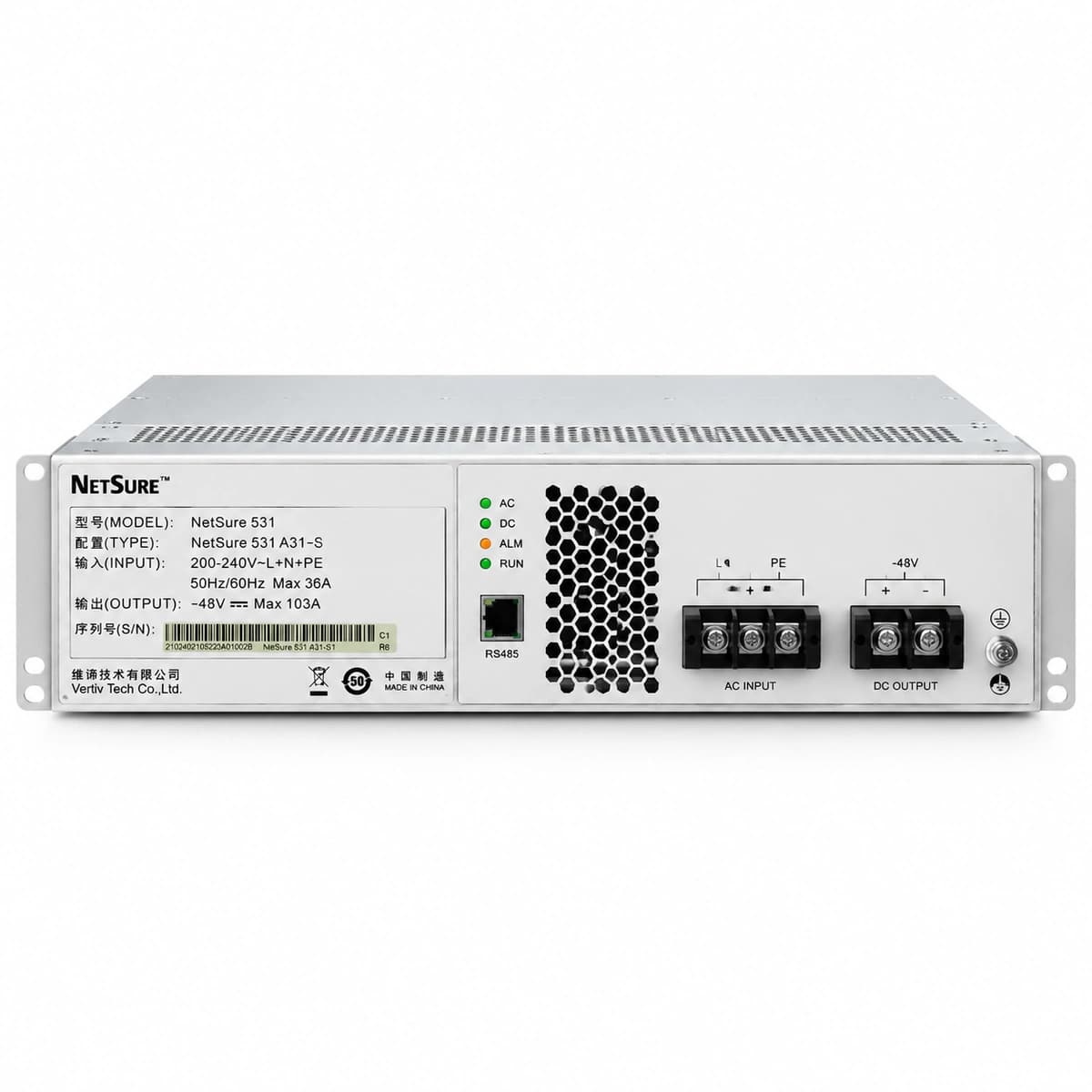

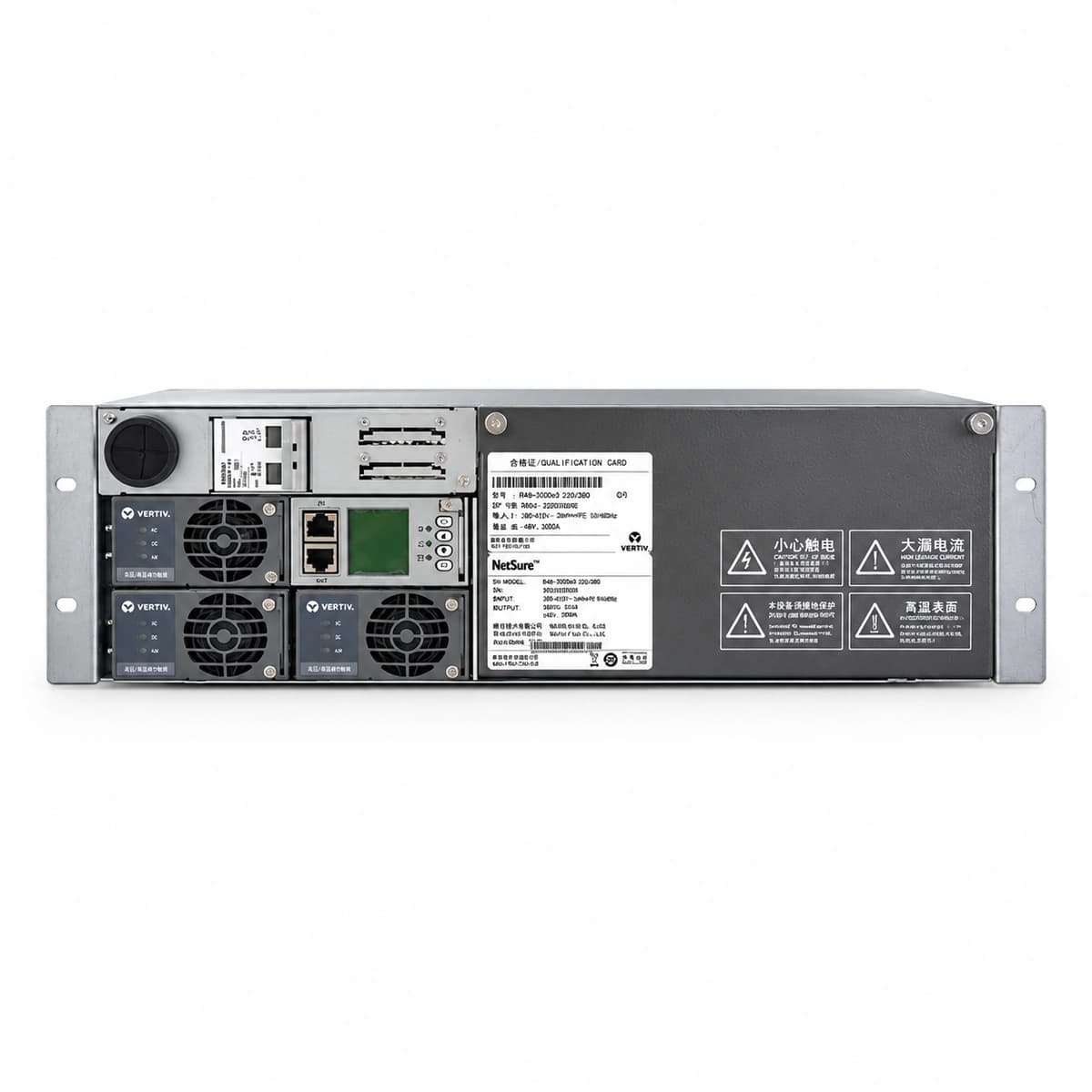

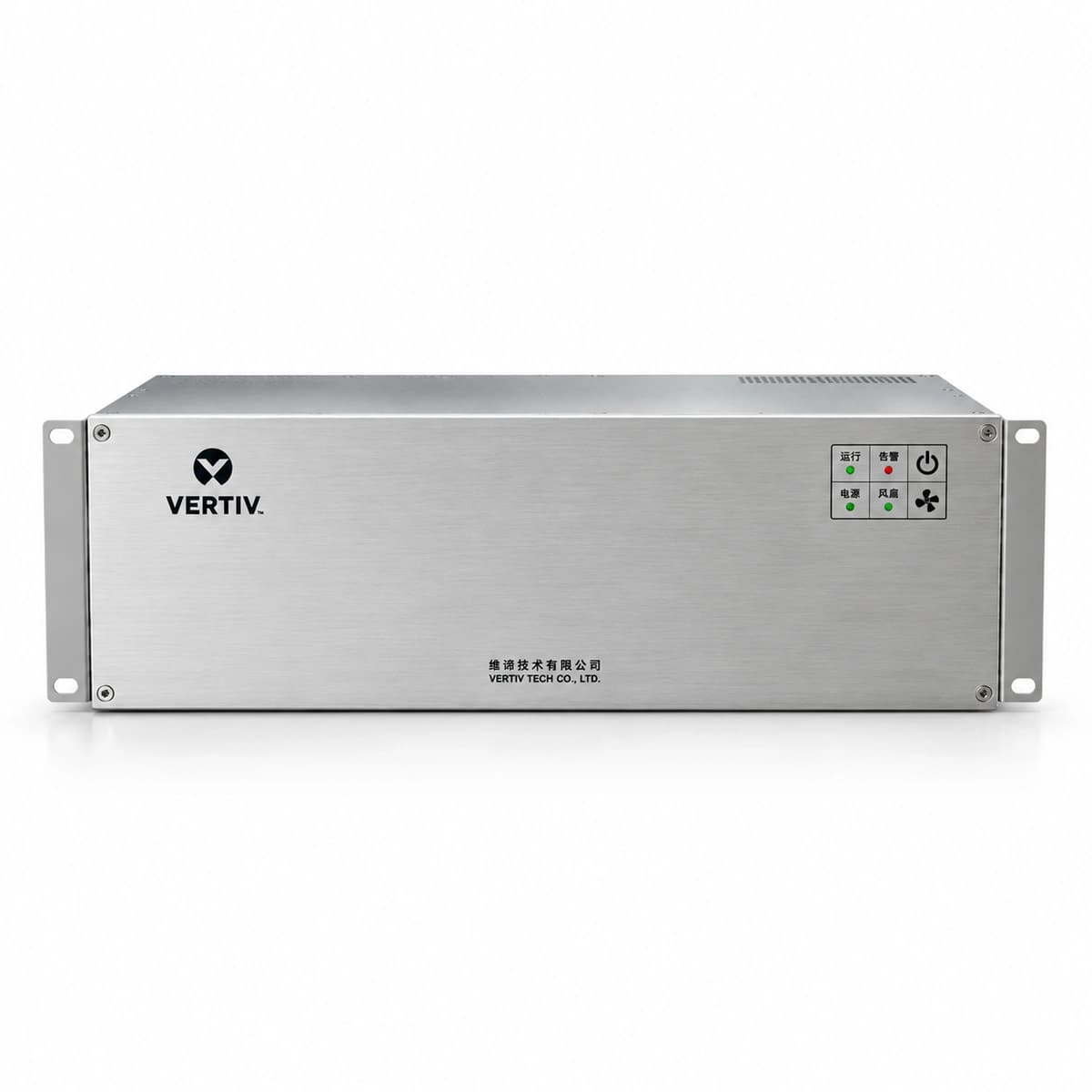

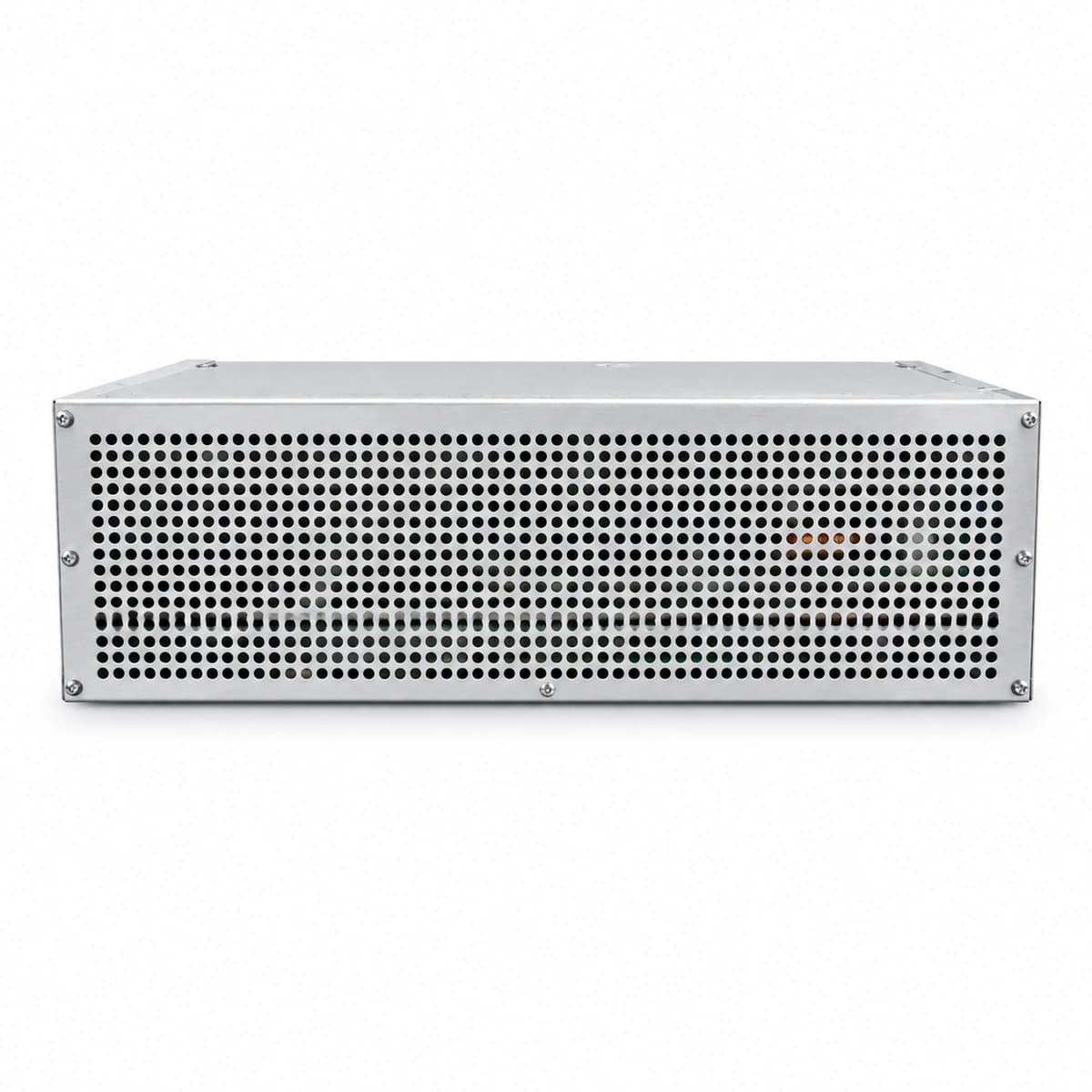

RICEWIND Vertiv NetSure 531 A31 Embedded DC Telecom Power System (-48V 120A-180A 19-Inch Subrack)

RICEWIND Vertiv NetSure 531 A31 Embedded DC Telecom Power System (-48V 120A-180A 19-Inch Subrack)

Talk to RICEWIND

Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.

Request a quoteWhatsApp
Tel+86 17621197907

Clear support from selection to delivery

360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
Rated System Output Capacity
-48VDC / 120A ~ 180A (Max 6,000W~9,000W Continuous Load)
RECTIFIER CONFIG
Equipped with 3~6 Slots for R48-2000e3 / R48-3000e3 Rectifiers
Form Factor & Mounting
Standard 19-Inch 3U/5U Rack-Mounted Subrack System
AC INPUT RANGE
85VAC ~ 300VAC Single-Phase / Three-Phase Auto-Adaptive
DC Branch Distribution
Dual LVD (LLVD/BLVD Battery Low Voltage Disconnect Protection)
Controller Positioning
Integrated M221S / M530S Controller (LCD / SNMP / Dry Contacts)

What this product is

What this product is

RICEWIND Vertiv NetSure 531 A31 Embedded DC Telecom Power System (-48V 120A-180A 19-Inch Subrack)

What problem it solves

Engineered to resolve power conversion inefficiency, transmission attenuation, and carrier-grade continuous uptime requirements.

Who and where it is for

Carrier-grade telecommunications sites, 5G wireless base stations, core central offices, and mission-critical power rooms.

Core advantages

  • Carrier-grade high reliability design for continuous 24/7 mission-critical operations
  • High power density and efficiency minimizing footprint and thermal overhead
  • Full compliance with original manufacturer electrical and EMC specifications

Technical specifications

Key specificationsValue
RECTIFIER CONFIGEquipped with 3~6 Slots for R48-2000e3 / R48-3000e3 Rectifiers
AC INPUT RANGE85VAC ~ 300VAC Single-Phase / Three-Phase Auto-Adaptive
DC Branch DistributionDual LVD (LLVD/BLVD Battery Low Voltage Disconnect Protection)
Controller PositioningIntegrated M221S / M530S Controller (LCD / SNMP / Dry Contacts)
Rated System Output Capacity-48VDC / 120A ~ 180A (Max 6,000W~9,000W Continuous Load)
Form Factor & MountingStandard 19-Inch 3U/5U Rack-Mounted Subrack System

Applications

01

Telecom carrier 4G/5G macro sites and indoor distribution systems

02

Enterprise data centers and core telecom transmission hubs

03

Utility, industrial automation, and rail transit communication networks
