The Vertiv Liebert DME12MCP5 is a high-reliability direct expansion (DX) air-cooled precision air conditioner engineered for mission-critical IT infrastructure, featuring high airflow, low enthalpy difference cooling, an SHR ≥ 0.90, and an electronically commutated (EC) backward-curved centrifugal fan for continuous 24/7/365 thermal regulation.
Pricing is confirmed by project configuration and quantity
Request a quoteThe Vertiv Liebert DME12MCP5 is a high-reliability direct expansion (DX) air-cooled precision air conditioner engineered for mission-critical IT infrastructure, featuring high airflow, low enthalpy difference cooling, an SHR ≥ 0.90, and an electronically commutated (EC) backward-curved centrifugal fan for continuous 24/7/365 thermal regulation.

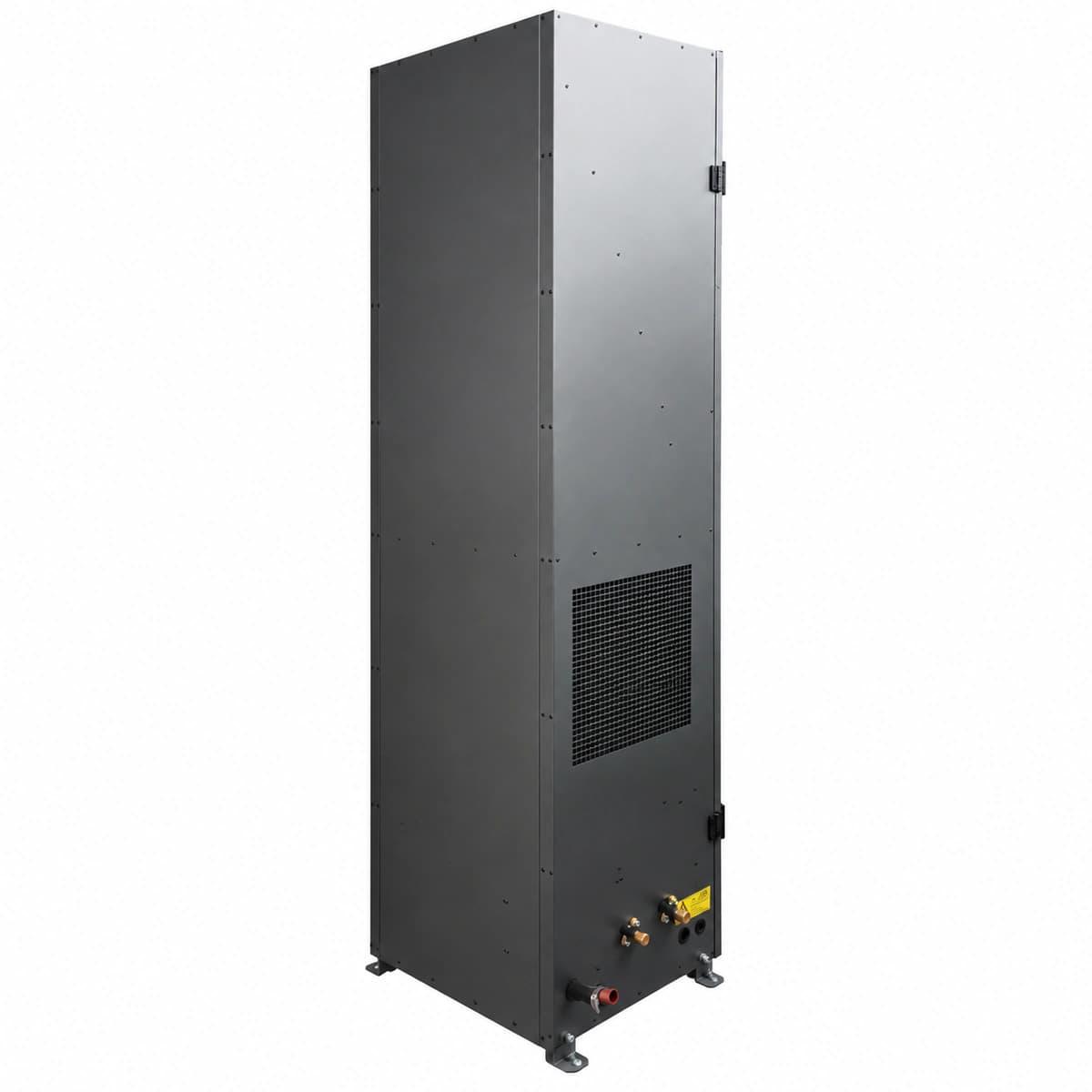

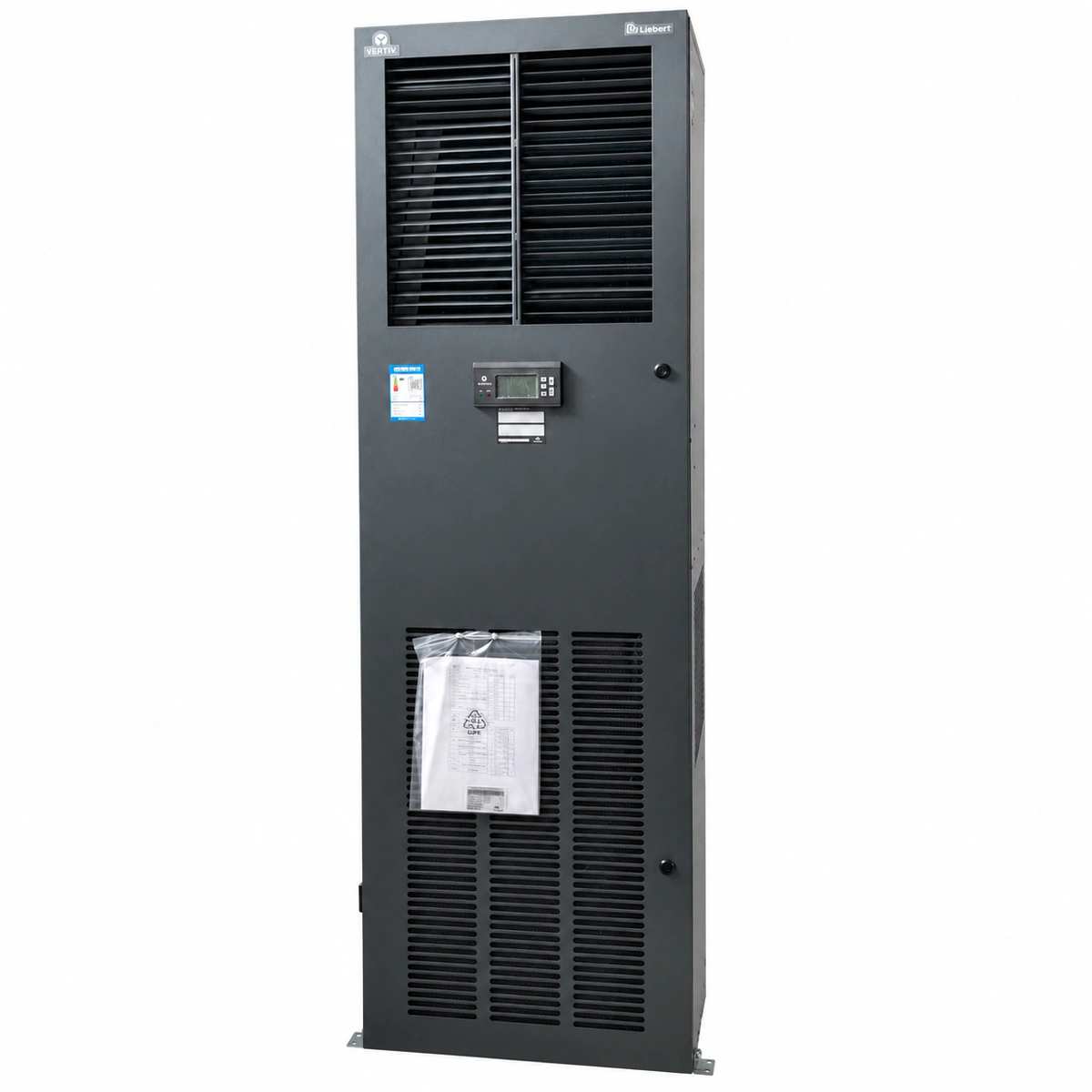

The Vertiv Liebert DME12MCP5 indoor unit incorporates a compact footprint of 800×500 mm with complete front-access serviceability, specifically designed for enterprise branch server rooms, telecom base stations, and electrical control rooms. Engineered with eco-friendly R410A refrigerant, the system delivers a nominal cooling capacity of 12.5 kW, effectively minimizing unneeded dehumidification and latent energy waste. The mechanical architecture integrates a continuously variable EC centrifugal fan paired with an industrial-grade scroll compressor, modulating airflow in real-time according to thermal loads to drive down fan power consumption. Electrically, it accepts wide-input 380V/400V 3-phase AC power with built-in phase-sequence auto-correction, thermal-magnetic overcurrent trip protection, and integrated transient surge suppression. Thermal management is orchestrated by the proprietary Liebert microprocessor controller, featuring an onboard RS-485 interface running standard Modbus-RTU, with optional Web/SNMP interface cards for full DCIM integration. It enables teamworking of up to 32 units, supporting standby rotation, cascade activation, and fail-safe automated switchover under extreme industrial operating conditions.
The Vertiv Liebert DME12MCP5 is a high-reliability direct expansion (DX) air-cooled precision air conditioner engineered for mission-critical IT infrastructure, featuring high airflow, low enthalpy difference cooling, an SHR ≥ 0.90, and an electronically commutated (EC) backward-curved centrifugal fan for continuous 24/7/365 thermal regulation.
| Key specifications | Value |
|---|---|
| Sensible Heat Ratio SHR | SHR ≥ 0.90 Premium Data Center Sensible Heat Ratio |
| Rated Cooling Capacity | 12.5kW Nominal Sensible Cooling Capacity (High Airflow, Low Enthalpy) |
| Fan Drive Technology | Fully Digital Stepless Variable-Speed Inverter EC Centrifugal Fan |
| AC Operating Voltage | 380V / 400V AC 3-Phase 50Hz/60Hz Auto-Sensing |
| Refrigerant Type | R410A Eco-Friendly High-Pressure Refrigerant |
| Controller System | Liebert Intelligent Microprocessor Controller with Diagnostics & Teamwork |
| Physical Dimensions Spec | 800 × 500 × 1950 mm (Slim Footprint Full Front Maintenance) |
| Operating Temperature | -15°C ~ +45°C (Low-Ambient Kit Supports down to -35°C) |
Vertiv
Vertiv Liebert CR060 600mm in-row precision air conditioner delivers 62.6kW capacity with full DC inverter modulation, engineered for AI and cloud data centers.
Engineered for close-coupled data center cooling, the Liebert CRV4 delivers dynamic 25kW to 45kW capacities using variable-speed DC scroll compressors and green R410A refrigerant. Integrated with the intelligent iCOM touchscreen controller, it continuously adjusts to workload changes, eliminating localized hotspots while optimizing facility PUE.
Vertiv Liebert DME07 compact room precision air conditioning indoor unit rated at 7.5kW cooling capacity, designed for space-constrained edge sites and server rooms.
Vertiv Liebert DME12 small room precision air conditioning indoor unit offering 12.5kW cooling capacity and high sensible heat ratio for continuous 24/7 server room climate control.
