Question 1

What are the core thermodynamic cooling capacities, Sensible Heat Ratio (SHF), and electrical airflow metrics of the Vertiv Liebert CR060?

Accepted Answer

Engineered for high-density compute environments, the Vertiv Liebert CR060 (CRV4 series) delivers a nominal total cooling capacity of 62.6 kW under standard return air conditions (37.8°C DB / 20.8°C WB) with a Sensible Heat Ratio (SHF) exceeding 0.98, virtually eliminating latent cooling waste. The unit integrates a variable-speed DC inverter scroll compressor and high-efficiency backward-curved EC centrifugal fans, driving an airflow capacity of 10,250 m³/h with dynamic modulation tailored to real-time rack thermal loads. Operating on 380-415V/3Ph/50-60Hz utility power, the inverter system provides soft-start functionality with locked rotor amp (LRA) near zero, mitigating inrush current and optimizing data center PUE.

Question 2

How does the CR060 mechanically integrate into server rows, and what multi-unit teaming (Teamwork) protocols are supported?

Accepted Answer

The Liebert CR060 features a 600mm wide in-row footprint measuring 600mm(W) × 1100mm(D) × 2000mm(H) with a net weight of 340 kg, matching standard 42U/47U server racks and integrating seamlessly into hot/cold aisle containment systems. Managed by the Liebert iCOM controller, it natively provides RS485 and Dual Ethernet ports supporting Modbus RTU/TCP, SNMP v1/v2c/v3, and BACnet-IP. Up to 32 units can be networked via CAN-Bus or Ethernet for Teamwork operation, executing dynamic load sharing, scheduled duty-rotation, and N+X cascading redundancy. In the event of a network loss, individual units automatically revert to autonomous failsafe setpoint operation to prevent thermal runaway.

Question 3

What electrical protection, voltage tolerance, and wide-ambient adaptation mechanisms safeguard the Liebert CR060 against site anomalies?

Accepted Answer

Engineered for mission-critical reliability, the CR060 features an optional integrated Automatic Transfer Switch (ATS) accepting wide voltage fluctuations (nominal ±10%). The internal electrical cabinet includes Class C / 40kA surge suppression along with real-time phase-loss, reverse-phase, under-voltage, and over-current protection interlocks. For extreme climates, the unit interfaces with Vertiv variable-speed outdoor condensers (e.g., LSF series), utilizing low-ambient kits to sustain full-capacity operation from -40°C to +45°C ambient temperatures. Condensate management incorporates dual drainage pumps (lift head ≥ 4m), digital water leak detection ropes, and non-volatile memory for automatic cold-restart upon power restoration.

Key specifications	Value
Grid Power Supply System	380Vac/50～60Hz (3N～)
Compressor Type	DC inverter scroll compressor + EC centrifugal fan
Physical Form Factor	300mm / 600mm compact in-row architecture
Refrigerant Type	Eco Refrigerant R410A
Airflow Mode & Volume	Horizontal horizontal air supply close to cabinet heat sources
Reheating Capacity	6 kW
Airflow Volume	10,250 m³/h
Full Load Current (FLA)	46.0 A
Sensible Heat Ratio (SHF)	> 0.98 (Ultra-High Sensible Heat Ratio)
Total Weight	340 kg (net weight)
Rated Cooling Capacity	62.6 kW
Physical Dimensions Spec	600mm (W) × 1100mm (D) × 2000mm (H) mm

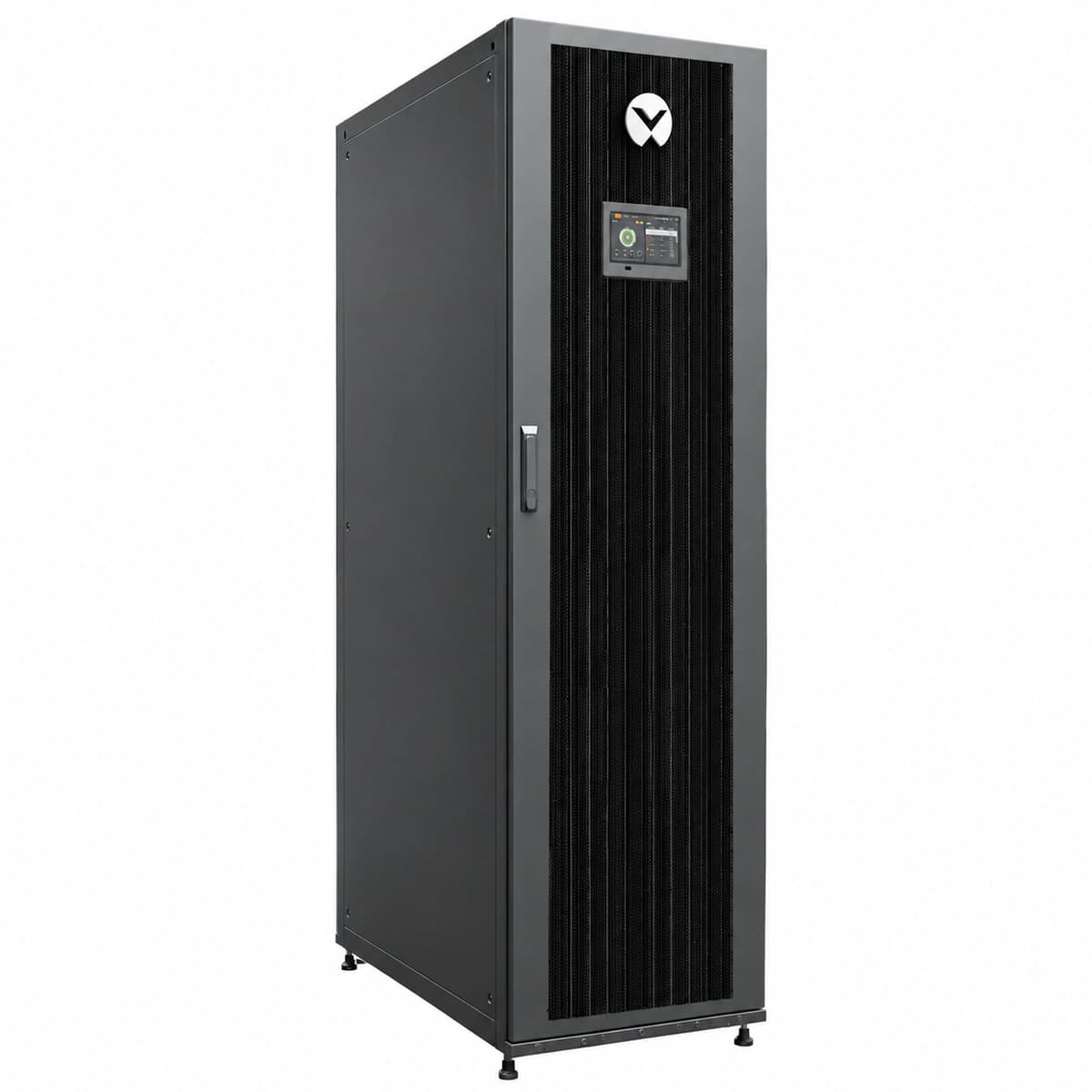

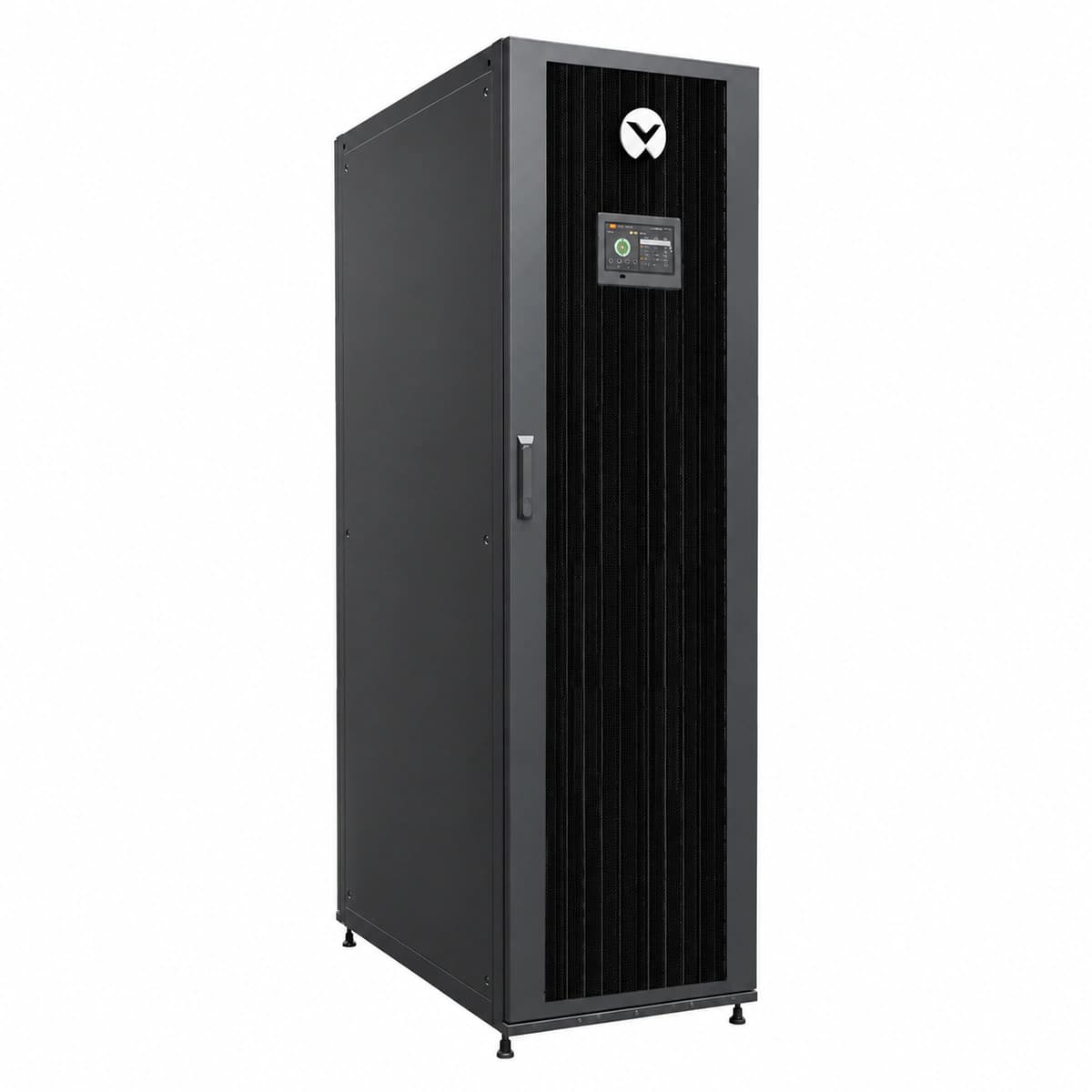

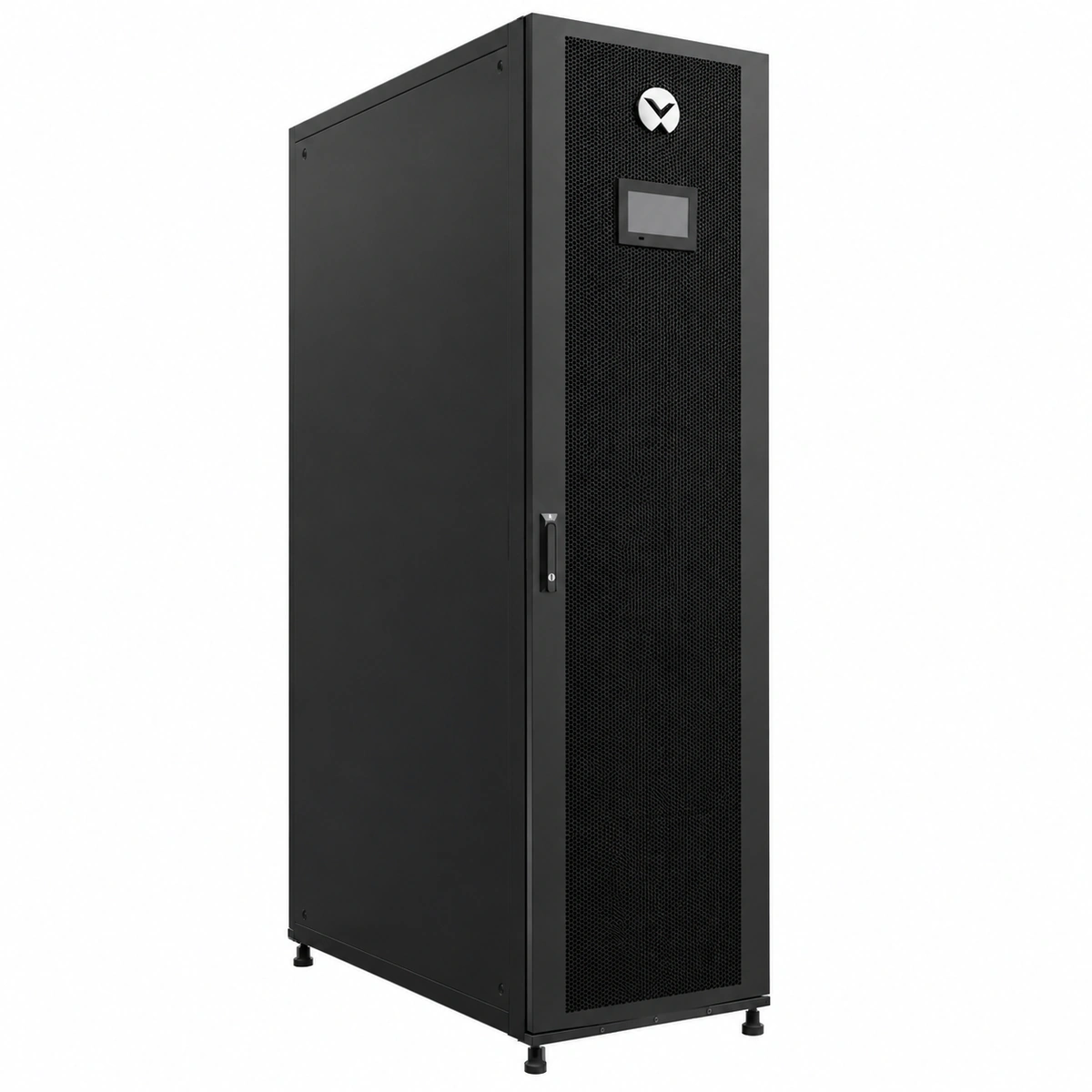

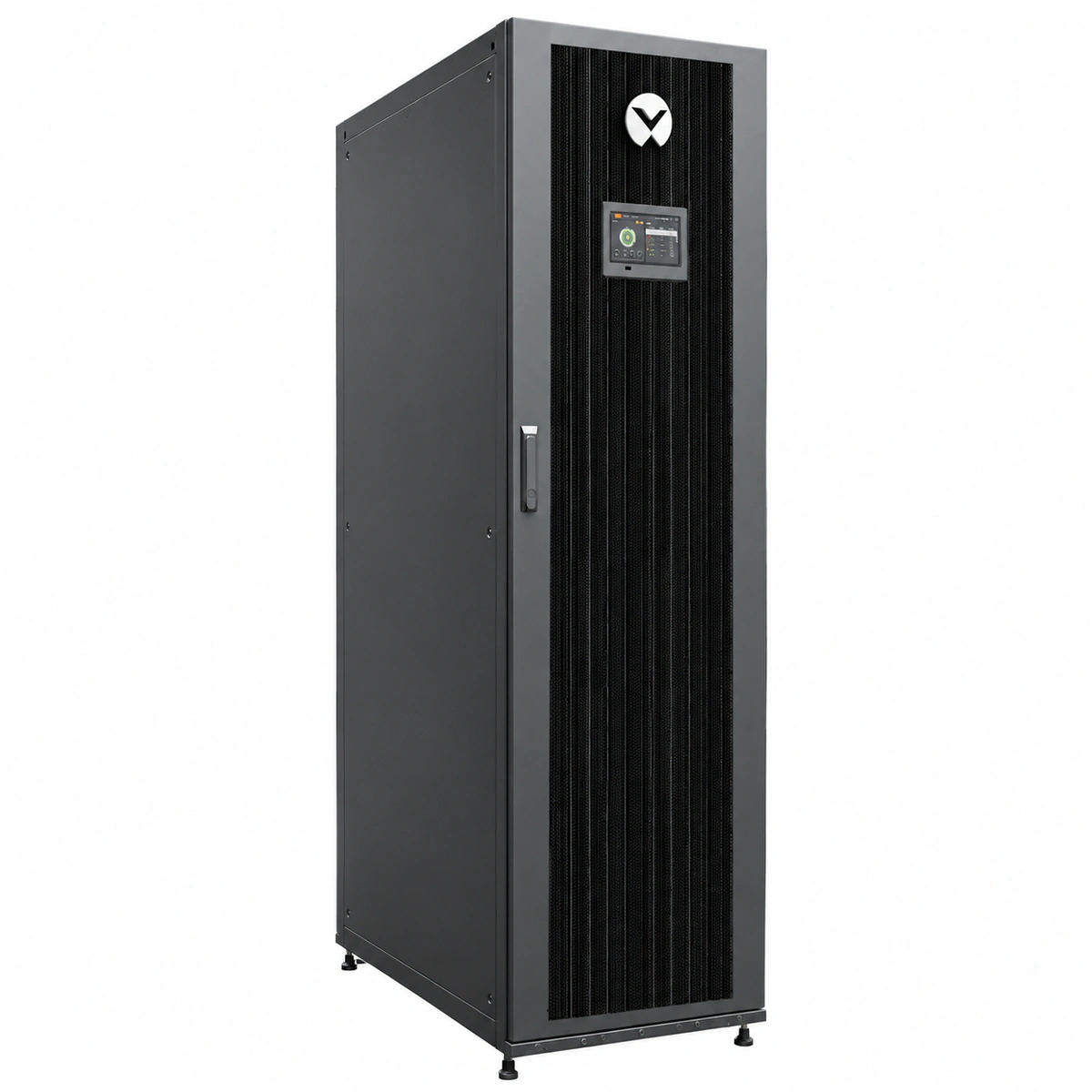

Vertiv Liebert CR060 In-Row Variable Capacity Cooling Unit 600mm Wide (CRV4 Series 62.6kW)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

高热密度微模块数据中心

AI 算力服务器机柜集群

边缘计算枢纽机房

Frequently asked questions
