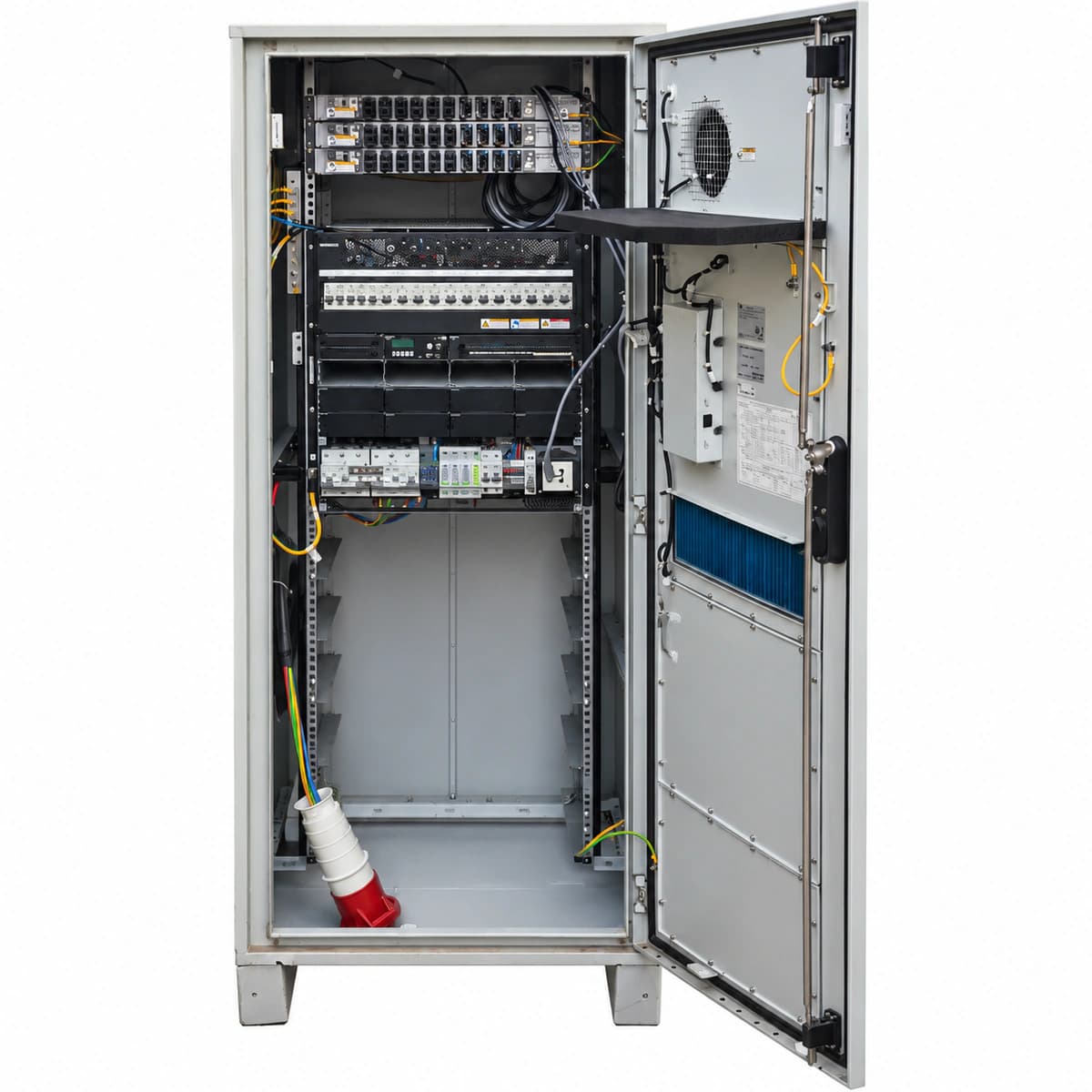

Huawei TP48600B-N16C1 Large-Capacity Floor-Standing Telecom DC Power Cabinet System -48V 600A
The Huawei TP48600B-N16C1 is a centralized floor-standing DC power plant combining AC surge protection, high-efficiency conversion, multi-tiered battery Low Voltage Disconnect (LVD), and remote SNMP network management.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal DC Output Voltage
- -48 V DC
- Physical Dimensions Spec
- 1600 × 600 × 600 mm
- Operating Temperature
- -40 ~ +65 °C
- Rectifier Module Slots
- 12 × 50A Slots
- AC Input Mode
- 380V three-phase four-wire system
What this product is
What this product is
Telecom-grade floor-standing 600A high-capacity DC power cabinet system.
What problem it solves
Delivers centralized 600A high-current DC power and automated battery protection for core data transmission centers and telecom hubs.
Who and where it is for
Core telecom transmission centers, hyperscale data center DC pods, railway transit dispatch hubs, and utility enterprise rooms.
Core advantages
- Massive system capacity up to 600A supporting up to 12 hot-swappable 50A rectifier slots
- Integrated smart controller supporting local touchscreen, Web GUI, and SNMP
- Dual-tier Low Voltage Disconnect (LLVD/BLVD) for mission-critical load protection
- Heavy-duty cold-rolled steel floor enclosure with comprehensive lightning protection
Technical specifications
| Key specifications | Value |
|---|---|
| Nominal DC Output Voltage | -48 V DC |
| Physical Dimensions Spec | 1600 × 600 × 600 mm |
| Operating Temperature | -40 ~ +65 °C |
| Rectifier Module Slots | 12 × 50A Slots |
| AC Input Mode | 380V three-phase four-wire system |
Applications
01
Core Mobile Telecom Switching Centers
02
Hyperscale Data Center Direct DC Plants
03
Railway Trackside Signaling & Control Power
04
Petrochemical Private Communication Hubs
