Q: What environmental ingress and thermal designs are engineered into the HW-SYS-5G-MICRO-PWR, and what are its surge protection and battery management specs?

Engineered with a die-cast aluminum enclosure and anti-corrosion coating, the HW-SYS-5G-MICRO-PWR boasts an IP65 ingress rating, offering absolute protection against dust, driving rain, and salt-fog across an operating temperature range of -40°C to +55°C via fanless passive convection cooling. For surge suppression, it incorporates AC surge protection rated at 20 kA (DM) / 40 kA (CM) (8/20 μs) and DC surge protection rated at 10 kA (10/350 μs). Dedicated quick-connect interfaces support Huawei lithium batteries (ESU/iBattery) with reverse-polarity protection, dual-stage Low Voltage Disconnect (LLVD/BLVD), and autonomous charge-discharge thermal regulation.

Question 1

What are the core electrical conversion metrics and AC input tolerances of the Huawei 5G Micro Power (HW-SYS-5G-MICRO-PWR)?

Accepted Answer

The HW-SYS-5G-MICRO-PWR utilizes an integrated blade-type high-frequency rectification topology supporting an ultra-wide AC input range of 85 VAC to 300 VAC, resilient against severe grid instability. Under nominal 176–300 VAC operation, it delivers a regulated -48 VDC output (adjustable from -42 to -58 VDC) with a maximum continuous output current of 60 A and rated capacity of 3000 W. The system achieves a peak rectification efficiency exceeding 96.0%, with Total Harmonic Distortion (THD) ≤ 5% and Power Factor (PF) ≥ 0.99, ensuring ultra-reliable, low-ripple DC power for 5G AAU, RRU, and micro-site deployments.

Question 2

What mounting formats are supported by the HW-SYS-5G-MICRO-PWR, and how are monitoring and parallel capacity expansion managed?

Accepted Answer

The blade micro power system supports pole mounting (diameter 40–120 mm), wall mounting, and angle-steel tower brackets, sharing a unified minimalist form factor with standard 5G BBU/AAU gear. It integrates a dual-mode smart controller supporting Bluetooth Low Energy (BLE) and Fast Ethernet, allowing field engineers to commission the system via a mobile app without tower climbing, or remotely via SNMPv3 and Huawei NetEco OSS. The system supports multi-unit busbar-level parallel expansion with autonomous active current sharing (imbalance < ±5%), delivering seamless N+1 redundancy and scalable capacity.

Question 3

What environmental ingress and thermal designs are engineered into the HW-SYS-5G-MICRO-PWR, and what are its surge protection and battery management specs?

Accepted Answer

Engineered with a die-cast aluminum enclosure and anti-corrosion coating, the HW-SYS-5G-MICRO-PWR boasts an IP65 ingress rating, offering absolute protection against dust, driving rain, and salt-fog across an operating temperature range of -40°C to +55°C via fanless passive convection cooling. For surge suppression, it incorporates AC surge protection rated at 20 kA (DM) / 40 kA (CM) (8/20 μs) and DC surge protection rated at 10 kA (10/350 μs). Dedicated quick-connect interfaces support Huawei lithium batteries (ESU/iBattery) with reverse-polarity protection, dual-stage Low Voltage Disconnect (LLVD/BLVD), and autonomous charge-discharge thermal regulation.

Key specifications	Value
System Output Capacity	60 A
Nominal Output Voltage	-48 VDC
Output Voltage Range	-42 ~ -58 VDC
AC Input Voltage Range	85 ~ 300 VAC (ultra-wide mains compatibility)
Rectifier Module Slots	Integrated blade-type 3000W rectifier unit Slots
System Monitoring Controller	Built-in intelligent Bluetooth/Ethernet monitoring module
System Comprehensive Efficiency	> 96.0%
Ingress Protection (IP Rating)	IP65, natural cooling, fanless, zero-noise protection
Physical Dimensions Spec	380 × 250 × 90 mm (ultra-slim blade type)
Operating Temperature	-40°C to +55°C

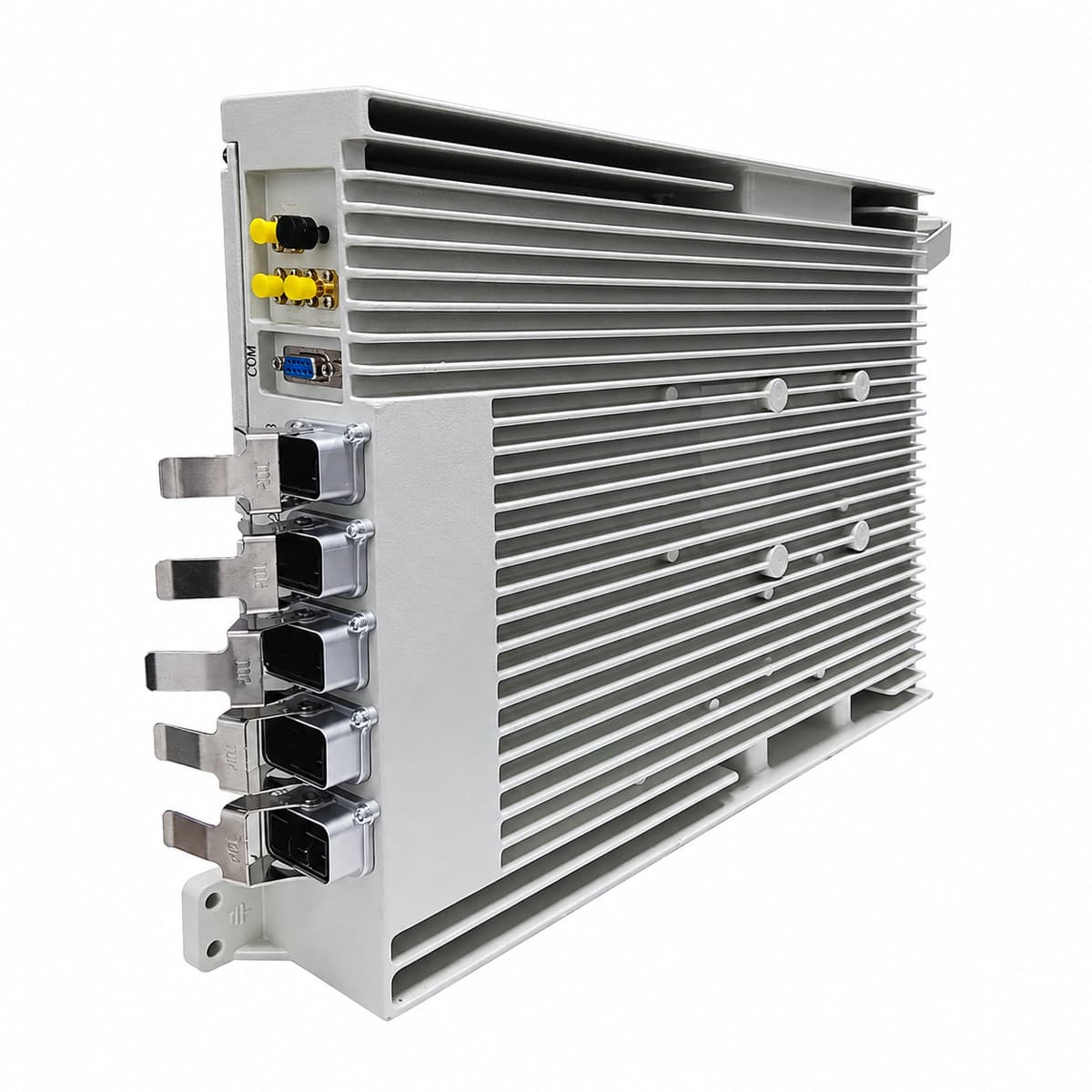

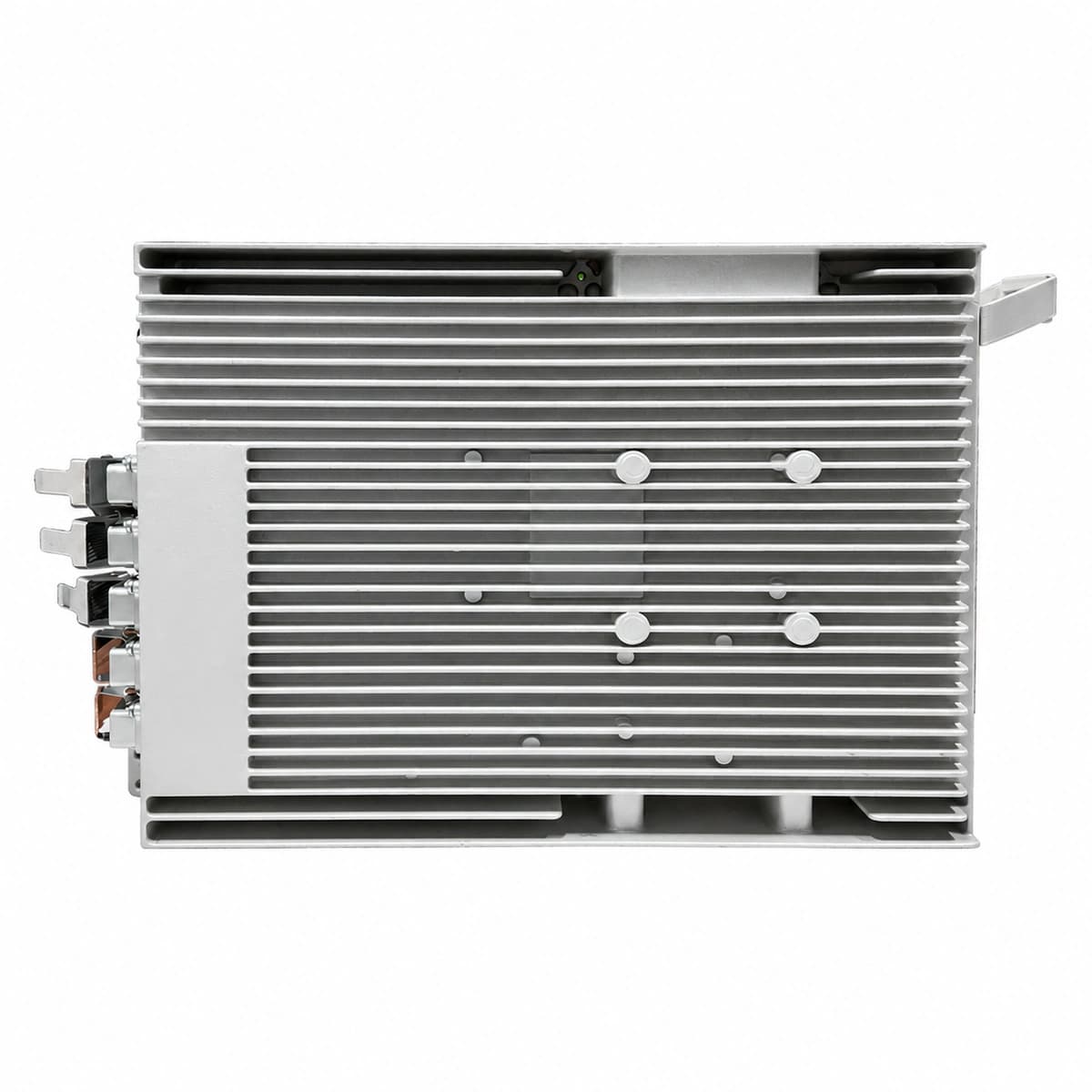

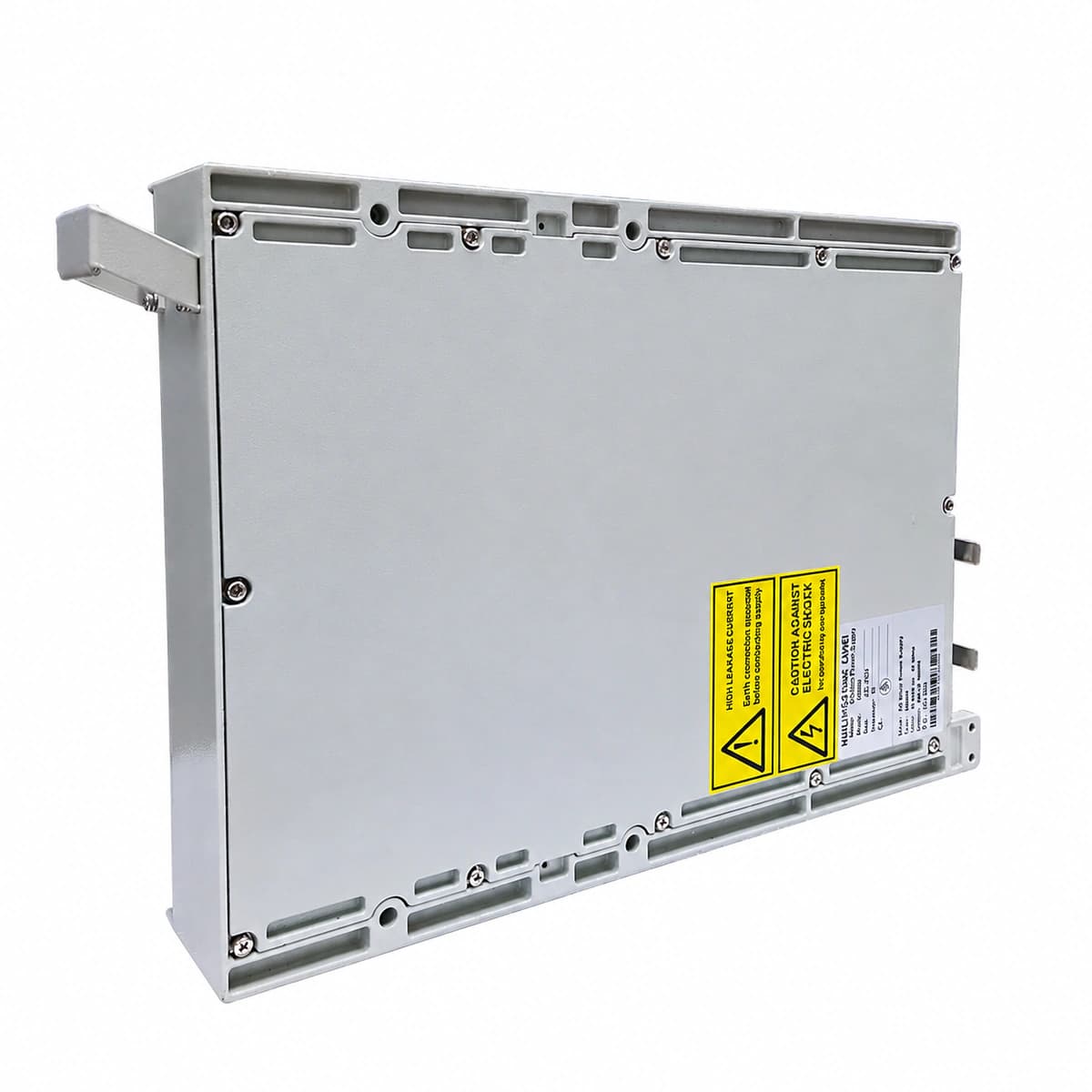

Huawei 5G Micro Power Blade Outdoor Telecom Power Supply (-48V 60A IP65)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

5G street small cells

Smart city surveillance towers

Highway telecom repeater installations

Frequently asked questions
