HEFENGQIModel: MCA1500

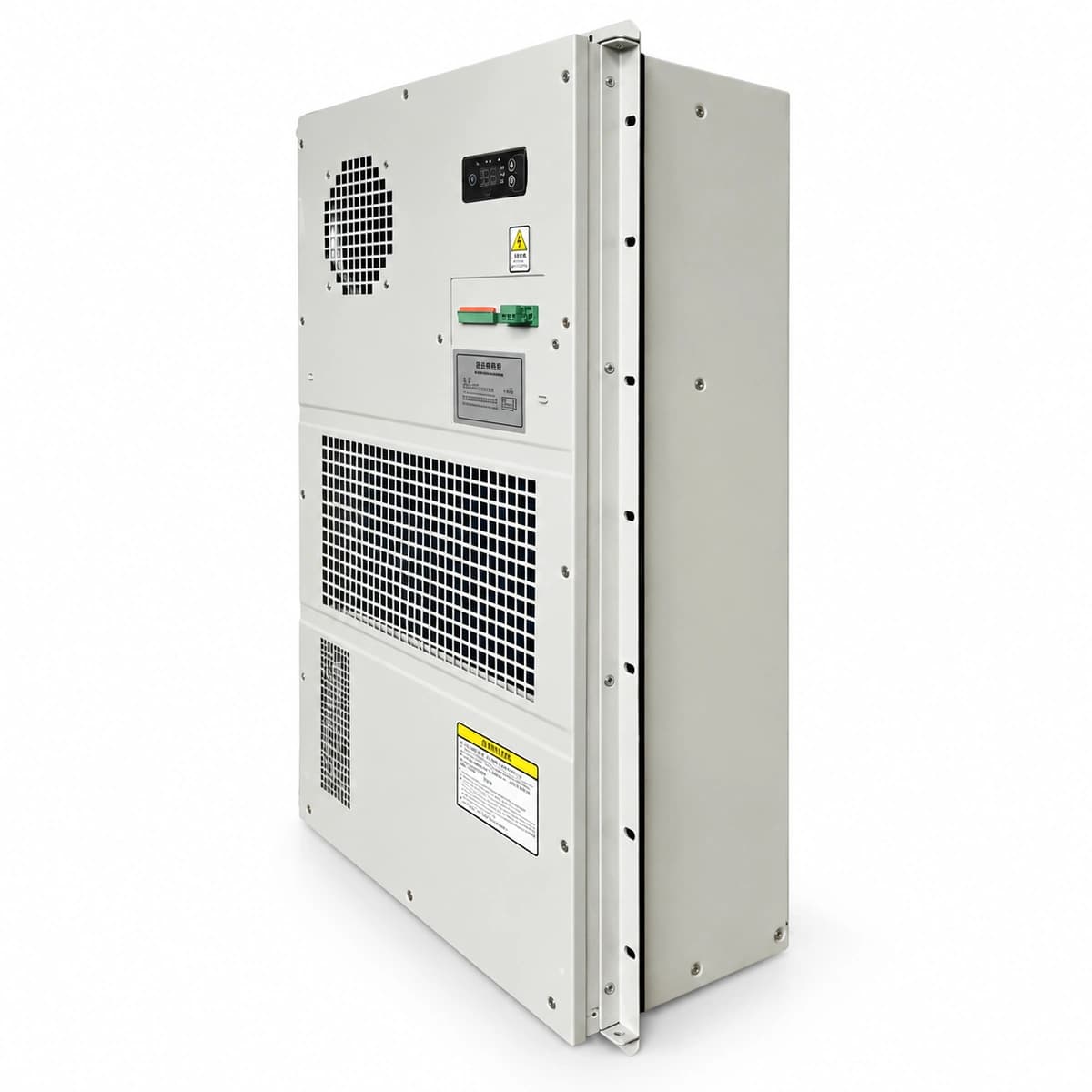

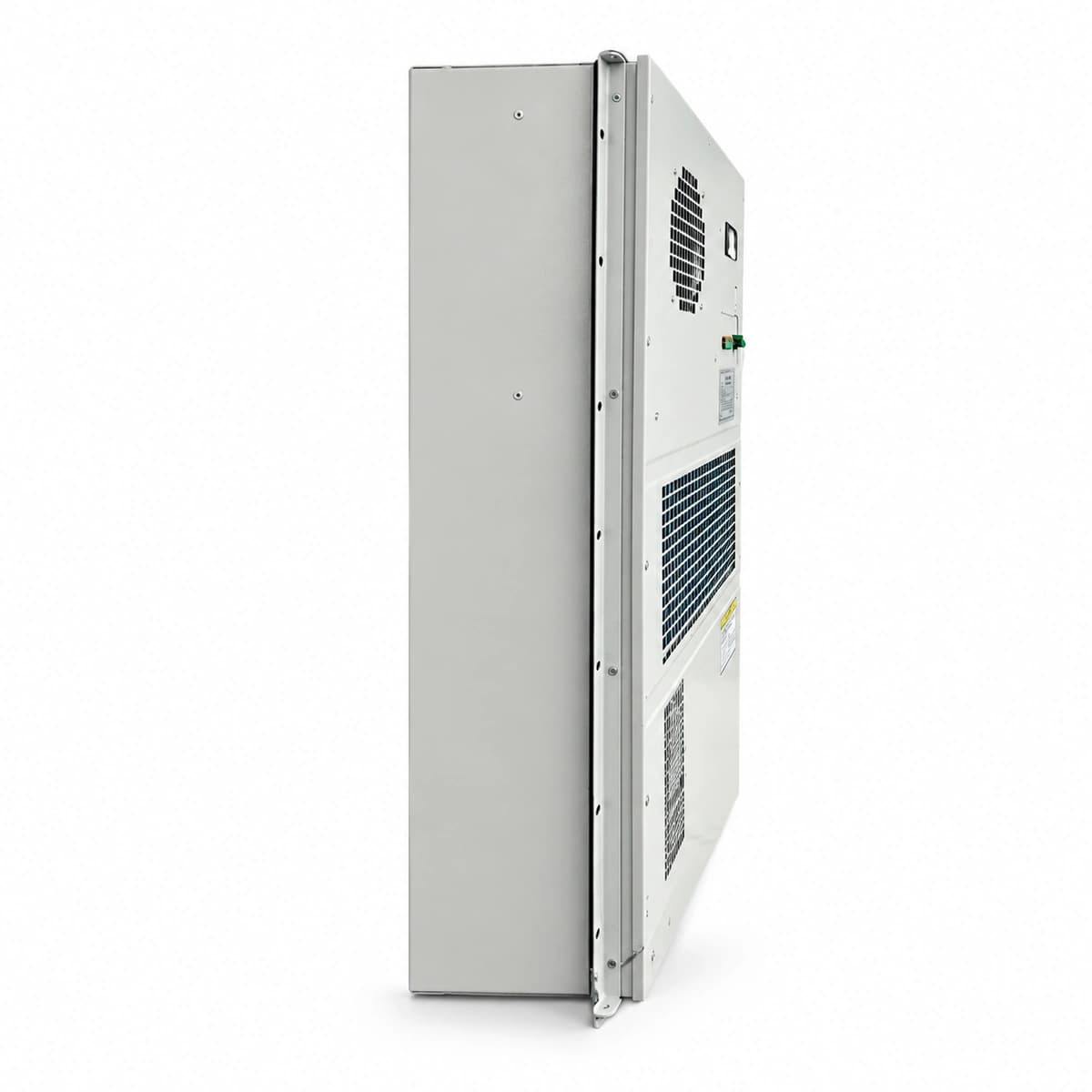

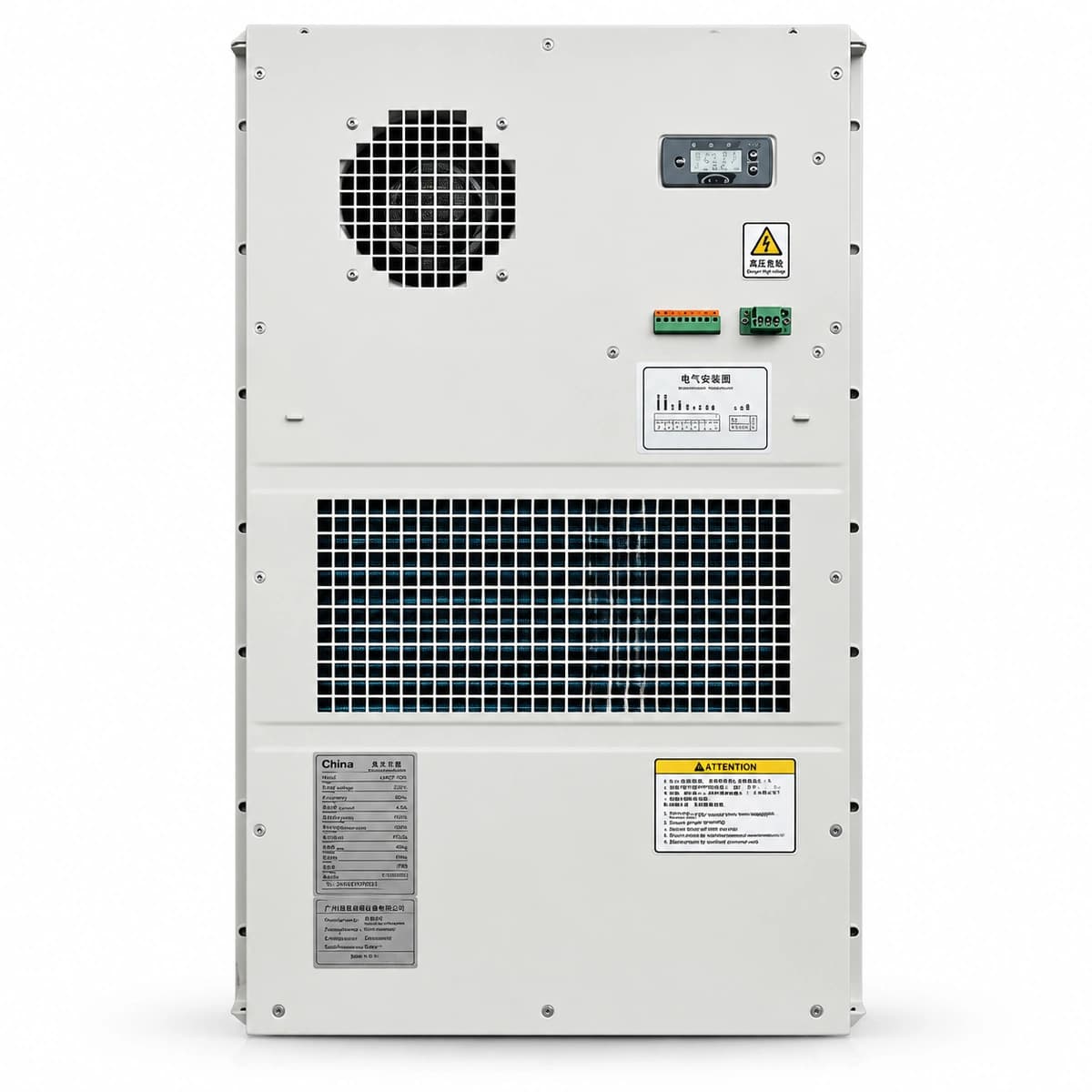

RICEWIND MCA1500 220VAC 1500W Integrated Industrial Enclosure AC Cooling System (IP55)
The RICEWIND MCA1500 is an industrial-grade outdoor telecom cabinet air conditioner delivering 1500W of sensible cooling capacity under 220VAC 50/60Hz power input with IP55 ingress protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Cooling Capacity
- 1500W (50Hz/60Hz Dual-Frequency Adaptive Heavy Industrial Cooling)
- Power Supply System
- 220VAC Single Phase (580W @ 50Hz / 750W @ 60Hz, Current 2.7A) V AC
- Rated Input Power
- 580W (High 370 m³/h Airflow Quickly Establishing Convection)
- Dimensions (H×W×D)
- 746 x 446 x 200 mm (With Flange 784x484x200 mm, 24 kg)
- Ingress Protection (IP Rating)
- Optional 1000W Heater / IP55 Sealed / -40°C to +55°C
- Communication Interface
- RS485 Daisy-Chain Networking + Micro-DC Group Rotation Control
What this product is
What this product is
A ruggedized outdoor enclosure AC air conditioning unit designed for door or side-mount flange installation.
What problem it solves
Eliminates solar radiation heat buildup and equipment thermal shutdown while maintaining a hermetic IP55 seal against environmental dust, rain, and humidity.
Who and where it is for
5G telecom outdoor cabinets, solar hybrid base stations, traffic management field boxes, and energy storage battery compartments.
Core advantages
- 1500W rated sensible cooling capacity with high-efficiency compressor consuming only 580W
- Dual completely isolated airflow circuits providing verified IP55 ingress protection
- Integrated RS485 Modbus-RTU telemetry interface for remote temperature and alarm monitoring
- Heavy-duty operational temperature range spanning -40°C to +55°C with anti-corrosion coating
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 1500W (50Hz/60Hz Dual-Frequency Adaptive Heavy Industrial Cooling) |
| Power Supply System | 220VAC Single Phase (580W @ 50Hz / 750W @ 60Hz, Current 2.7A) V AC |
| Rated Input Power | 580W (High 370 m³/h Airflow Quickly Establishing Convection) |
| Dimensions (H×W×D) | 746 x 446 x 200 mm (With Flange 784x484x200 mm, 24 kg) |
| Ingress Protection (IP Rating) | Optional 1000W Heater / IP55 Sealed / -40°C to +55°C |
| Communication Interface | RS485 Daisy-Chain Networking + Micro-DC Group Rotation Control |
Applications
01
Outdoor Telecom Wireless Base Station Sites
02
Smart Traffic and Highway Surveillance Enclosures
03
Solar Energy Storage and Remote Power Cabinets
04
Industrial Automation & Edge Computing Field Shelters
