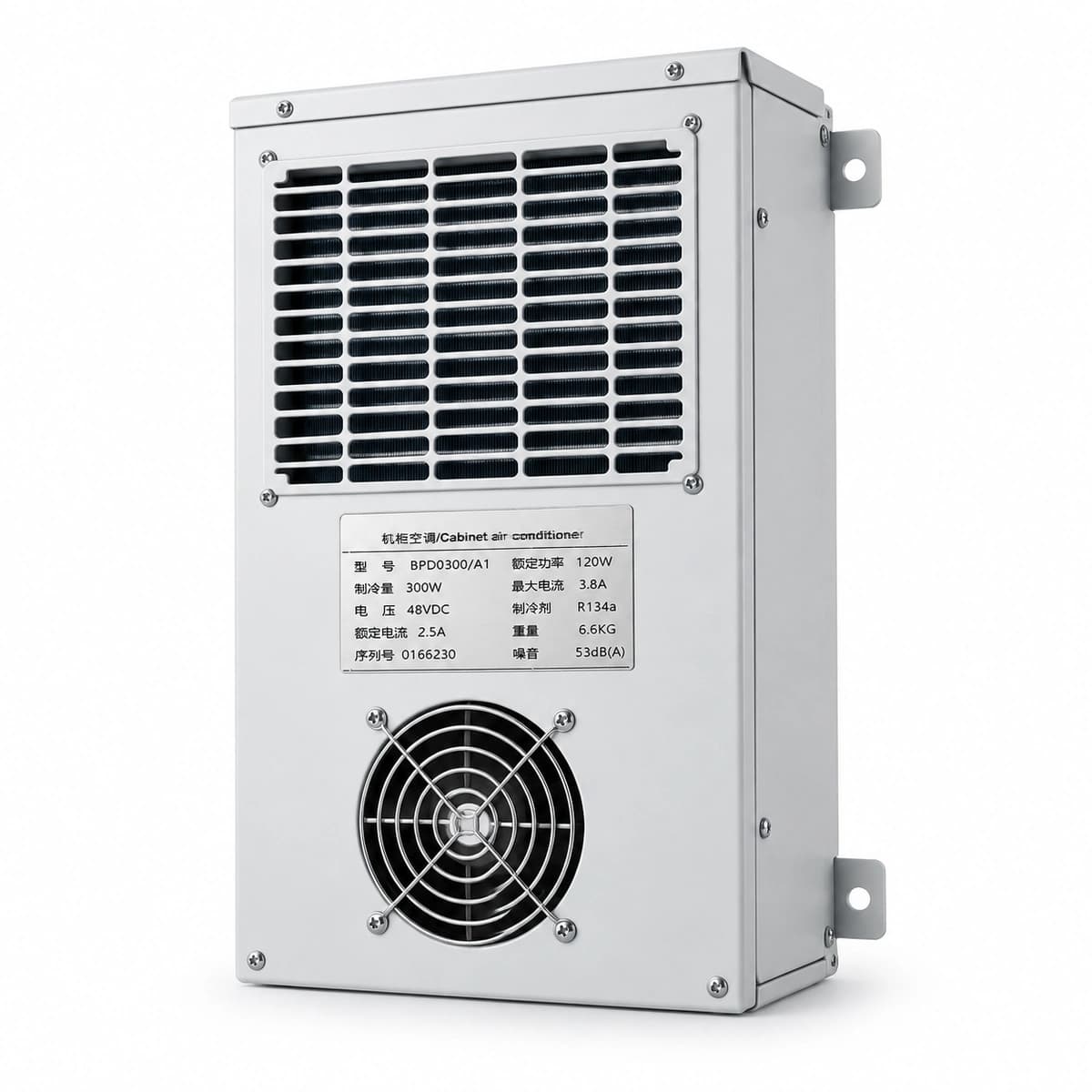

RICEWIND BPD0300 -48VDC 300W Compact Outdoor Telecom Cabinet DC Air Conditioner (IP55)
The RICEWIND BPD0300 is an industrial-grade outdoor telecom cabinet air conditioner delivering 300W of sensible cooling capacity under -48VDC power input with IP55 ingress protection.
Talk to RICEWIND
Need to confirm a model, specification, or project configuration? Our team can follow up by email or phone.
Clear support from selection to delivery
360°Technical support
N+Service commitment
3Steps shipping
100%Customer satisfaction
- Rated Cooling Capacity
- 300W (L35/L35 rating, 1.0 Sensible Heat Ratio)
- Power Supply System
- -48VDC Nominal (Operating Range 40VDC to 58.5VDC) V DC
- Rated Input Power
- 120W (High Energy Efficiency COP 2.5)
- Dimensions (H×W×D)
- 380 x 219 x 133 mm (Net Weight 7.5 kg)
- Ingress Protection (IP Rating)
- Internal Loop IP55 Sealed / Operating -40°C to +55°C
- Communication Interface
- RS485 (Standard Modbus-RTU) + Remote Dry Contact Alarm
What this product is
What this product is
A ruggedized outdoor enclosure DC air conditioning unit designed for door or side-mount flange installation.
What problem it solves
Eliminates solar radiation heat buildup and equipment thermal shutdown while maintaining a hermetic IP55 seal against environmental dust, rain, and humidity.
Who and where it is for
5G telecom outdoor cabinets, solar hybrid base stations, traffic management field boxes, and energy storage battery compartments.
Core advantages
- 300W rated sensible cooling capacity with high-efficiency compressor consuming only 120W
- Dual completely isolated airflow circuits providing verified IP55 ingress protection
- Integrated RS485 Modbus-RTU telemetry interface for remote temperature and alarm monitoring
- Heavy-duty operational temperature range spanning -40°C to +55°C with anti-corrosion coating
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 300W (L35/L35 rating, 1.0 Sensible Heat Ratio) |
| Power Supply System | -48VDC Nominal (Operating Range 40VDC to 58.5VDC) V DC |
| Rated Input Power | 120W (High Energy Efficiency COP 2.5) |
| Dimensions (H×W×D) | 380 x 219 x 133 mm (Net Weight 7.5 kg) |
| Ingress Protection (IP Rating) | Internal Loop IP55 Sealed / Operating -40°C to +55°C |
| Communication Interface | RS485 (Standard Modbus-RTU) + Remote Dry Contact Alarm |
Applications
01
Outdoor Telecom Wireless Base Station Sites
02
Smart Traffic and Highway Surveillance Enclosures
03
Solar Energy Storage and Remote Power Cabinets
04
Industrial Automation & Edge Computing Field Shelters
