Q: What are the environmental durability, surge protection, and reliability specifications of the R4850G6 in harsh base station deployments?

The R4850G6 is built for challenging field conditions, operating from -40°C to +75°C (100% continuous output up to +55°C, linear derating up to +75°C) with cold start at -40°C. Cooling is handled by an internal stepless variable-speed fan coupled with a directed airflow path and conformal PCB coating to resist moisture, dust, and industrial pollution. Lightning and surge protection meets IEC 61000-4-5 standards with 4kV differential mode and 5kV common mode suppression on the AC port. It incorporates DC overvoltage latching, short-circuit self-recovery, and overtemperature protection, ensuring an MTBF exceeding 500,000 hours.

Question 1

What are the core electrical output and efficiency ratings of the Huawei R4850G6 rectifier, and how does it derate under low-voltage input?

Accepted Answer

The Huawei R4850G6 provides a nominal -48V DC output (adjustable from -42V DC to -58V DC), a rated current of 50A, and a rated capacity of 3000W, delivering a peak conversion efficiency of 96.8%, with PF ≥ 0.99 and THD ≤ 5%. Operating across a wide AC input range of 85VAC to 300VAC, it outputs full 3000W capacity between 176VAC and 300VAC. Between 85VAC and 176VAC, it implements a linear derating strategy (derating to approximately 1250W at 85VAC), preventing system brownouts during severe utility grid undervoltage conditions.

Question 2

Which Huawei power subracks are compatible with the R4850G6, and can it be mixed or hot-swapped with legacy R4850G2/R4850N modules?

Accepted Answer

Engineered with a standard 1U form factor (40.8 × 105 × 281 mm), the R4850G6 natively fits Huawei ETP48100, ETP48200, and ETP48400 embedded power systems, as well as APM30H and ICC710 outdoor telecom enclosures. It integrates with SMU02B/SMU02C controllers over CAN bus, featuring live hot-swapping and active digital current sharing (imbalance < ±5%). While physically and electrically backward-compatible for mixed operation with R4850G2 and R4850N units, group-level upgrades are strongly advised to unlock the full energy-saving benefits of the G6's 96.8% efficiency curve and deep-sleep management algorithms.

Question 3

What are the environmental durability, surge protection, and reliability specifications of the R4850G6 in harsh base station deployments?

Accepted Answer

The R4850G6 is built for challenging field conditions, operating from -40°C to +75°C (100% continuous output up to +55°C, linear derating up to +75°C) with cold start at -40°C. Cooling is handled by an internal stepless variable-speed fan coupled with a directed airflow path and conformal PCB coating to resist moisture, dust, and industrial pollution. Lightning and surge protection meets IEC 61000-4-5 standards with 4kV differential mode and 5kV common mode suppression on the AC port. It incorporates DC overvoltage latching, short-circuit self-recovery, and overtemperature protection, ensuring an MTBF exceeding 500,000 hours.

Key specifications	Value
AC Input Voltage Range	85VAC ~ 300VAC (Nominal 220VAC) VAC
Nominal DC Output Voltage	-48 V DC
Cooling Method	Built-in intelligent continuously variable-speed fan
Physical Dimensions Spec	40.8 (1U) × 105 × 281 mm

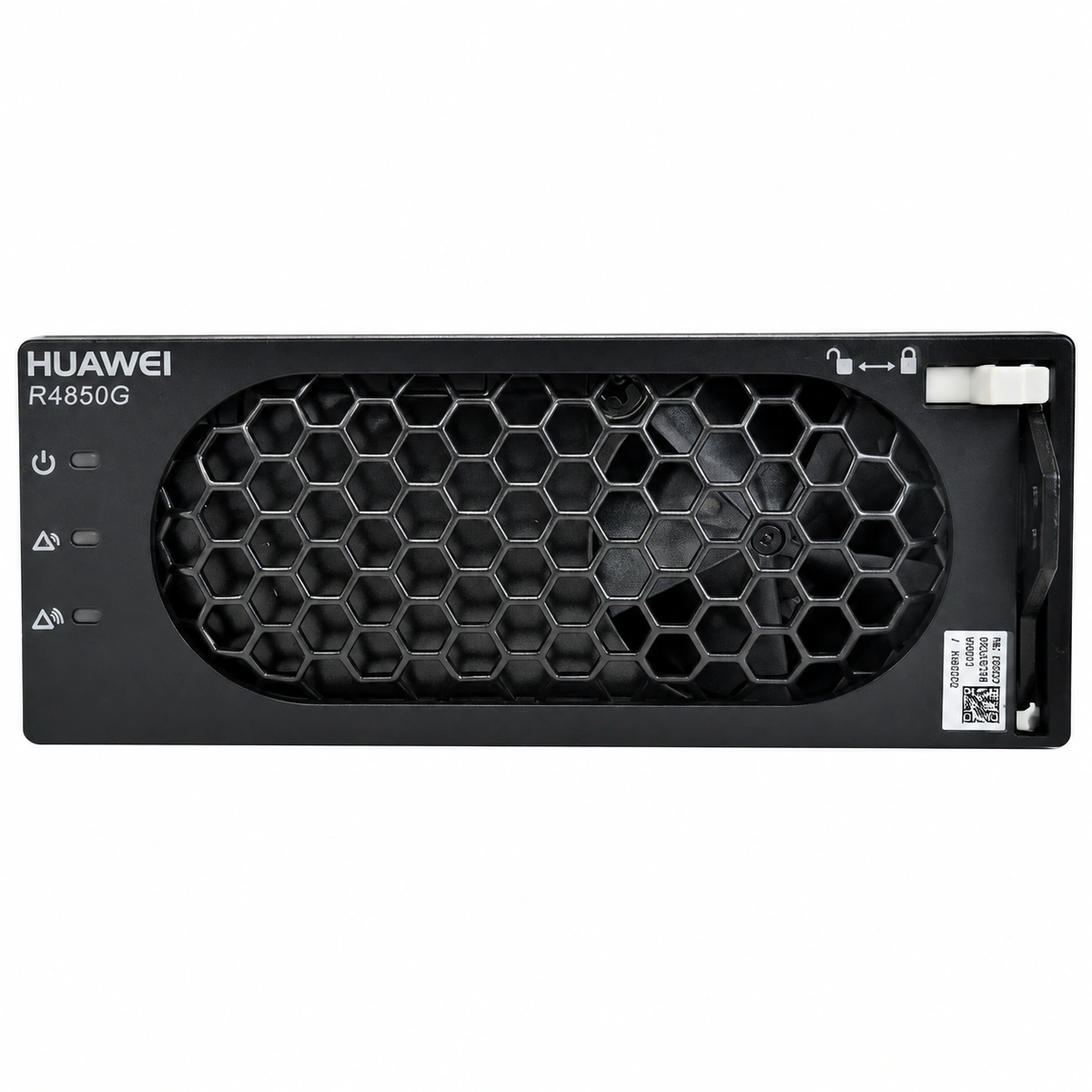

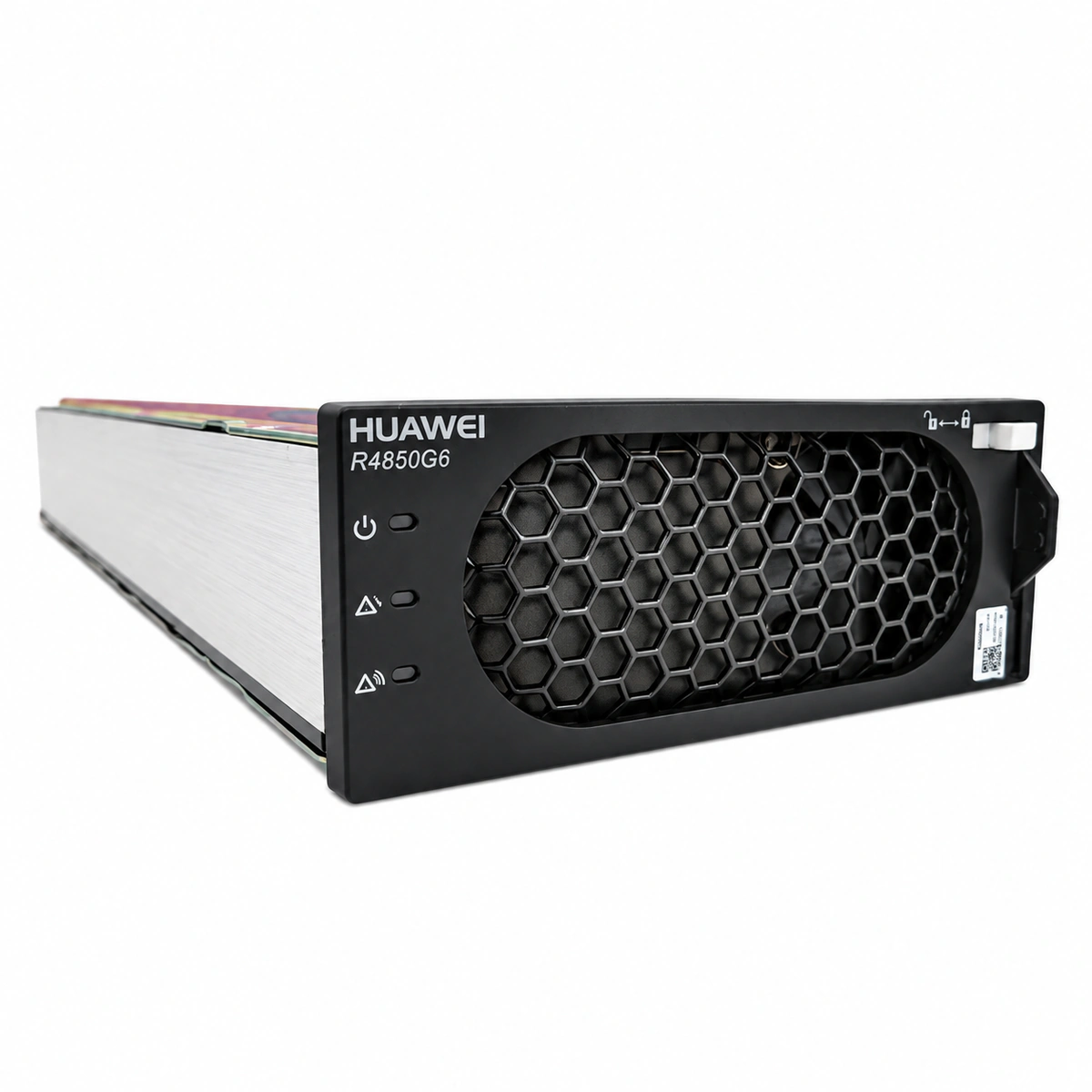

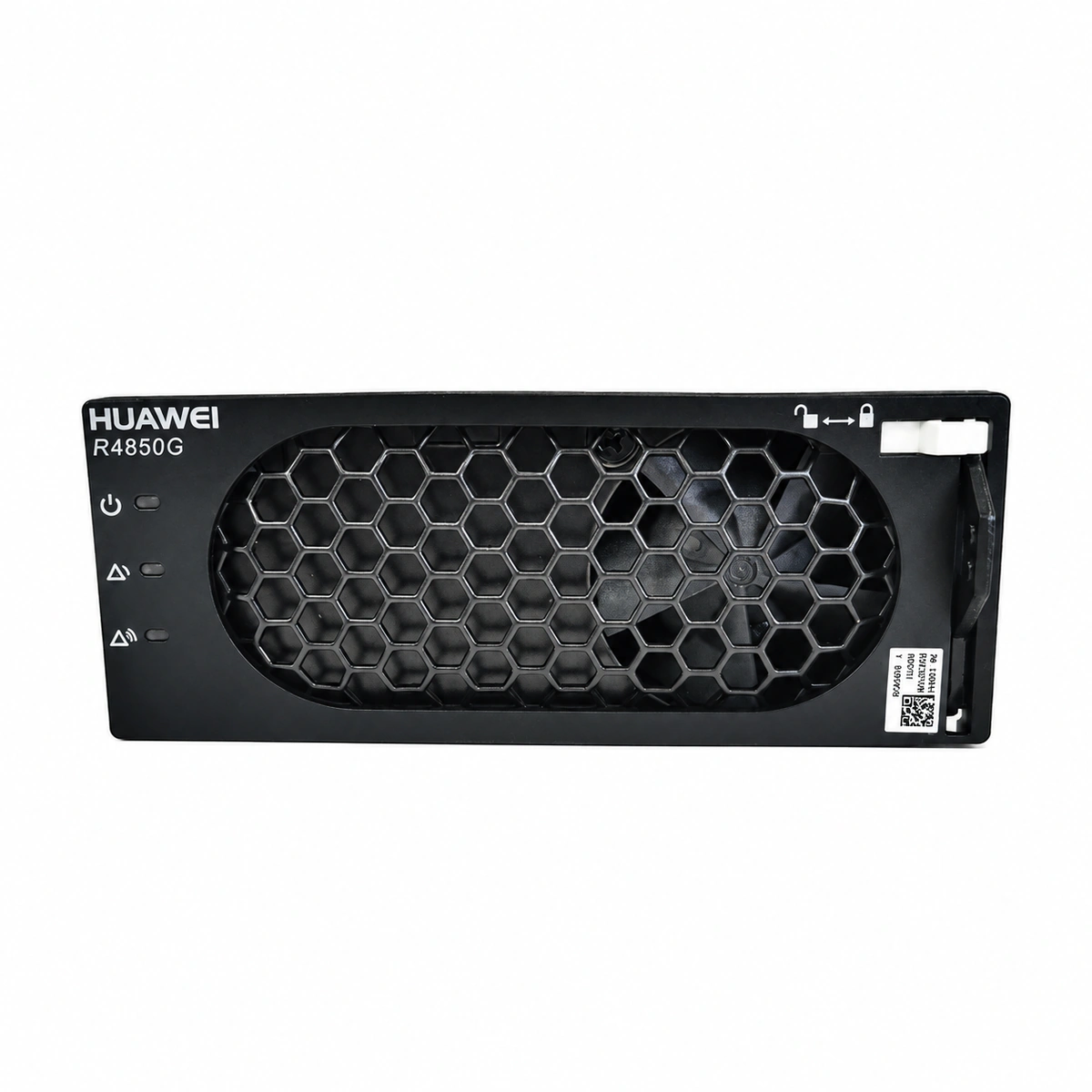

Huawei R4850G6 Flagship Ultra-High Efficiency Rectifier -48V 50A 3000W

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Cellular Macro BTS Shelters

Core Optical Fiber Transmission Offices

Transit Traction Communication Rooms

Frequently asked questions
