HuaweiModel: ETP23003-C1A1

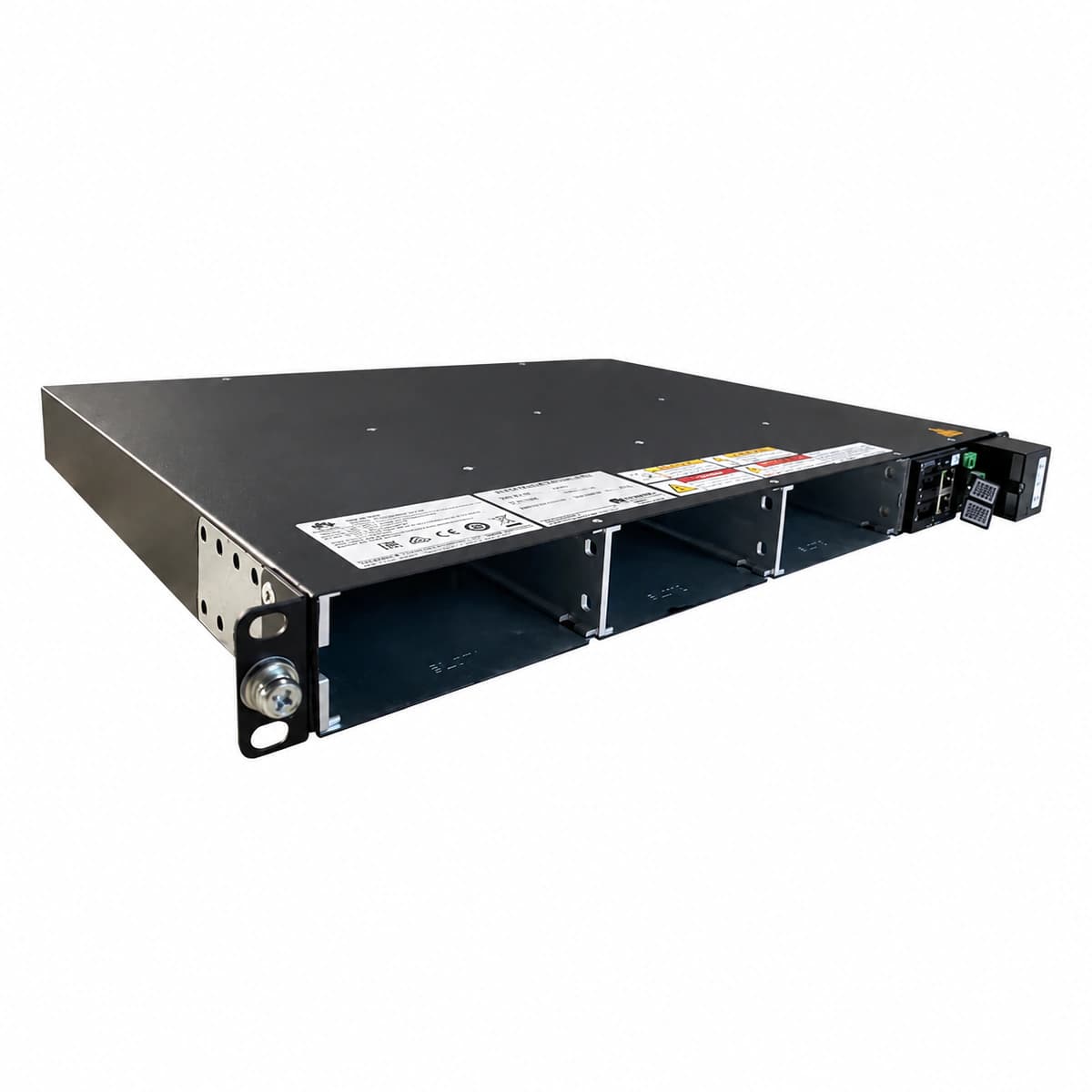

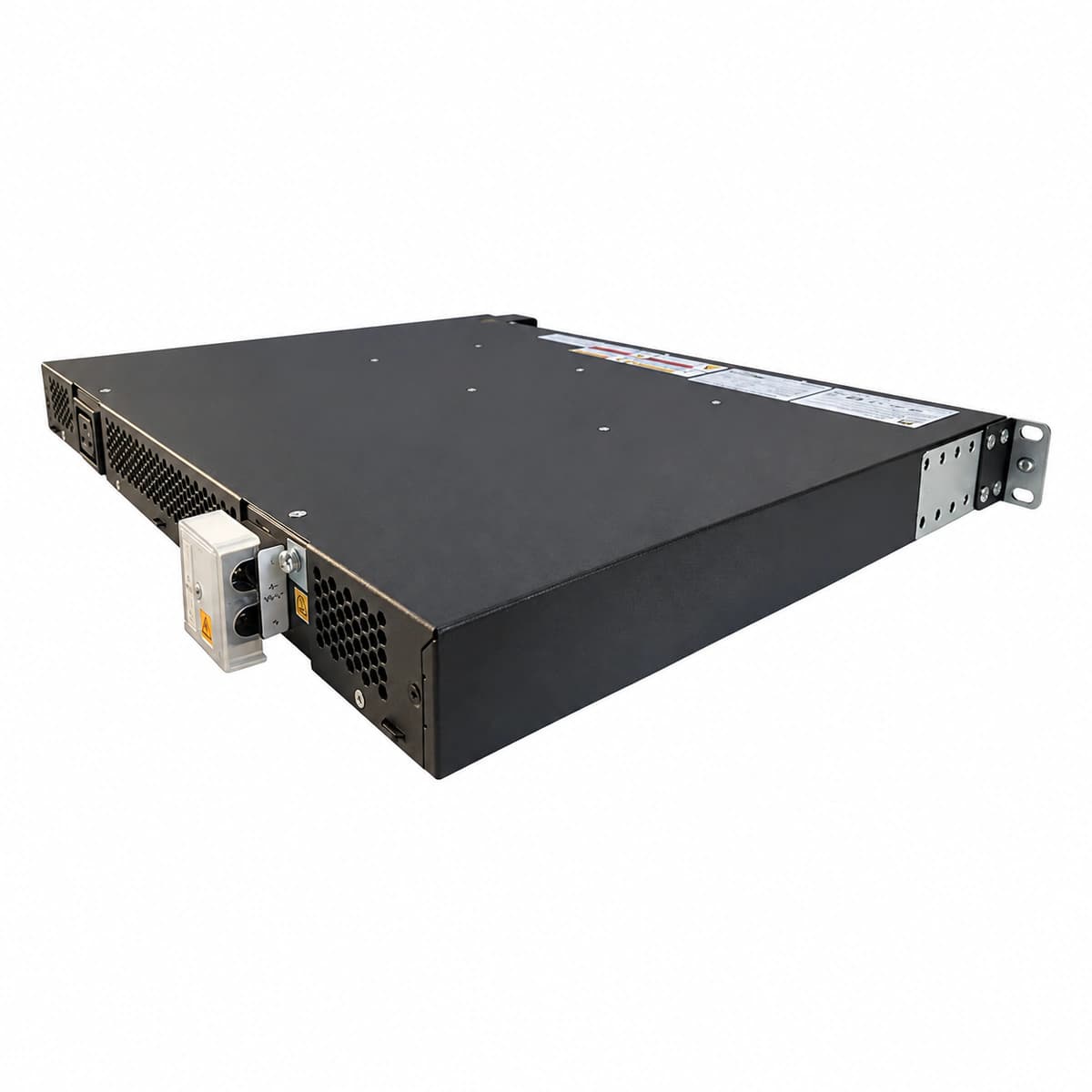

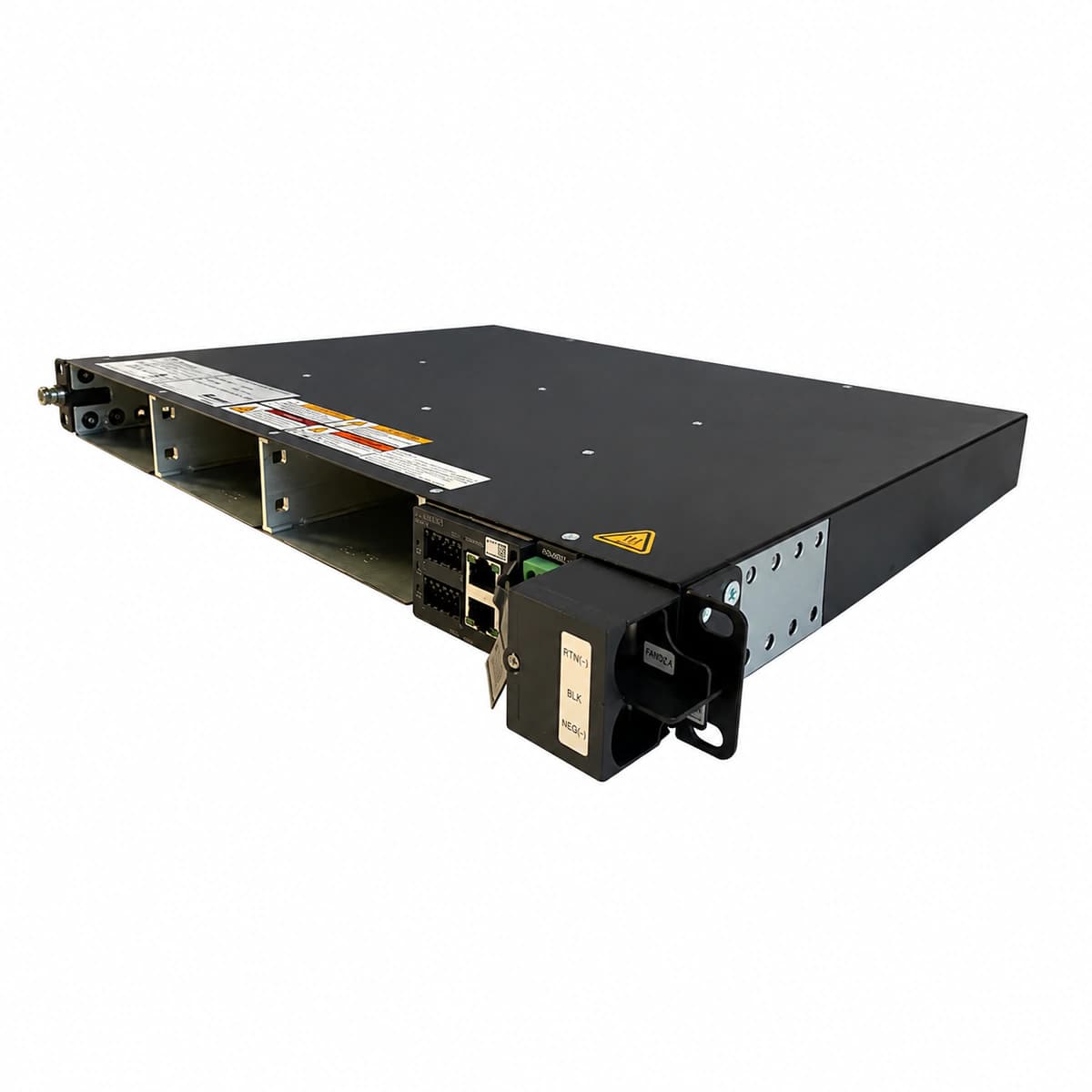

Huawei ETP23003-C1A1 Embedded DC Power System (-48V 30A 1U Ultra-Compact Subrack)
The Huawei ETP23003-C1A1 is a 1U ultra-compact embedded DC power system engineered for micro-sites, enterprise branches, and telecom edge deployments, converting 220V AC input to -48V DC nominal output with up to 30A/1600W capacity.
Pricing is confirmed by project configuration and quantity
Request a quote- Rated Distribution Capacity
- 30A / 1600W
- Nominal DC Output Voltage
- -48V DC (Adjustable -42V ~ -58V)
- AC Input Voltage Range
- 85V - 300V AC (Single Phase Wide Range)
- Chassis Form Factor
- 1U Height / 19-Inch Standard Rack
- Peak Energy Efficiency
- >94.5% Peak Energy Efficiency
- Supervision Controller
- Smart Compact Monitor (Dry Contact Relay)
What this product is
What this product is
The Huawei ETP23003-C1A1 is a 1U ultra-compact embedded DC power system engineered for micro-sites, enterprise branches, and telecom edge deployments, converting 220V AC input to -48V DC nominal output with up to 30A/1600W capacity.
What problem it solves
Resolves power grid instability, excessive OPEX energy dissipation, battery degradation, and rack footprint constraints.
Who and where it is for
5G cellular cell sites, core telecom DC plants, AI data centers, transport networks, and critical industrial DC UPS.
Core advantages
- 1U Ultra-Compact Profile: Standard 19-inch 1U height minimizes cabinet footprint for space-constrained edge sites.
- Extreme Grid Tolerance: 85V to 300V AC ultra-wide input voltage resilience protects against severe power fluctuations.
- Hot-Swappable Reliability: Tool-free hot-plug rectifier architecture ensures uninterrupted live maintenance.
- Integrated Battery Defense: Built-in low voltage battery protection and dual-stage surge suppression prevent deep discharge.
Technical specifications
| Key specifications | Value |
|---|---|
| Rated Distribution Capacity | 30A / 1600W |
| Nominal DC Output Voltage | -48V DC (Adjustable -42V ~ -58V) |
| AC Input Voltage Range | 85V - 300V AC (Single Phase Wide Range) |
| Chassis Form Factor | 1U Height / 19-Inch Standard Rack |
| Supervision Controller | Smart Compact Monitor (Dry Contact Relay) |
| Peak Energy Efficiency | >94.5% Peak Energy Efficiency |
Applications
01
4G/5G Telecom Cell Sites & Distributed Power Systems
02
Carrier Core Network Facilities & IDC DC Plants
03
Industrial Automation & Utility Substation DC UPS
