Q: What protection mechanisms and reliability measures ensure R48-2000e3 operation under extreme grid and environmental conditions?

The R48-2000e3 is engineered for operating temperatures from -40°C to +75°C, delivering 100% non-derated power up to +55°C. Cooling is driven by a front-to-back variable-speed DC brushless fan governed by internal temperature sensors and load levels. Protection topologies include sustained AC overvoltage shutoff (>305VAC with auto-recovery), dual-loop DC overvoltage shutdown, output short-circuit protection with auto-restart, and thermal shutdown. It meets IEC 61000-4-5 surge immunity (2kV differential / 4kV common mode), ensuring survival in remote base stations and unstable grid topologies.

Question 1

What are the core electrical conversion metrics and derating characteristics of the Vertiv R48-2000e3 rectifier module?

Accepted Answer

The Vertiv R48-2000e3 is an ultra-high efficiency telecom rectifier rated at 2000W with a nominal -48VDC output (adjustable from -42VDC to -58VDC) and a maximum output current of 41.7A. It features a wide AC input range of 85VAC to 300VAC, providing full 2000W output between 176VAC and 300VAC, with linear power derating below 176VAC down to ~40% load capacity at 85VAC. It delivers a peak efficiency of ≥96.2%, power factor (PF) ≥0.99, and THD ≤5% from half to full load, fully complying with IEEE 519 standards and carrier-grade energy efficiency benchmarks.

Question 2

Which subrack systems are compatible with R48-2000e3, and does it support hot-swap mixing and autonomous current sharing?

Accepted Answer

The R48-2000e3 natively integrates into Vertiv NetSure 211, NetSure 501, and NetSure 701 power subracks with full hot-swap capability. It utilizes CAN-bus digital communication managed by M221S, M222S, NCU, or ACU+ supervisory controllers. Mechanically, it is backward-compatible with older R48-2000/R48-1800 slots. While digital active current sharing maintains current imbalance within <±5%, mixing e3 high-efficiency units with legacy lower-efficiency modules is technically viable but engineering-recommended for group replacement to optimize thermal profiles and load distribution across rectifiers.

Question 3

What protection mechanisms and reliability measures ensure R48-2000e3 operation under extreme grid and environmental conditions?

Accepted Answer

The R48-2000e3 is engineered for operating temperatures from -40°C to +75°C, delivering 100% non-derated power up to +55°C. Cooling is driven by a front-to-back variable-speed DC brushless fan governed by internal temperature sensors and load levels. Protection topologies include sustained AC overvoltage shutoff (>305VAC with auto-recovery), dual-loop DC overvoltage shutdown, output short-circuit protection with auto-restart, and thermal shutdown. It meets IEC 61000-4-5 surge immunity (2kV differential / 4kV common mode), ensuring survival in remote base stations and unstable grid topologies.

Key specifications	Value
Power Conversion Efficiency	≥96.2%
AC Input Voltage Range	85VAC ~ 300VAC
Nominal DC Output Voltage	-42VDC ~ -58VDC (Nominal -48VDC)
Cooling Method	Front-to-rear air cooling with a temperature-controlled DC fan

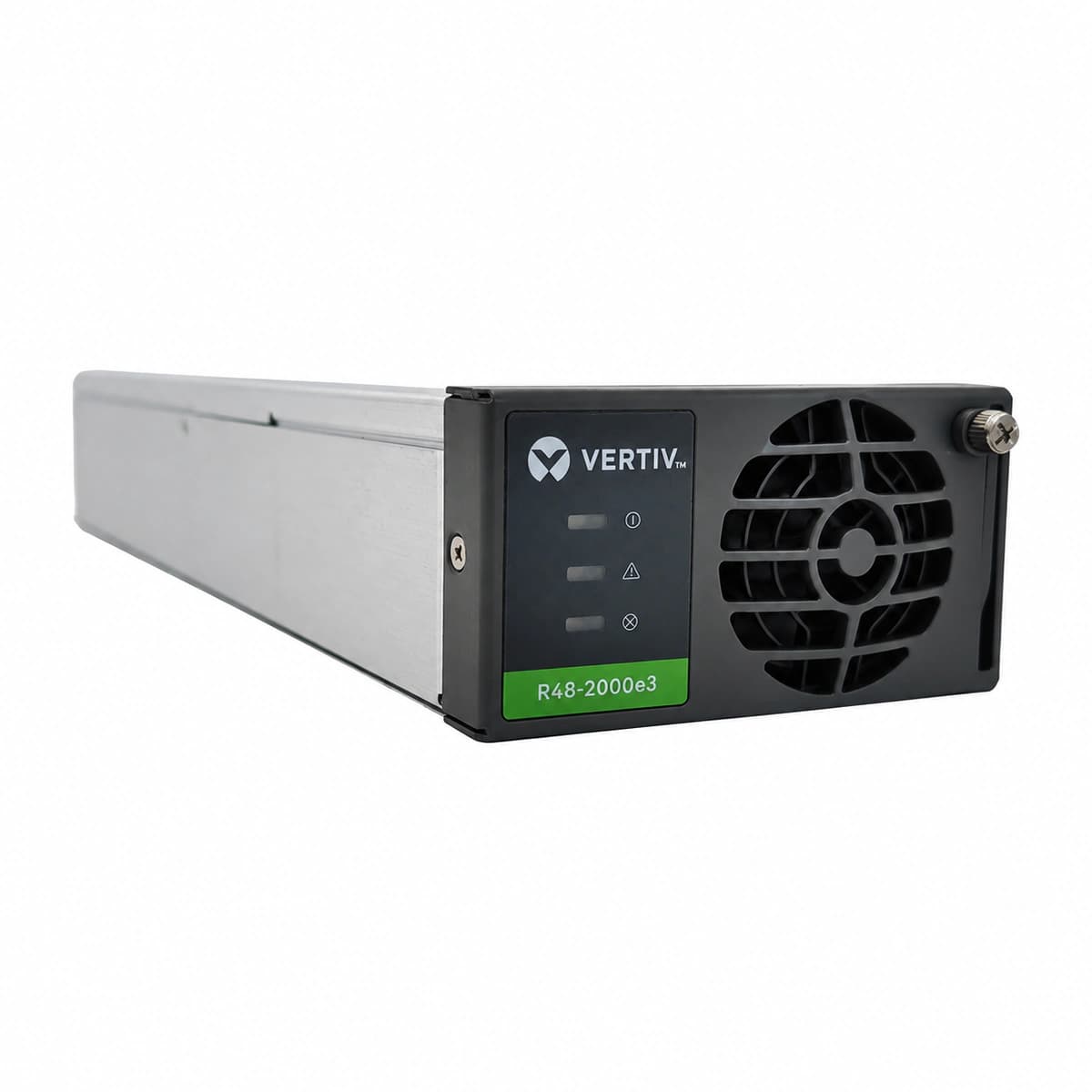

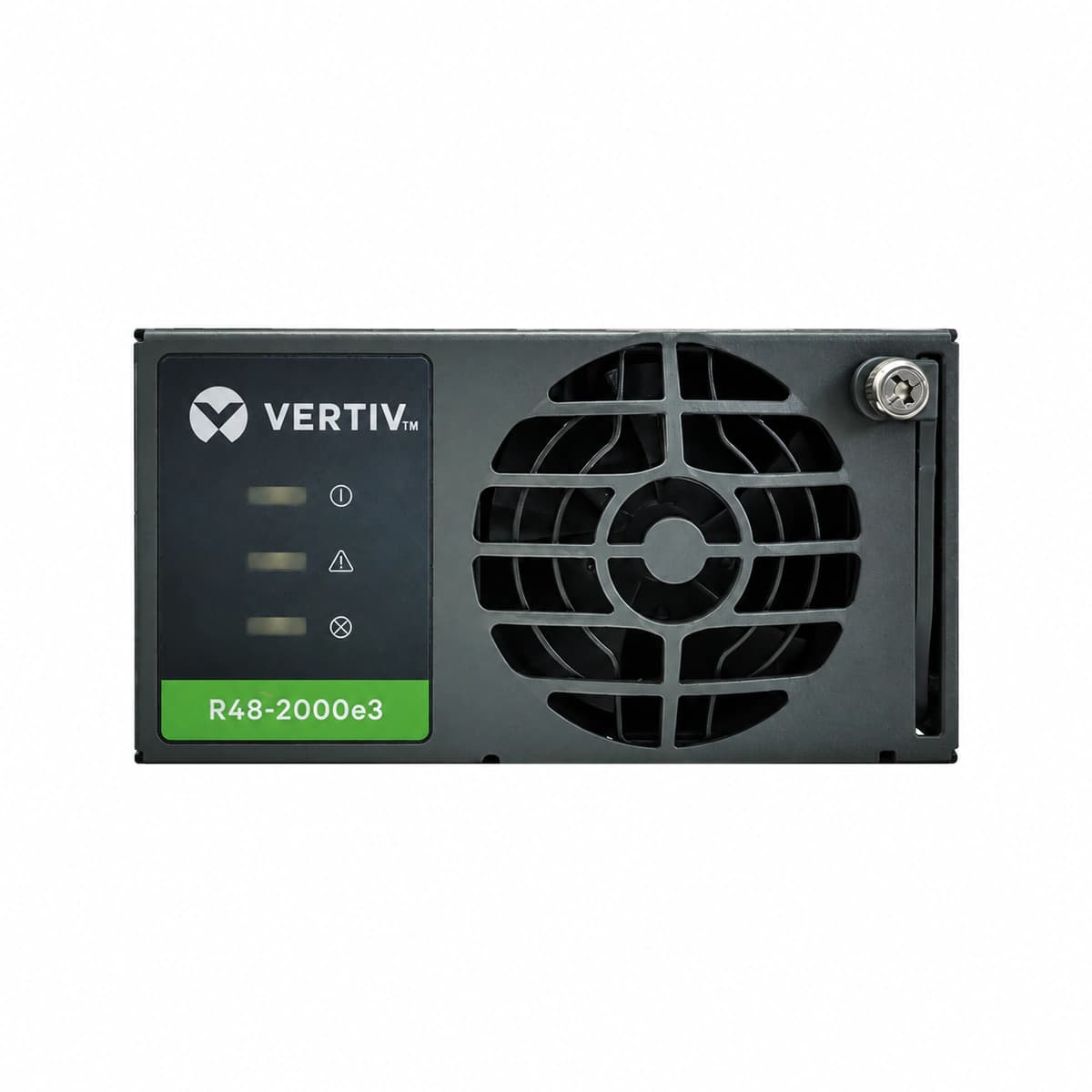

Vertiv R48-2000e3 High Efficiency Telecom Rectifier Module -48V 2000W

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Telecom macro and indoor distribution sites

Edge computing and aggregation facilities

Railway transport and industrial command centers

Frequently asked questions
