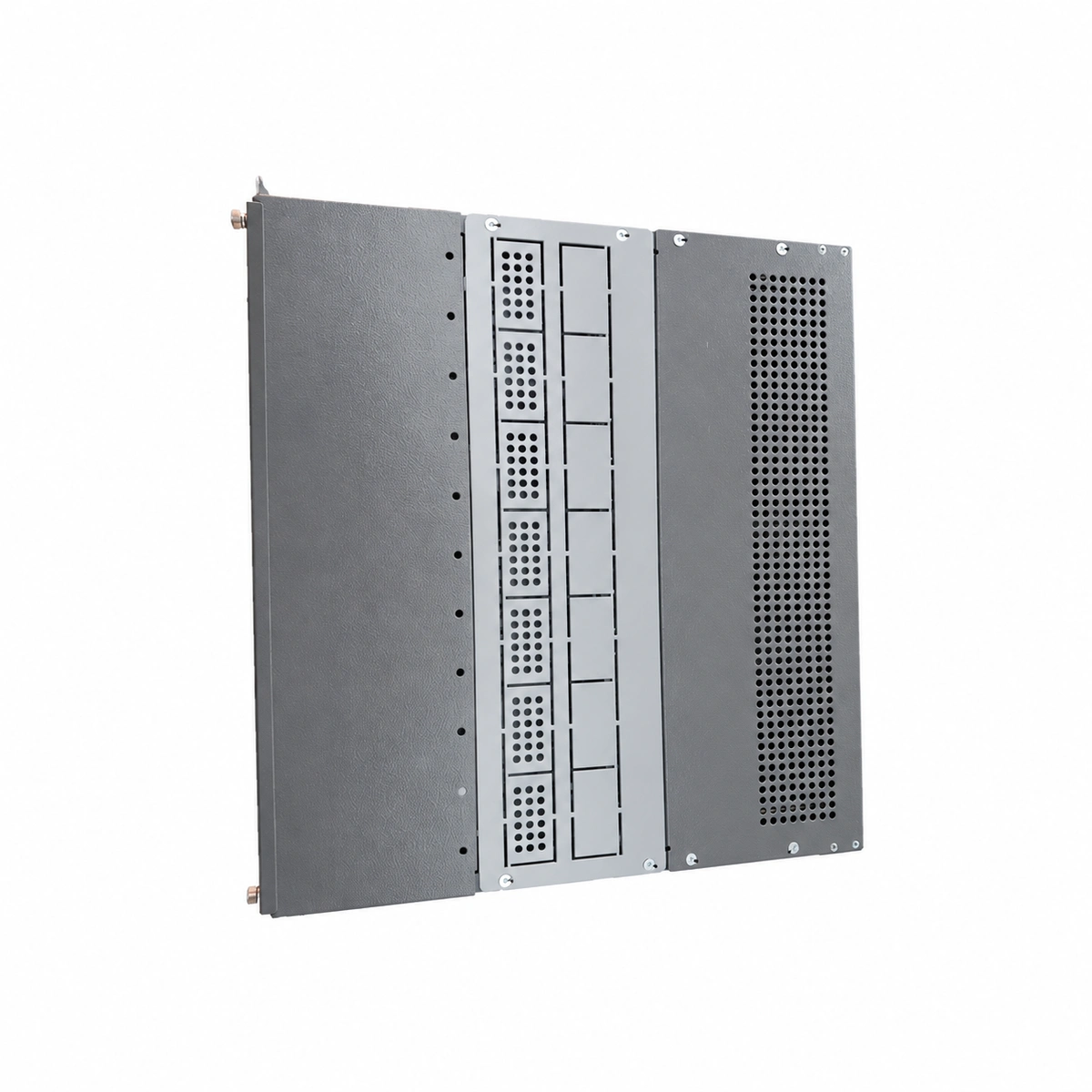

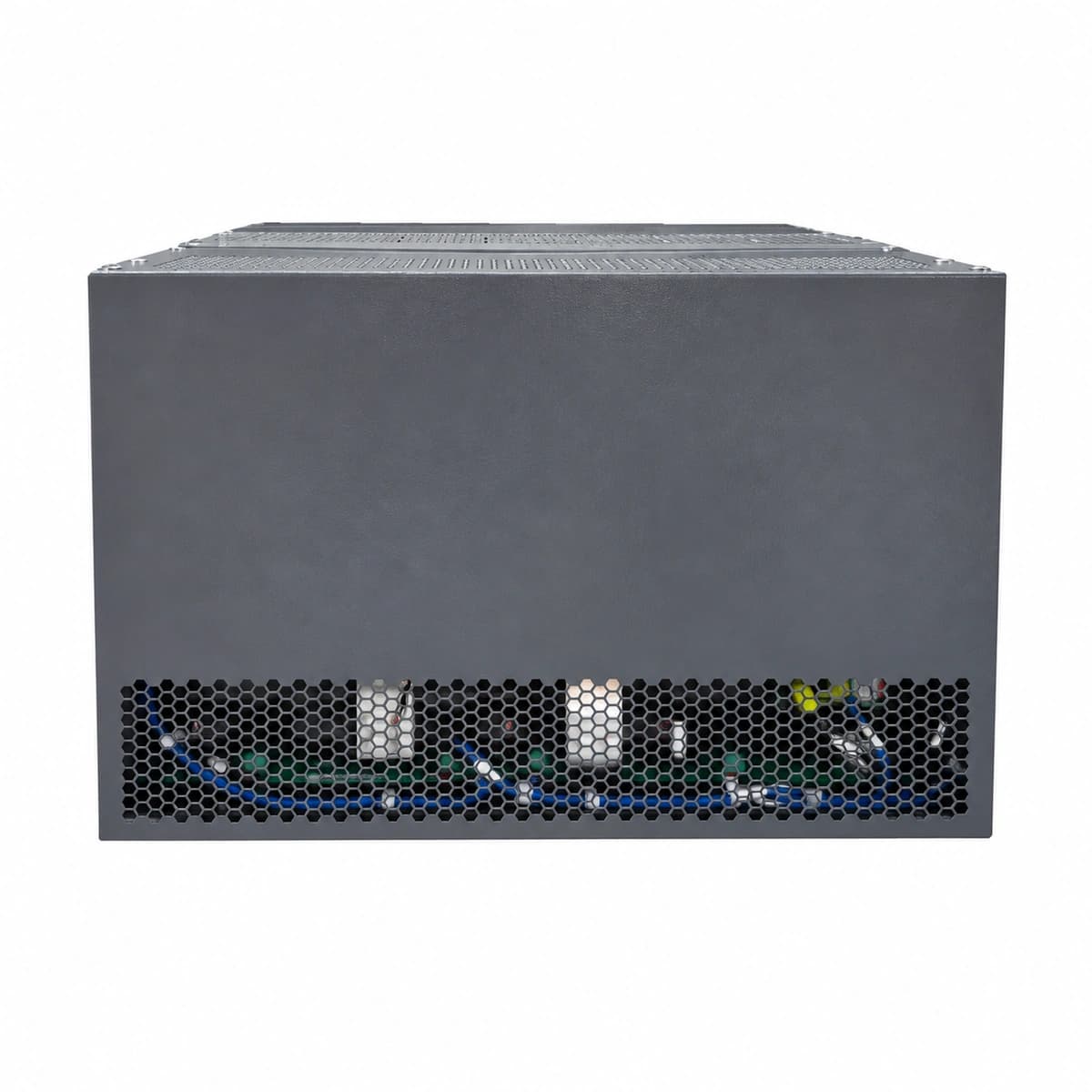

Vertiv NetSure 731 A61-S4 High-Capacity Subrack DC Power System (-48V 600A 6U)
The Vertiv NetSure 731 A61-S4 is a high-density 11U rack-mount -48VDC telecom power subrack engineered to house up to 10 high-efficiency R48-3200e or R48-3500e rectifiers, delivering up to 600A output.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 85VAC ~ 300VAC (3-Phase 5-Wire 380VAC) VAC
- Rated Output Current
- 600A (System Capacity 28.8kW)
- Peak Conversion Efficiency
- ≥96.5%
- Managed Rectifier Capacity
- 6 Slots for R48-3200e / R48-3500e3 Modules
- Smart Monitoring Controller
- NCU / M830B Central Monitoring System
What this product is
What this product is
It is a fully integrated telecom-grade subrack combining AC input distribution, DC power distribution, an intelligent supervisory controller (M530S or M830B), and rectifier slots into an 11U 19-inch form factor, designed for demanding telecom architectures.
What problem it solves
Solves space-constrained macro site distribution issues, minimizes energy conversion losses with 96%+ efficiency, and prevents catastrophic battery depletion via independent LLVD and BLVD contactor schemes.
Who and where it is for
Telecommunication central offices, wireless macro cellular base stations (4G/5G), optical transmission repeater hubs, and enterprise telecom rooms.
Core advantages
- Compact high-density architecture consolidating 600A capacity into an 11U subrack.
- Wide AC input range (85VAC to 300VAC) eliminating frequent battery switchover.
- Advanced battery health management with temperature compensation and dual LVD circuits.
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Voltage Range | 85VAC ~ 300VAC (3-Phase 5-Wire 380VAC) VAC |
| Smart Monitoring Controller | NCU / M830B Central Monitoring System |
| Cooling Method | Isolated duct forced air cooling |
| Nominal Output Voltage | -48VDC VDC |
| Rated Output Current | 600A (System Capacity 28.8kW) |
| Managed Rectifier Capacity | 6 Slots for R48-3200e / R48-3500e3 Modules |
| Form Factor Dimensions (HxWxD) | 266 (6U) × 482 × 380 mm |
| Peak Conversion Efficiency | ≥96.5% |
| Operating Temperature Range | -40°C ~ +65°C |
Applications
01
4G/5G macro cell site baseband and remote radio unit distribution
02
Metropolitan transmission nodes and central network exchanges
03
Broadband aggregation racks and enterprise industrial communication points
