VertivModel: NetSure 731 A61-S3

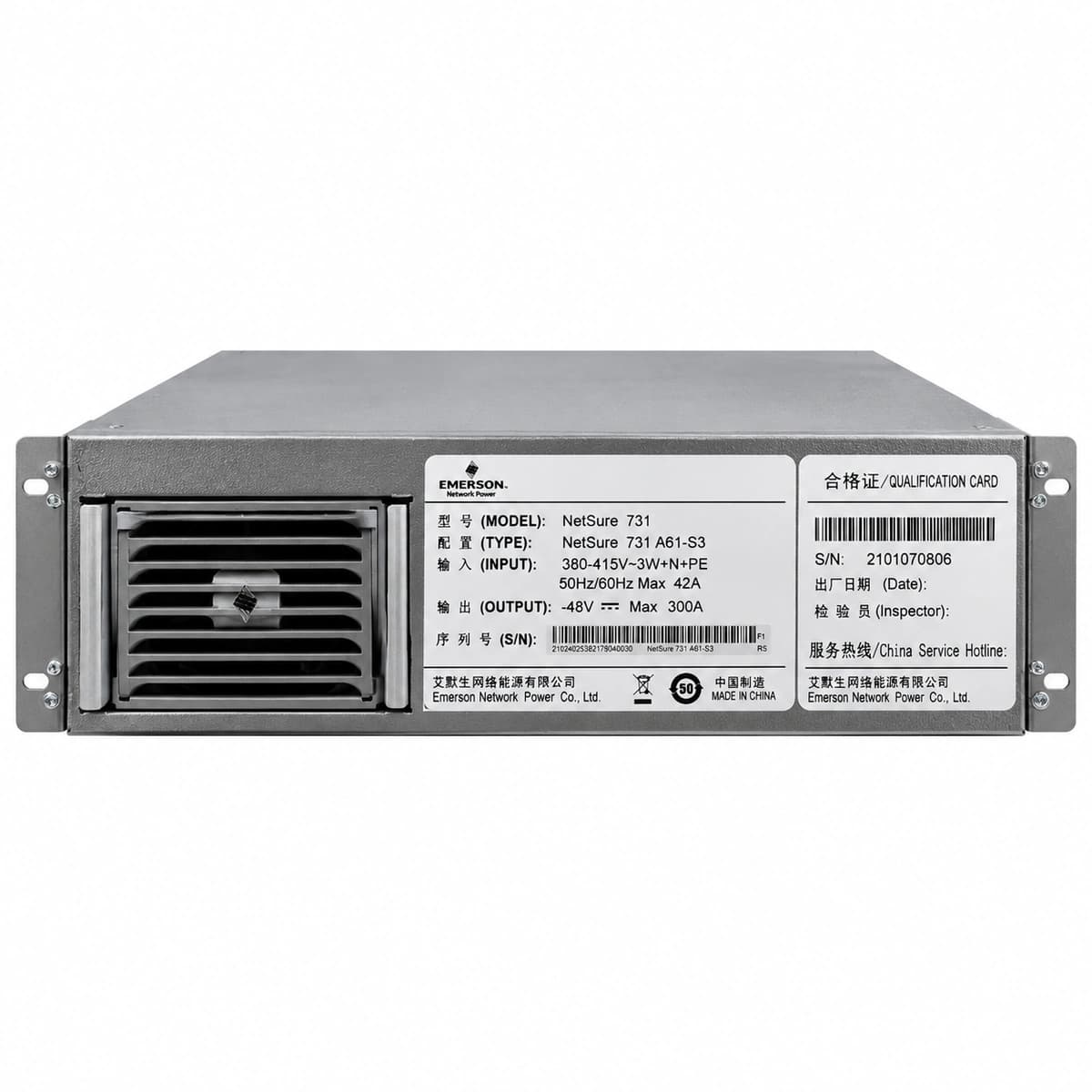

Vertiv NetSure 731 A61-S3 Subrack Switch-Mode DC Power System (-48V 300A 6U)

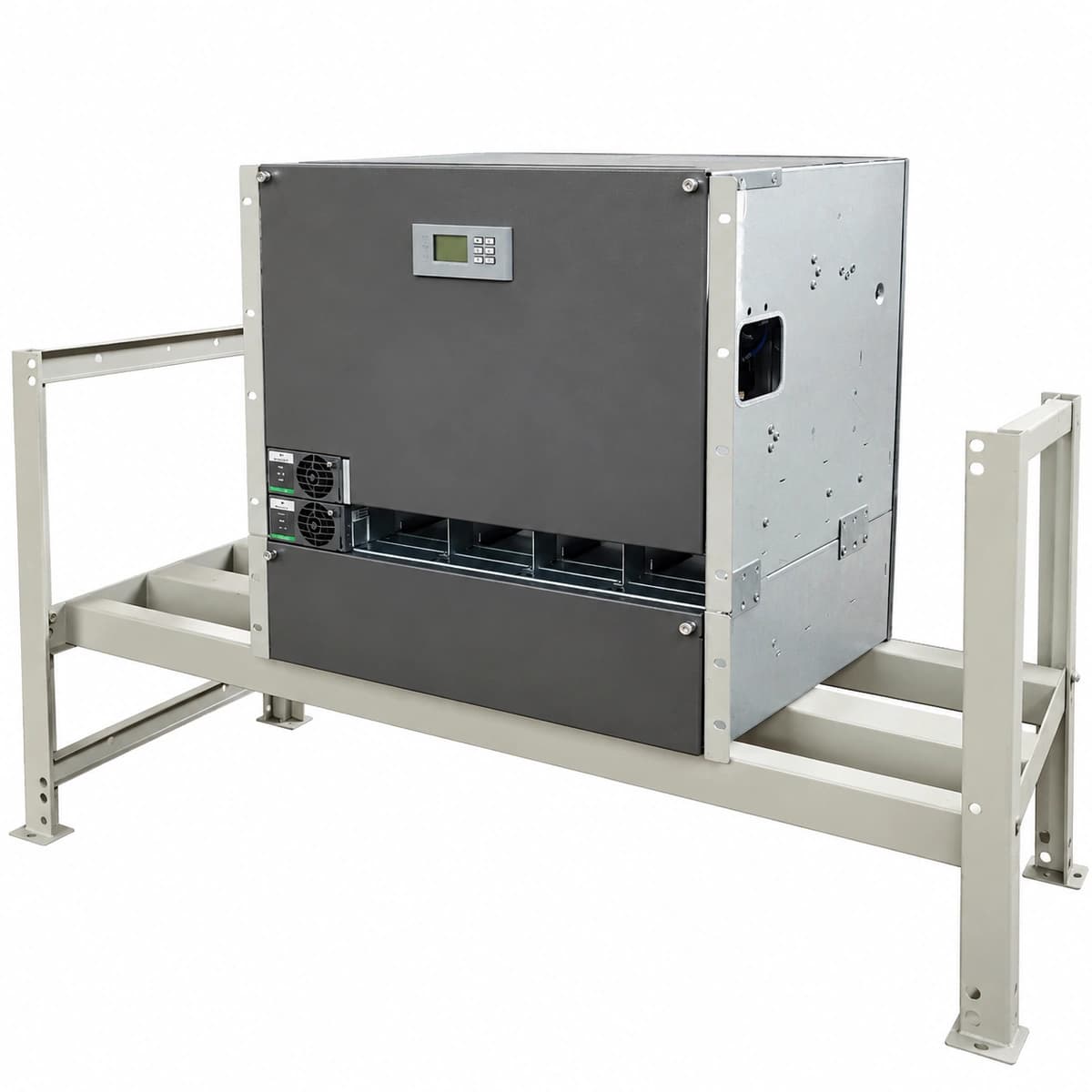

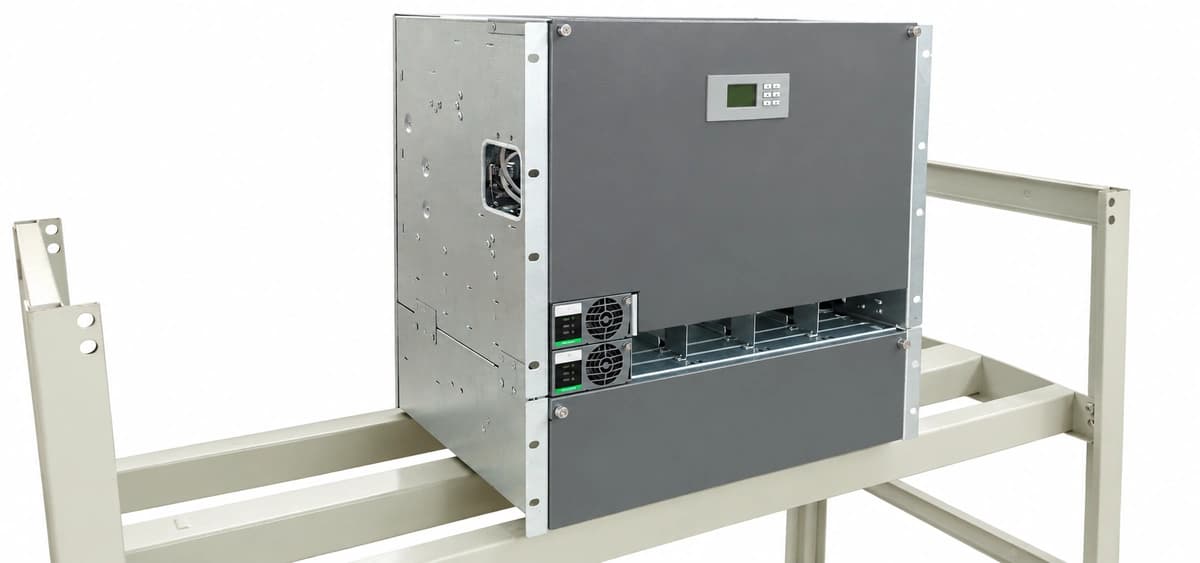

The Vertiv NetSure 731 A61-S3 is a 19-inch 6U rack-mounted, telecom-grade -48VDC high-frequency switch-mode power system with a maximum rating of 300A.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 85VAC ~ 300VAC (Nominal 220V/380VAC) VAC
- Rated Output Current
- 300A (System Capacity 14.4kW)
- Peak Conversion Efficiency
- ≥96.0%
- Managed Rectifier Capacity
- 4 Slots for R48-2900U Modules
- Smart Monitoring Controller
- M830B / NCU Controller
What this product is
What this product is

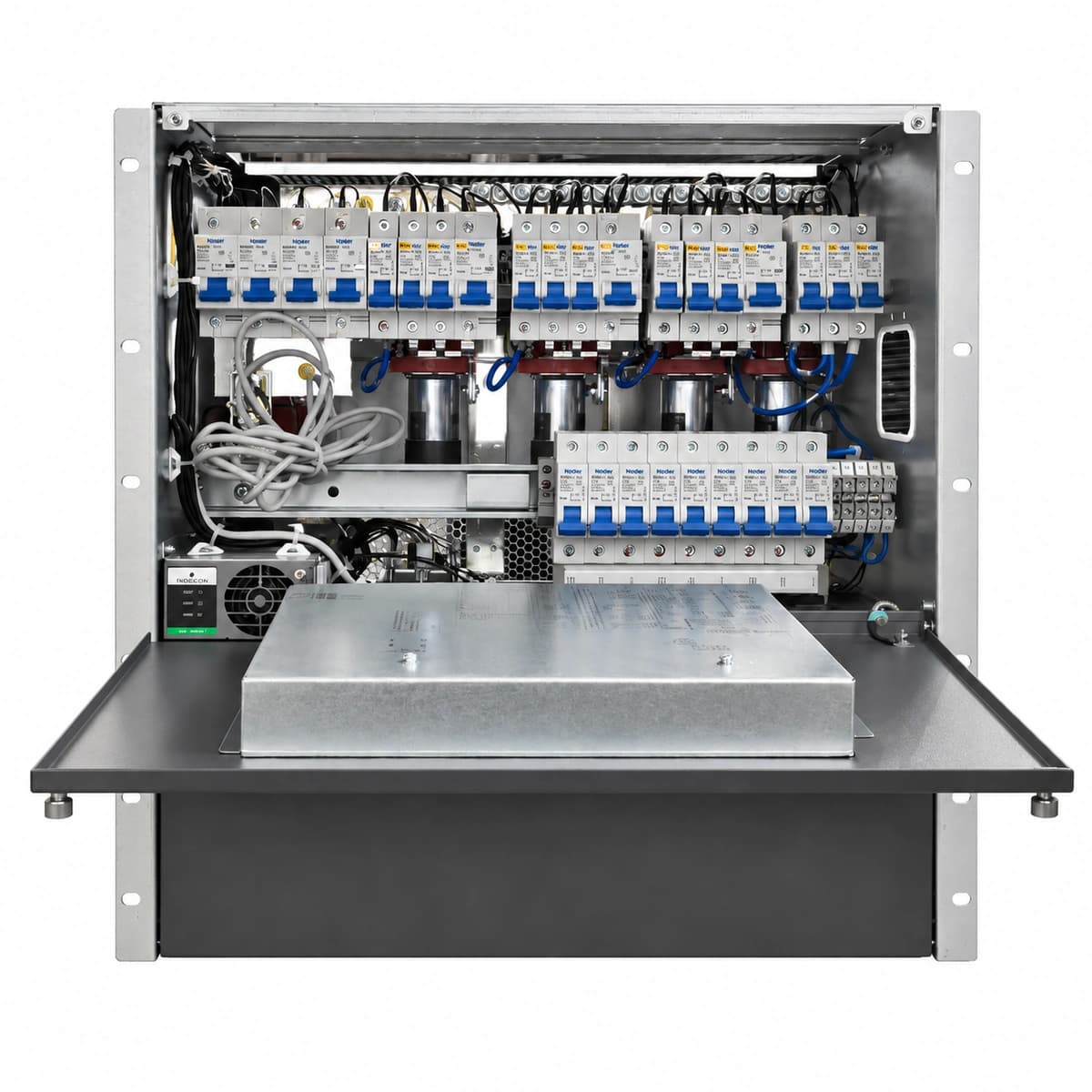

This subrack power solution integrates high-efficiency rectifiers, integrated AC/DC distribution breakers, and a digital controller (NCU/M830B). It converts fluctuating AC mains into clean, regulated -48V DC power while providing battery health management and dual LVD protection for critical network loads.
What problem it solves
Eliminates power conversion inefficiencies, solves footprint constraints in overcrowded telecom cabinets, and protects battery banks from catastrophic deep discharge during prolonged grid outages.
Who and where it is for
4G/5G macro cell sites, optical transport nodes, central office aggregation points, and enterprise edge data micro-modules.
Core advantages
- High efficiency exceeding 96.0% reduces thermal load and site operational expenditures
- Wide AC input range (85VAC to 300VAC) with derating protection for harsh grid environments
- Integrated dual-level LVD (LLVD and BLVD) for staged critical load shedding
- Full hot-swap modularity allows seamless live expansion and rapid MTTR reduction
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Voltage Range | 85VAC ~ 300VAC (Nominal 220V/380VAC) VAC |
| Smart Monitoring Controller | M830B / NCU Controller |
| Cooling Method | Forced Air Cooling |
| Nominal Output Voltage | -48VDC VDC |
| Rated Output Current | 300A (System Capacity 14.4kW) |
| Managed Rectifier Capacity | 4 Slots for R48-2900U Modules |
| Form Factor Dimensions (HxWxD) | 266 (6U) × 482 × 380 mm |
| Peak Conversion Efficiency | ≥96.0% |
| Operating Temperature Range | -40°C ~ +65°C |
Applications
01
Wireless baseband unit (BBU) and remote radio head (RRH) power distribution
02
Optical transport, DWDM, and IP core router edge DC feed
03
Industrial SCADA and railway signaling backhaul DC infrastructure
