Question 1

What are the core electrical specifications and peak conversion efficiency of the Vertiv NetSure 731 A41-S8 DC power system?

Accepted Answer

The NetSure 731 A41-S8 (SKU: VERTIV-SYS-NS731-A41-S8) is engineered for core telecom hubs and aggregation nodes, providing a nominal -48V DC output (adjustable from -42 to -58V DC) with a maximum system capacity of 600A. Powered by a three-phase AC input spanning 85 to 300 VAC, the cabinet houses up to 8 rectifier slots compatible with R48-3500e3 or R48-4000e modules. The system achieves a peak energy conversion efficiency exceeding 96.5%, paired with high power factor correction (PF ≥ 0.99) and low harmonic distortion (THD ≤ 5%), significantly lowering data center PUE and cooling demands.

Question 2

What compatibility, hot-swap, and expansion mechanisms does the NetSure 731 A41-S8 support for rectifier modules?

Accepted Answer

The system is driven by an advanced NCU (NetSure Control Unit) featuring a touchscreen display and autonomous CAN bus active current sharing, maintaining load imbalance within ±3%. It supports live hot-swapping and seamless expansion for both R48-3500e3 and R48-4000e modules. The NCU automatically identifies rectifier addresses and synchronizes float/equalize charging profiles. During mixed-capacity expansion, firmware-based dynamic current-limiting safeguards busbar integrity, while robust northbound protocol support (SNMPv3, Modbus TCP/RTU) facilitates integration with upstream OSS/DCIM infrastructure.

Question 3

How do the surge protection, thermal management, and battery protection designs of NetSure 731 A41-S8 ensure high reliability in harsh environments?

Accepted Answer

NetSure 731 A41-S8 features an IP20 floor-standing cabinet rated for operating temperatures from -40°C to +65°C (linear derating above +45°C). The AC input incorporates integrated Class B/C surge protection devices (nominal 20kA, max 40kA, 8/20μs). The DC distribution architecture includes two-stage Low Voltage Disconnect (LLVD for non-critical loads and BLVD for battery deep-discharge protection). Featuring a front-to-top forced-air cooling path, it eliminates internal hot spots, maintaining an exceptional system MTBF exceeding 350,000 operational hours.

Key specifications	Value
System Output Capacity	600 A
Nominal Output Voltage	-48 VDC
Output Voltage Range	-42 ~ -58 VDC
AC Input Voltage Range	85 ~ 300 VAC (three-phase input)
Rectifier Module Slots	8 Slots (Supports R48-3500e3 / R48-4000e)
System Monitoring Controller	NCU (NetSure Control Unit) monitoring with color touchscreen
System Comprehensive Efficiency	> 96.5% (ultra-high-efficiency telecom power system)
Ingress Protection (IP Rating)	IP20 standalone floor-standing cabinet
Physical Dimensions Spec	2000 × 600 × 600 mm
Operating Temperature	-20°C ~ +65°C

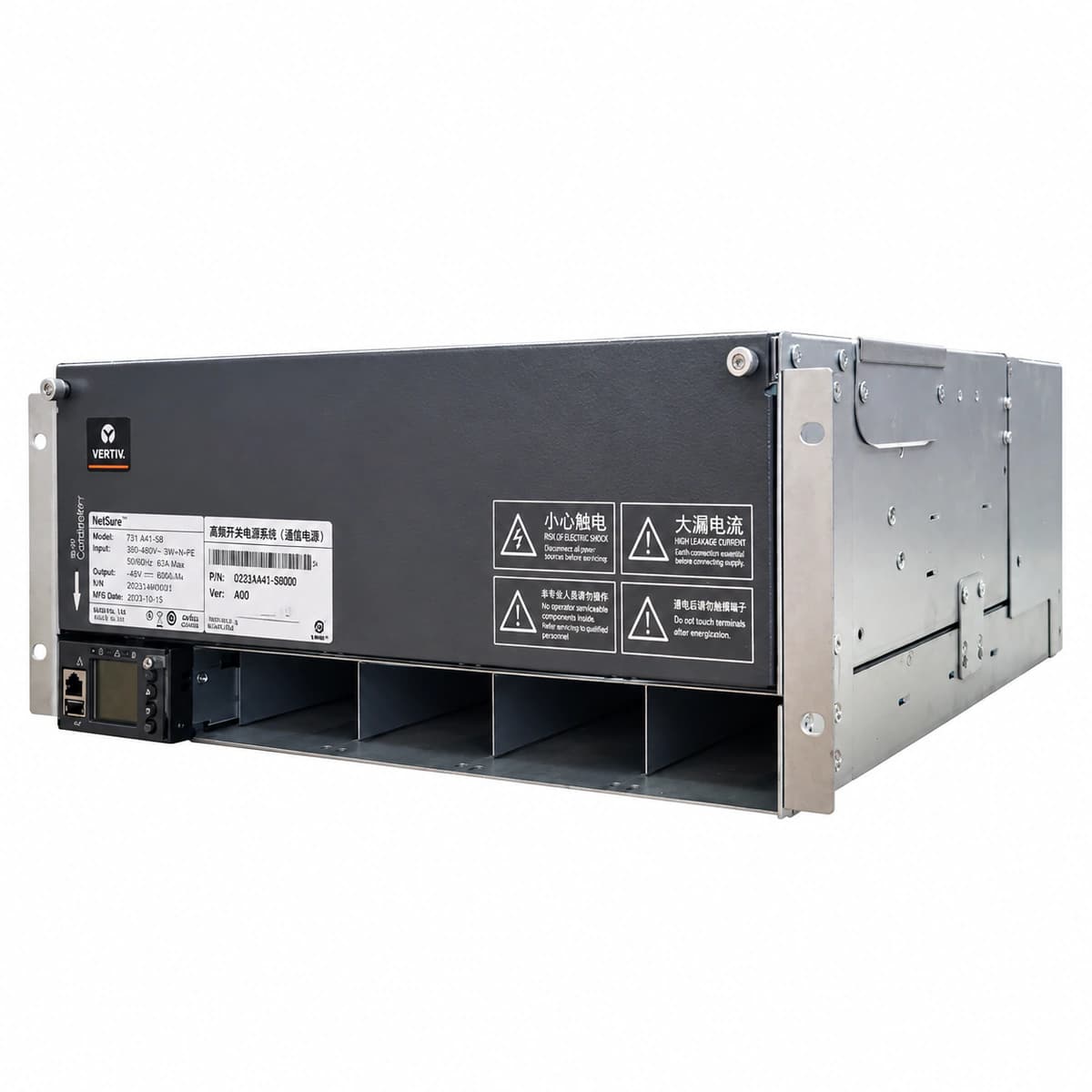

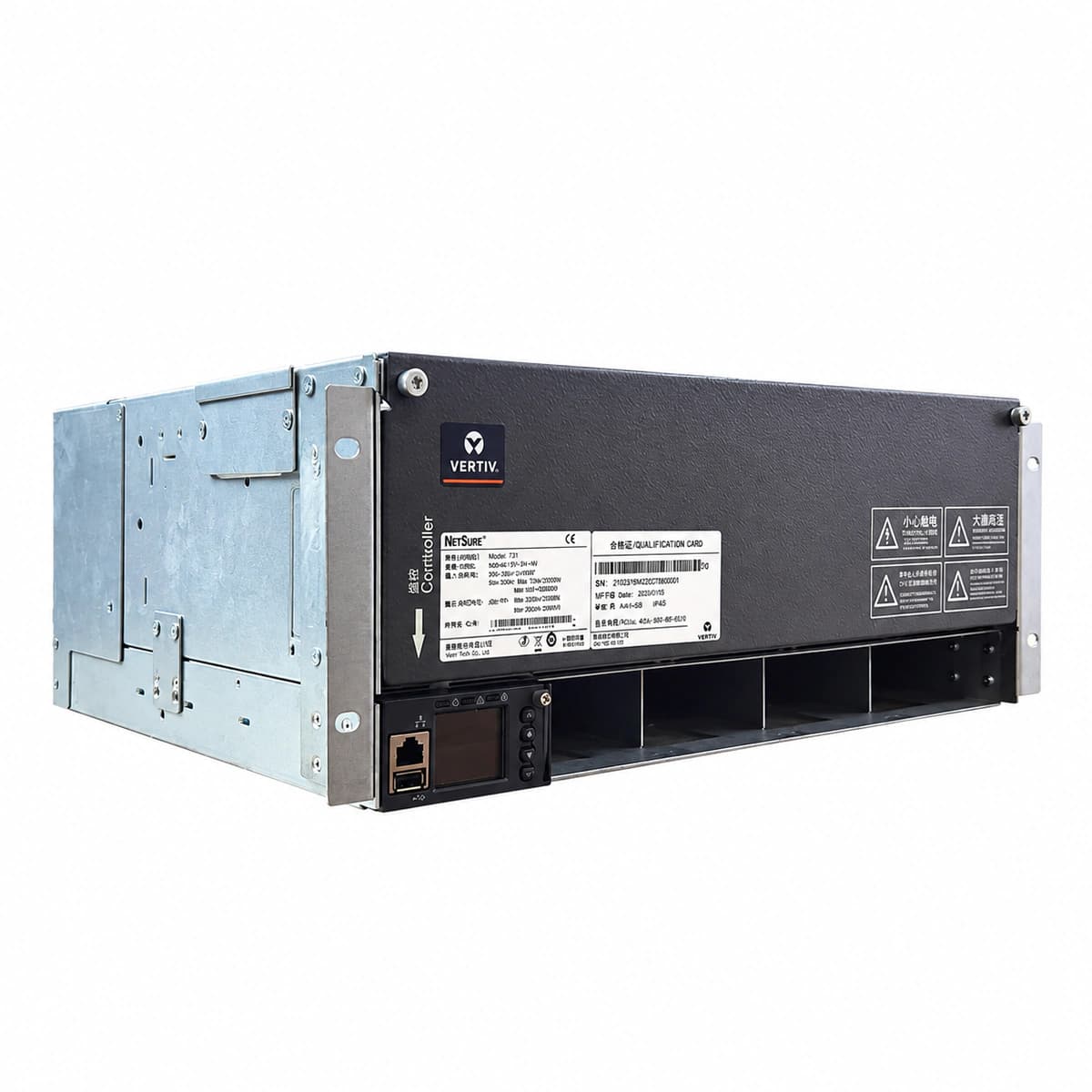

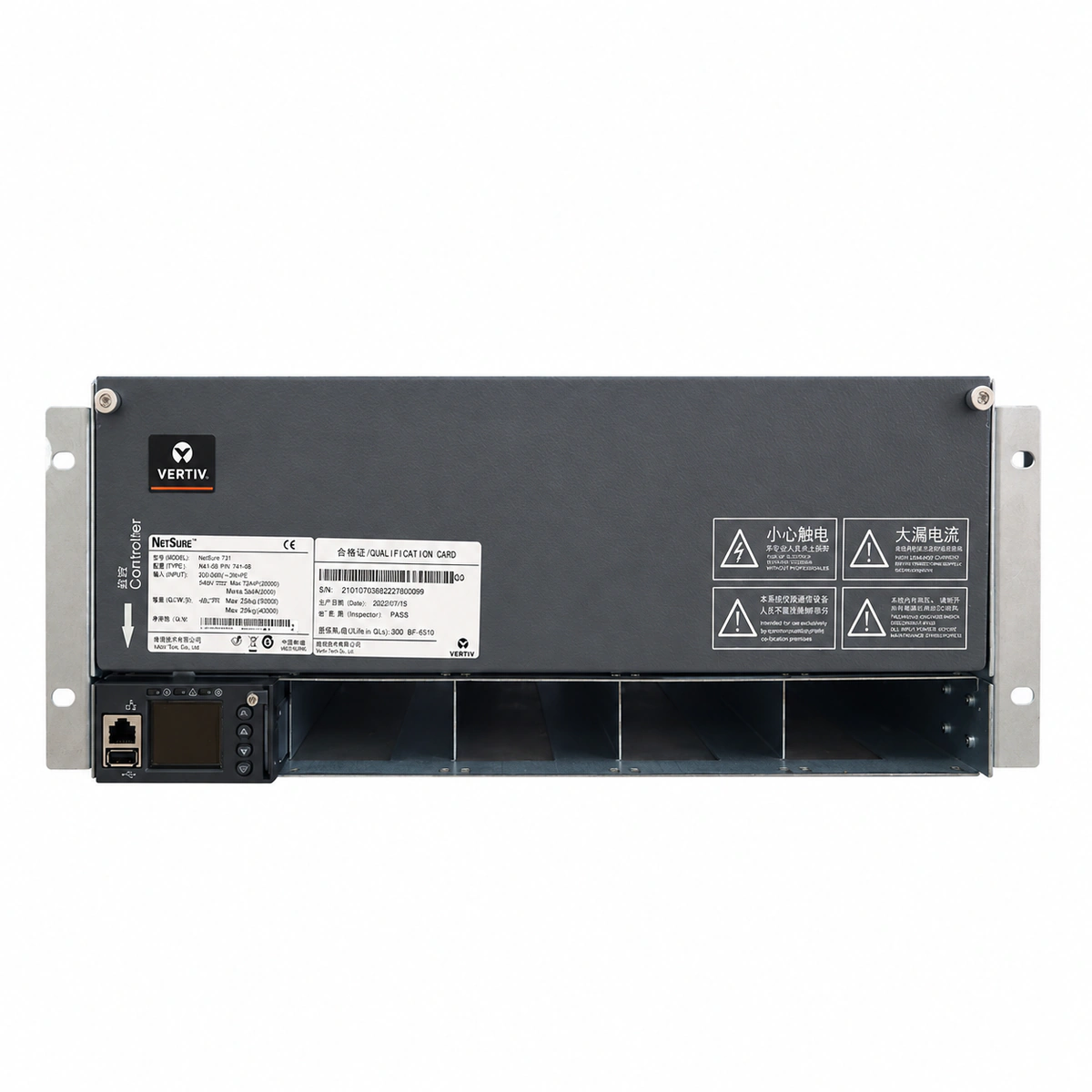

Vertiv NetSure 731 A41-S8 Large Cabinet DC Power System (-48V 600A 8-Slot)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Carrier central office sites

5G aggregation telecom centers

Enterprise colocation facility power

Frequently asked questions
