Q: How does the NetSure 531A41-S2 ensure reliability under extreme conditions regarding surge suppression, temperature range, and dual LVD battery protection?

Engineered for harsh telecom edge environments, the system operates across an ambient temperature range of -40°C to +75°C (with linear derating starting above +45°C) and utilizes smart variable-speed forced-air cooling compliant with ETSI 300 019 vibration standards. The integrated AC PDU incorporates Class C surge protection (nominal 20kA, maximum 40kA at 8/20μs). The DC distribution provides dual Low Voltage Disconnect contactors (LLVD for shedding non-critical loads, BLVD for preventing battery deep discharge), coupled with precise battery temperature compensation and automatic SOH testing to protect battery lifespan in unstable grid scenarios.

Question 1

What are the core electrical specifications, input voltage tolerances, and maximum output capacities of the Vertiv NetSure 531A41-S2?

Accepted Answer

The NetSure 531A41-S2 is an embedded 19-inch 3U power shelf supporting an AC input range of 85VAC to 290VAC (single-phase, with full load rated at 176–290VAC and linear derating below 176VAC). Featuring 4 rectifier slots compatible with R48-1000 and R48-2000 series modules, it delivers up to 120A continuous DC output at a nominal -48V DC (adjustable between -42V and -58.5V DC). When paired with high-efficiency R48-2000e rectifiers, the system achieves peak conversion efficiency exceeding 96%, a power factor of ≥0.99, and THD ≤5%, significantly reducing cooling load and energy waste at edge nodes and telecom base stations.

Question 2

What engineering capabilities does the system offer regarding rectifier compatibility, hot-swap scalability, current sharing, and monitoring protocols?

Accepted Answer

The system features 100% hot-swappable modular expansion, accommodating Vertiv R48-1000, R48-2000, and R48-2000e rectifiers in any slot combination. Rectifiers leverage autonomous digital current sharing with imbalance under <±5%, preventing bus dropouts upon single unit fault. Supervision is driven by M530S or M221S controller modules communicating via CAN bus. External Northbound interfaces include a 10/100M Ethernet port (SNMP v3, HTTPS, embedded Web GUI) and RS485/RS232 ports supporting standard Modbus and telecom-grade protocols (YD/T 1363), allowing transparent integration into third-party OSS/DCIM platforms.

Question 3

How does the NetSure 531A41-S2 ensure reliability under extreme conditions regarding surge suppression, temperature range, and dual LVD battery protection?

Accepted Answer

Engineered for harsh telecom edge environments, the system operates across an ambient temperature range of -40°C to +75°C (with linear derating starting above +45°C) and utilizes smart variable-speed forced-air cooling compliant with ETSI 300 019 vibration standards. The integrated AC PDU incorporates Class C surge protection (nominal 20kA, maximum 40kA at 8/20μs). The DC distribution provides dual Low Voltage Disconnect contactors (LLVD for shedding non-critical loads, BLVD for preventing battery deep discharge), coupled with precise battery temperature compensation and automatic SOH testing to protect battery lifespan in unstable grid scenarios.

Key specifications	Value
AC Input Voltage Range	85VAC ~ 290VAC single-phase VAC
Nominal DC Output Voltage	-48 V DC
System Output Capacity	A
Rectifier Module Slots	4 × R48-1000/2000A Slots
Physical Dimensions Spec	132 (3U) × 483 × 310 mm
System Monitoring Controller	M530S / M221S

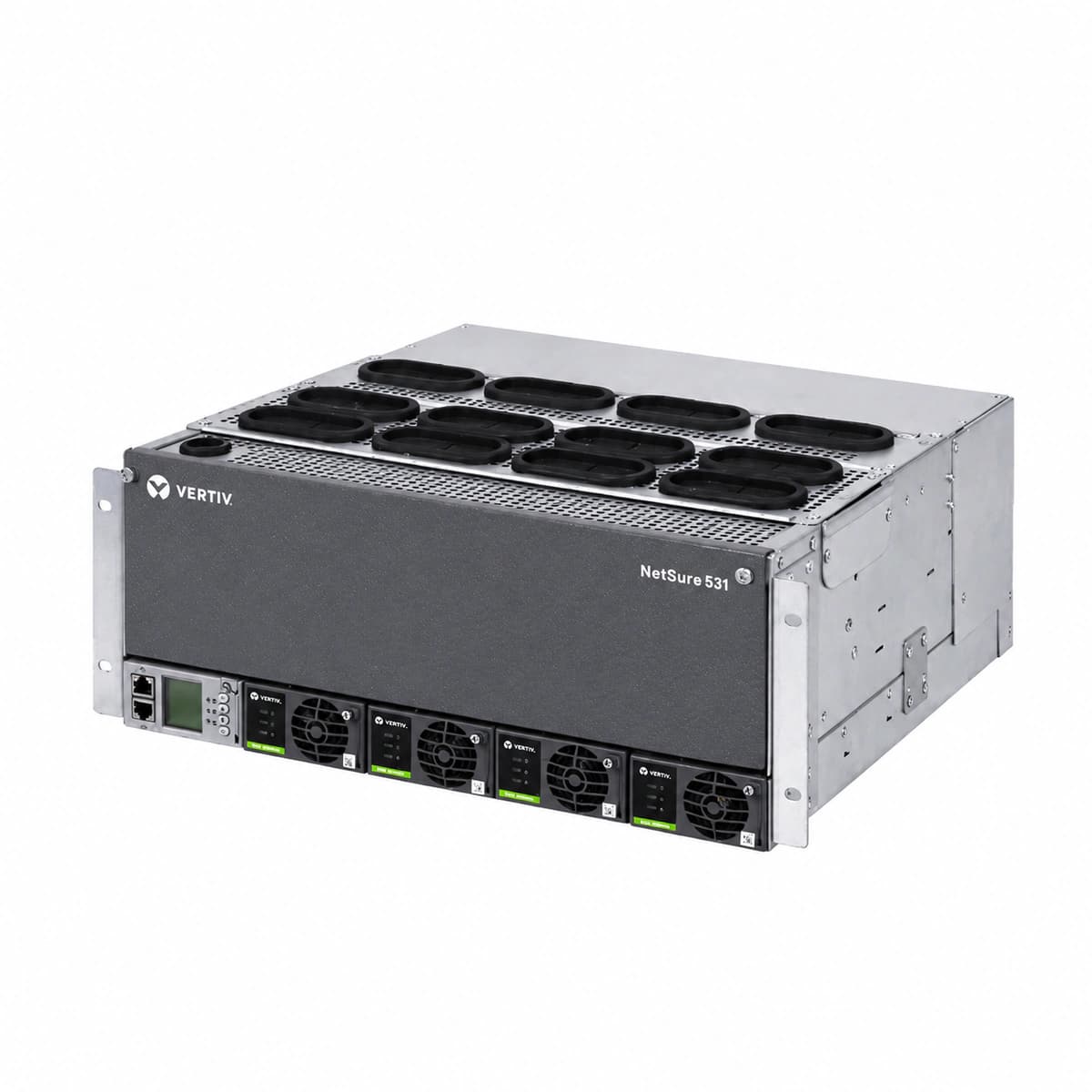

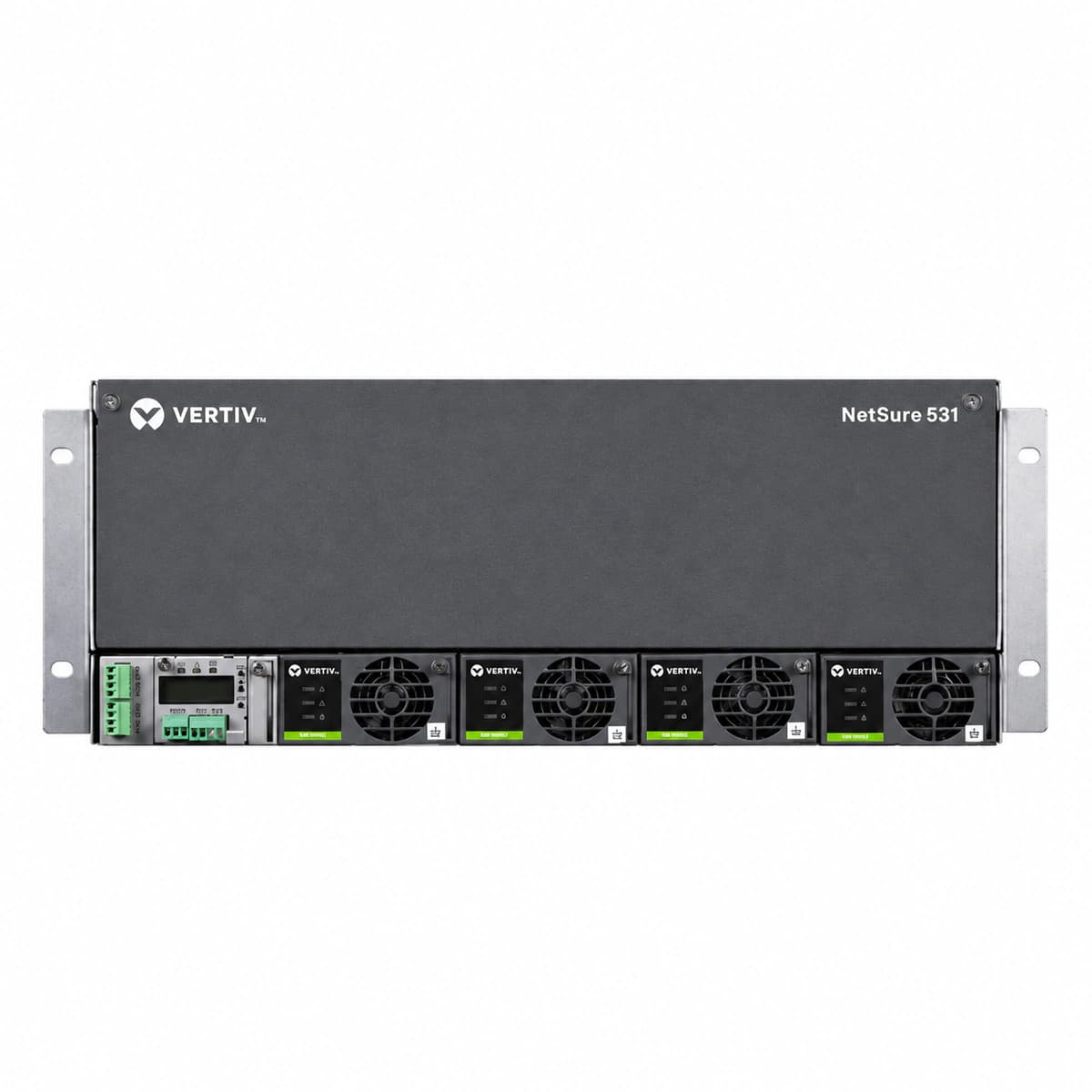

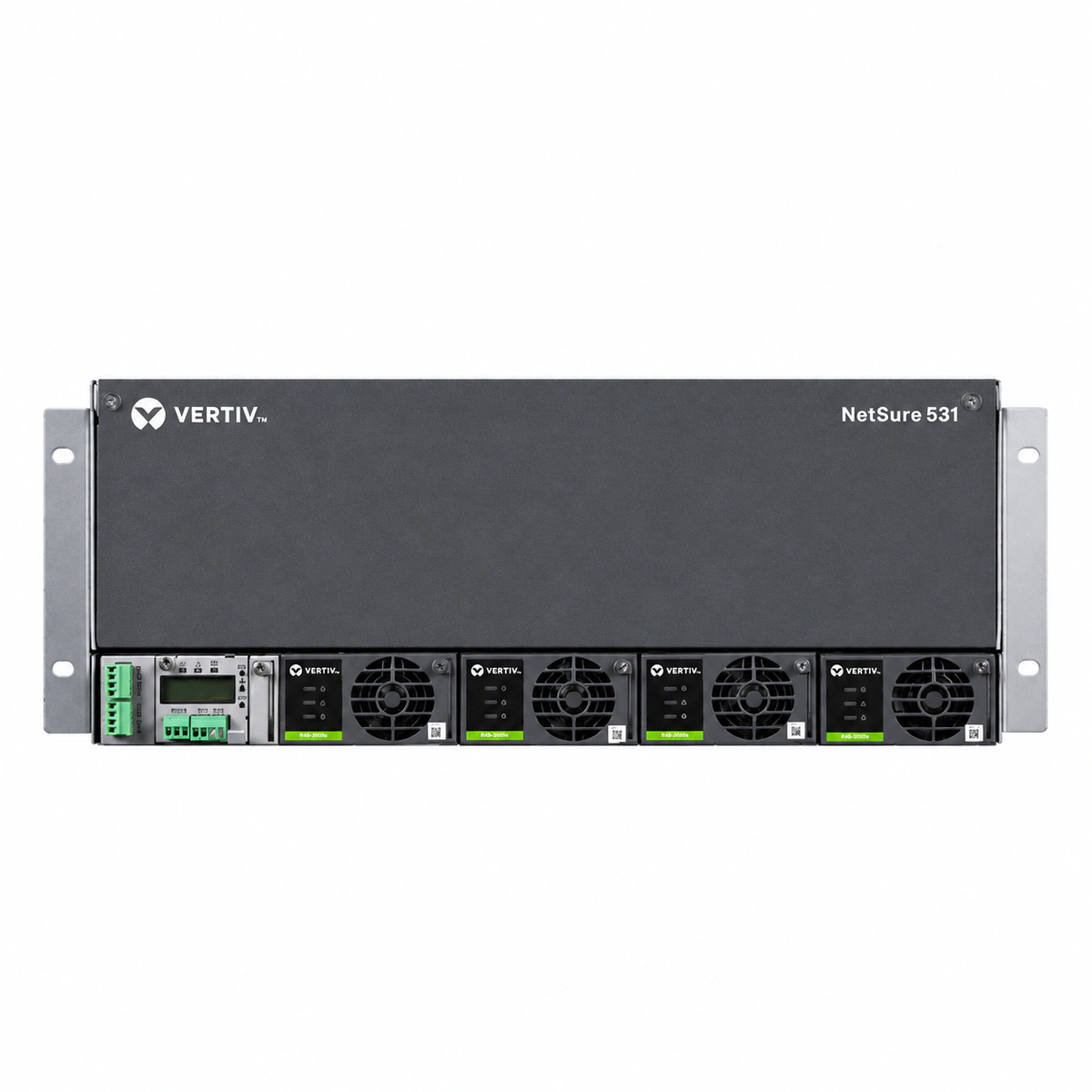

Vertiv NetSure 531A41-S2 Embedded DC Power System -48V 120A 3U

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Cellular Macro BTS Shelters

Core Optical Fiber Transmission Offices

Transit Traction Communication Rooms
