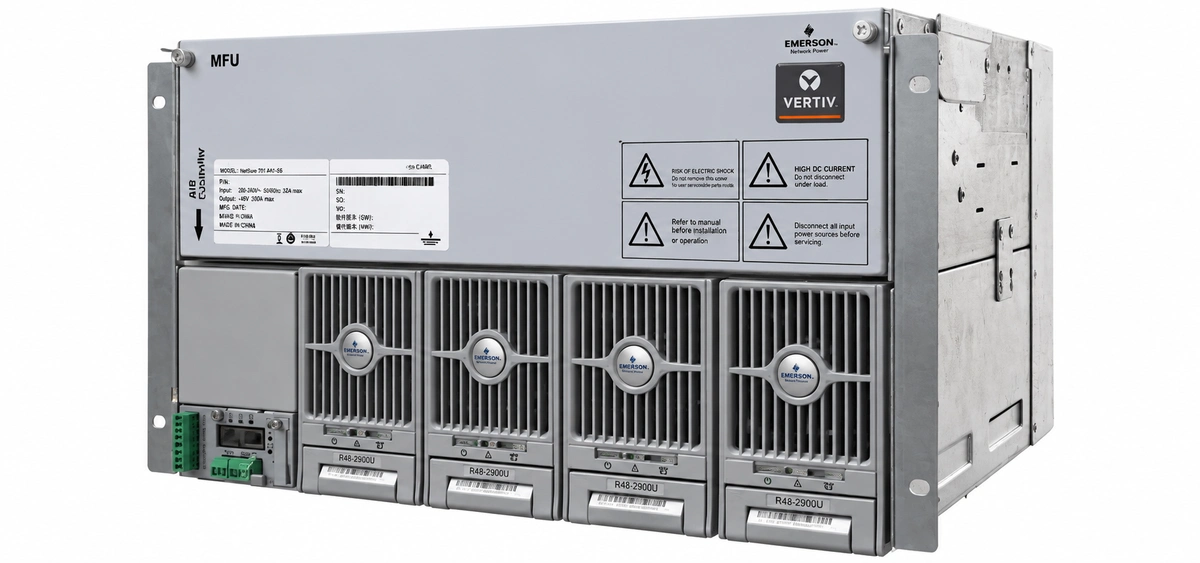

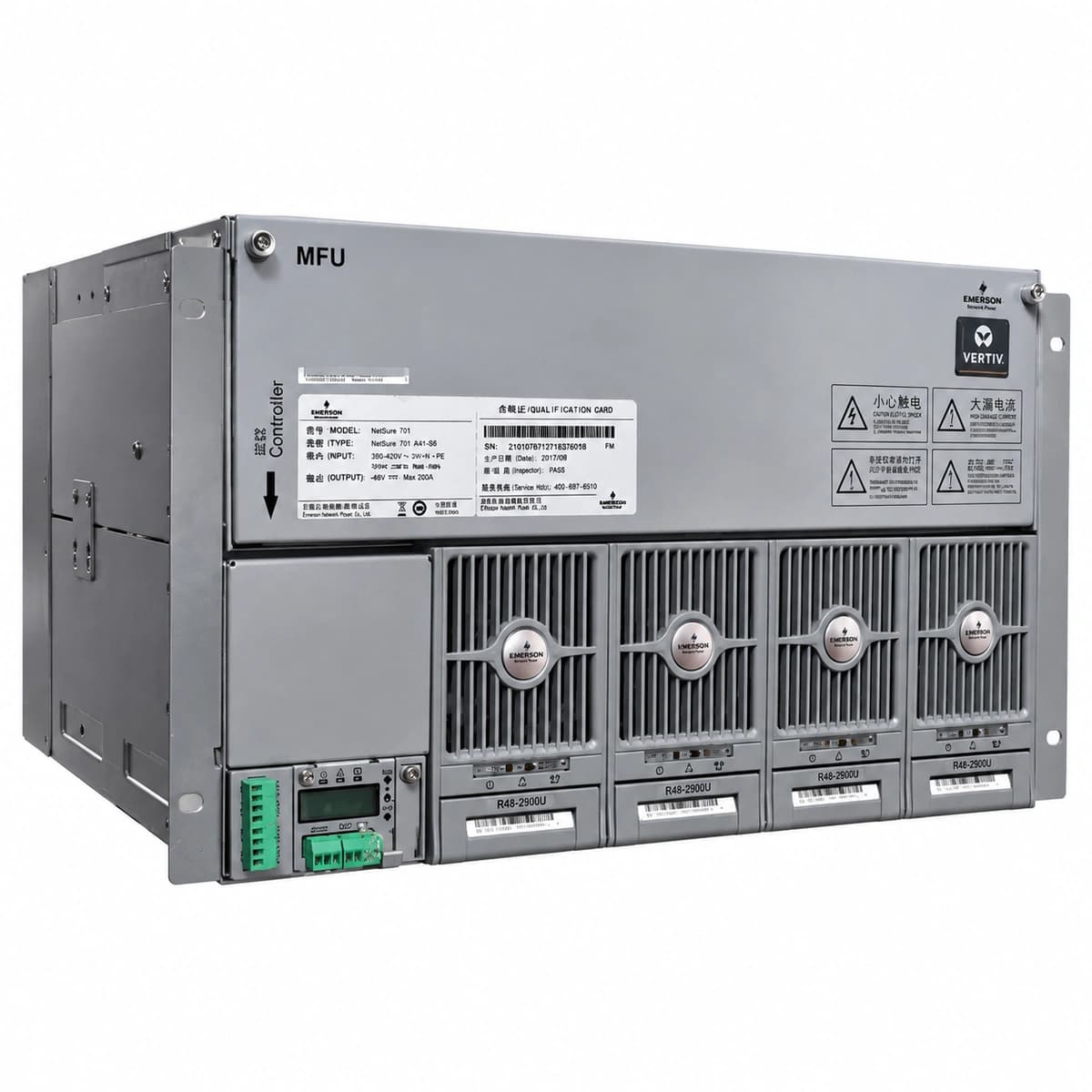

Vertiv NetSure 701 A41-S6 Subrack Telecom Switch-Mode Power System (-48V 400A 5U)
The Vertiv NetSure 701 A41-S6 is a 6U 19-inch rack-mounted -48VDC telecom-grade power system engineered for up to 400A output, integrating high-efficiency rectifier slots, AC/DC distribution, and an M530S/NCU controller.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 85VAC ~ 300VAC (3-Phase 380V / 1-Phase 220V) VAC
- Rated Output Current
- 400A (System Capacity 19.2kW)
- Peak Conversion Efficiency
- ≥96.0%
- Managed Rectifier Capacity
- 4 Slots for R48-2900U / R48-3200e Modules
- Smart Monitoring Controller
- M830B / NCU Controller
What this product is
What this product is

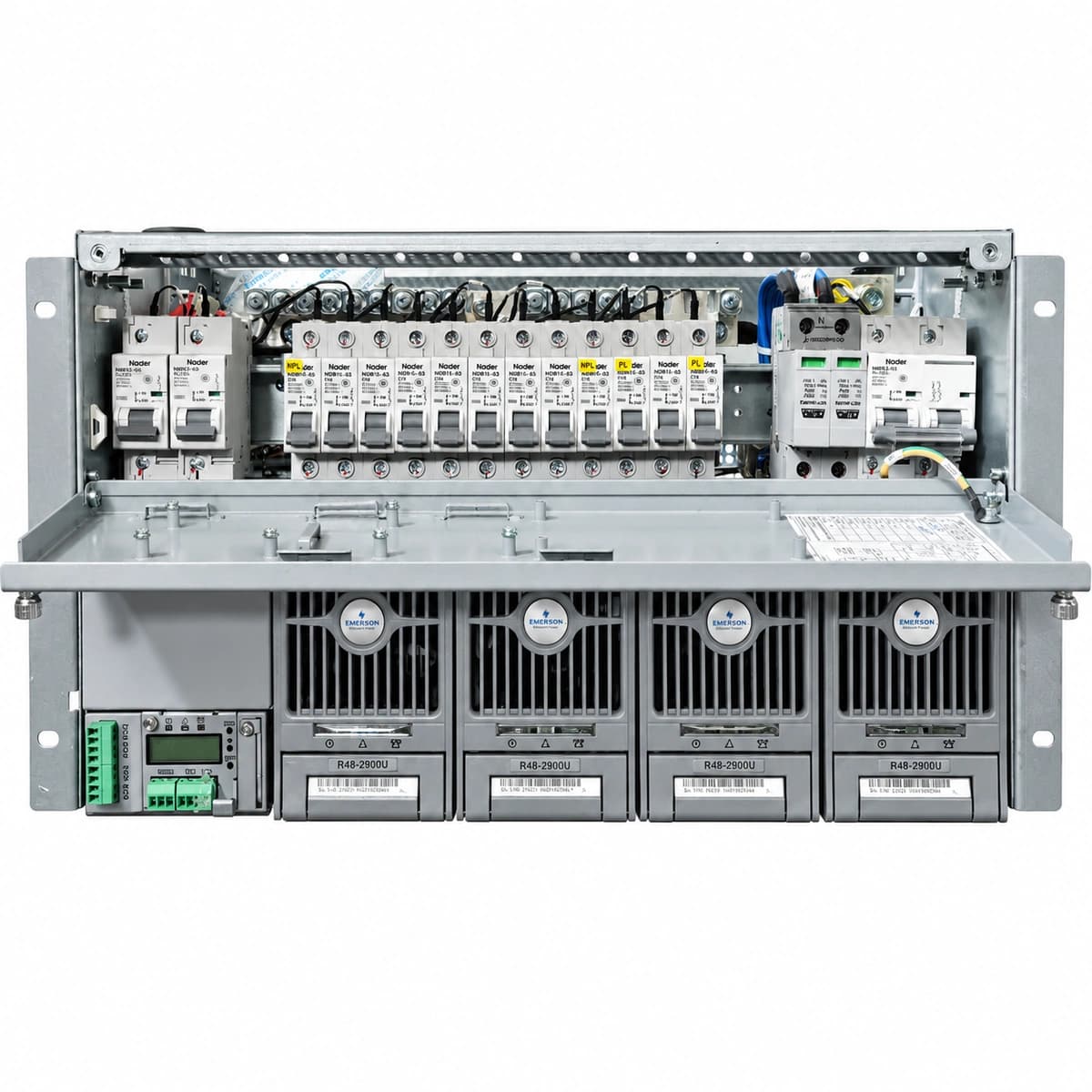

An integrated subrack telecom power solution by Vertiv designed to supply robust, uninterrupted -48V direct current to critical network hardware. It consolidates AC utility distribution, rectifier shelves accommodating up to six hot-swappable e-series rectifiers, DC load distribution, and intelligent supervisory logic into a standard 6U chassis.
What problem it solves
Eliminates footprint constraints in dense telecom shelters, minimizes inter-chassis cabling faults, mitigates severe grid surges via wide input voltage tolerance, and prevents catastrophic battery cell damage using configurable LLVD/BLVD isolation.
Who and where it is for
Wireless macro base stations, central office broadband access aggregation, transmission hub sites, and critical industrial -48VDC control systems.
Core advantages
- Ultra-high power density delivering up to 400A inside a standard 6U 19-inch subrack enclosure
- Wide AC operating input window (85VAC to 300VAC) with high reliability in weak grid conditions
- Fully modular hot-swappable design with active autonomous current sharing imbalance <±3%
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Voltage Range | 85VAC ~ 300VAC (3-Phase 380V / 1-Phase 220V) VAC |
| Smart Monitoring Controller | M830B / NCU Controller |
| Cooling Method | Forced Air Cooling |
| Nominal Output Voltage | -48VDC VDC |
| Rated Output Current | 400A (System Capacity 19.2kW) |
| Managed Rectifier Capacity | 4 Slots for R48-2900U / R48-3200e Modules |
| Form Factor Dimensions (HxWxD) | 222 (5U) × 482 × 380 mm |
| Peak Conversion Efficiency | ≥96.0% |
| Operating Temperature Range | -40°C ~ +65°C |
Applications
01
5G/4G macro base station BBU/RRU centralized telecom power infrastructure
02
Optical Transport Network (OTN) and metro aggregation nodes
03
Substation SCADA automation and utility communication network power
