Question 1

How should DC distribution and battery cables be sized and calculated for the NetSure 531 A31-S2?

Accepted Answer

Cable sizing must satisfy both current-carrying capacity (ampacity) and permissible loop voltage drop standards. For a nominal 120A system, battery discharge current can reach approximately 138A at the critical low-voltage cutoff (-43.2VDC). Use flame-retardant copper cables of at least 35mm² to 50mm² for the battery branch. Per standard telecom specifications, total two-way DC loop drop between batteries and subrack must not exceed 0.5V. Calculate cross-section using S = (2 × L × I) / (K × ΔU), where S is cross-sectional area in mm², L is one-way distance in meters, I is maximum current in amperes, K is conductivity (copper = 57 m/(Ω·mm²)), and ΔU is allowable loop voltage drop in volts.

Question 2

How should the LLVD and BLVD disconnection thresholds be configured on the NetSure 531 A31-S2 to balance battery protection and service availability?

Accepted Answer

The system features dual contactors independently orchestrated by the supervisory controller for Load Low Voltage Disconnect (LLVD) and Battery Low Voltage Disconnect (BLVD). For standard VRLA battery strings, recommended baseline settings are: LLVD set between -45.0VDC and -45.5VDC (with a 10–60s confirmation filter) to shed non-essential loads (e.g., cooling fans, non-critical coverage transmitters) and reserve remaining capacity for critical transmission; BLVD set between -43.2VDC and -44.0VDC to completely isolate the battery string from the bus, preventing irreversible cell reversal or sulfation damage caused by deep over-discharge. Contactors automatically reclose when AC mains recover and DC bus voltage climbs above the restore threshold (typically -48.0VDC).

Question 3

What is the operational logic for battery temperature compensation on the NetSure 531 A31-S2, and where should temperature sensors be physically installed?

Accepted Answer

Battery float voltage must adapt to internal electrochemical dynamics based on temperature. With +25°C as the reference point (standard float voltage -53.5VDC), the controller reads external NTC temperature sensors and adjusts rectifier output voltage by a configured coefficient (typically -3mV/°C/Cell, equating to -72mV/°C for a 24-cell 48V string). When ambient temperature rises, voltage decreases to prevent electrolyte dry-out and thermal runaway; in cold conditions, voltage rises to guarantee full chemical recharge. Installation rule: The probe must never hang loosely in the ambient air. It must be firmly affixed using thermal conductive tape to the sidewall of a central battery monobloc, or secured to a central negative terminal busbar sleeve where internal cell heat is most accurately measured.

Key specifications	Value
AC Input Voltage Range	85VAC ~ 300VAC (Nominal 220VAC) VAC
Smart Monitoring Controller	M221S / M522B Controller Unit
Cooling Method	Temperature-controlled DC fan cooling
Nominal Output Voltage	-48VDC VDC
Rated Output Current	120A (System Capacity 5.8kW)
Managed Rectifier Capacity	3 Slots for R48-2000e3 / R48-2900U Modules
Form Factor Dimensions (HxWxD)	133 (3U) × 482 × 330 mm
Peak Conversion Efficiency	≥96.0%
Operating Temperature Range	-40°C ~ +65°C

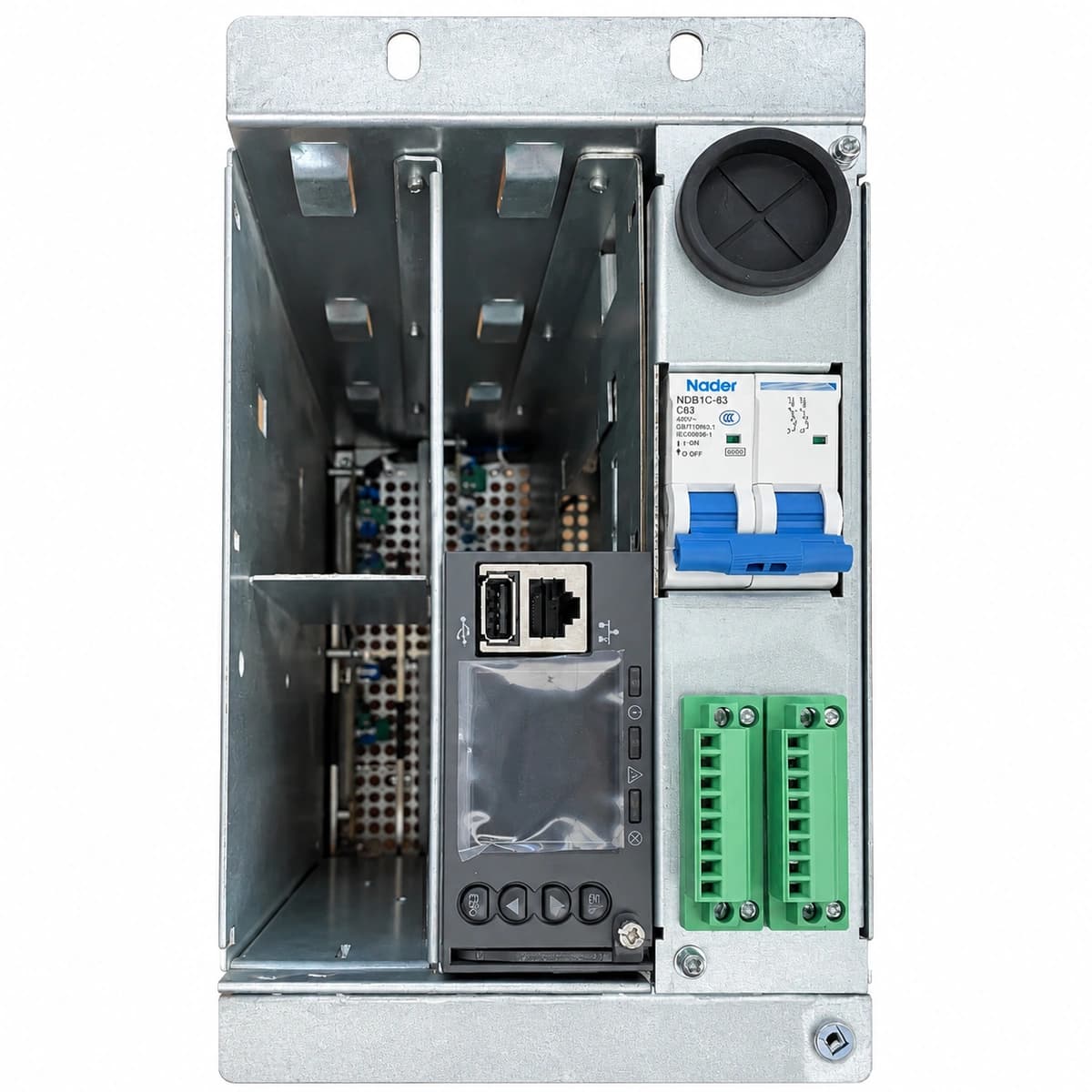

Vertiv NetSure 531 A31-S2 Subrack Telecom DC Power System (-48V 120A 3U)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Cellular wireless telecom base stations (BBU/RRU power feed)

FTTx fixed broadband access nodes and OLT cabinets

Railway and electrical utility supervisory communication sites

Enterprise network core routing and transport node shelters
