Vertiv BMK1115601-006 Subrack Telecom DC Power System (-48V 200A 3U)
Standard 19-inch rack-mount embedded DC power system engineered for wide-range AC input, active rectifier redundancy, and tiered load/battery low-voltage disconnect.
VertivModel: NetSure 212 C23-S1

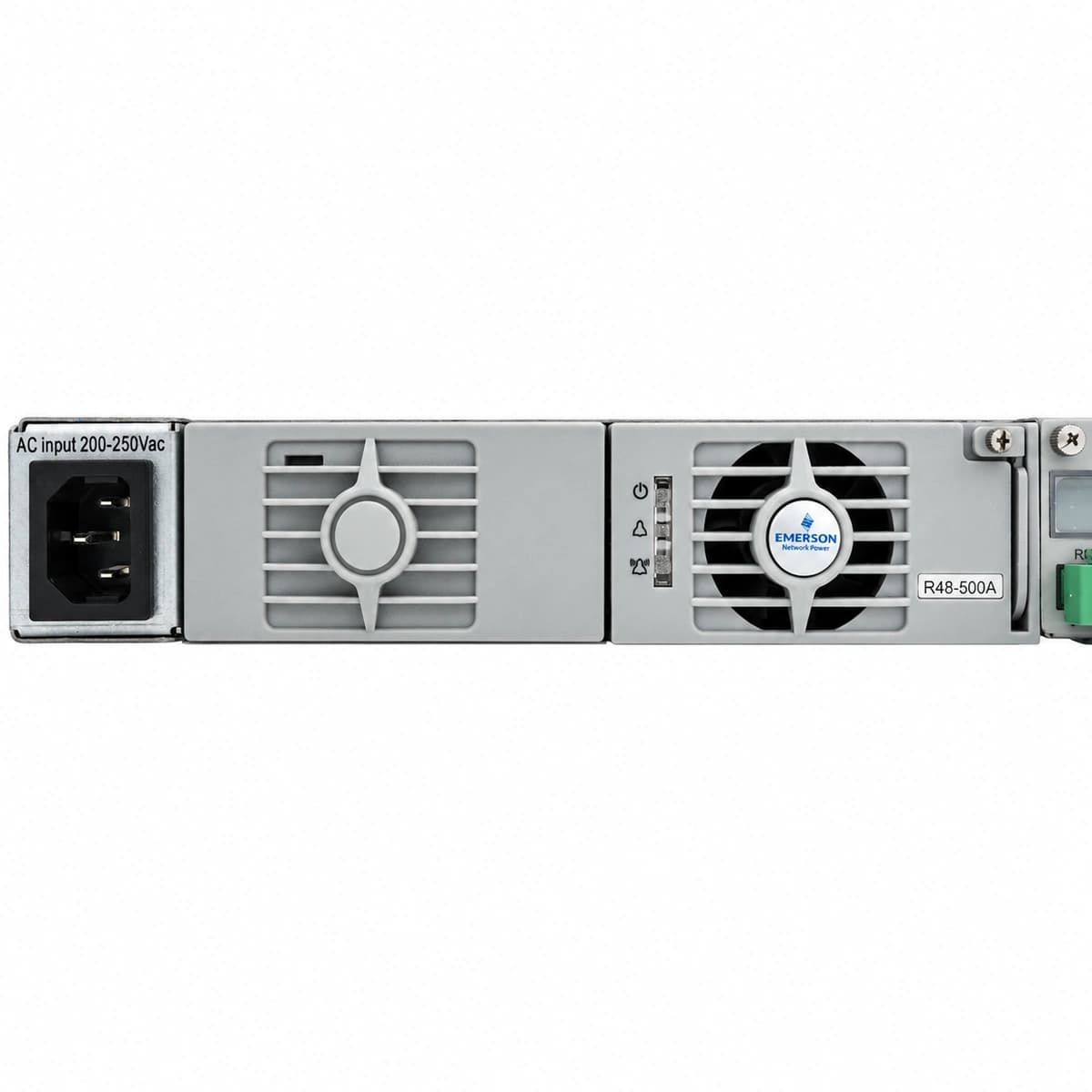

Vertiv NetSure 212 C23-S1 Compact Subrack DC Power System (-48V 60A 2U)
The Vertiv NetSure 212 C23-S1 is a high-density 19-inch 2U subrack DC power system delivering a nominal -48VDC output up to 60A/3000W, engineered for telecom access nodes and edge infrastructure.
Pricing is confirmed by project configuration and quantity
Request a quote- Nominal Output Voltage
- -48VDC VDC
- AC Input Voltage Range
- 85VAC ~ 300VAC (Nominal 220VAC) VAC
- Rated Output Current
- 60A (System Capacity 2.9kW)
- Peak Conversion Efficiency
- ≥96.0%
- Managed Rectifier Capacity
- 2 Slots for R48-1000e / R48-2000e3 Modules

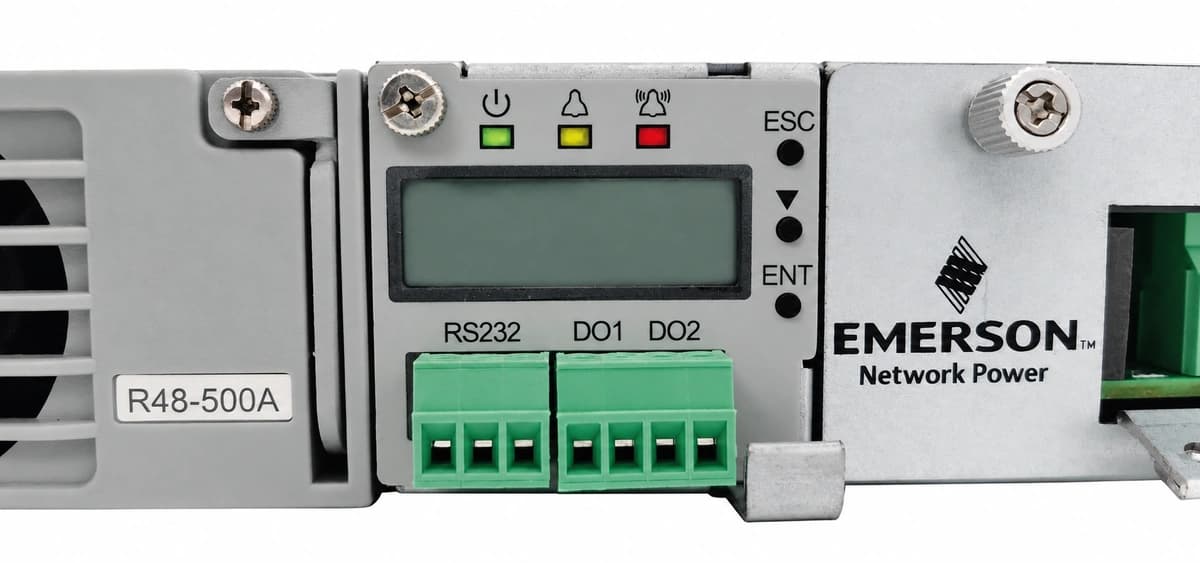

- Smart Monitoring Controller
- M221S Controller
What this product is
What this product is

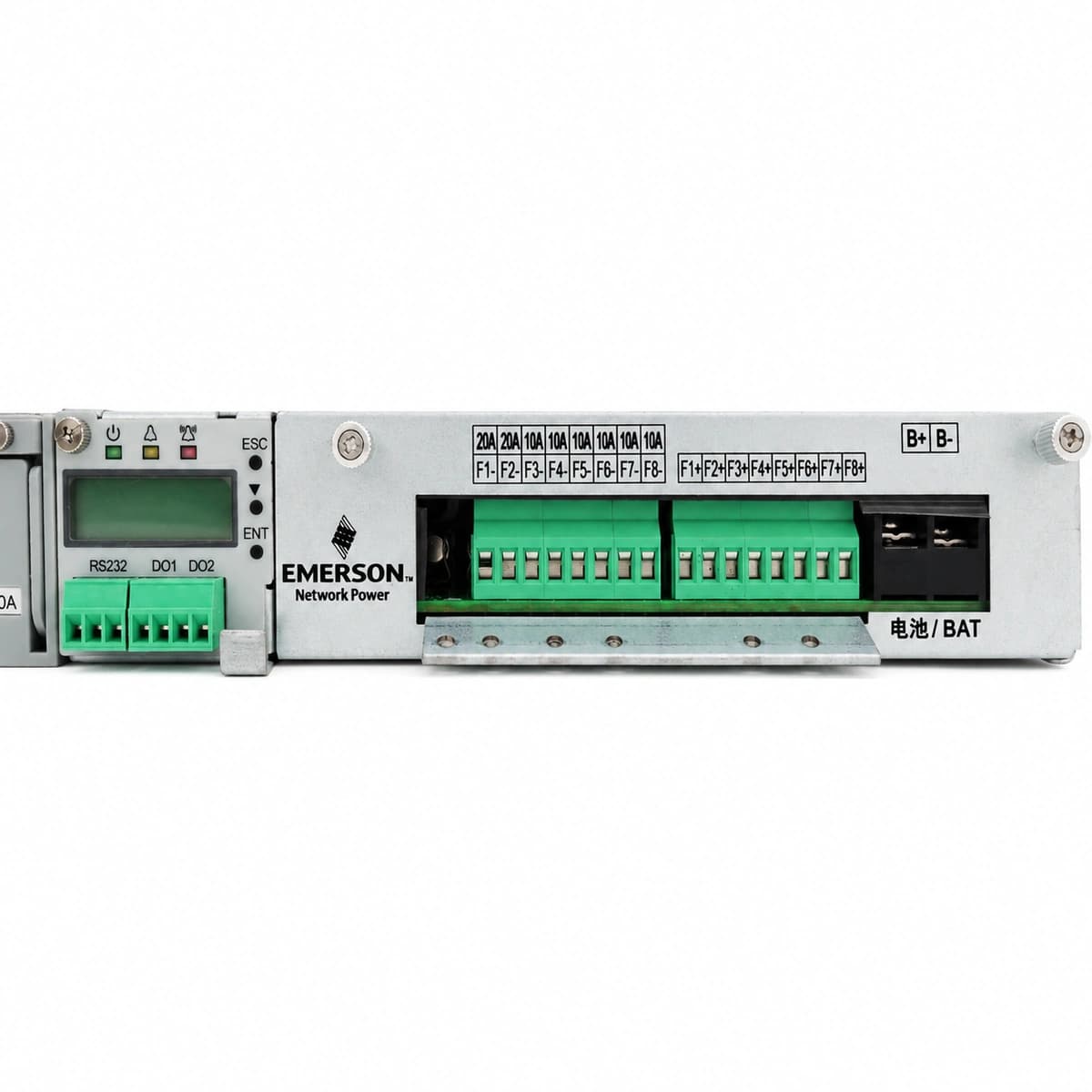

An integrated telecom-grade power subrack containing AC mains distribution, slots for hot-swappable high-efficiency switch-mode rectifiers, DC load distribution, dual low-voltage disconnects, and a centralized monitoring controller.
What problem it solves
Resolves edge-site space limitations via a compact 2U form factor, eliminates outage risks from unstable grid voltages via an ultra-wide AC input range, and prevents battery damage using tiered load shedding.
Who and where it is for
Telecom 4G/5G micro-sites, FTTx/OLT remote nodes, enterprise network rooms, and industrial SCADA communication stations.
Core advantages
- Wide AC input range of 85VAC to 300VAC ensures stability across unstable commercial grids
- Dual LVD architecture (LLVD/BLVD) secures mission-critical services while extending battery discharge time
- Supports M221S/M222S monitoring unit with RS485, Ethernet, and SNMP network integration
Technical specifications
| Key specifications | Value |
|---|---|
| AC Input Voltage Range | 85VAC ~ 300VAC (Nominal 220VAC) VAC |
| Smart Monitoring Controller | M221S Controller |
| Cooling Method | DC fan cooling with temperature control |
| Nominal Output Voltage | -48VDC VDC |
| Rated Output Current | 60A (System Capacity 2.9kW) |
| Managed Rectifier Capacity | 2 Slots for R48-1000e / R48-2000e3 Modules |
| Form Factor Dimensions (HxWxD) | 88 (2U) × 482 × 310 mm |
| Peak Conversion Efficiency | ≥96.0% |
| Operating Temperature Range | -40°C ~ +65°C |
Applications
01
Cellular macro expansion and distributed antenna systems (DAS)
02
Broadband optical line terminals (OLT) and roadside cabinets
03
Railway signaling and power grid transmission telemetry sites
