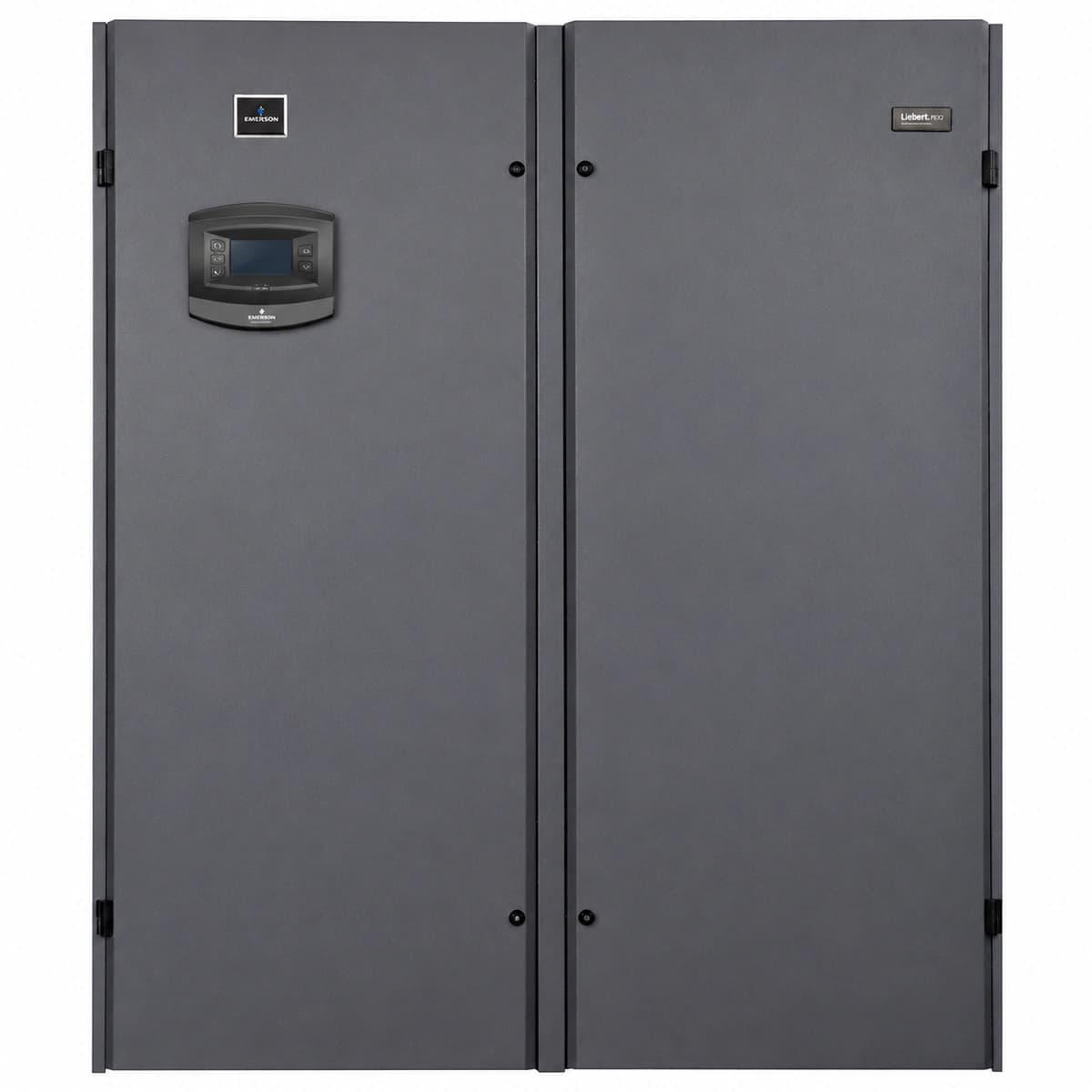

The Vertiv Liebert PEX2 is an industrial-grade, direct expansion (DX) precision cooling system engineered for medium-to-large data centers and core telecom facilities. Featuring Copeland high-efficiency scroll compressors, EC backward-curved plug fans, and the iCOM intelligent control framework, it delivers an ultra-high sensible heat ratio (SHF ≥ 0.92) and 24/7 continuous thermal heat load management under harsh operating conditions.
Pricing is confirmed by project configuration and quantity

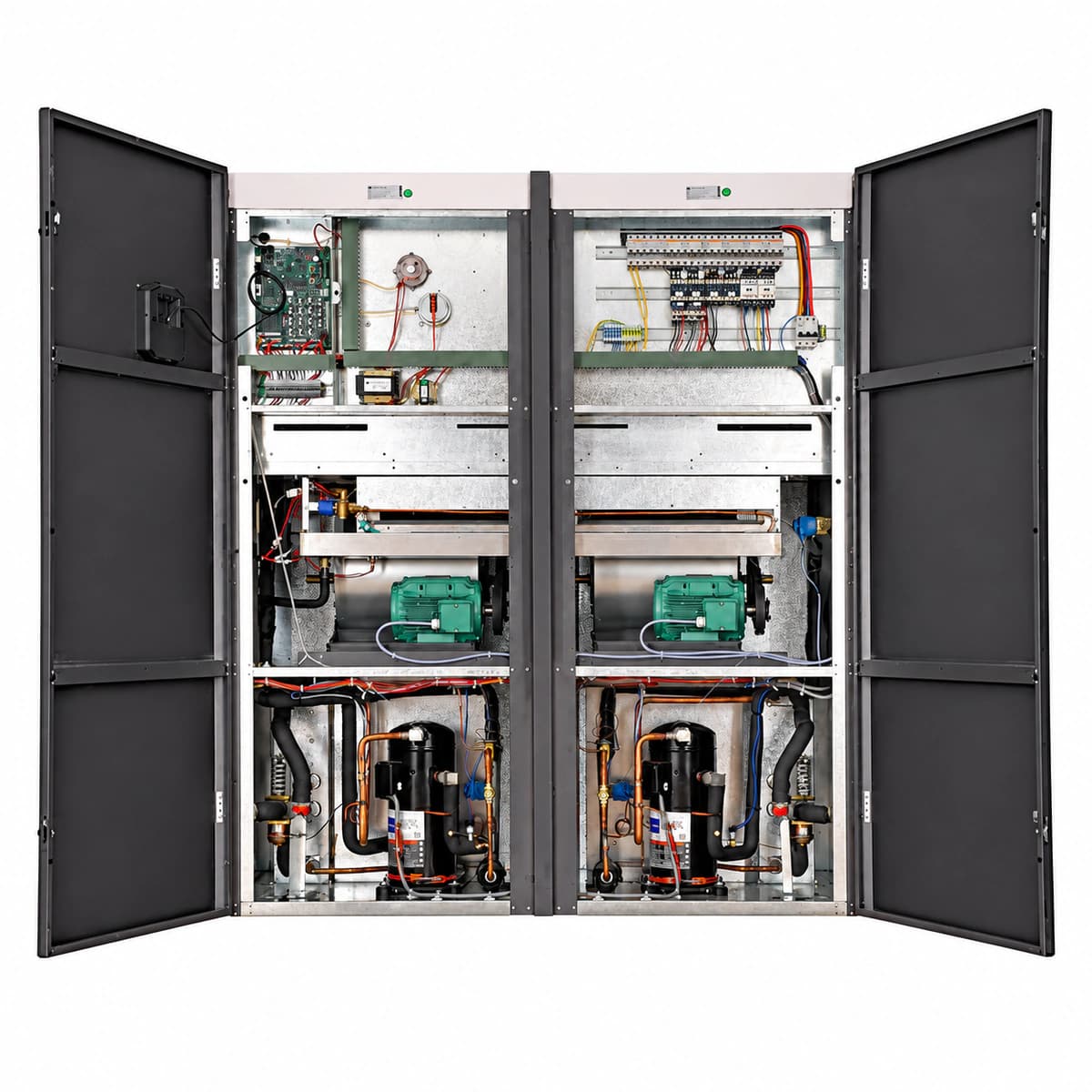

Request a quoteLiebert PEX2 is a high-density, modular computer room air conditioning (CRAC) platform developed by Vertiv. Its physical topology incorporates Copeland hermetic scroll compressors, high-efficiency hydrophilic aluminum fin evaporators, direct-driven EC blowers, and an integrated iCOM microcomputer controller providing real-time capacity modulation, lead-lag redundancy, and inter-unit network synchronization.
Eliminates critical datacenter hotspots caused by uneven IT cabinet heat dissipation, avoids severe parasitic energy losses induced by excessive dehumidification/reheating in commercial HVAC equipment, and resolves air supply short-cycling through intelligent fan and valve modulation.
Enterprise and hyperscale data centers, telecom colocation switching centers, cloud computing hubs, edge computing server clusters, and industrial precision cleanrooms.
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 20kW ~ 100kW (Multiple Cooling Capacities Optional) |
| Sensible Heat Ratio (SHF) | ≥ 0.92 (High Sensible Heat Ratio for Data Center) |
| Airflow Delivery & Fan Type | Downflow / Upflow Optional, EC Variable Speed Fan |
| Grid Power Supply System | 380V AC 50Hz (3-Phase 5-Wire) |
| Refrigerant Type | R410A Eco Refrigerant |
| Compressor Type | Copeland High-Efficiency Scroll Compressor |
| Control System & HMI | iCOM Intelligent Controller + 7-inch Color Touchscreen |
| Communication Interface | RS485 Modbus / SNMP Telecom Environment Access |
Vertiv
Vertiv Liebert CR060 600mm in-row precision air conditioner delivers 62.6kW capacity with full DC inverter modulation, engineered for AI and cloud data centers.
Engineered for close-coupled data center cooling, the Liebert CRV4 delivers dynamic 25kW to 45kW capacities using variable-speed DC scroll compressors and green R410A refrigerant. Integrated with the intelligent iCOM touchscreen controller, it continuously adjusts to workload changes, eliminating localized hotspots while optimizing facility PUE.

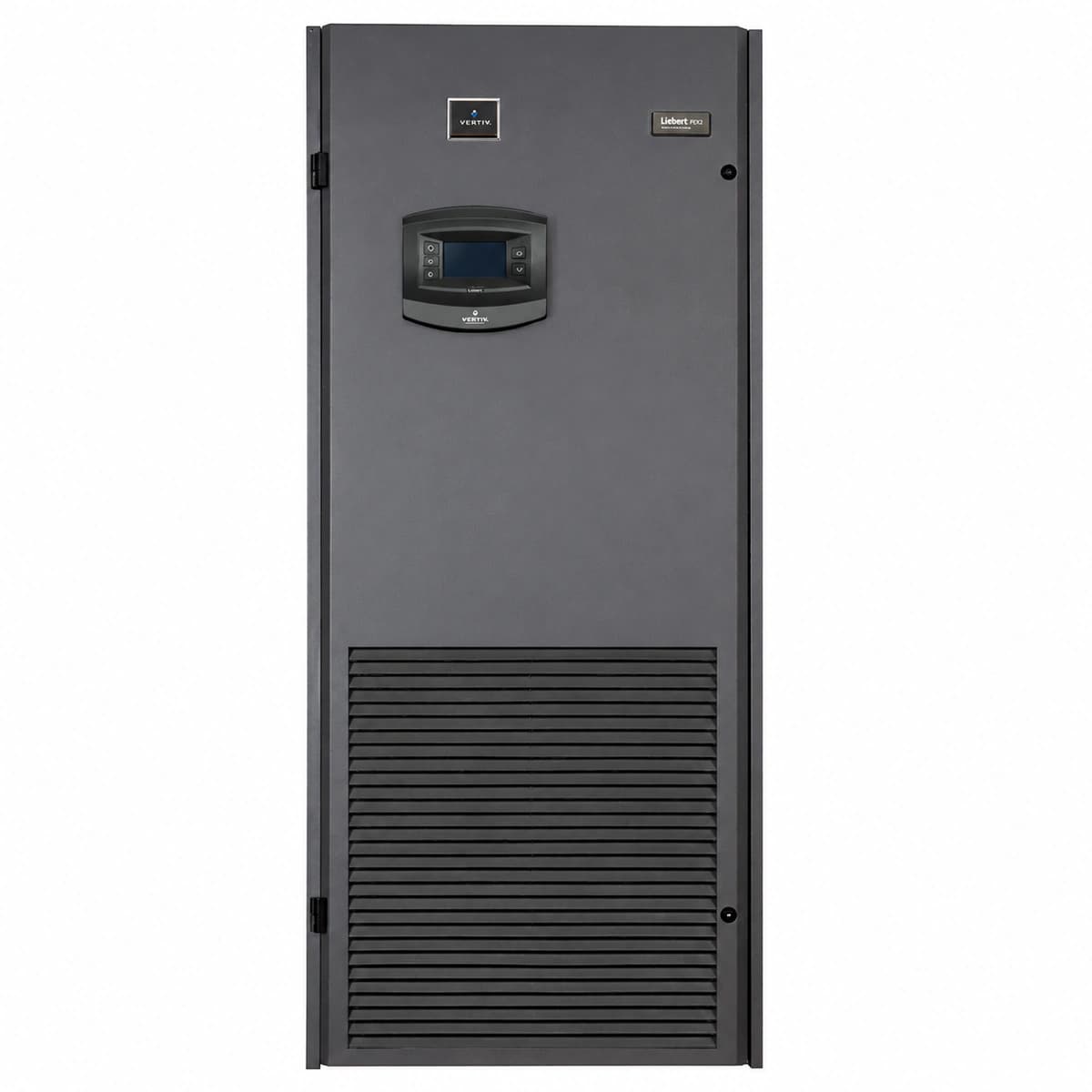

Vertiv Liebert DME07 compact room precision air conditioning indoor unit rated at 7.5kW cooling capacity, designed for space-constrained edge sites and server rooms.

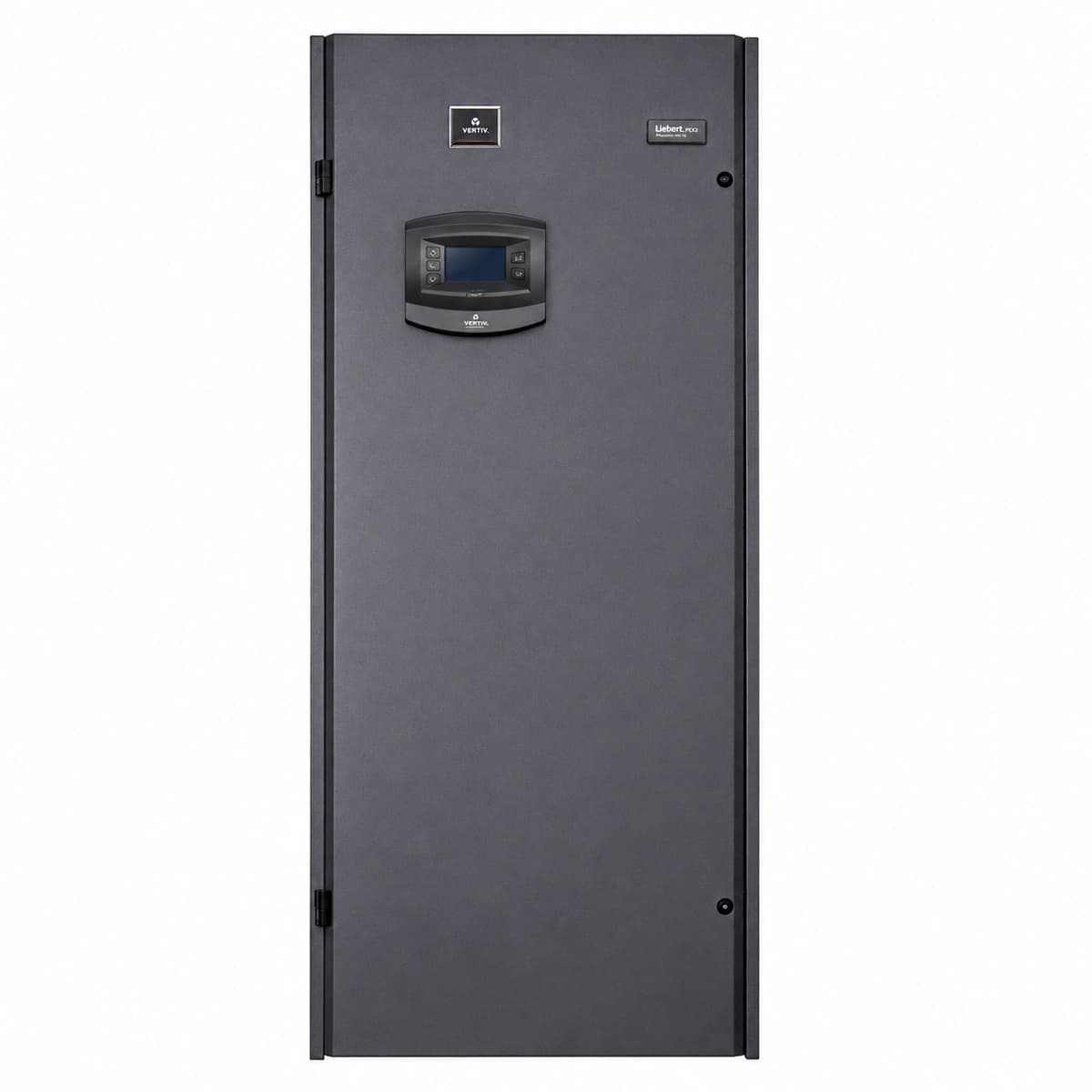

Vertiv Liebert DME12 small room precision air conditioning indoor unit offering 12.5kW cooling capacity and high sensible heat ratio for continuous 24/7 server room climate control.
