The Vertiv Liebert ITA2 10kVA is a high-density, industrial-grade rack/tower convertible online double-conversion UPS engineered for edge computing and mission-critical telecommunication loads, delivering a unity power factor of PF=1.0 (10kW real power), wide AC voltage tolerance, and up to 3+1 N+X parallel redundancy capability.
Pricing is confirmed by project configuration and quantity

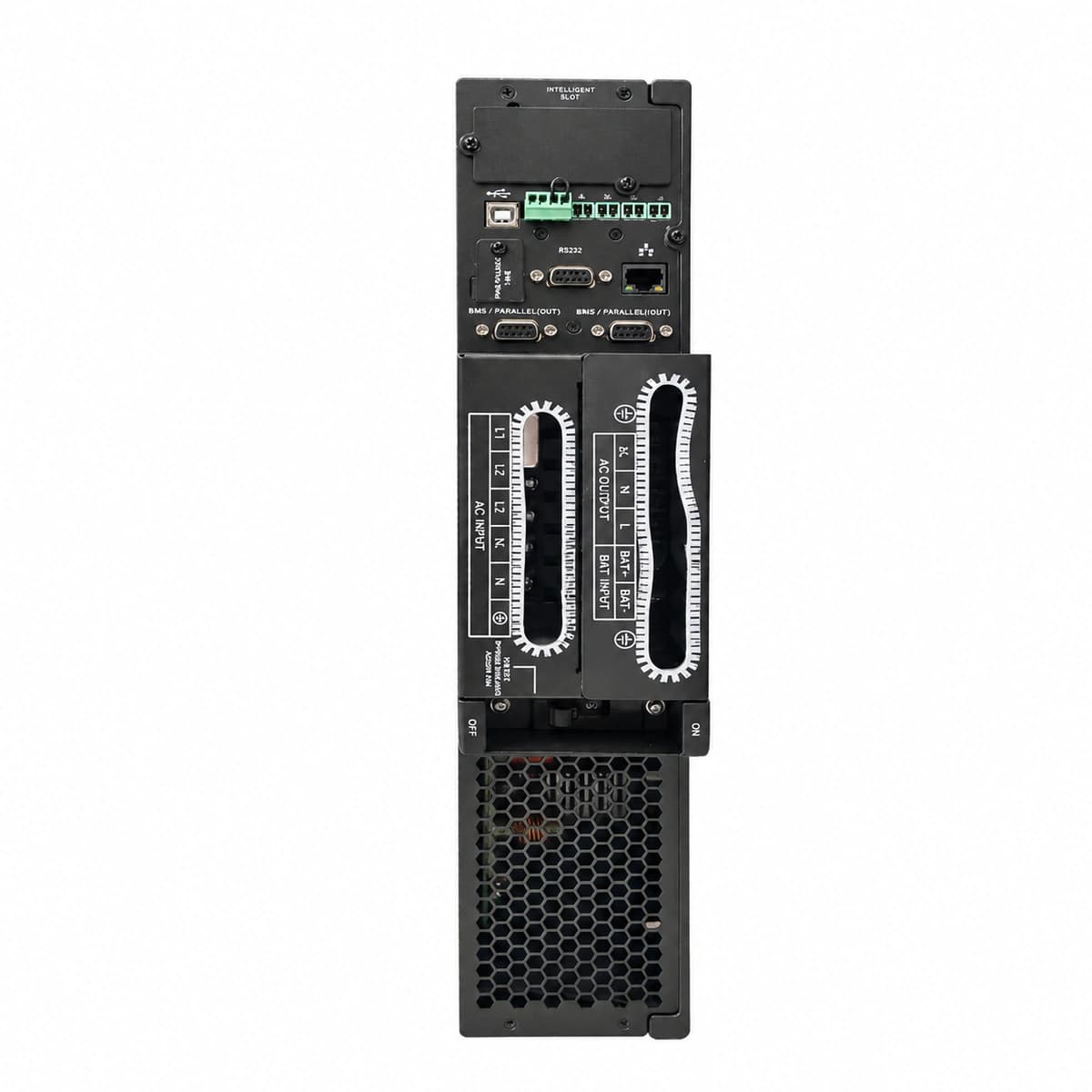

Request a quoteThe Liebert ITA2 10kVA consists of advanced high-frequency IGBT rectification and inverter circuits, an ultra-fast static bypass switch, and intelligent DC battery management. Housed in a compact convertible form factor suitable for 19-inch IT server racks or standalone vertical installations, it provides hot-standby and parallel communication bus architecture.
Eliminates unexpected downtime caused by utility sags, spikes, harmonics, and blackouts in harsh industrial and edge server environments; solves real-power derating issues with its true 1.0 unity output power factor; and minimizes operational expenditure through high-efficiency conversion and flexible battery reuse options.
Edge computing micro-datacenters, telecommunication access and aggregation nodes, industrial automation control cabinets (PLC/SCADA), medical imaging centers, and intelligent transportation signal stations.
| Key specifications | Value |
|---|---|
| Rated Output Power | 10kVA / 10kW (Output Power Factor 1.0) |
| AC Input Voltage Range | 176V AC ~ 288V AC (Wide AC Input Range) |
| Topology | Online Double Conversion Pure Sine Wave |
| Power Conversion Efficiency | ≥ 96% (Up to 99% in ECO Mode) |
| Parallel Redundancy Capacity | Supports Up to 3+1 Parallel Redundancy |
| Battery System Voltage | ±96V / ±120V / ±144V / ±192V DC Flexible Config |
| Physical Form Factor | Rack / Tower Convertible Form Factor (2U/3U) |
| Operating Temperature | 0°C ~ +50°C (Robust Operating Range) |
