Q: How does the system handle power module hot-swapping, N+X redundancy, and parallel current sharing?

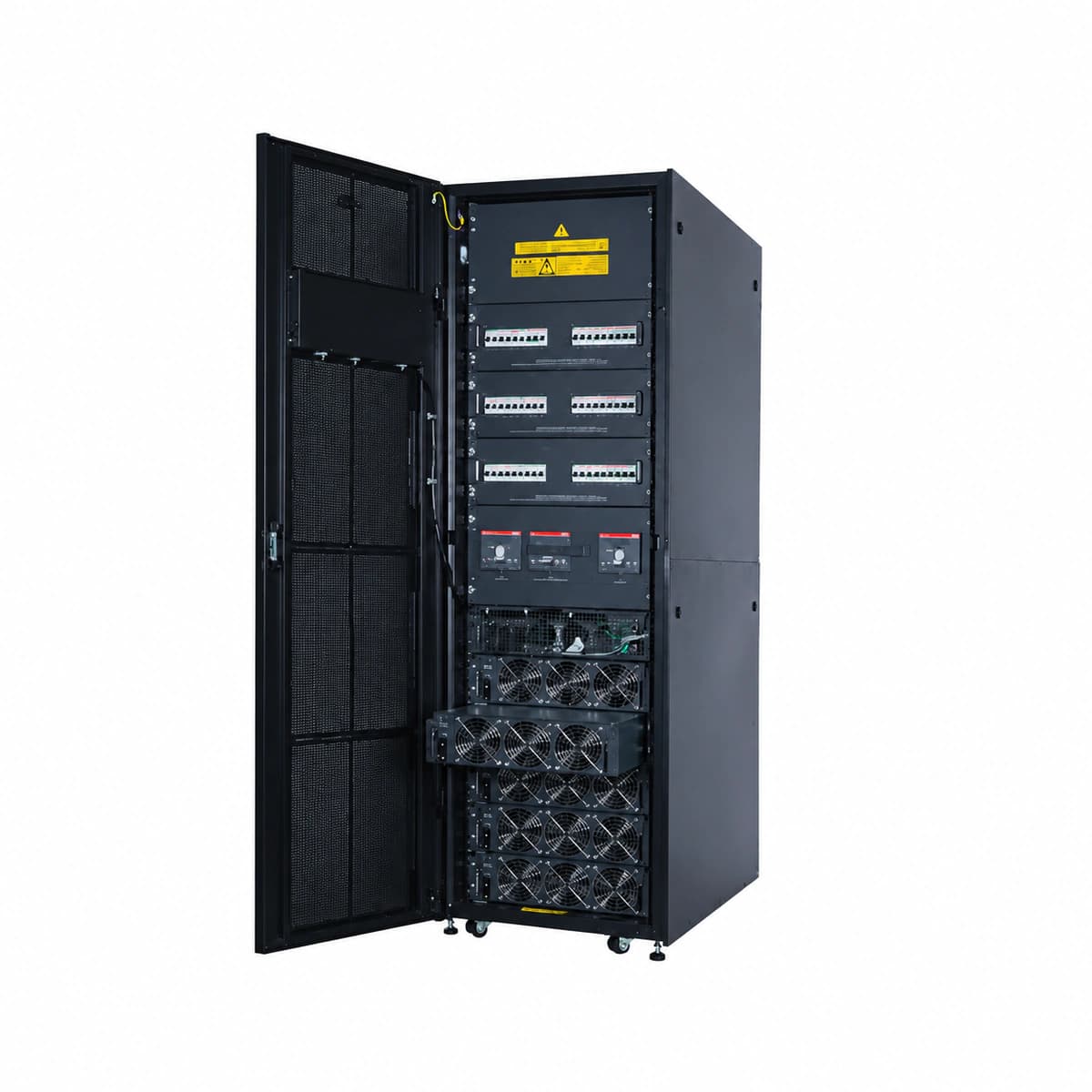

The compact all-in-one cabinet houses a centralized static bypass and plug-in backplane accommodating up to five 30kW high-density power modules to achieve 150kW capacity. The architecture features full DSP distributed control and decentralized parallel bus logic, keeping current sharing imbalance strictly below <3% across all operational modules. It supports configurable N+1 or N+2 internal redundancy. In the event of a module failure, an autonomous hardware-level disconnection isolates the faulted unit within milliseconds, sustaining full online protection without dropping to bypass while allowing safe, hot-swappable field replacement.

Q: What engineering design features ensure harsh environmental tolerance and flexible DC bus deployment for the Liebert APM 150kVA?

The system operates at 100% nominal continuous load from 0°C to 40°C without derating (derated up to 50°C). All core PCBA assemblies are treated with industrial-grade conformal coating to withstand high humidity, airborne contaminants, and conductive dust, paired with segregated cooling airflow channels. Surge immunity meets IEC 61643-11 Class C protection. On the DC side, it features an adjustable DC bus supporting 30 to 44 battery blocks (12V VRLA or integrated Lithium-Ion/LFP battery banks) with intelligent three-stage temperature-compensated charging and redundant physical DC breaker protection, ensuring resilience under challenging utility conditions.

Question 1

What are the core electrical architecture and double-conversion efficiency metrics of the Vertiv Liebert APM 150kVA?

Accepted Answer

The Vertiv Liebert APM 150kVA (SKU: VERTIV-UPS-APM-150KVA) utilizes an advanced transformer-free, high-frequency online double-conversion topology offering a true unity power factor (PF=1.0) with an output rating of 150kVA / 150kW, eliminating derating across inductive or capacitive IT loads. It accepts a wide three-phase AC input range of 304–477 VAC with an input PF >0.99 and full-load input current harmonic distortion (THDi) <3%. The system delivers up to 96.5% peak efficiency in true online double-conversion mode, maintaining a flat curve exceeding 95.5% at 20%–40% partial loads, with dynamic step-load transient response under 20ms (0–100% load step, voltage deviation <±5%).

Question 2

How does the system handle power module hot-swapping, N+X redundancy, and parallel current sharing?

Accepted Answer

The compact all-in-one cabinet houses a centralized static bypass and plug-in backplane accommodating up to five 30kW high-density power modules to achieve 150kW capacity. The architecture features full DSP distributed control and decentralized parallel bus logic, keeping current sharing imbalance strictly below <3% across all operational modules. It supports configurable N+1 or N+2 internal redundancy. In the event of a module failure, an autonomous hardware-level disconnection isolates the faulted unit within milliseconds, sustaining full online protection without dropping to bypass while allowing safe, hot-swappable field replacement.

Question 3

What engineering design features ensure harsh environmental tolerance and flexible DC bus deployment for the Liebert APM 150kVA?

Accepted Answer

The system operates at 100% nominal continuous load from 0°C to 40°C without derating (derated up to 50°C). All core PCBA assemblies are treated with industrial-grade conformal coating to withstand high humidity, airborne contaminants, and conductive dust, paired with segregated cooling airflow channels. Surge immunity meets IEC 61643-11 Class C protection. On the DC side, it features an adjustable DC bus supporting 30 to 44 battery blocks (12V VRLA or integrated Lithium-Ion/LFP battery banks) with intelligent three-stage temperature-compensated charging and redundant physical DC breaker protection, ensuring resilience under challenging utility conditions.

Key specifications	Value
Apparent Power	150000 VA
Active Power	150000 W
Output Power Factor PF	1.0
Topology	Modular online double-conversion architecture (supports hot-swappable 30kW modules)
AC Input Voltage Range	304 ~ 477 VAC (three-phase)
Nominal DC Output Voltage	380/400/415 VAC
System Comprehensive Efficiency	Up to 96.5%
Physical Form Factor	Integrated compact cabinet
Physical Dimensions Spec	2000 × 600 × 1100 mm
Operating Temperature	0°C to +40°C

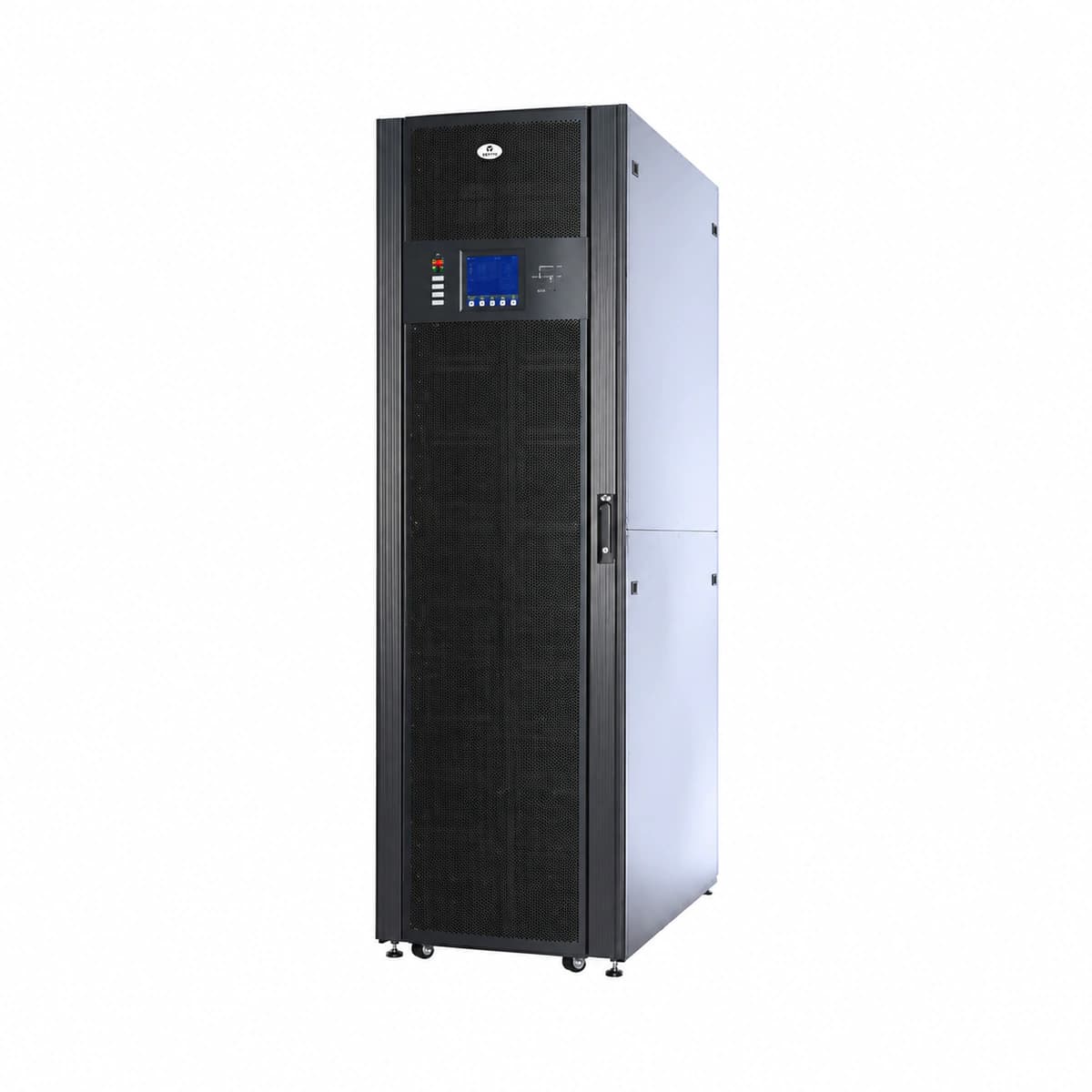

Vertiv Liebert APM 150kVA Modular Online Double-Conversion UPS (150kVA/150kW PF 1.0)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Medium enterprise server halls

Healthcare clinical IT infrastructure

Industrial automation control consoles

Frequently asked questions
