Q: What output distribution interfaces and out-of-band remote monitoring expansion capabilities are available on Vertiv Liebert GXE 1kVA?

The Liebert GXE 1kVA features a compact vertical tower chassis equipped with standard IEC C13 output receptacles protected by integrated hardware circuit breakers. For system management, it provides onboard RS-232 and USB communication ports alongside an Intelligent Card Slot. This expansion slot accommodates Vertiv SIC/RDU network management cards, offering native support for SNMP v1/v2c/v3, Modbus-TCP, and HTTPS protocols. This enables frictionless integration with carrier-grade DCIM and facility monitoring platforms for real-time telemetry of voltage, load percentage, runtime, and diagnostic alerts.

Q: How does the Liebert GXE 1kVA maintain reliability and battery health under severe grid fluctuations and adverse operating conditions?

The unit provides an ultra-wide input voltage window of 115 to 300 VAC and an input frequency tolerance of 40 to 70 Hz, greatly minimizing unnecessary battery cycling in unstable grid environments and prolonging VRLA battery service life. Rated for 0°C to 40°C operating temperatures and 5% to 95% non-condensing relative humidity, it incorporates advanced multi-stage temperature-compensated charging and deep-discharge protection. An integrated surge suppression stage and an automatic electronic bypass protect downstream loads against lightning strikes, severe overloads, or internal faults without power interruption.

Question 1

What are the core electrical performance metrics, waveform quality, and conversion efficiency of Vertiv Liebert GXE 1kVA (VERTIV-UPS-GXE-1KVA)?

Accepted Answer

The Vertiv Liebert GXE 1kVA employs high-frequency online double-conversion pure sine wave topology with a rated capacity of 1000VA / 800W (Power Factor PF=0.8). It delivers a regulated 220VAC ±1% output voltage with Total Harmonic Distortion (THDv) <3% under linear loads. Featuring zero transfer time (0ms) between utility and battery modes, it protects sensitive IT equipment from power interruptions. The system achieves up to 90% AC-AC efficiency in full double-conversion mode, substantially lowering thermal dissipation and operational power overhead for telecom and edge deployments.

Question 2

What output distribution interfaces and out-of-band remote monitoring expansion capabilities are available on Vertiv Liebert GXE 1kVA?

Accepted Answer

The Liebert GXE 1kVA features a compact vertical tower chassis equipped with standard IEC C13 output receptacles protected by integrated hardware circuit breakers. For system management, it provides onboard RS-232 and USB communication ports alongside an Intelligent Card Slot. This expansion slot accommodates Vertiv SIC/RDU network management cards, offering native support for SNMP v1/v2c/v3, Modbus-TCP, and HTTPS protocols. This enables frictionless integration with carrier-grade DCIM and facility monitoring platforms for real-time telemetry of voltage, load percentage, runtime, and diagnostic alerts.

Question 3

How does the Liebert GXE 1kVA maintain reliability and battery health under severe grid fluctuations and adverse operating conditions?

Accepted Answer

The unit provides an ultra-wide input voltage window of 115 to 300 VAC and an input frequency tolerance of 40 to 70 Hz, greatly minimizing unnecessary battery cycling in unstable grid environments and prolonging VRLA battery service life. Rated for 0°C to 40°C operating temperatures and 5% to 95% non-condensing relative humidity, it incorporates advanced multi-stage temperature-compensated charging and deep-discharge protection. An integrated surge suppression stage and an automatic electronic bypass protect downstream loads against lightning strikes, severe overloads, or internal faults without power interruption.

Key specifications	Value
Apparent Power	1000 VA
Active Power	800 W
Output Power Factor PF	0.8
Topology	Online double-conversion, high-frequency pure sine wave
AC Input Voltage Range	115 ~ 300 VAC
Nominal DC Output Voltage	220 VAC ± 1%
System Comprehensive Efficiency	Up to 90%
Physical Form Factor	Compact vertical tower
Physical Dimensions Spec	220 × 145 × 360 mm
Operating Temperature	0°C to +40°C

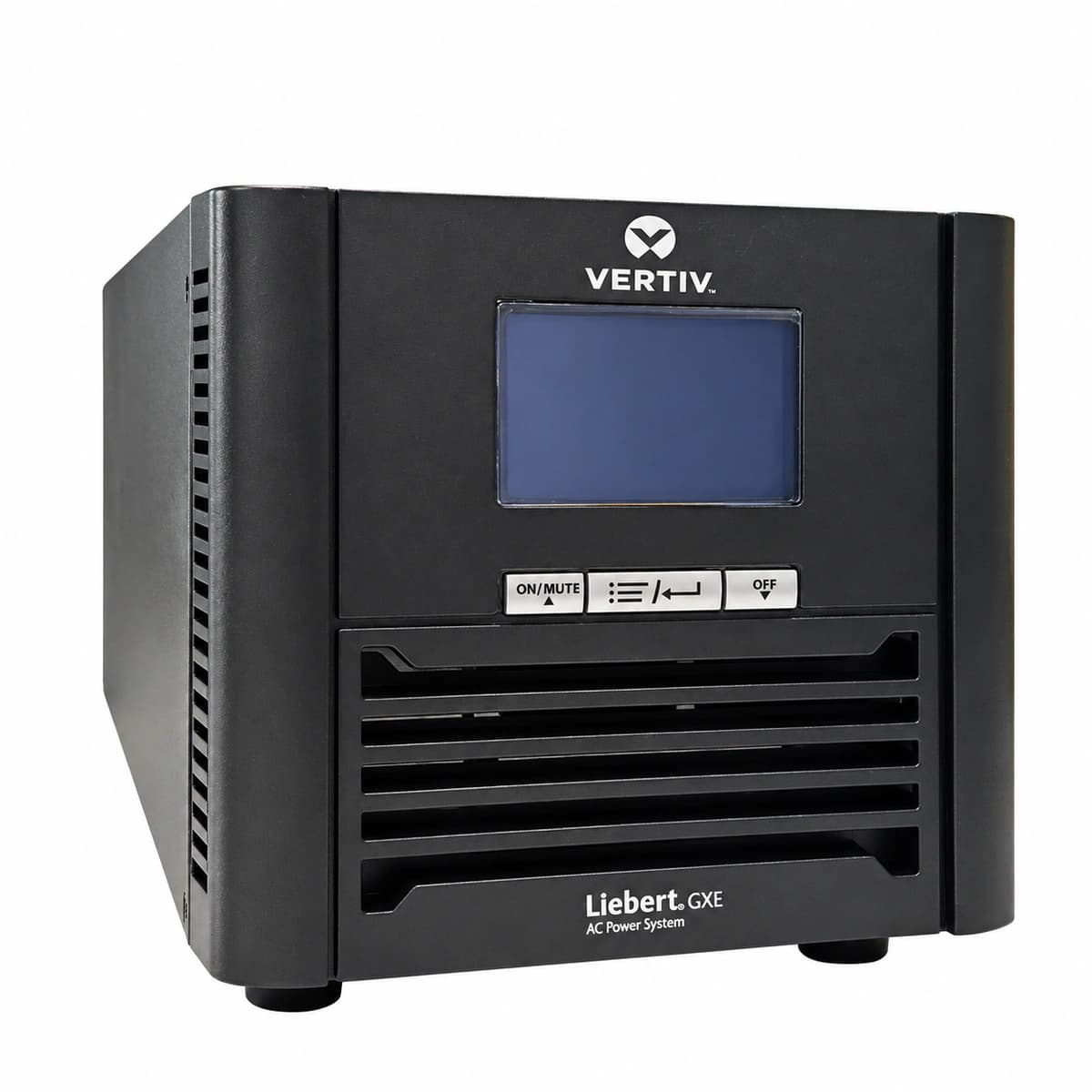

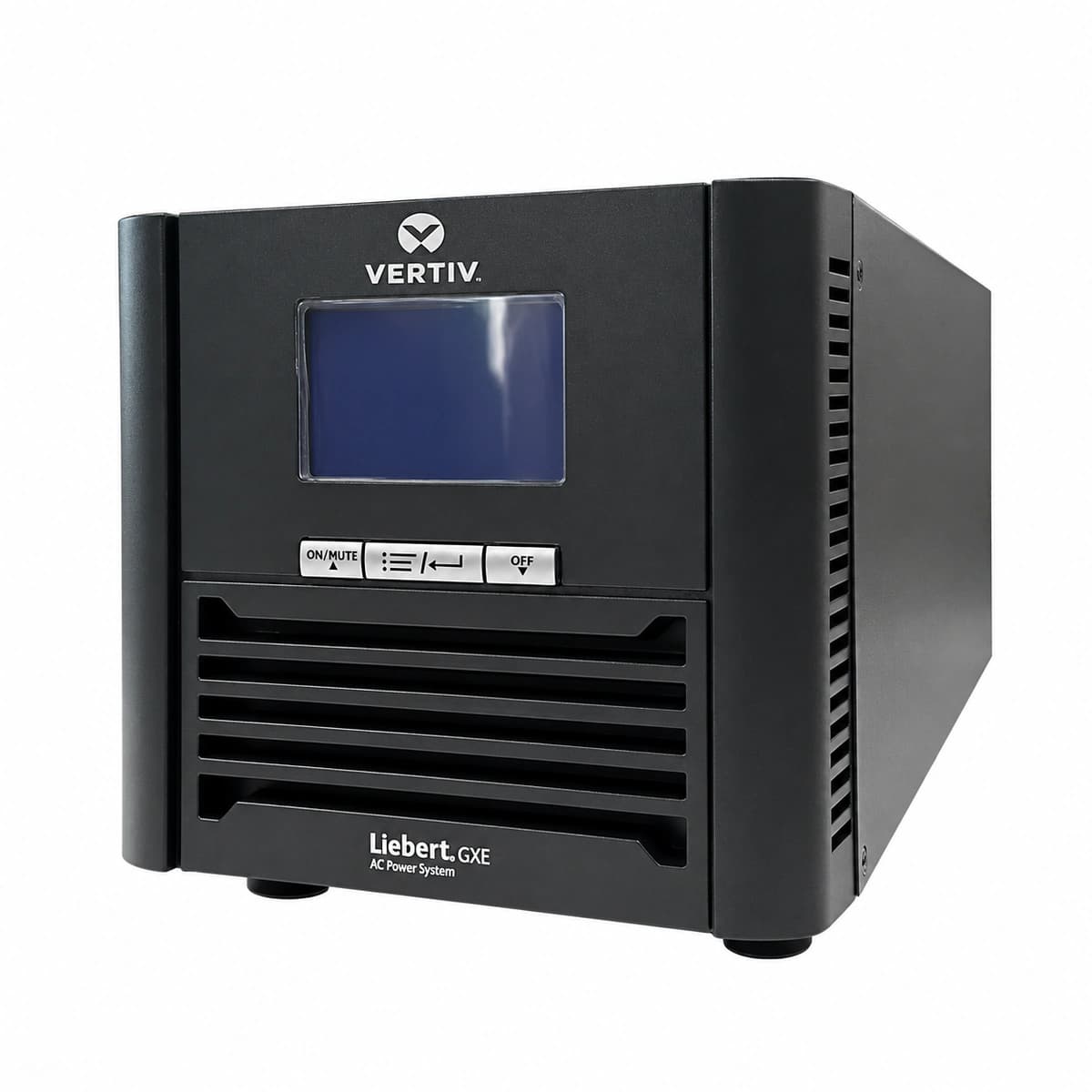

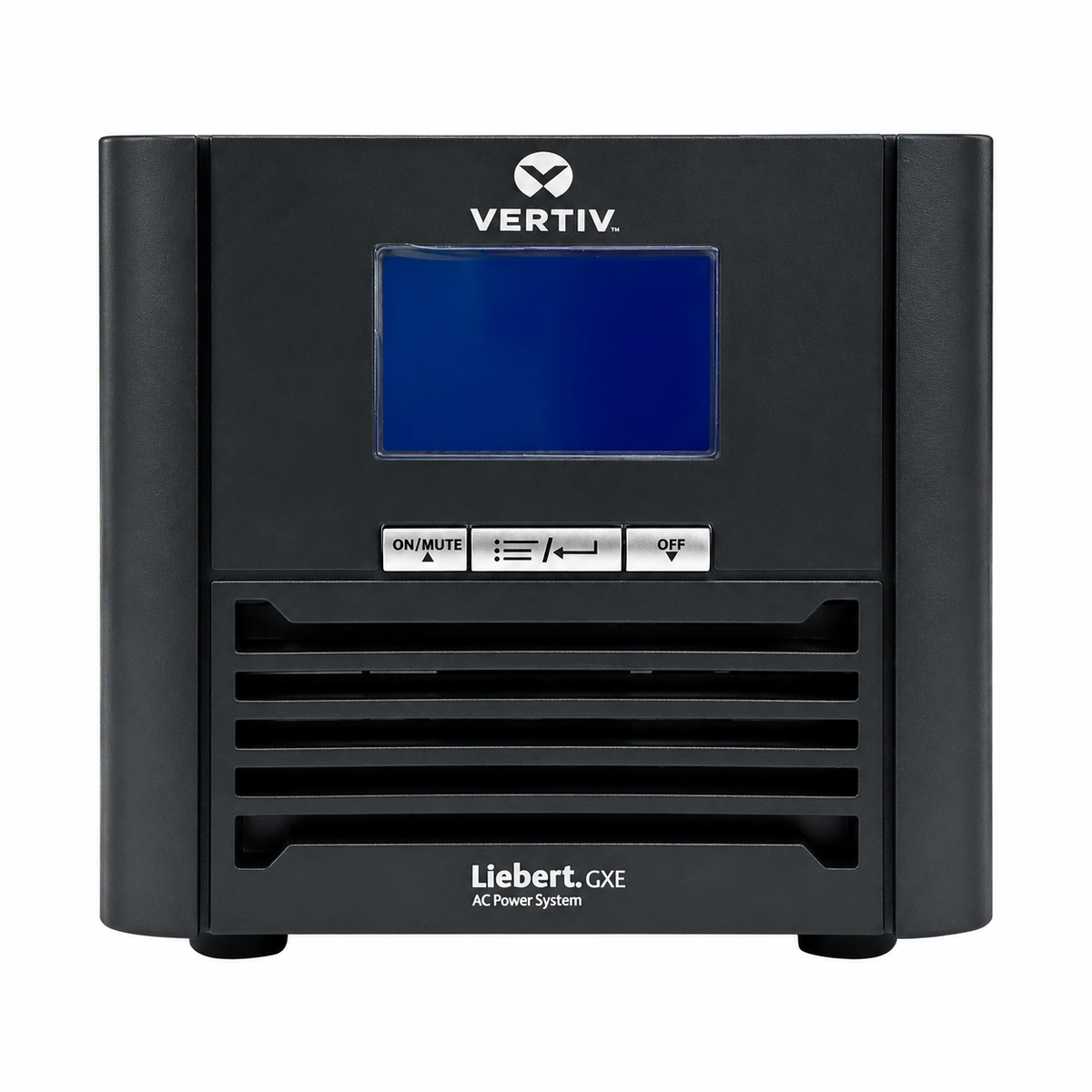

Vertiv Liebert GXE 1kVA Online Double-Conversion UPS (1000VA/800W)

What this product is

What this product is

What problem it solves

Who and where it is for

Core advantages

Technical specifications

Applications

Branch office servers

Telecommunication network switches

Security surveillance recorders

Frequently asked questions
