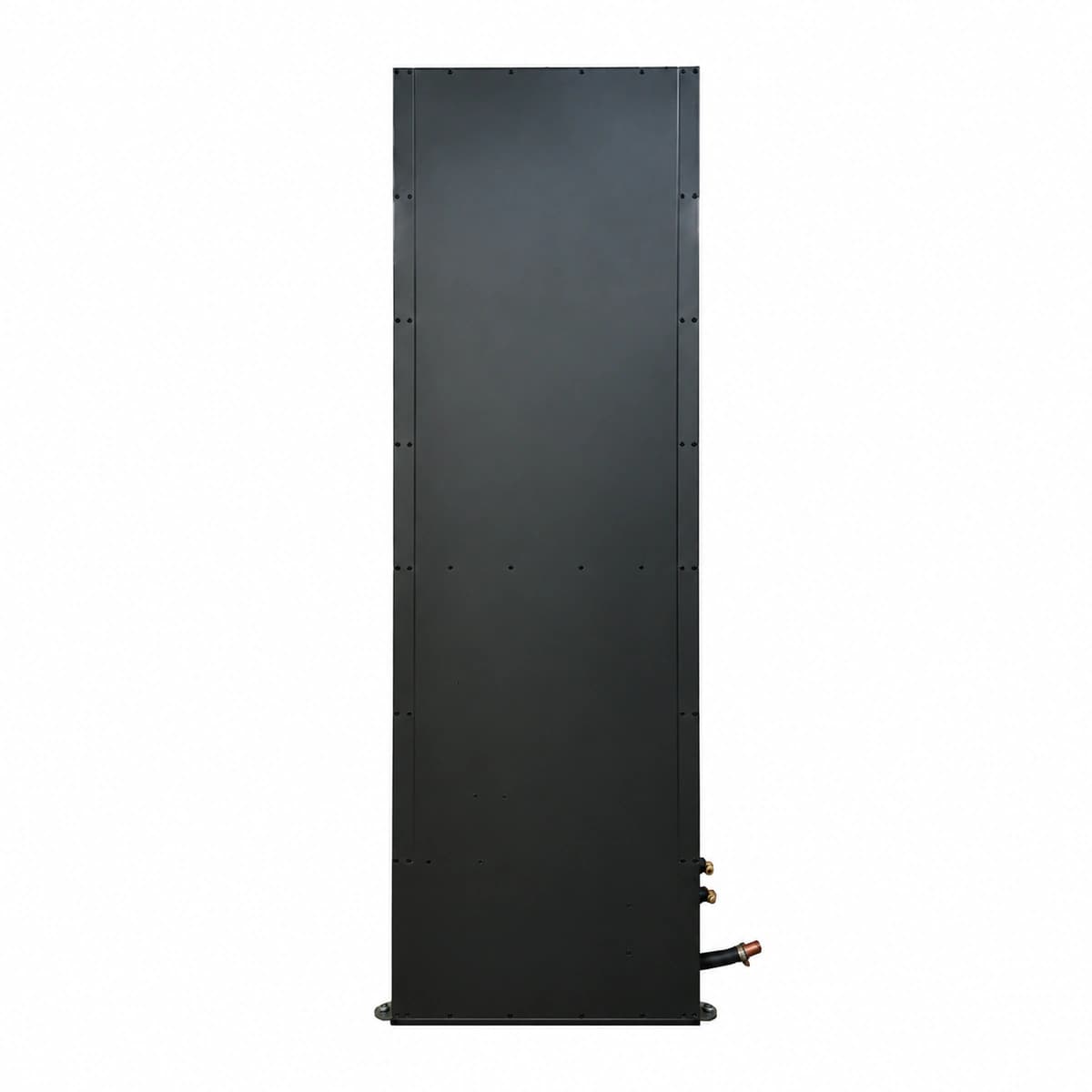

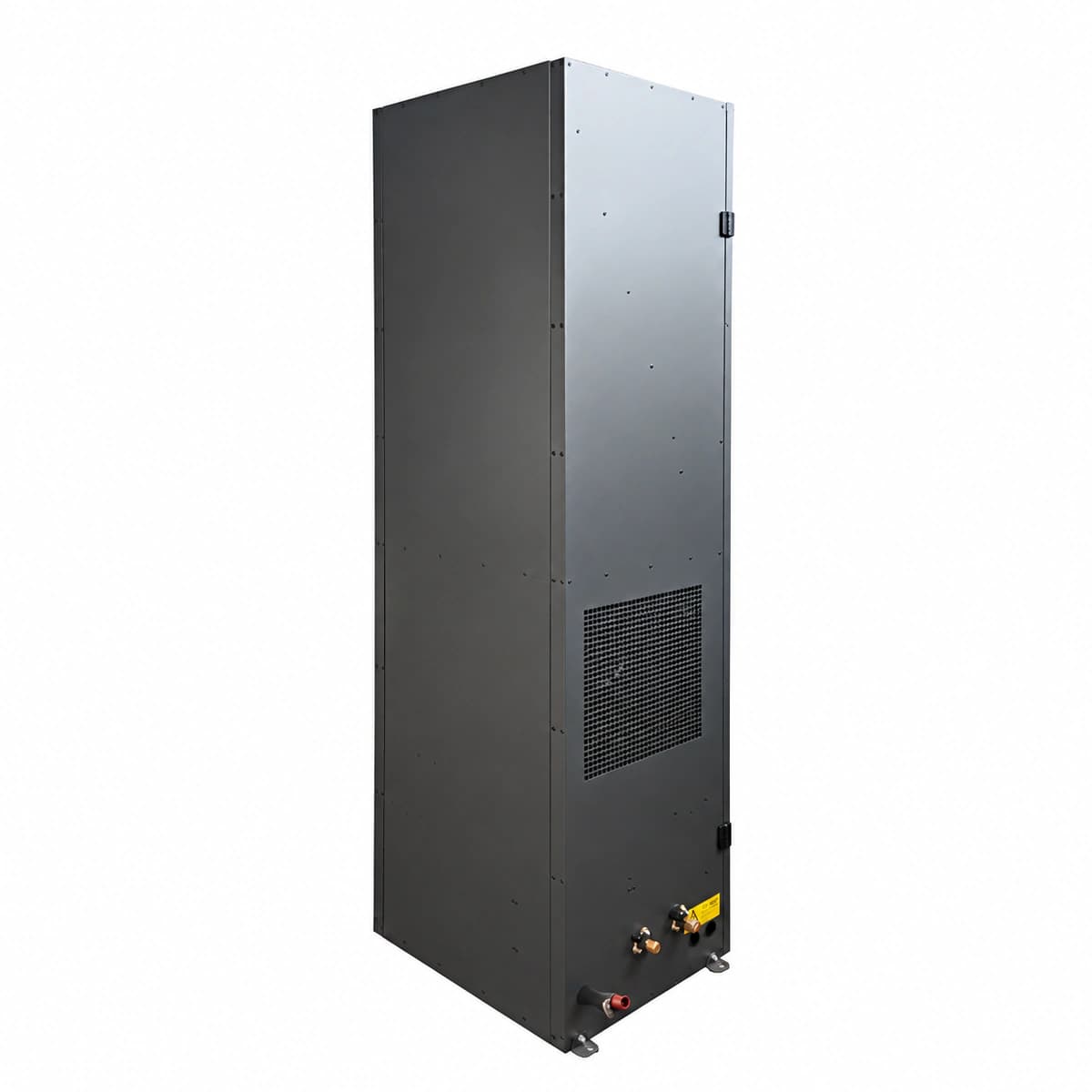

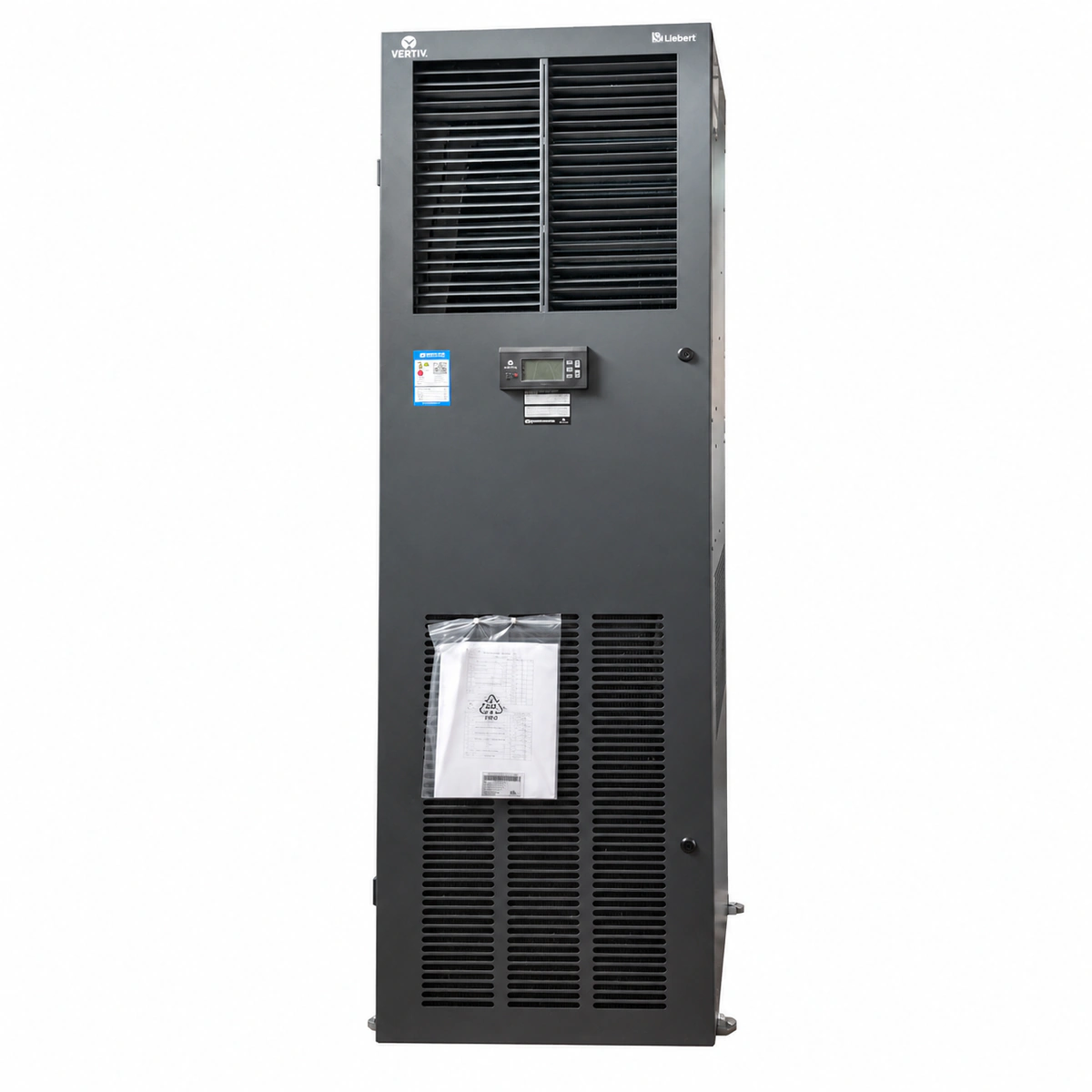

The Vertiv Liebert DataMate3000 DME12 is an enterprise-grade 12.5 kW direct-expansion (DX) air-cooled precision environmental control system engineered for edge data centers and telecom stations, featuring a compliant scroll compressor, high SHF (≥0.90), and continuous 24/7 mission-critical thermal regulation capabilities.
Pricing is confirmed by project configuration and quantity
Request a quoteA split-type precision cooling architecture comprising an indoor air handling evaporator unit and an outdoor air-cooled condenser, supporting flexible upflow or front-discharge airflow management.
Eliminates excessive dehumidification, parasitic latent heat loss, static electricity accumulation, and compressor burnouts associated with non-precision comfort air conditioners in critical IT spaces.
Small-to-medium data centers, 5G base transceiver stations (BTS), rail transport signaling hubs, high-voltage transformer substation control rooms, and medical analytical laboratories.
| Key specifications | Value |
|---|---|
| Rated Cooling Capacity | 12.5 kW Rated Cooling Capacity |
| Sensible Heat Ratio (SHF) | ≥ 0.90 (High Sensible Heat Ratio for Data Center) |
| Airflow Delivery & Fan Type | Upflow / Front Flow (High Airflow Small Enthalpy) |
| Grid Power Supply System | 380V AC (Three-Phase 5-Wire) / 220V Single-Phase Optional |
| Refrigerant Type | R410A Eco-Friendly Refrigerant |
| Compressor Type | High-Efficiency Flexible Scroll Compressor |
| Control System & HMI | Large Screen Microprocessor Controller |
| Communication Interface | RS485 Communication Port, Supports Modbus Protocol |
