HuaweiModel: Huawei TP48600B 2.1m Outdoor Telecom Cabinet
Huawei TP48600B 2.1m Outdoor Telecom Power Cabinet (600A -48V DC, IP55 Dual-Compartment, 12x R4850G2 Slots)
The Huawei TP48600B 2.1m Outdoor Telecom Power Cabinet is an integrated -48V DC power feeding infrastructure engineered for high-density 5G macro sites. It houses AC/DC distribution, power conversion, environment monitoring, and energy storage within an IP55 dual-compartment enclosure, delivering up to 600A continuous output for rugged outdoor telecom networks.
Pricing is confirmed by project configuration and quantity
Request a quote- System Output Capacity
- 600A (-48V DC) Continuous Output Capacity
- Cabinet Structure Spec
- 2.1m Standard Outdoor Integrated Base Station Power Cabinet (IP55)
- Rectifier Module Slots
- 12 Slots (Compatible with Huawei R4850G2 50A HE Rectifiers)
- Zoned Cooling Tech
- Equipment Door Heat Exchanger + Intelligent Battery DC Ventilation
- Controller System
- SMU02C Supervisory Unit with Graphical LCD Telemetry
- DC Distribution Branches
- Supports 2 High-Current Battery Inputs + Critical/Non-Critical DC Branches
What this product is
What this product is
The Huawei TP48600B 2.1m Outdoor Telecom Power Cabinet is an integrated -48V DC power feeding infrastructure engineered for high-density 5G macro sites. It houses AC/DC distribution, power conversion, environment monitoring, and energy storage within an IP55 dual-compartment enclosure, delivering up to 600A continuous output for rugged outdoor telecom networks.
What problem it solves

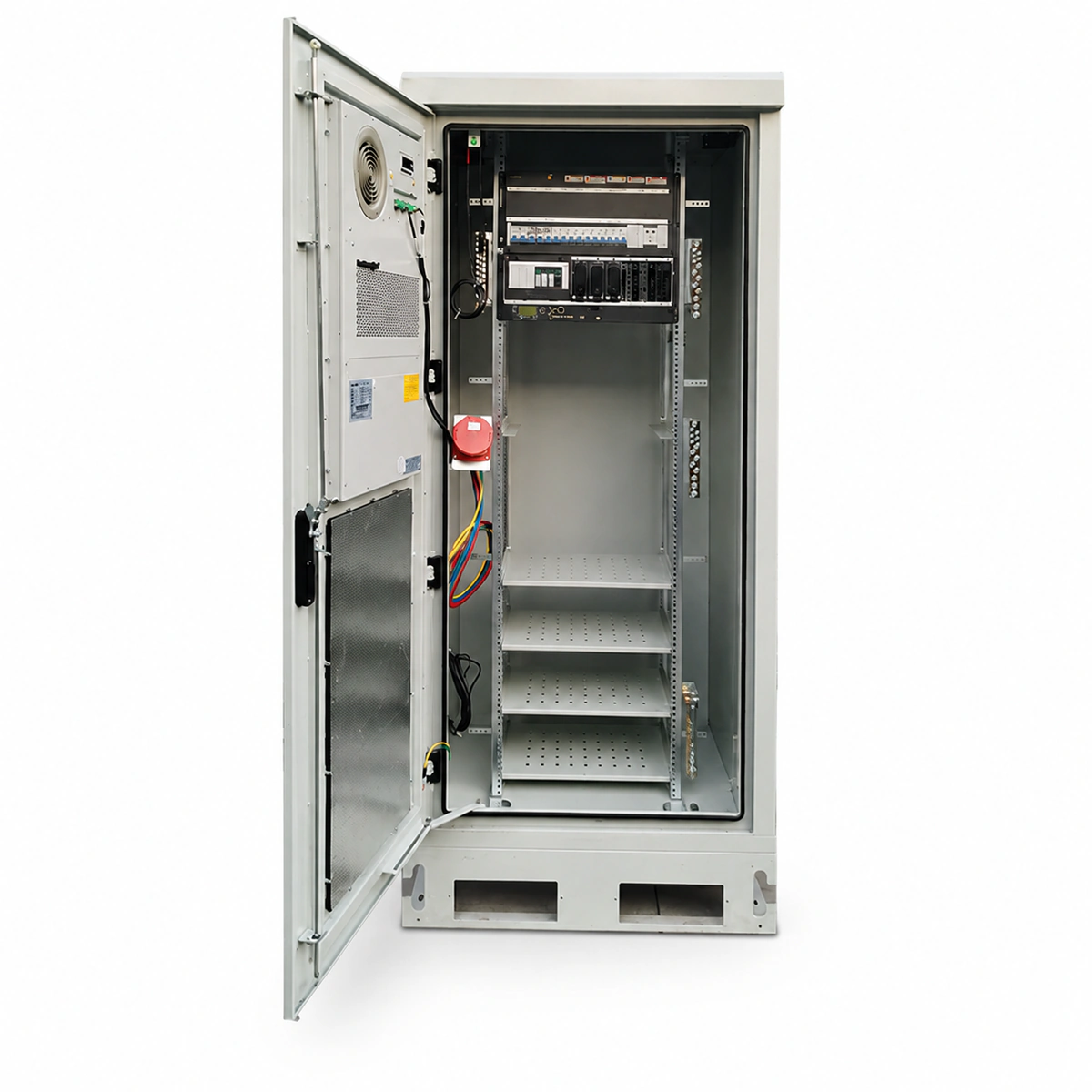

The Huawei TP48600B 2.1m outdoor telecom power system is engineered to provide robust, high-efficiency DC power for outdoor 5G base stations and demanding industrial communication nodes. Featuring an advanced dual-compartment layout that physically segregates sensitive electronics from the battery bank, it accommodates up to 12 Huawei R4850G2 50A ultra-efficient rectifiers to deliver a combined 600A continuous DC output with conversion efficiency exceeding 96%. Thermal management utilizes a high-performance door-mounted heat exchanger for the equipment cabin to block dust and moisture, alongside intelligent DC ventilation for the battery compartment. Driven by the SMU02C advanced controller with an intuitive graphical LCD, the system offers comprehensive telemetry, battery health tracking, and two-stage low voltage disconnect (LLVD/BLVD). Built with hot-dip galvanized steel and outdoor anti-corrosion powder coating, it ensures exceptional reliability across harsh global environments.
Who and where it is for
The Huawei TP48600B 2.1m Outdoor Telecom Power Cabinet is an integrated -48V DC power feeding infrastructure engineered for high-density 5G macro sites. It houses AC/DC distribution, power conversion, environment monitoring, and energy storage within an IP55 dual-compartment enclosure, delivering up to 600A continuous output for rugged outdoor telecom networks.
Core advantages
- Massive 600A capacity housing up to 12 R4850G2 50A rectifiers for heavy 5G loads
- Independent thermal design with door heat exchanger and DC battery ventilation
- Heavy-duty IP55 rated enclosure shielding against dust, moisture, and windborne rain
- SMU02C supervisory unit supporting SNMP, web remote access, and dry contact alarms
- Two-stage low-voltage disconnect protectively isolates priority communication loads
- Standard internal space for housing two groups of high-capacity 48V LiFePO4 batteries
Technical specifications
| Key specifications | Value |
|---|---|
| Cabinet Structure Spec | 2.1m Standard Outdoor Integrated Base Station Power Cabinet (IP55) |
| System Output Capacity | 600A (-48V DC) Continuous Output Capacity |
| Zoned Cooling Tech | Equipment Door Heat Exchanger + Intelligent Battery DC Ventilation |
| Controller System | SMU02C Supervisory Unit with Graphical LCD Telemetry |
| Rectifier Module Slots | 12 Slots (Compatible with Huawei R4850G2 50A HE Rectifiers) |
| DC Distribution Branches | Supports 2 High-Current Battery Inputs + Critical/Non-Critical DC Branches |
| Internal Battery Shelves | Accommodates 2 Strings of Internal 48V 100Ah~150Ah LiFePO4 Batteries |
| Operating Temperature | -40°C to +55°C |
Applications
01
Outdoor 5G and 4G macro base station infrastructure deployments worldwide
02
Remote telecom relay stations located in desert, arctic, or coastal zones
03
SCADA transmission and wireless trunking towers along oil & gas pipelines
04
Railway signaling, GSM-R, and trackside train-control transmission sites
